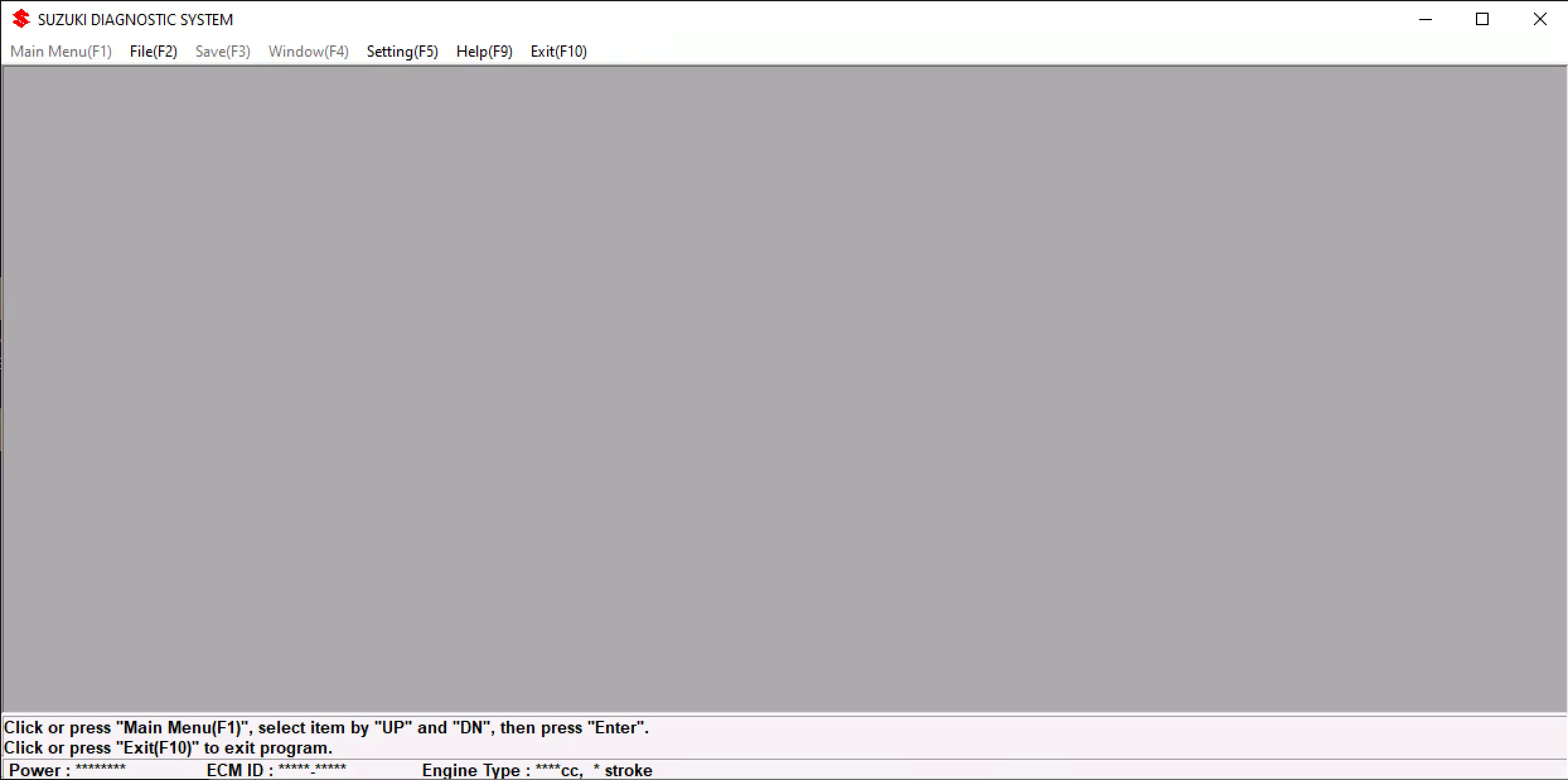

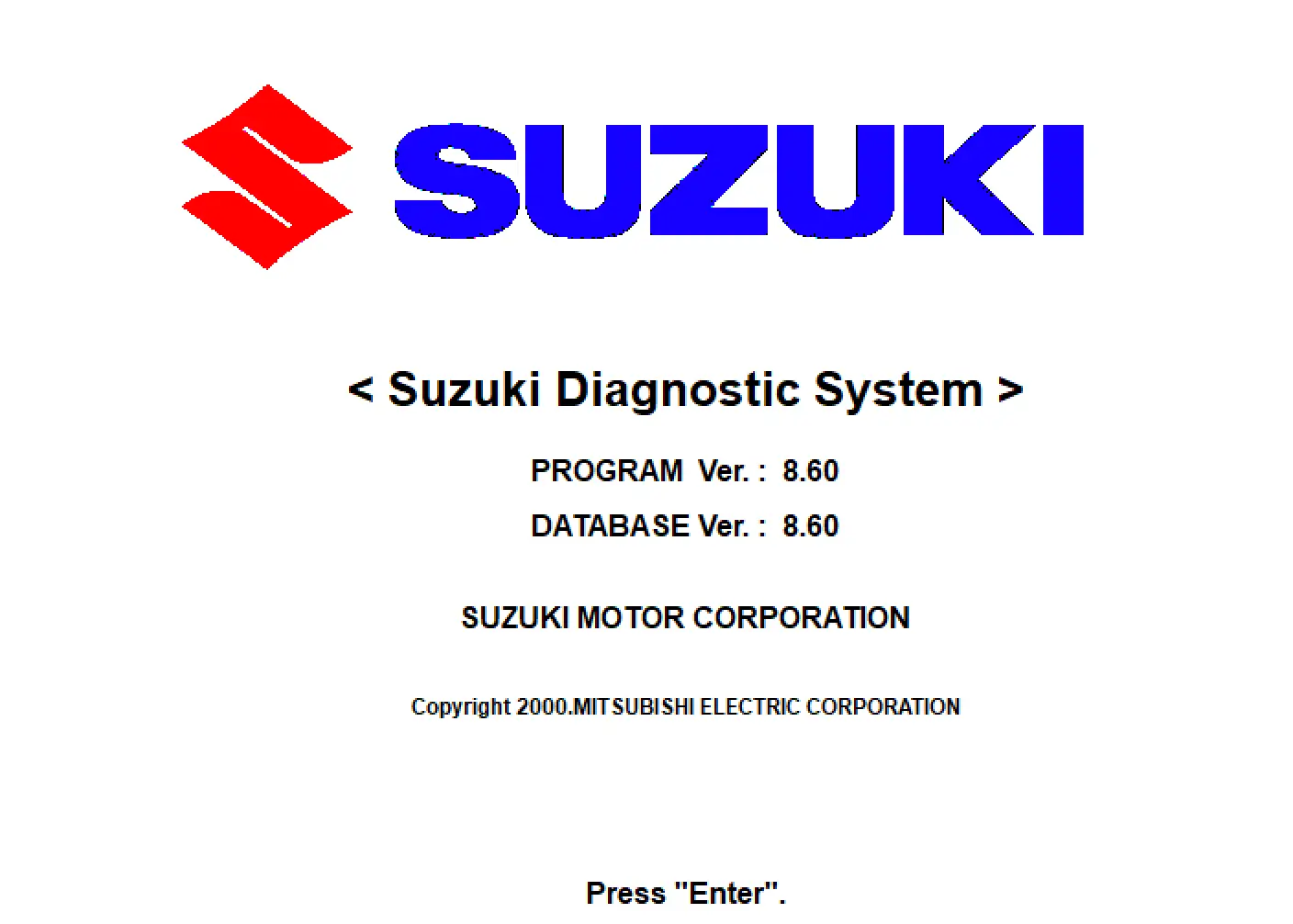

Suzuki Diagnostic System 8.60 is a Windows based service application for Suzuki EFI four stroke and selected two stroke outboard motors. It connects a laptop to the engine control module through a dedicated SDS USB adapter and harness to read fault codes, display live sensor data, perform active tests and log engine parameters during sea trials. This package combines multiple SDS 8.x installers, the official operation manual, FTDI USB drivers and an extensive set of factory service manuals for most Suzuki outboard families.
Highlights
Package contents
Compatibility notes
Suzuki Diagnostic System 8.60 is intended for Suzuki marine outboard engines that support SDS communication. Based on the supplied service manuals and the SDS operation guide it covers a wide range of two cylinder through V6 four stroke DF series engines including DF4–DF6, DF9.9–DF15, DF25–DF30, DF40–DF50, DF60–DF70, DF90–DF140, DF150–DF175, DF200–DF250 and DF300. Many legacy DT two stroke models are also covered through dedicated DT service and information files. Exact coverage depends on engine model code, production year and the SDS database in use. Newest engines that require SDS II or mobile based SDSM tools might not be fully supported by this PC package.
The software expects a genuine or compatible SDS USB adapter with the correct four pin or eight pin diagnostic connector for the engine being tested. Battery condition, wiring integrity and correct harness selection remain critical for reliable communication.
Basic usage
Operating systems
SDS 8.x was originally specified for desktop Windows and is widely used on workshop laptops. Diagnostic kit vendors and SDS documentation note support for Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 and Windows 11 on both 32 bit and 64 bit systems when the correct FTDI driver is installed and the user has permission to run desktop applications. Screen resolution should be at least 1024×768 so that all SDS windows and data lists are visible.
Minimum system requirements
Disclaimer
Source of Files. All software and resources in this post are collected from public and open sources on the internet. We do not claim authorship or ownership.
File Hosting. This forum does not host files. All links point to third party public cloud storage. We are not responsible for external content.
User Responsibility. Software is provided for educational and evaluation purposes only. You use it at your own risk. Authors of the post and forum administration are not liable for any damage.
Highlights
- Dealer level diagnostic access for Suzuki DF series four stroke outboards and many DT series two stroke engines.
- Reads and clears diagnostic trouble codes, shows freeze frame information and saves diagnosis records for later review.
- Live data monitor for engine speed, throttle position, temperatures, pressures, voltage and additional control values.
- Active test capability on compatible engines to trigger fuel pump, injectors, ignition and other actuators from the PC.
- Data logging mode to record engine behaviour on the water then replay and print graphs and reports in the workshop.
- Large PDF library of Suzuki factory manuals and technical bulletins that match the engines supported by SDS 8.x.
Package contents
- QUICK USER QUIDE SDS.rtf – short text guide that explains SDS basics, cable connection and main menu structure.
- video quide for win 10.wmv – screen recording that shows installation and first connection on Windows 10.
- video quide for win 7.wmv – similar tutorial focused on Windows 7.
- Service Manuals – model specific service and technical documents for Suzuki outboards:
1. DF 4-5-6 SPARE P..pdf
2. DF 9,9 15.pdf
2007-2013 Suzuki DF300 4-Stroke V6 Outboards.pdf
3. DF 25 30.pdf
4. DF 40 50.pdf
5. DF 60 70.pdf
6. DF 90 115.pdf
7. DF 140.pdf
8. DF 200 225 250.pdf
DF140 Service_Manual SUB 99501-92J00-01E.PDF
DF150_175_Service_Manual.pdf
DF200_225_250_PDF.pdf
df300_ds.pdf
DF4-5 SERVICE MANUAL.pdf
DF4-5-6 SUPL SERVICE MANUAL.pdf
DF4_5_WHB-SM.pdf
Suzuki_ Outboard_Service_Manual_DF90_100_115_140.pdf
Suzuki_1999-2011_Df40_Df50_Service_Manual_40_50_Hp.pdf
Suzuki_DT_1988_2003_2_225_Hp_Service_Manual_Outboard.pdf
SUZUKI__DF140_Service_info.pdf
SUZUKI__DF140_service_man.pdf
SUZUKI__DF150_175_service_man_1.pdf
SUZUKI__DF150_175_service_man_2.pdf
SUZUKI__DF150_175_service_man_3.pdf
SUZUKI__DF150_175_service_man_4.pdf
SUZUKI__DF150_175_service_man_5.pdf
SUZUKI__DF200_225_250_Service_info.pdf
SUZUKI__DF200_225_250_service_man_2.pdf
SUZUKI__DF200_225_250_service_man_3.pdf
SUZUKI__DF200_225_250_service_man_4.pdf
SUZUKI__DF200_225_250_service_man_5.pdf
SUZUKI__DF200_225_250_Tech_info.pdf
SUZUKI__DF25_30_Service_info.pdf
SUZUKI__DF25_30_service_man.pdf
SUZUKI__DF25_30_Tech_info.pdf
SUZUKI__DF25___DF250_Instruments_1.pdf
SUZUKI__DF25___DF250_Instruments_2.pdf
SUZUKI__DF25___DF250_Instruments_3.pdf
SUZUKI__DF40_50_Service_info.pdf
SUZUKI__DF40_50_service_man.pdf
SUZUKI__DF40_50_Tech_info.pdf
SUZUKI__DF4_5_6_Service_info.pdf
SUZUKI__DF4_5_6_Service_man.pdf
SUZUKI__DF4_5_6_Tech_info.pdf
SUZUKI__DF60_70_Service_info.pdf
SUZUKI__DF60_70_service_man.pdf
SUZUKI__DF60_70_Tech_info.pdf
SUZUKI__DF9.9_15_Servce_info.pdf
SUZUKI__DF9.9_15_Service_man.pdf
SUZUKI__DF9.9_15_Tech_info.pdf
SUZUKI__DF90_115_140_service_man.pdf
SUZUKI__DF90_115_service_info.pdf
SUZUKI__DF90_115_service_man_1.pdf
SUZUKI__DF90_115_service_man_2.pdf
SUZUKI__DF90_115_Tech_info.pdf
SUZUKI__DT2.2_Service_info.pdf
SUZUKI__DT2.2_Tech_info.pdf
SUZUKI__DT30_Service_info.pdf
SUZUKI__DT30_Tech_info.pdf
SUZUKI__DT40W_Service_info.pdf
SUZUKI__DT40W_Tech_info.pdf
SUZUKI__DT9.9_15_Service_info.pdf
SUZUKI__DT9.9_15_Tech_info.pdf
SUZUKI__Outboard_DF200_225_250_Servis__Manual.pdf
SUZUKI__Spec._instrument_for_servicing_outboard.pdf
ZZA 2006 SDS4 english MANUAL.PDF
ZZE 2006 4-STROKE ENGINE .PPT - Suzuki Software v8.6 – full set of SDS 8.x installers and documentation:
SDS 8.0 Setup.exe
SDS 8.20 Setup.exe
SDS 8.30 Setup.exe
SDS 8.40 Setup.exe
SDS 8.50 Setup.exe
SDS 8.60 Setup.exe
SDS_OPERATION_99517-03064-01E_Ver8_150603.pdf – official SDS operation manual for version 8 with software overview, supported models, installation and operating instructions. - USB FTDI FT232RL drivers for Windows – driver packages for the SDS USB adapter:
CDM 2 08 30 Release Info.rtf
CDM v2.08.30 WHQL Certified.exe
CDM v2.08.30 WHQL Certified.zip
Ver 2.08.30\CDM 2 08 30 Release Info.rtf
Ver 2.08.30\CDM v2.08.30 WHQL Certified.exe
Ver 2.08.30\CDM v2.08.30 WHQL Certified.zip
Ver 2.10.00\CDM 2 10 00 Release Info.rtf
Ver 2.10.00\CDM v2.10.00 WHQL Certified.exe
Ver 2.10.00\CDM v2.10.00 WHQL Certified.zip
Compatibility notes
Suzuki Diagnostic System 8.60 is intended for Suzuki marine outboard engines that support SDS communication. Based on the supplied service manuals and the SDS operation guide it covers a wide range of two cylinder through V6 four stroke DF series engines including DF4–DF6, DF9.9–DF15, DF25–DF30, DF40–DF50, DF60–DF70, DF90–DF140, DF150–DF175, DF200–DF250 and DF300. Many legacy DT two stroke models are also covered through dedicated DT service and information files. Exact coverage depends on engine model code, production year and the SDS database in use. Newest engines that require SDS II or mobile based SDSM tools might not be fully supported by this PC package.
The software expects a genuine or compatible SDS USB adapter with the correct four pin or eight pin diagnostic connector for the engine being tested. Battery condition, wiring integrity and correct harness selection remain critical for reliable communication.
Basic usage
- Install the FTDI driver package from the USB FT232RL drivers for Windows folder so that the SDS USB adapter appears as a COM port in Device Manager.
- Run one of the SDS 8.x setup executables, normally ending with installation of SDS 8.60, and follow the on screen steps from the SDS operation manual.
- Connect the SDS diagnostic harness between the engine diagnostic connector and the USB adapter, then connect the adapter to the PC and switch the outboard main key to ON.
- Launch Suzuki Diagnostic System, select the COM port assigned to the adapter in the Setting menu, then open the main menu and choose the desired function such as data monitor, active test or data logging.
- Use the appropriate PDF from the Service Manuals folder that matches the exact engine model to interpret data, follow calibration procedures and confirm all specifications before making adjustments.
- After diagnostics save any necessary reports or logs, close the SDS application, then switch off engine power before disconnecting cables.
