Airbag Universal Repair 2011 v2.0 by EcuVonix Solutions is a Windows based SRS ECU repair utility for workshop use.
It loads crash dumps from airbag control units and generates corrected files so that compatible modules can be reprogrammed and reused after a collision.
Highlights
Package contents
Compatibility notes
Airbag Universal Repair 2011 v2.0 is intended for SRS airbag control units that can be read as binary dumps using a compatible EEPROM or MCU programmer.
The internal database follows the same concept as later Ultimate builds which list support for more than forty brands, thousands of systems and many hundred mask identifiers, though exact coverage depends on this specific 2011 release and is focused on vehicles produced up to about 2011.
Supported units include common Bosch, Siemens or Continental, TRW, Autoliv, Temic and similar airbag ECUs used in European, Asian and North American vehicles.
Functionality can vary between systems, so each repaired file must be verified on the bench or on the vehicle with professional diagnostic equipment before the car is returned to service.
Basic usage
Operating systems
Minimum system requirements
Disclaimer
Source of Files. All software and resources in this post are collected from public and open sources on the internet. We do not claim authorship or ownership.
File Hosting. This forum does not host files. All links point to third party public cloud storage. We are not responsible for external content.
User Responsibility. Software is provided for educational and evaluation purposes only. You use it at your own risk. Authors of the post and forum administration are not liable for any damage.
It loads crash dumps from airbag control units and generates corrected files so that compatible modules can be reprogrammed and reused after a collision.
Highlights
- Multi brand coverage with selectable car maker and system, supporting a large range of Audi, VW, Seat, Škoda, BMW, Mercedes, GM, Chrysler, Fiat, PSA, Renault and many others
- Database driven repair that automatically rebuilds the dump for thousands of supported airbag ECUs based on internal templates and masks

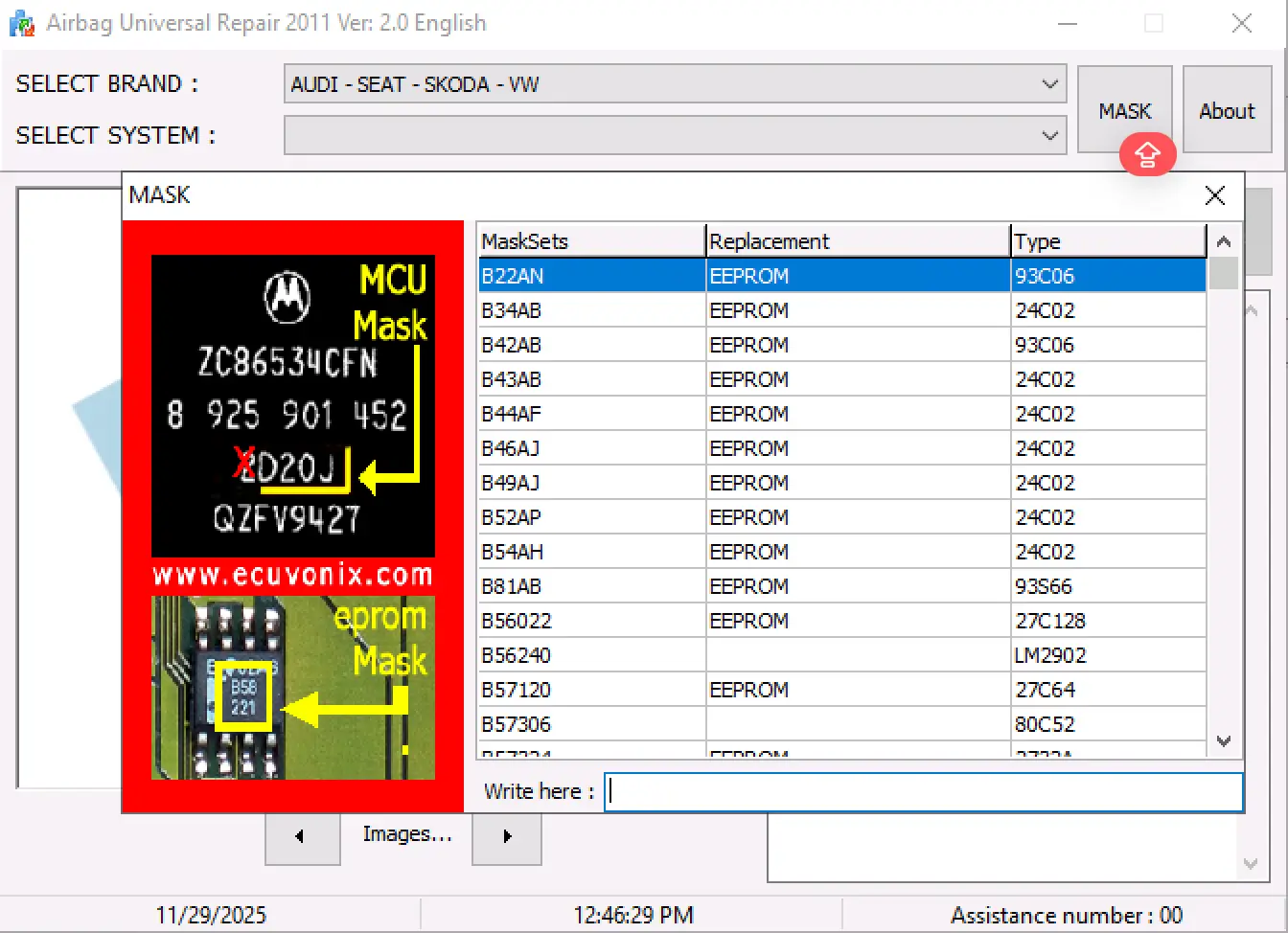

- Information box and “Mask” function that help identify the correct EEPROM or MCU memory according to Bosch and Motorola standards
- Works together with popular external programmers such as UPA USB, Wellon VP or GP series and Galep for reading and writing the SRS module dumps
- Graphical interface that shows brand, system and image hints, designed for fast navigation even when handling large crash data libraries
- Designed for vehicles roughly up to model year 2011, ideal for legacy fleet support and body shop repair of older cars
Package contents
- Airbag Universal Repair 2011 v2.0 English application
- Internal airbag ECU database for dozens of brands and systems current up to around 2011
- Mask identification list with hundreds of EEPROM and MCU mask numbers
- Image based help screens that show typical chip locations and package styles on the PCB
- Program executable and configuration files prepared for use with an external dump programmer
Compatibility notes
Airbag Universal Repair 2011 v2.0 is intended for SRS airbag control units that can be read as binary dumps using a compatible EEPROM or MCU programmer.
The internal database follows the same concept as later Ultimate builds which list support for more than forty brands, thousands of systems and many hundred mask identifiers, though exact coverage depends on this specific 2011 release and is focused on vehicles produced up to about 2011.
Supported units include common Bosch, Siemens or Continental, TRW, Autoliv, Temic and similar airbag ECUs used in European, Asian and North American vehicles.
Functionality can vary between systems, so each repaired file must be verified on the bench or on the vehicle with professional diagnostic equipment before the car is returned to service.
Basic usage
- Install the software on a Windows PC and connect your preferred EEPROM or MCU programmer

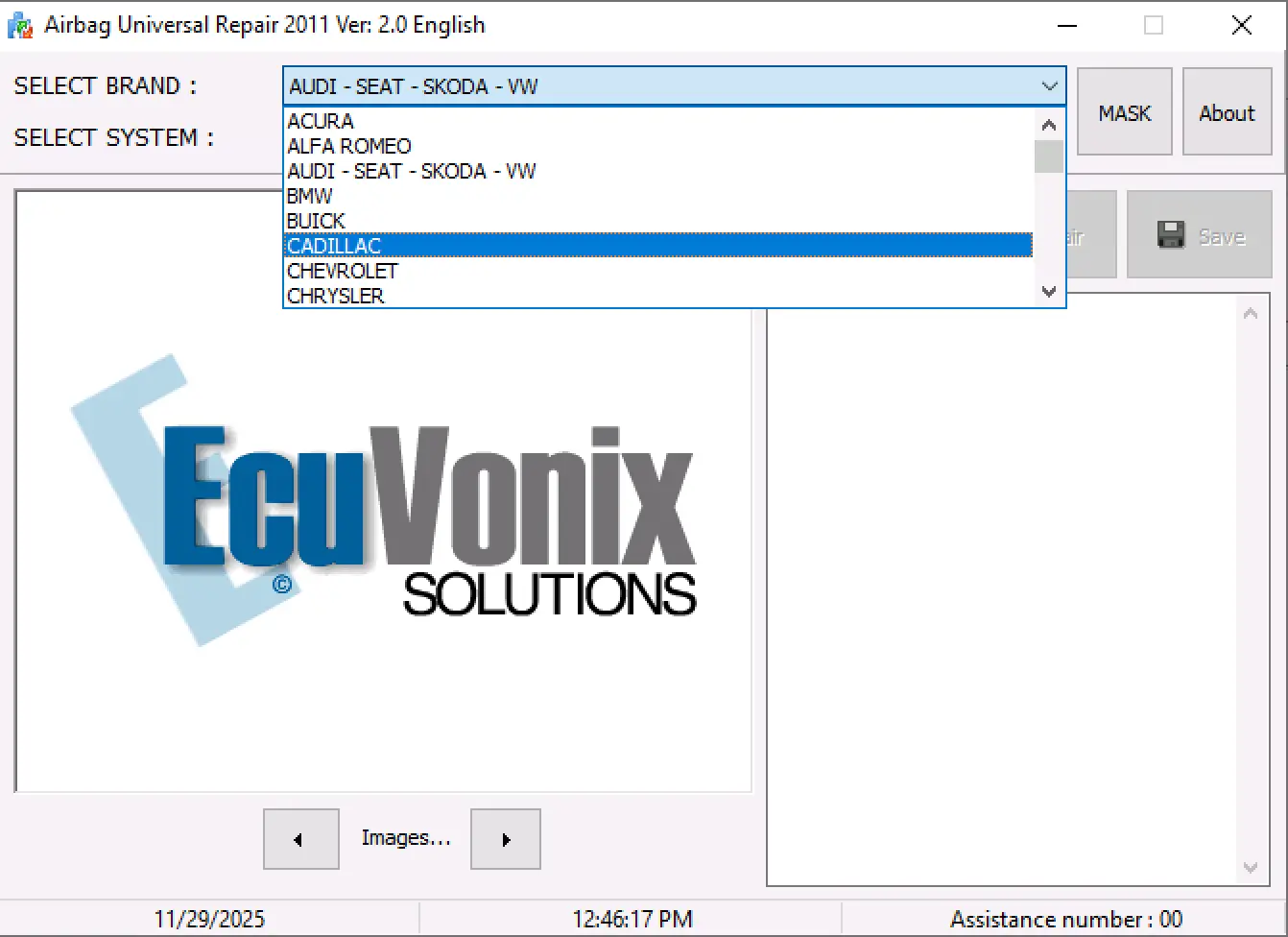

- Select the vehicle brand and system in Airbag Universal Repair, then open the crash dump previously read from the SRS ECU
- Start the repair process so the program rebuilds the file using its internal templates and mask information
- Save the repaired dump under a new file name and program it back into the airbag ECU with your programmer
- Reinstall or connect the module in the vehicle, clear remaining DTCs with a diagnostic tool and confirm that the SRS system reports no stored crash data
Operating systems
- Designed for Microsoft Windows desktop operating systems
- Commonly used on Windows XP and Windows 7 32 bit
- Also reported working on later Windows versions such as Windows 8 and Windows 10 when run with administrator rights on a 32 bit environment or compatibility mode
Minimum system requirements
- 1 GHz or faster x86 compatible processor
- At least 2 GB of RAM
- 500 MB of free hard disk space for program files and repaired dumps
- Screen resolution 1024 x 768 or higher
- One free USB port for your external programmer or hardware key if required
- Local administrator rights to install drivers and run the software
