AlfaOBD 2.1.4.0 for PC is a dealer style diagnostic and configuration suite for vehicles from the Stellantis group. It focuses on Fiat, Alfa Romeo, Lancia and Abarth plus Chrysler, Dodge, Ram and Jeep models and supports many 1994–2017 cars and vans when used with a compatible OBD interface. The program talks directly to engine, gearbox, body, ABS, airbag and other ECUs and exposes many of the same functions that official workshop testers provide.



Key diagnostic functions

• Read and clear diagnostic trouble codes from engine, transmission, ABS, airbag, body, dash and climate control modules.
• Monitor live data with multiple parameters at once and display values as text lists or plotted graphs.
• Run service procedures such as service light reset, oil change reset, DPF regeneration, brake bleeding and steering or suspension calibration where supported.
• Perform active tests and configuration routines including actuator tests, ECU configuration options, proxy alignment and retrofitted equipment activation.
• Log sessions to file so you can review scan history, save fault reports and compare parameters before and after repair.

Supported vehicles and interfaces

• Fiat, Alfa Romeo, Lancia and Abarth passenger cars and light commercials from mid 1990s up to around 2017 depending on model and ECU generation.
• Chrysler, Dodge, Ram and Jeep platforms from roughly 2005–2017 that use FCA electronics and a standard OBD2 diagnostic connector.
• Selected rebadged vans such as Peugeot Boxer and Citroën Jumper that share FCA powertrain and body control systems.
• Works with common OBD interfaces including quality ELM327 or CAN327 USB and Bluetooth adapters, FIAT KKL K line USB cables, OBDKey and similar supported interfaces.
• Supports standard 16 pin OBD2 sockets and model specific adapter leads for older K line or separate ABS and airbag lines.

Package contents

• AlfaOBDsetup.exe – Windows installer for AlfaOBD 2.1.4.0 PC diagnostic application.

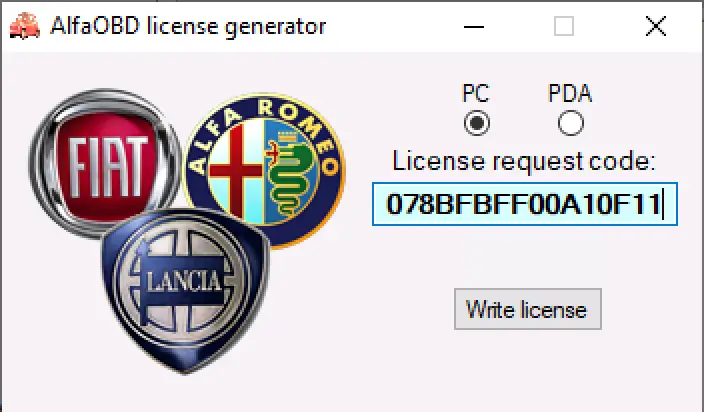

• AlfaOBD_lic_gen.exe – compact license utility used to handle license codes for the installed PC version where a valid AlfaOBD license is available.

Basic usage

• Install the application by running AlfaOBDsetup.exe and complete the standard Windows setup steps.
• Connect a supported OBD interface such as an ELM327 USB or Bluetooth adapter or a FIAT KKL cable to the vehicle and to the PC.
• Start AlfaOBD, select the correct brand, model and ECU function from the Start tab and establish communication with the control unit.

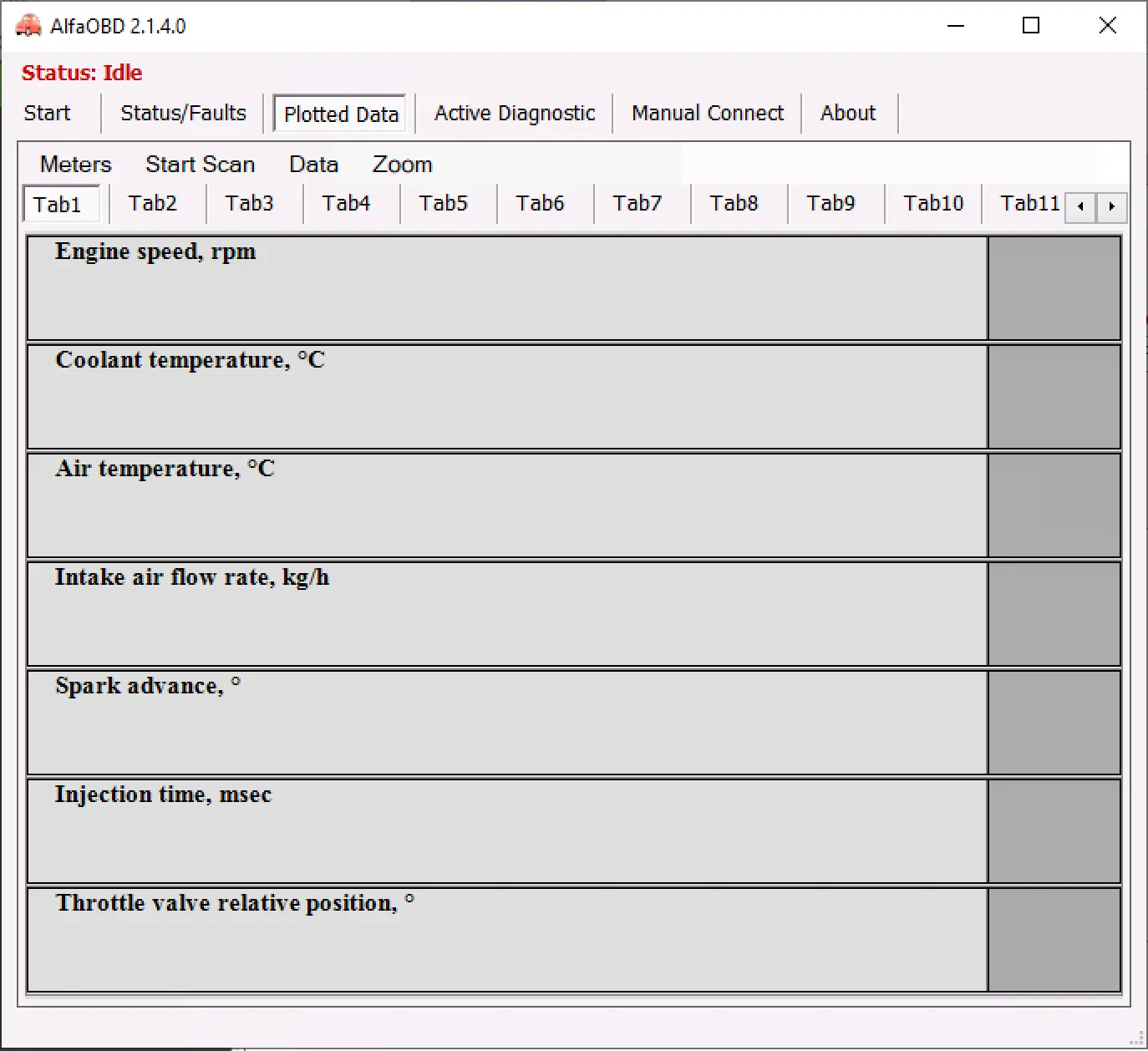

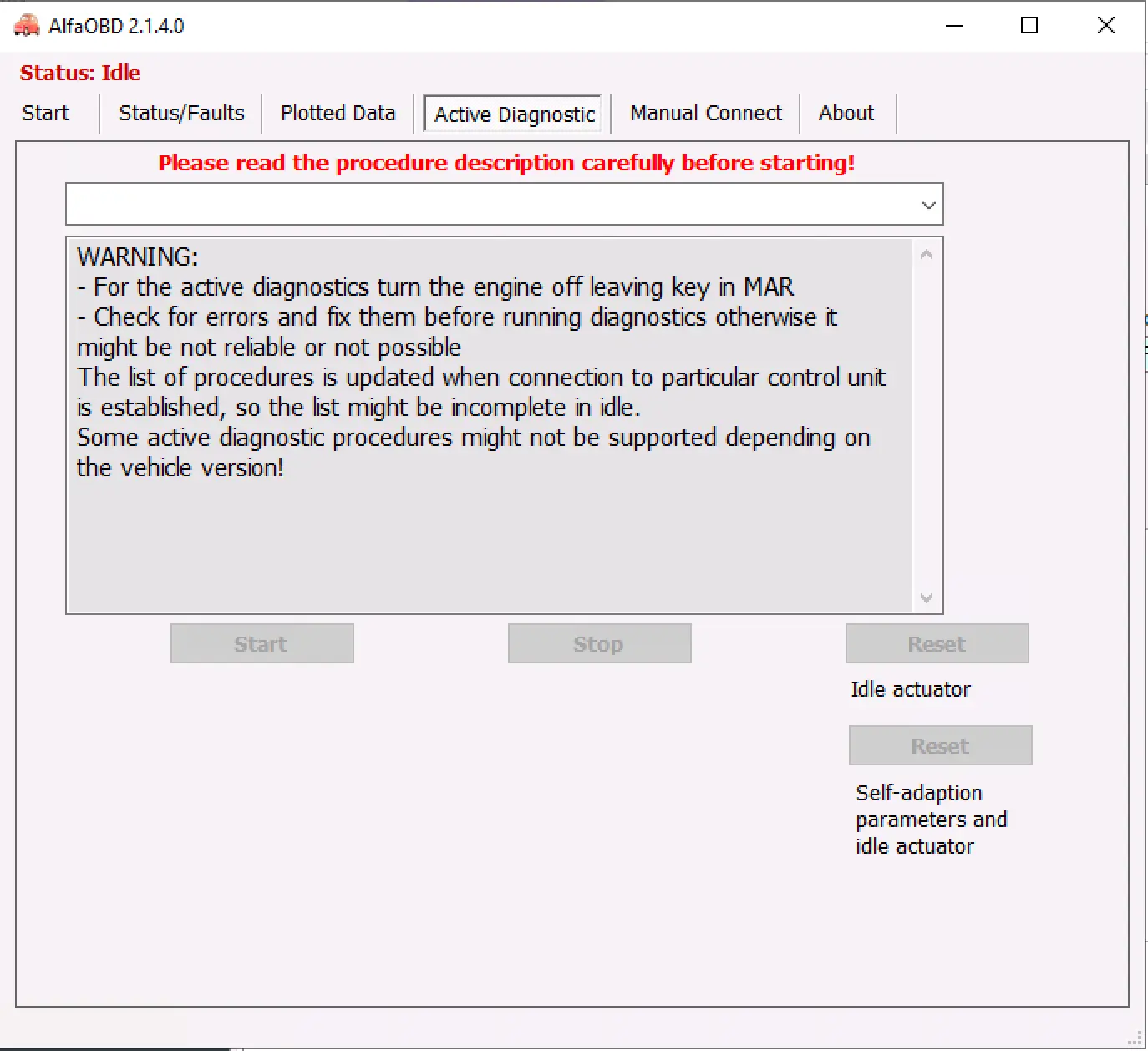

• Use the Status or Faults tab to read and clear DTC codes, then switch to Plotted Data or Active Diagnostic to monitor parameters and run service procedures.

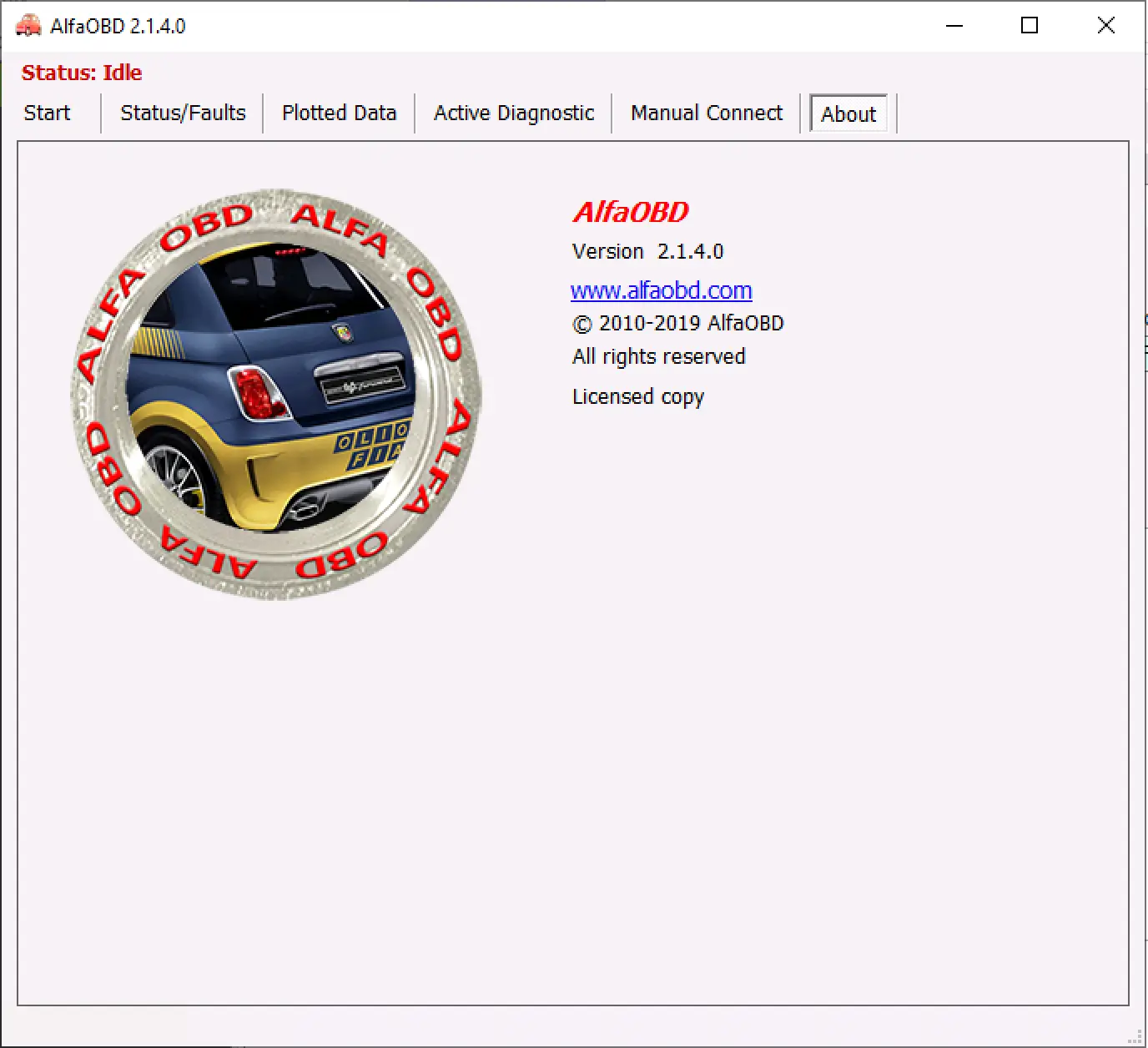

• Activate the software with a valid AlfaOBD license using the About tab and, if required, the included license utility, following the official AlfaOBD instructions for your operating system.

Operating systems
The PC version is a lightweight Windows desktop program and works on modern systems with the required .NET runtime.

• Windows XP 32 bit legacy support
• Windows 7 32 bit and 64 bit
• Windows 8 and 8.1 32 bit and 64 bit
• Windows 10 32 bit and 64 bit
• Windows 11 64 bit with Microsoft .NET Framework 4.8 or newer

Minimum system requirements

• CPU: 1 GHz or faster x86 or x64 compatible processor
• RAM: 2 GB system memory minimum, 4 GB or more recommended for long diagnostic sessions
• Storage: At least 200 MB free disk space for program files, logs and backup copies of ECU reports
• Display: 1024 x 768 resolution or higher for comfortable viewing of tables and plotted data
• Other: Quality ELM327 or similar supported OBD interface, installed USB or Bluetooth drivers, stable vehicle battery voltage during communication, local administrator rights for installation and updates
