Technical tutorial summarizing proven hardware repairs for Autocom/Delphi CDP-series VCIs (incl. many clones). Covers K-line issues, relay/driver faults, power supply/VR checks, and other board fixes gathered from a structured service note.



Highlights

• K-line fix: replace pull-ups R74/R75 with >390 Ω (SMD code “391/3900”) and fit quality 9241A K-line transceivers to restore BMW E60/E90 comms.
• Signal check: ~12 V idle on K & L; ~1 V dip during init; if pulses present on 9141 TX but no bus activity, suspect the 9241 device or its pull-ups.
• Relay subsystem: in the main screen (USB powered) three relays must be ON; for BMW, specific OBD pins must also switch—diagnose/replace 74LV125D (relay driver) if logic is wrong.
• Power rails & robustness: refresh electrolytics (e.g., 47 µF/50 V for trucks), check the nearby voltage regulator, reflow weak solder, verify OBD-II pins, and inspect resistors around the MAX1487.
• Service tips: keep the tool offline when testing software; update firmware with VCI on USB and connected to a vehicle supply.

Package contents

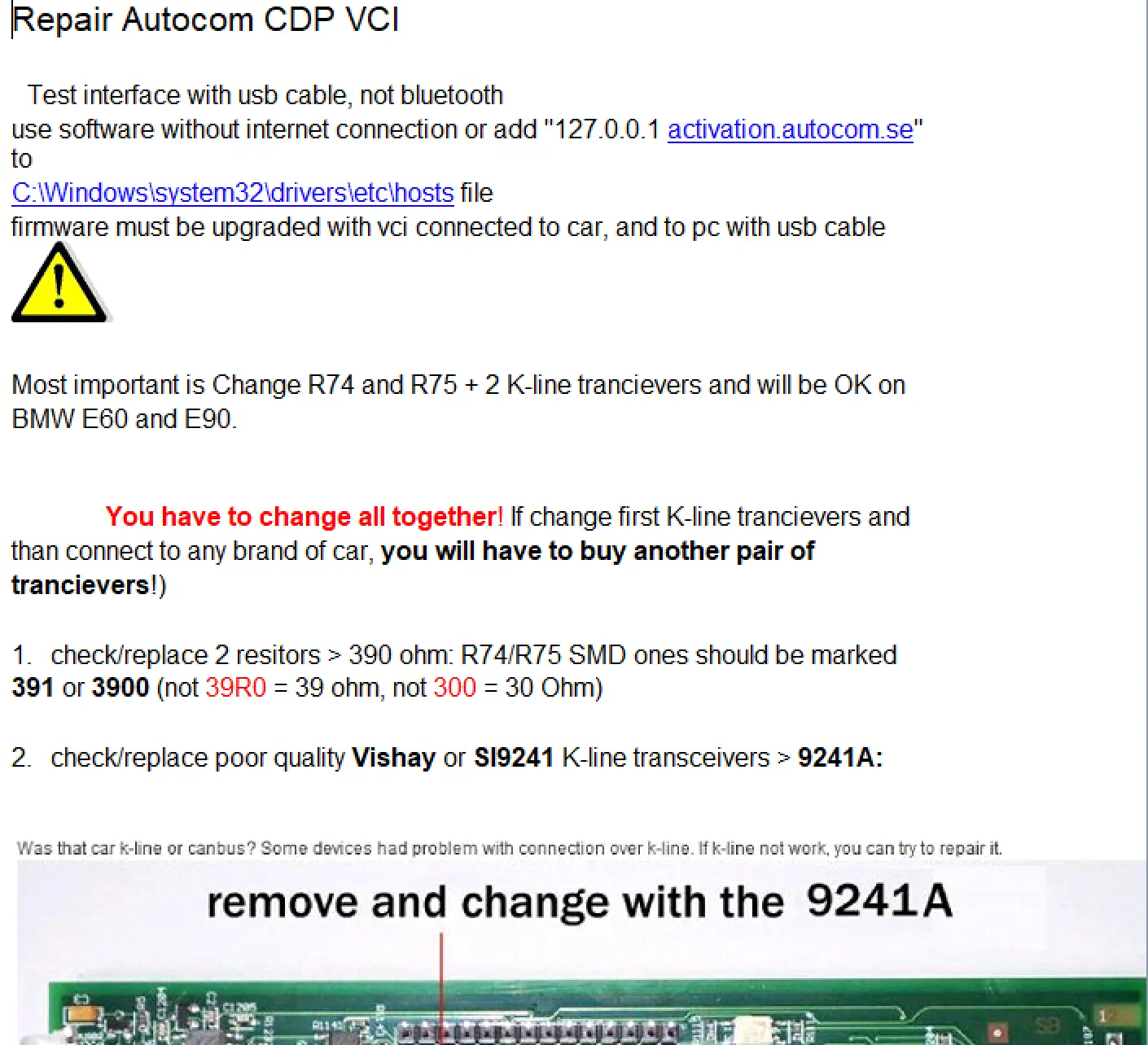

• Repair Autocom CDP VCI Tutorial (.rtf) — illustrated repair walkthrough and measurement notes.

Steps overview

1. Preparation: test via USB (not BT); run the diagnostic app offline; perform firmware update with the VCI connected to the car and to the PC.
2. K-line hardware: replace R74/R75 with >390 Ω (use “391/3900”, avoid “39R0/300”); replace poor-quality Vishay/SI9241 parts with 9241A grade.
3. Bus measurements: verify ~12 V idle on K & L; look for ~1 V dip on init; if pulses exist on 9141-TX but the line doesn’t switch, the transceiver/pull-ups are suspect (optionally raise pull-up to ~560 Ω, up to ~1 kΩ).
4. Relays & drivers: from the app’s main window, expect three relays ON; for BMW, two additional relays (OBD pins 1, 7/15) must engage. If a relay sticks, service/replace it; if multiple relays energize together, replace the 74LV125D drivers (a.k.a. “LV125D”).
5. Logic/power extras: where applicable, replace MAX chips on relay board if Ford lines fail; verify OKI IC variant; renew electrolytics (truck use needs 47 µF/50 V), check the voltage regulator, and straighten/retension OBD-II pins.
6. RS-485 & timing parts: check four resistors around MAX1487 (R36/R34/R33/R35) and timing parts (R58, C11, C5) — correct values improve K-line stability.
7. Solder quality: reflow dull joints with quality flux; hot-air rework problem areas if needed.
8. Misc: inspect the small IC near USB (ATMLH124/93LC46xx series) if ID/config storage is suspect.

Basic usage

• Open the .rtf tutorial and follow the board photos/notes for component locations and expected measurements.
• Work methodically: measure → replace/repair → retest communication on a vehicle.

Operating systems
Windows PC required for flashing/diagnostics (common use: Windows 7/8/10/11).

Minimum system requirements

• USB 2.0 port and stable 12 V vehicle supply
• Basic soldering/rework tools; multimeter (and preferably an oscilloscope)
