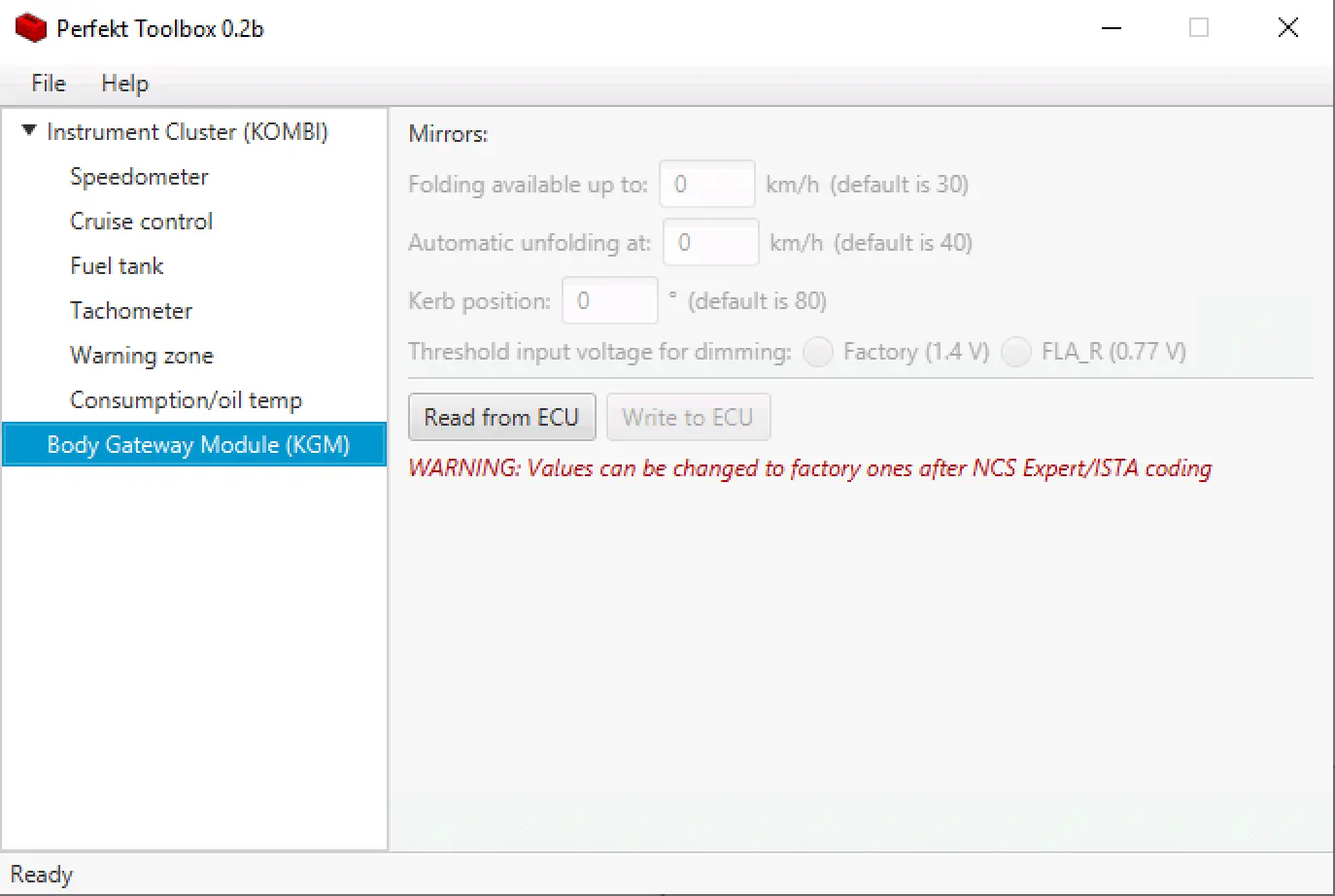

Perfekt Toolbox is a lightweight utility for BMW E6x/E7x/E8x/E9x platforms that reads, tests and adjusts KOMBI instrument cluster parameters and selected Body Gateway Module (KGM) options. It focuses on safe calibration edits and service checks within the cluster domain.
Highlights

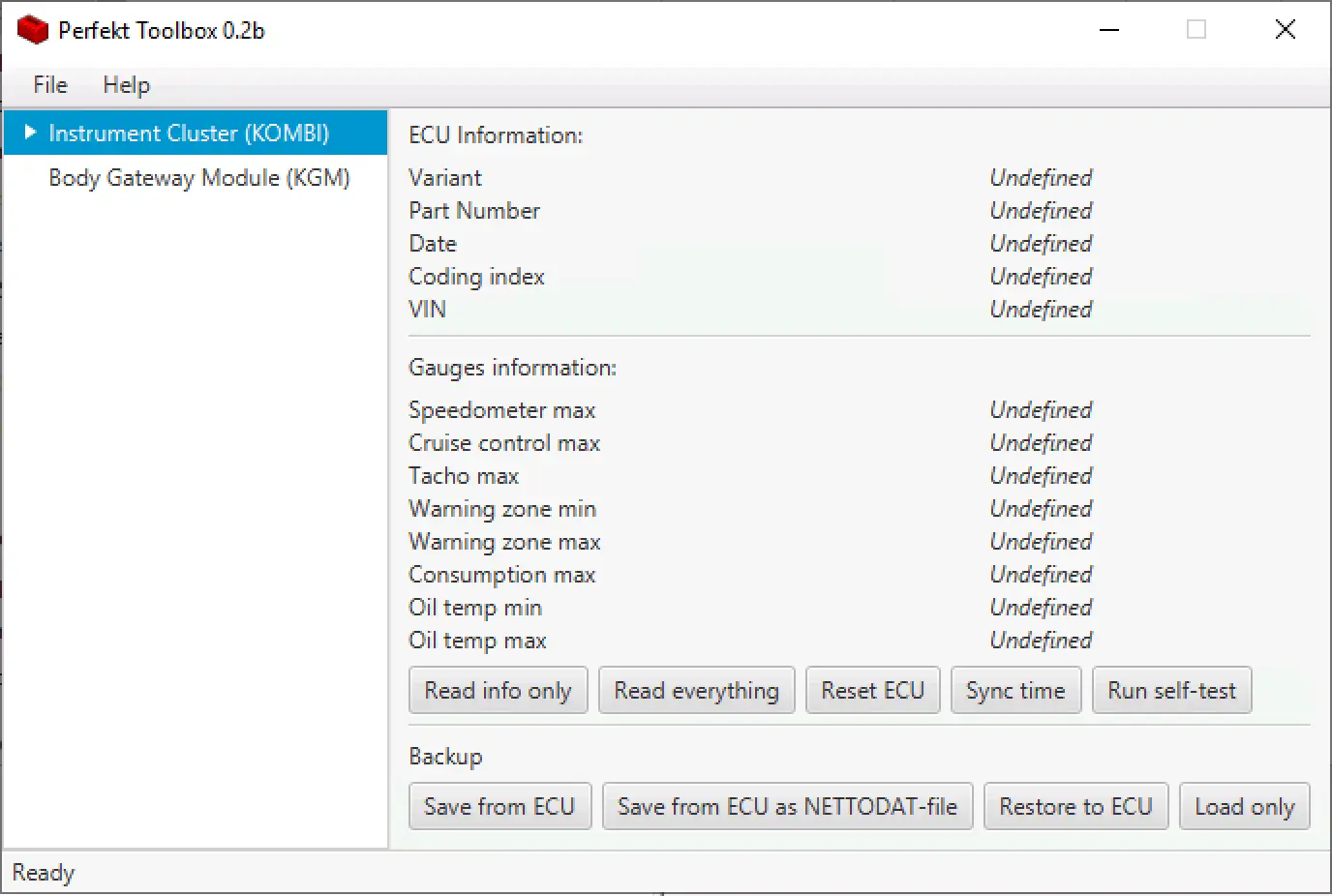

- Read ECU information, run cluster self-test and sync time

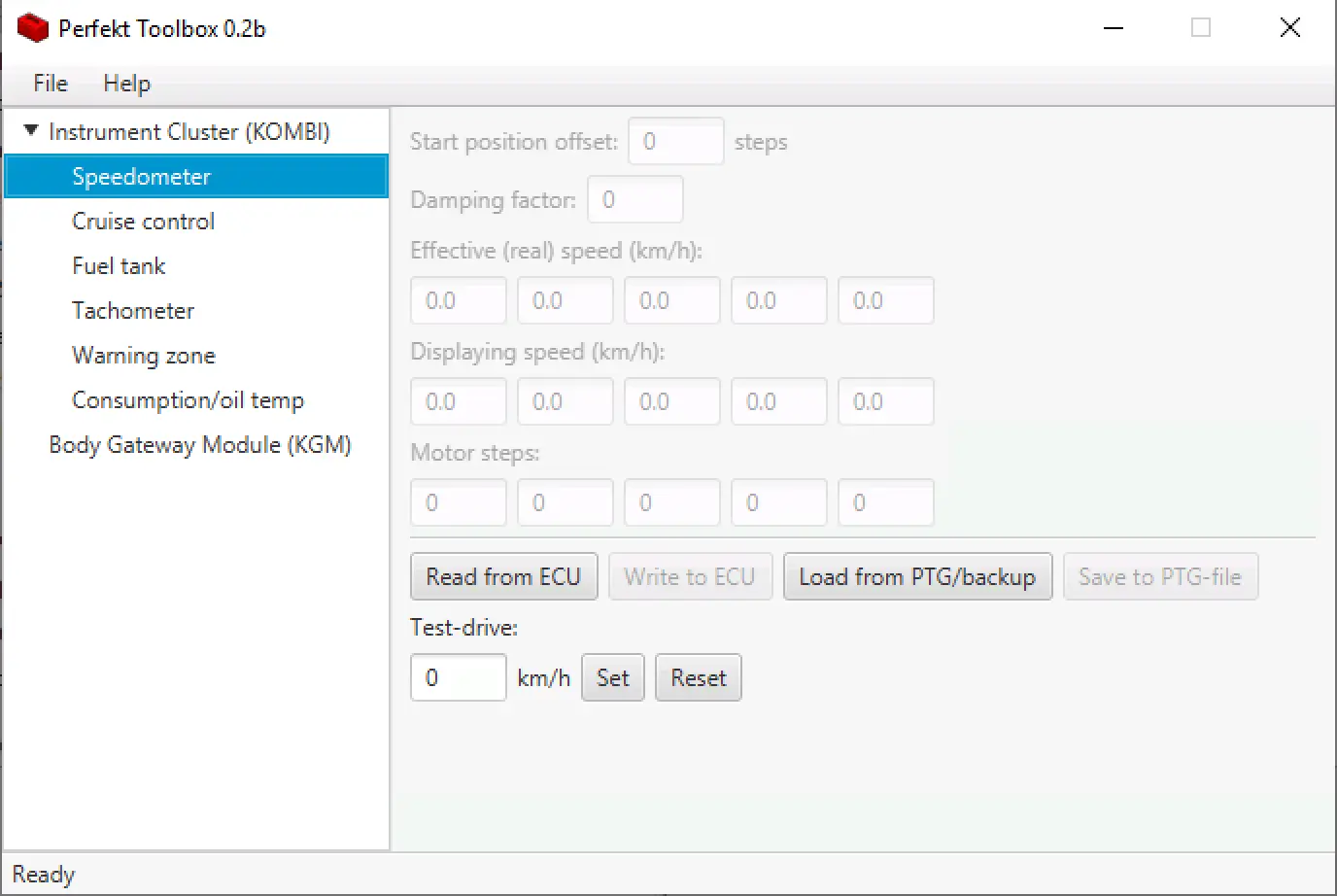

- Speedometer calibration with damping, display vs. real speed and motor step controls

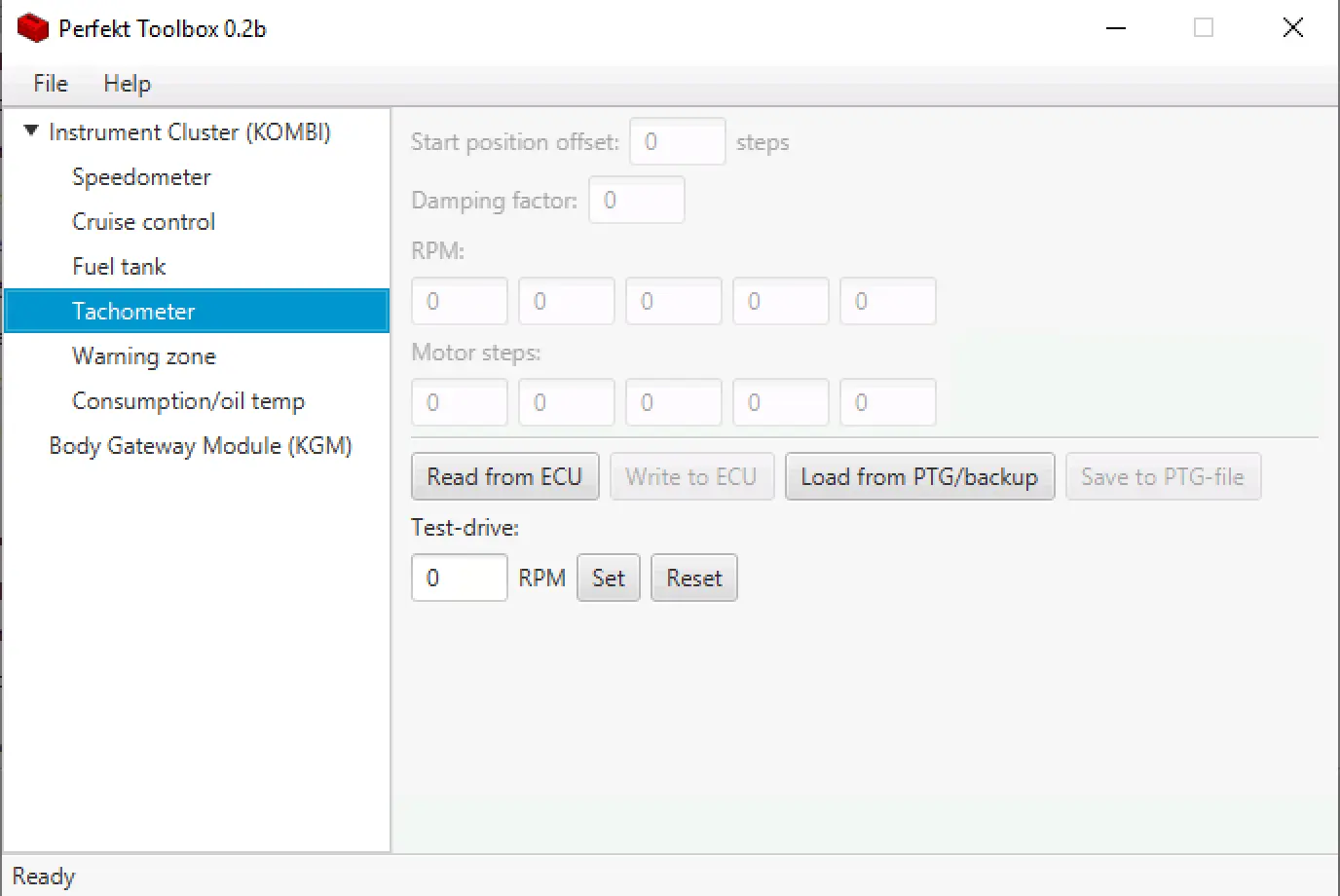

- Tachometer scaling and redline-related settings for supported clusters

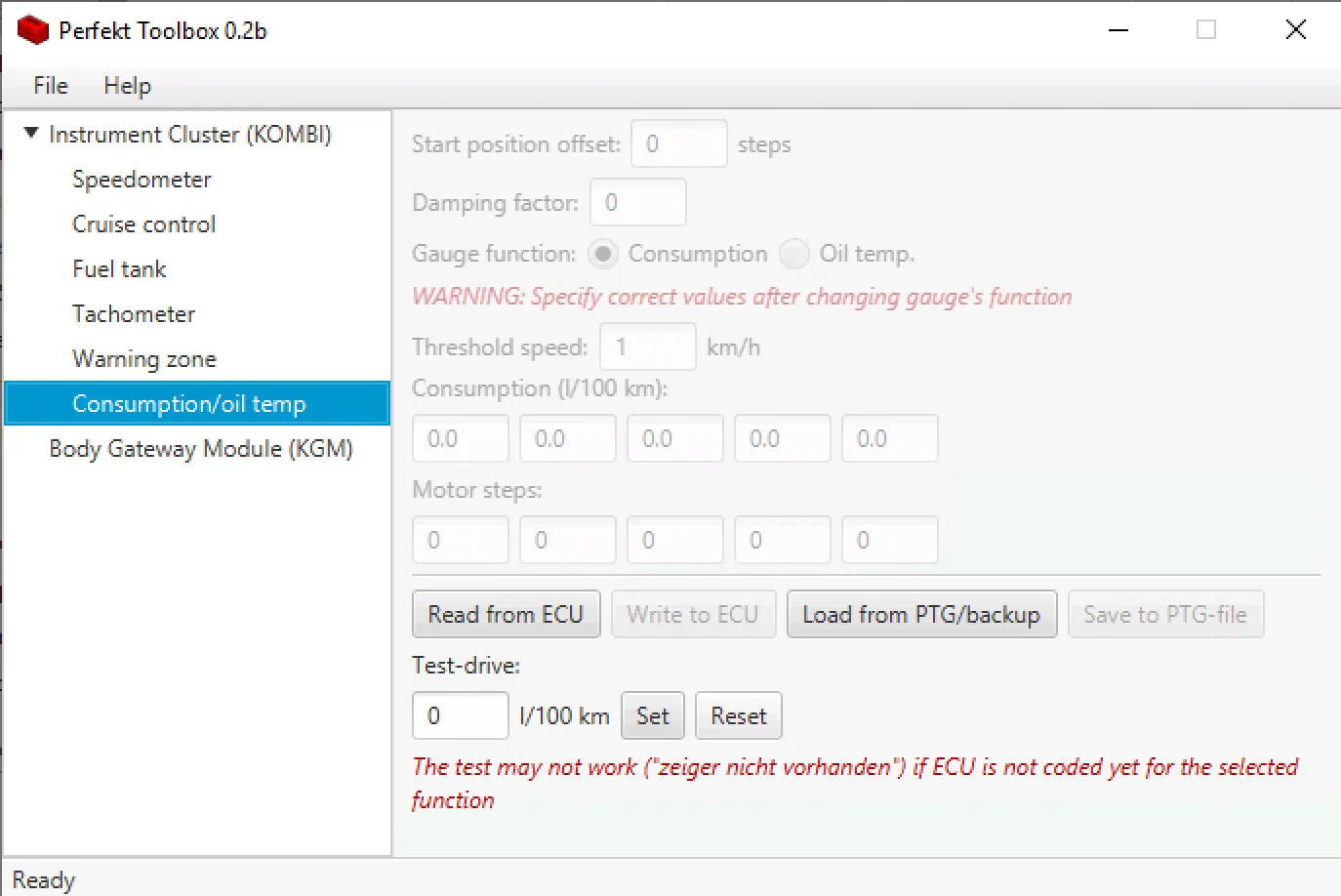

- Switch “consumption” gauge to oil-temperature function with related thresholds

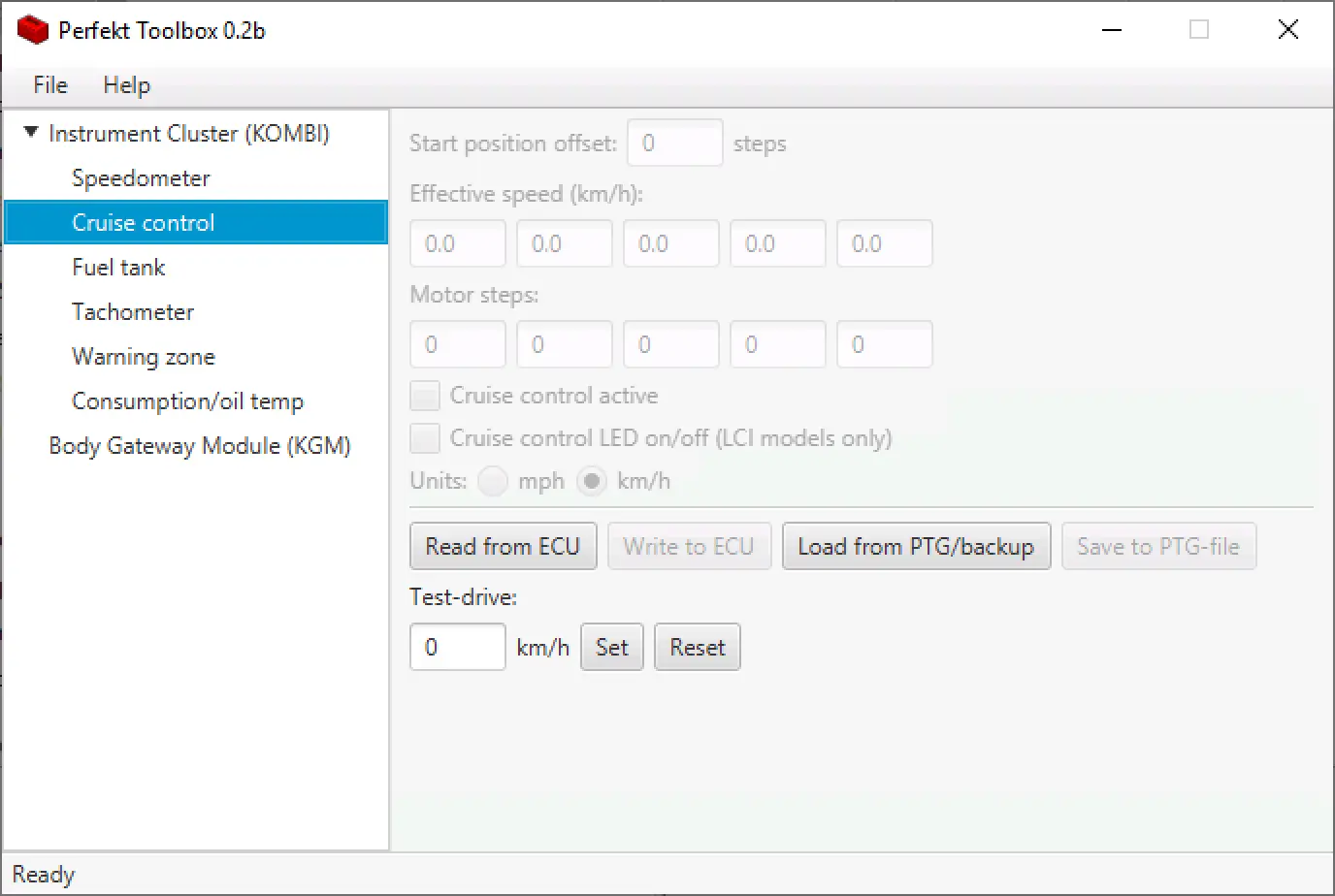

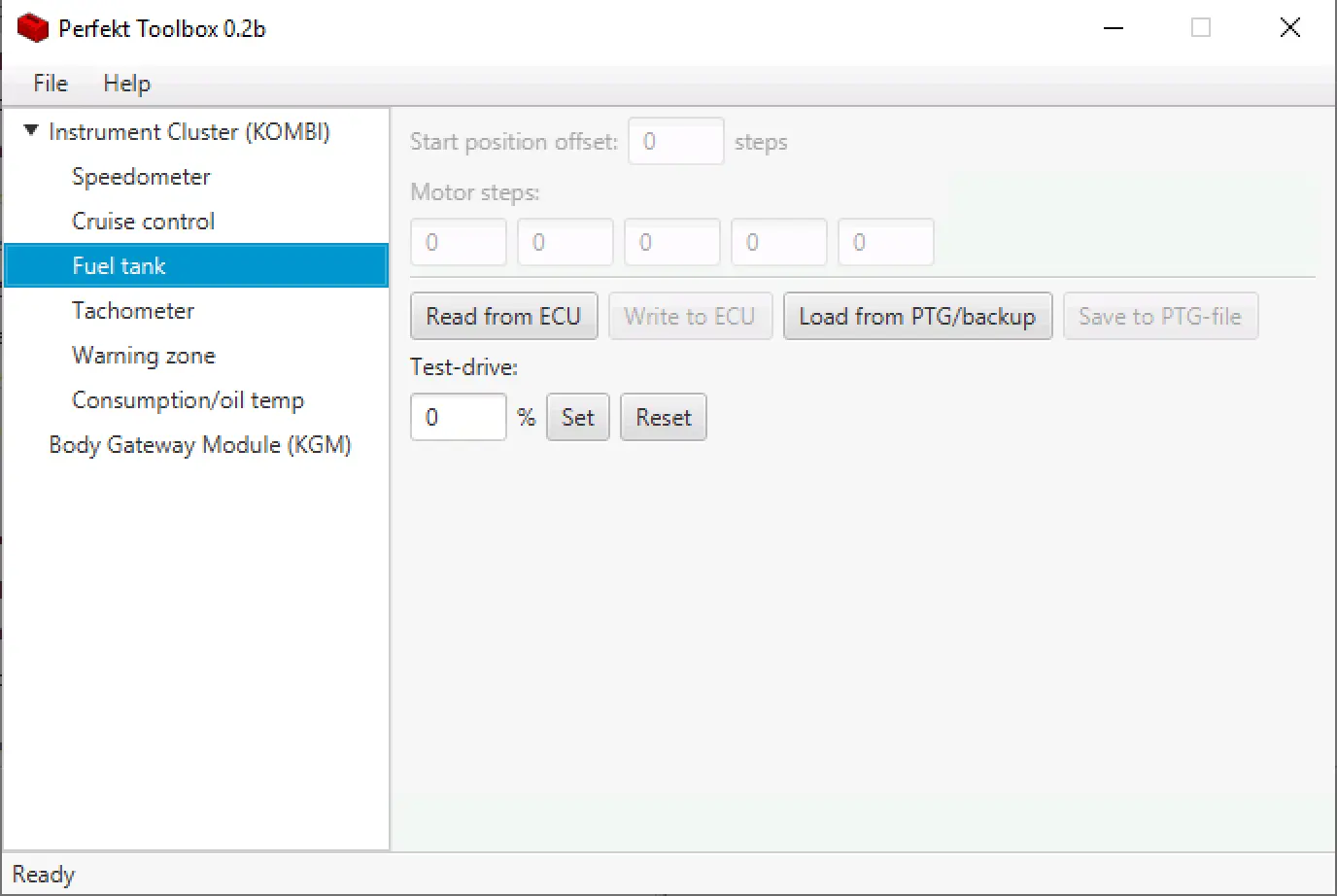

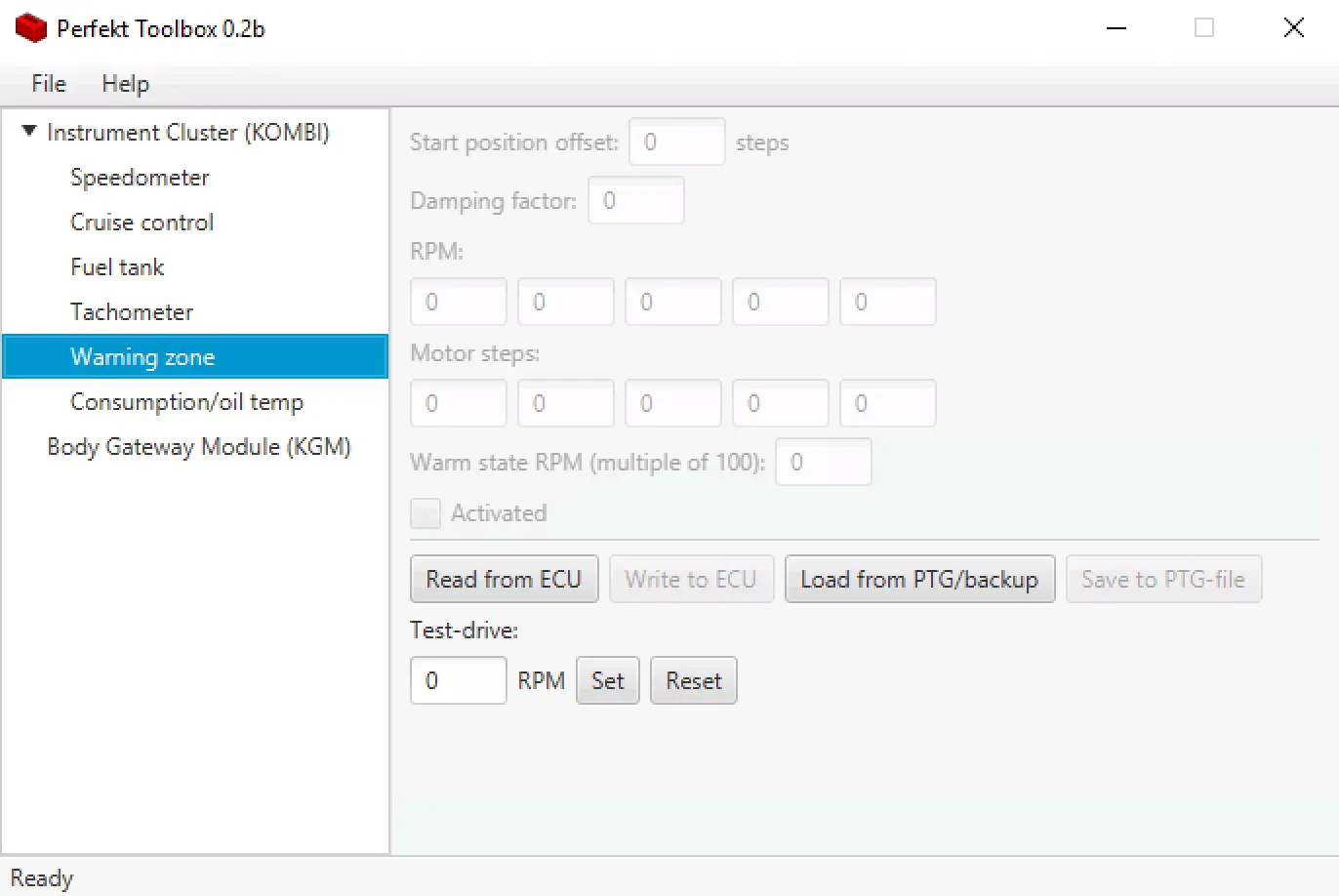

- Cruise control indicator behavior, warning zones and fuel tank test values
- Backup/restore using PTG files and NETTODAT for traceable changes
Package contents
- Perfekt Toolbox 0.2b.exe
Compatibility notes
Intended for BMW E-series clusters (E6x/E7x/E8x/E9x KOMBI) with communication via a compatible K+DCAN interface and a working BMW Standard Tools/EDIABAS environment. Feature availability varies by cluster variant, firmware level and vehicle equipment.
Basic usage
- Install prerequisites (BMW Standard Tools/EDIABAS), connect a K+DCAN interface and switch ignition on
- Open Perfekt Toolbox, select KOMBI, then use [Read everything] to populate values
- Adjust only the parameters required for your service task and save a PTG backup before writing
- Write changes to the ECU and run the self-test to verify gauge operation
- Document results and revert from backup if behavior is not as expected
Operating systems
Windows 7, Windows 8.1, Windows 10, Windows 11.
Minimum system requirements
CPU: dual-core 2.0 GHz or higher
RAM: 2 GB or more
Storage: 100 MB free space
Interface: K+DCAN USB with drivers
Admin rights: required for driver and COM access
