BMW HU Tool v2.6.PRE is a workshop utility for working with BMW CIC, NBT and EVO head units on E, F and G series vehicles. It focuses on managing FSC and SWT data, preparing USB based update projects and running engineering level checks during retrofits, repairs and configuration work.




Highlights

• Supports multiple BMW head units including CIC, NBT, NBT EVO and related platforms for passenger cars and some MINI models.

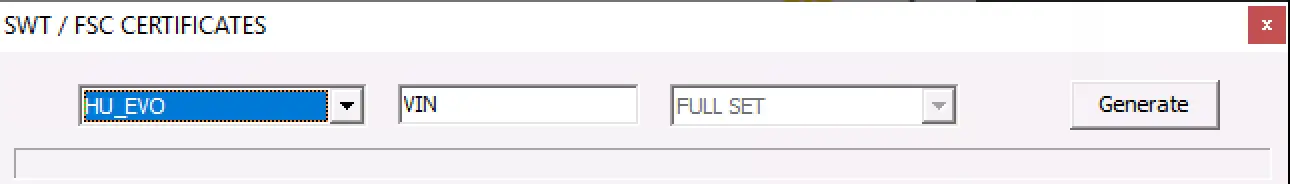

• SWT and FSC workspace that lets you prepare VIN based certificate sets for navigation, connected services and feature activation with valid codes.

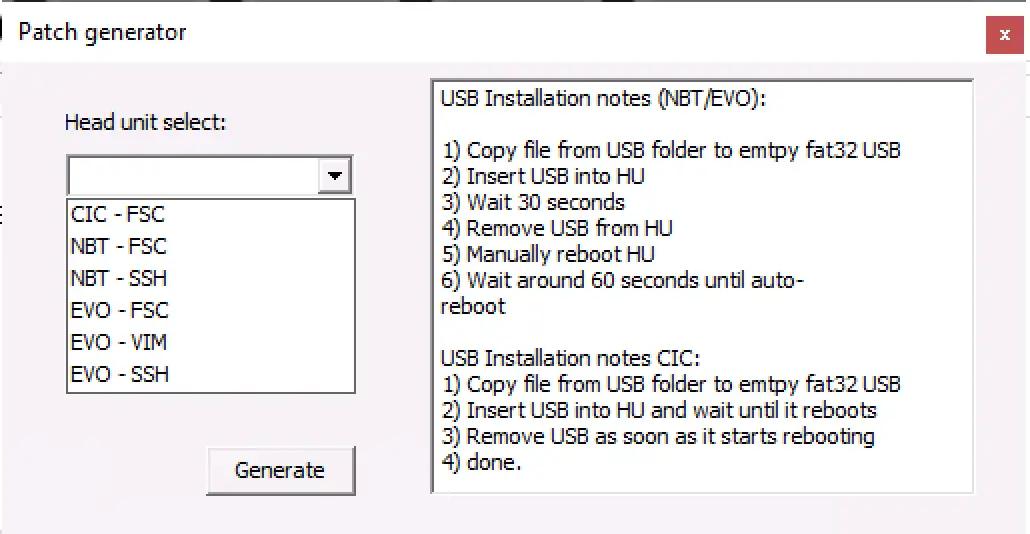

• Head unit update package creator for generating USB projects that can be applied through the vehicle USB port following official procedures.

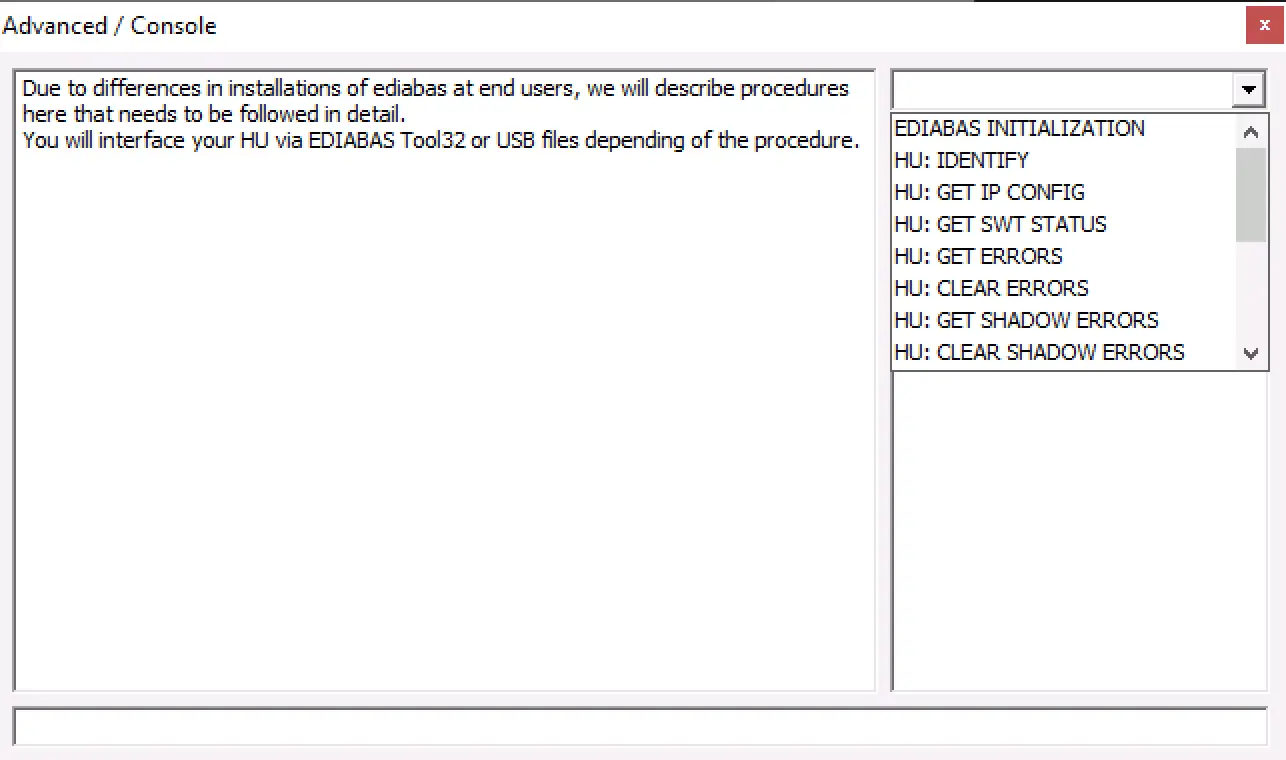

• Advanced console that sends predefined EDIABAS jobs to the head unit to read identification data, check status information and clear stored faults.

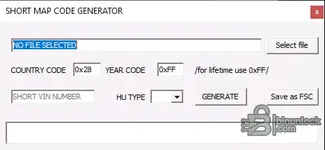

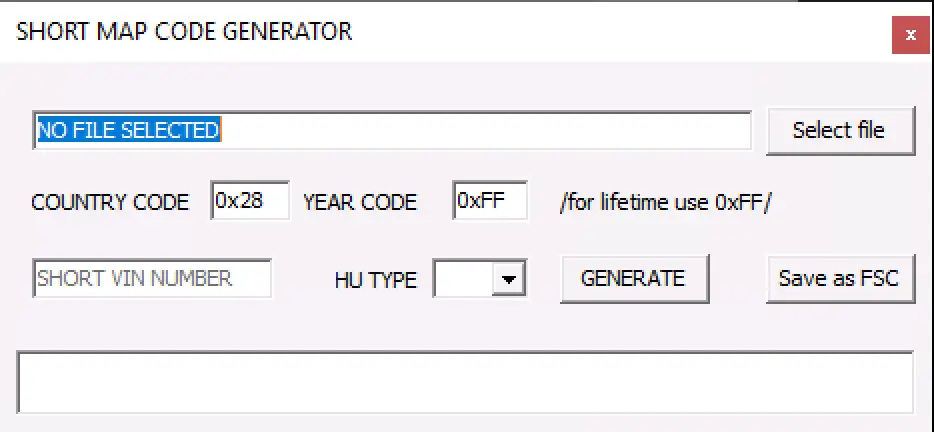

• Short map code helper that can read existing FSC data files and assist in preparing map related codes for different regions and years.
• Designed to sit alongside BMW engineering environments that use EDIABAS, INPA, Tool32 and ESYS so technicians can switch between tools during a session.

Package contents
Example archive layout for this release

• HU_Tool_v2.6_PRE\HU_Tool_v2.6_PRE.exe
• HU_Tool_v2.6_PRE\HU_Tool_Advanced_Console_Scripts\
• HU_Tool_v2.6_PRE\HU_Tool_Documentation_EN.pdf

Compatibility notes
HU Tool v2.6.PRE is intended for use with BMW CIC, NBT and EVO head units that communicate over EDIABAS or ENET based diagnostic setups. Behaviour can differ slightly between software levels and vehicle platforms so some options may not be available on every car. For safe operation the head unit must be supplied with stable voltage and connected through a reliable ICOM or ENET interface. All FSC and SWT handling should be based on legitimate data sourced from authorised providers or OEM documentation.

Basic usage

• Install HU Tool on a Windows diagnostic laptop that already has a working EDIABAS and BMW Standard Tools or ESYS environment.
• Connect to the vehicle head unit over ICOM or ENET and confirm communication with your usual diagnostic software before opening HU Tool.

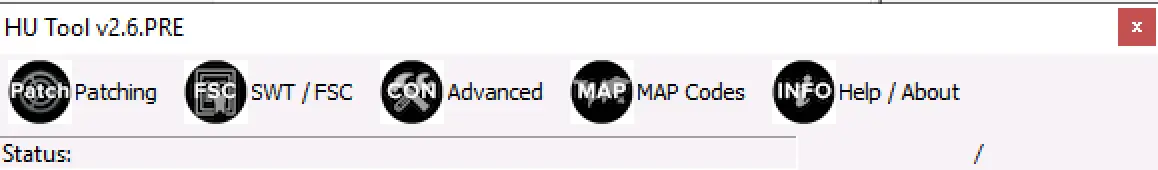

• Use the main tabs to access the required function for the current job, such as certificate workspace, head unit update projects, engineering console or map helper.
• When preparing USB based projects always follow the on screen notes for the selected head unit type and verify that the correct VIN and platform have been chosen.
• After finishing a session close HU Tool and recheck the head unit with your standard diagnostic toolset to confirm that all functions and coding remain as expected.

Operating systems
Typical workshop configurations for HU Tool v2.6.PRE

• Windows 7 32 bit and 64 bit
• Windows 8 and 8.1 64 bit
• Windows 10 64 bit

Minimum system requirements

• CPU 2 GHz or faster x86 or x64 processor
• RAM 2 GB minimum with 4 GB or more recommended when running other BMW tools in parallel
• Storage 1 GB free disk space for application files and project data
• Display 1366x768 resolution or higher
• Other Installed EDIABAS and network access to ICOM or ENET interface plus administrator rights during setup
