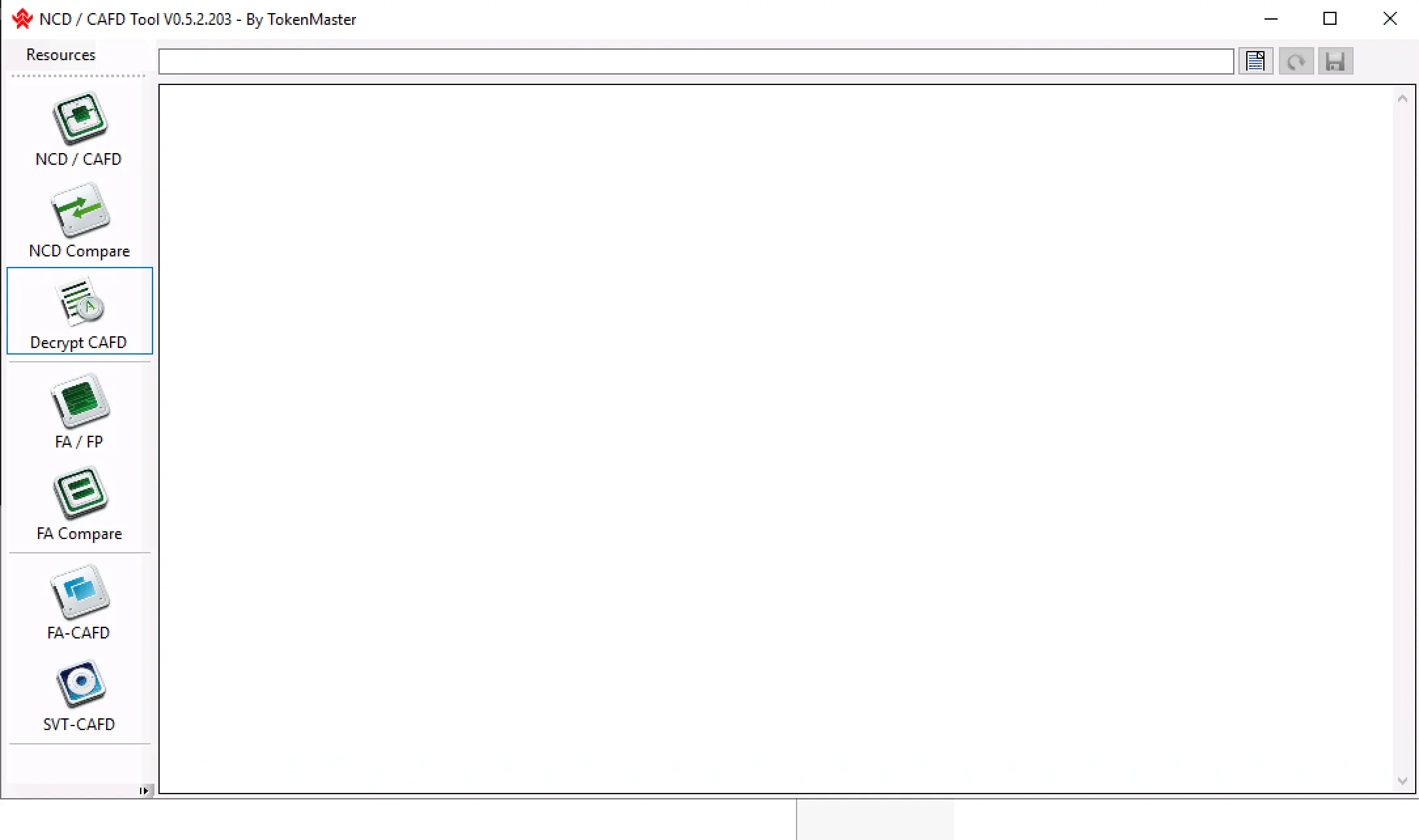

NCD/CAFD Tool is a coding analysis utility used with BMW F/G-series workflows. It helps read and view ECU coding data, decrypt CAFD where applicable, compare NCD files, and review FA/FP information against PSdZData mappings for safer, traceable edits.
Highlights

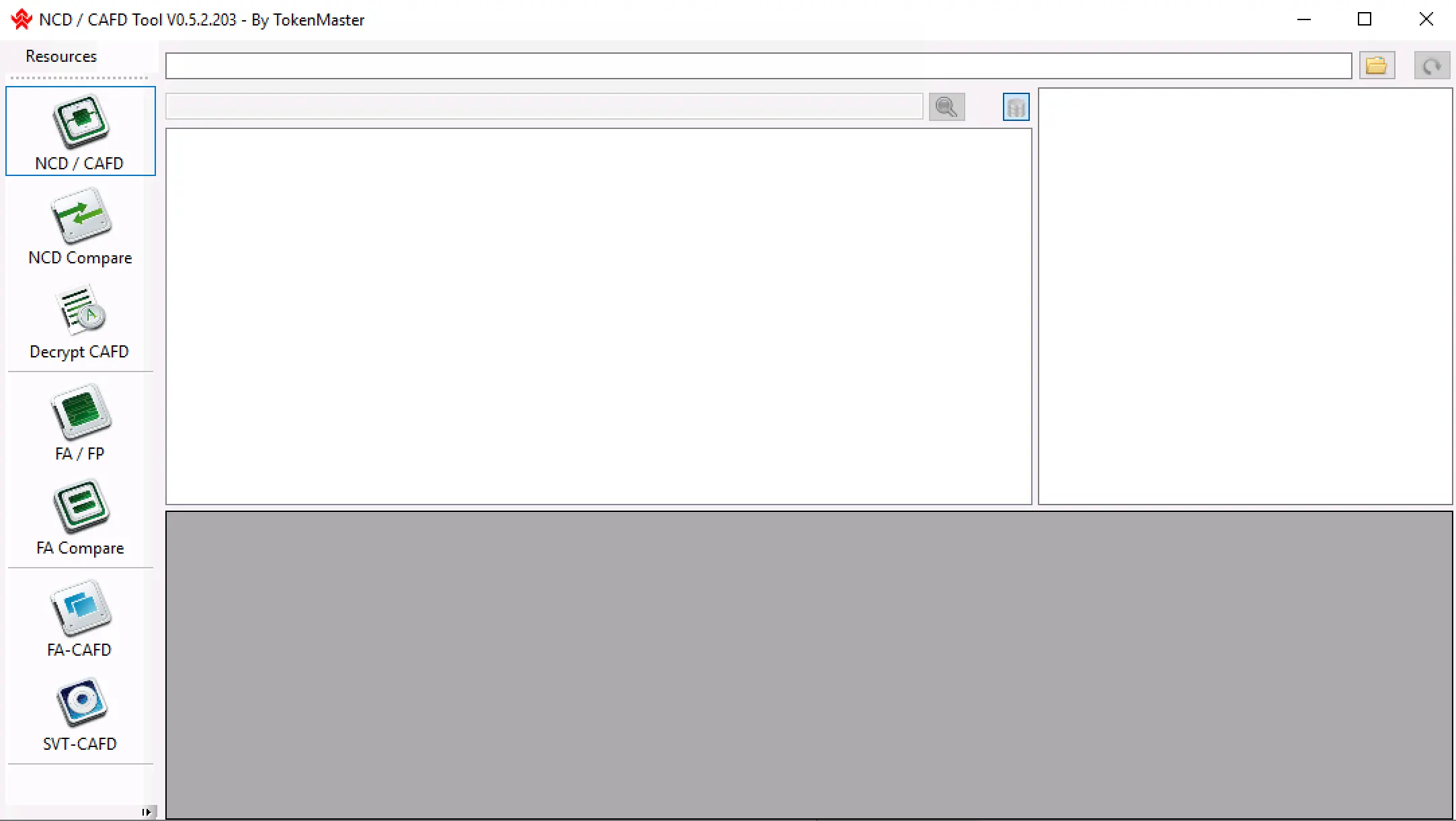

- NCD/CAFD viewer with verbose parameter names and translation options

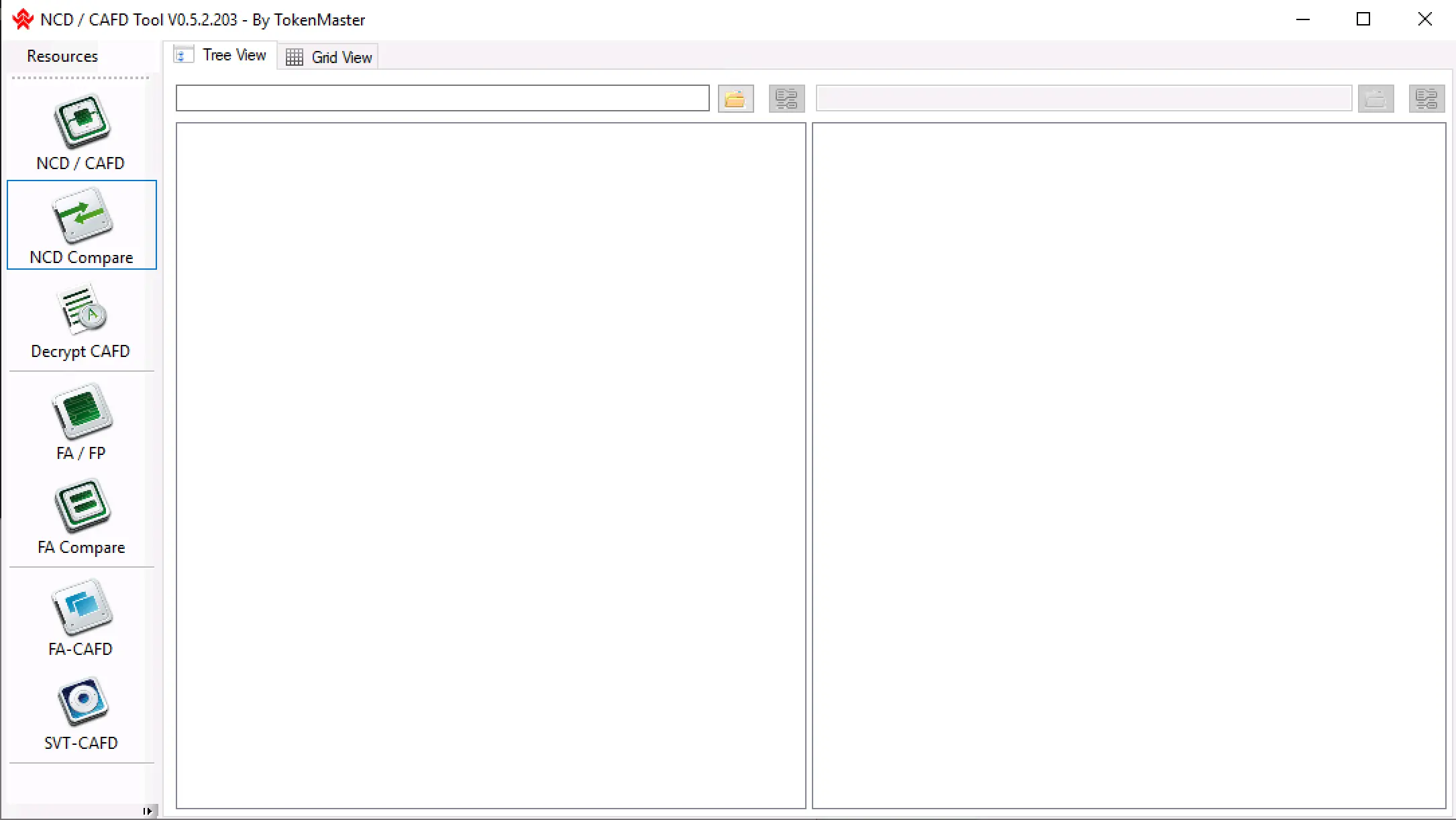

- One-click NCD Compare to visualize coding differences between files
- Decrypt CAFD and inspect trimmed CAFD for supported datasets

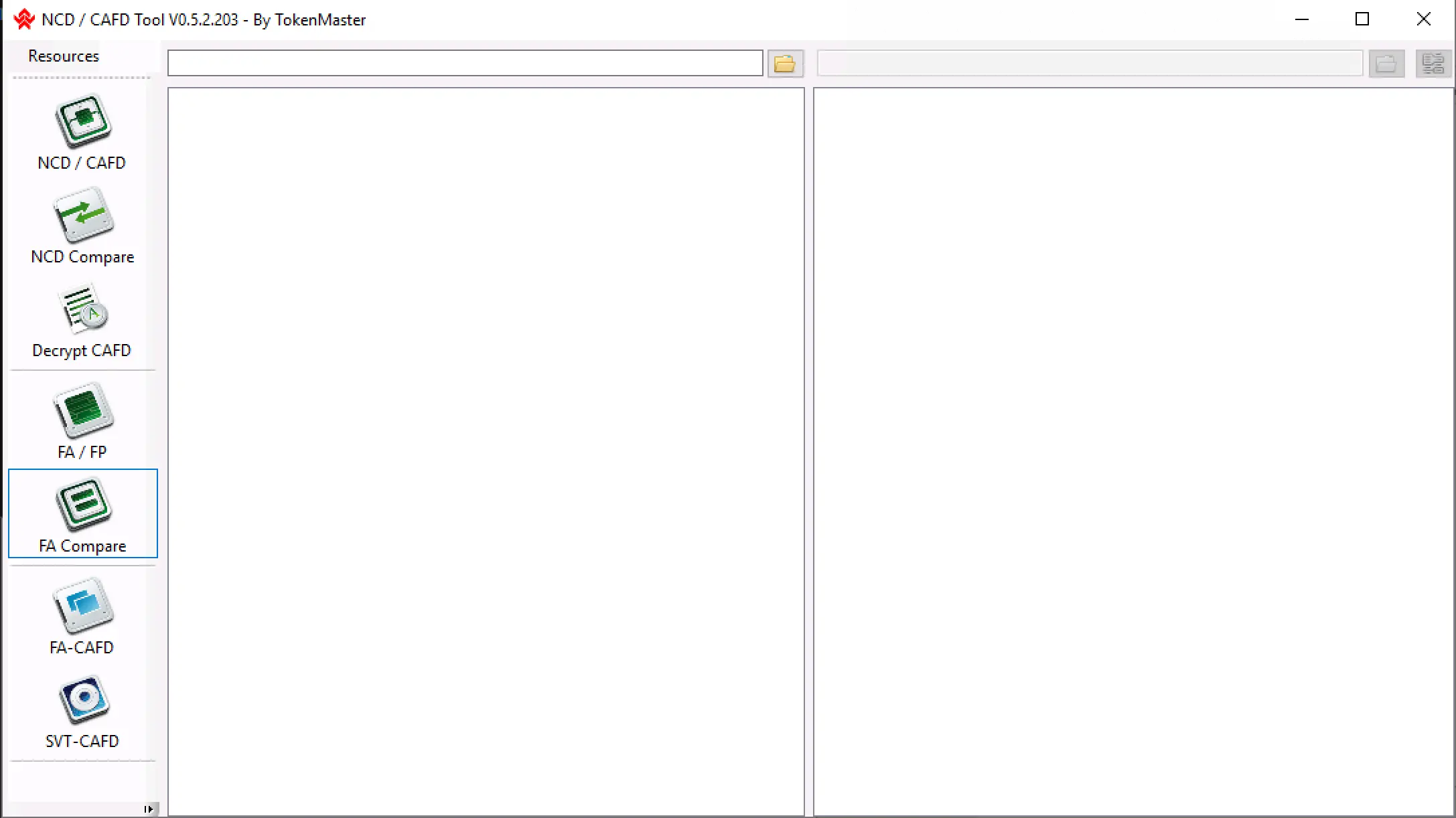

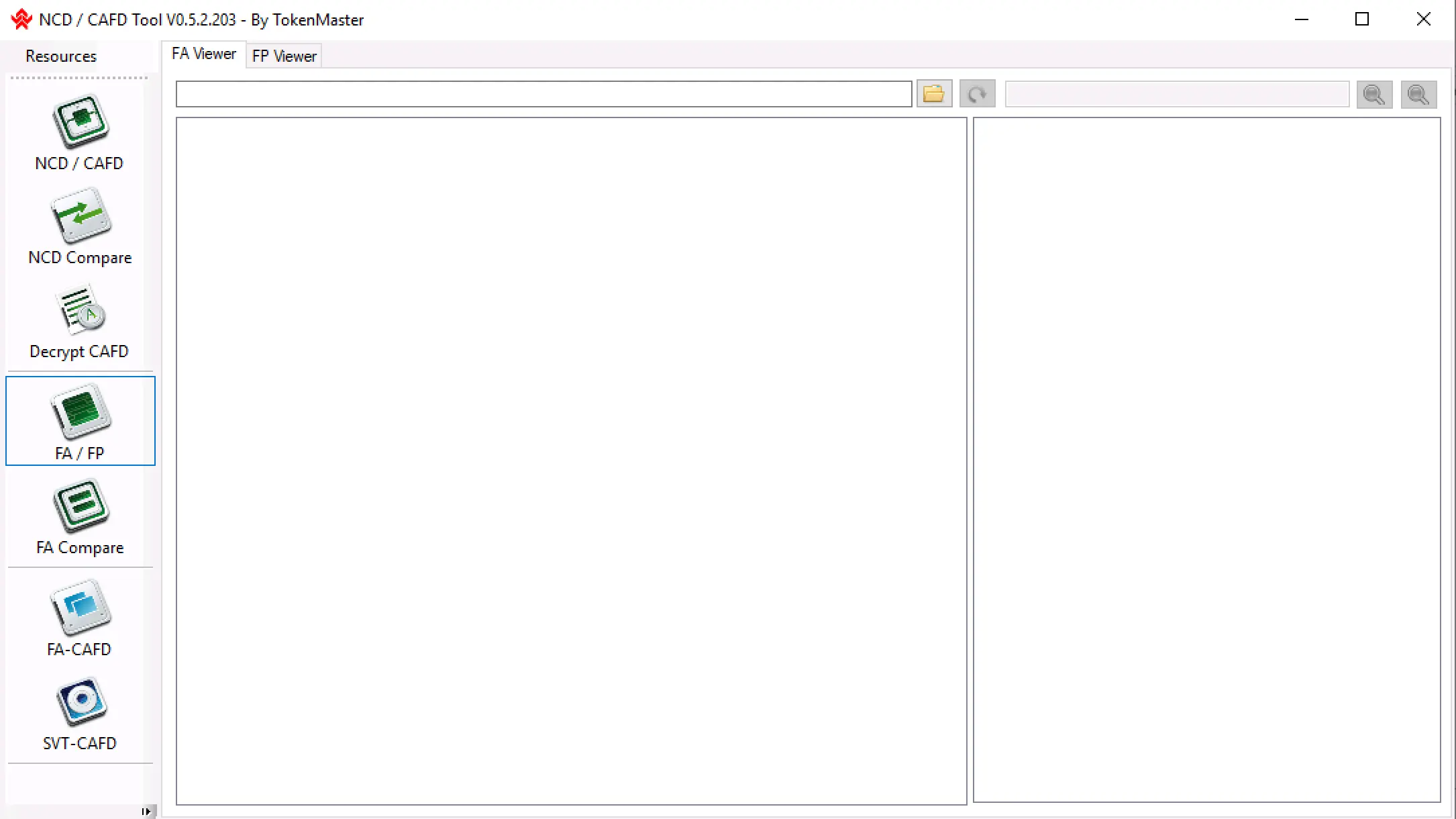

- FA / FP viewers and FA Compare for retrofit planning and validation

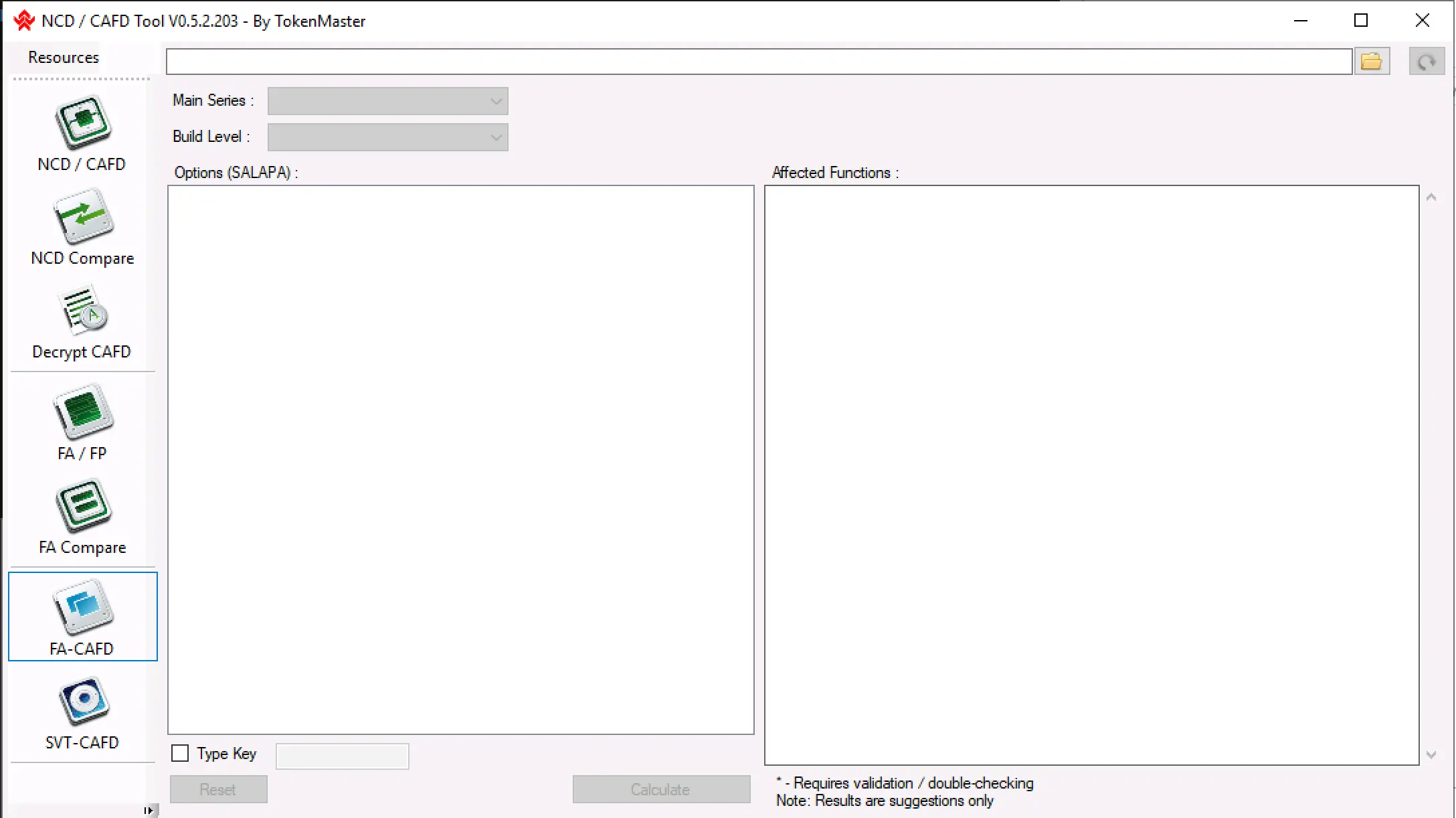

- FA-CAFD calculator to suggest affected functions based on selected options

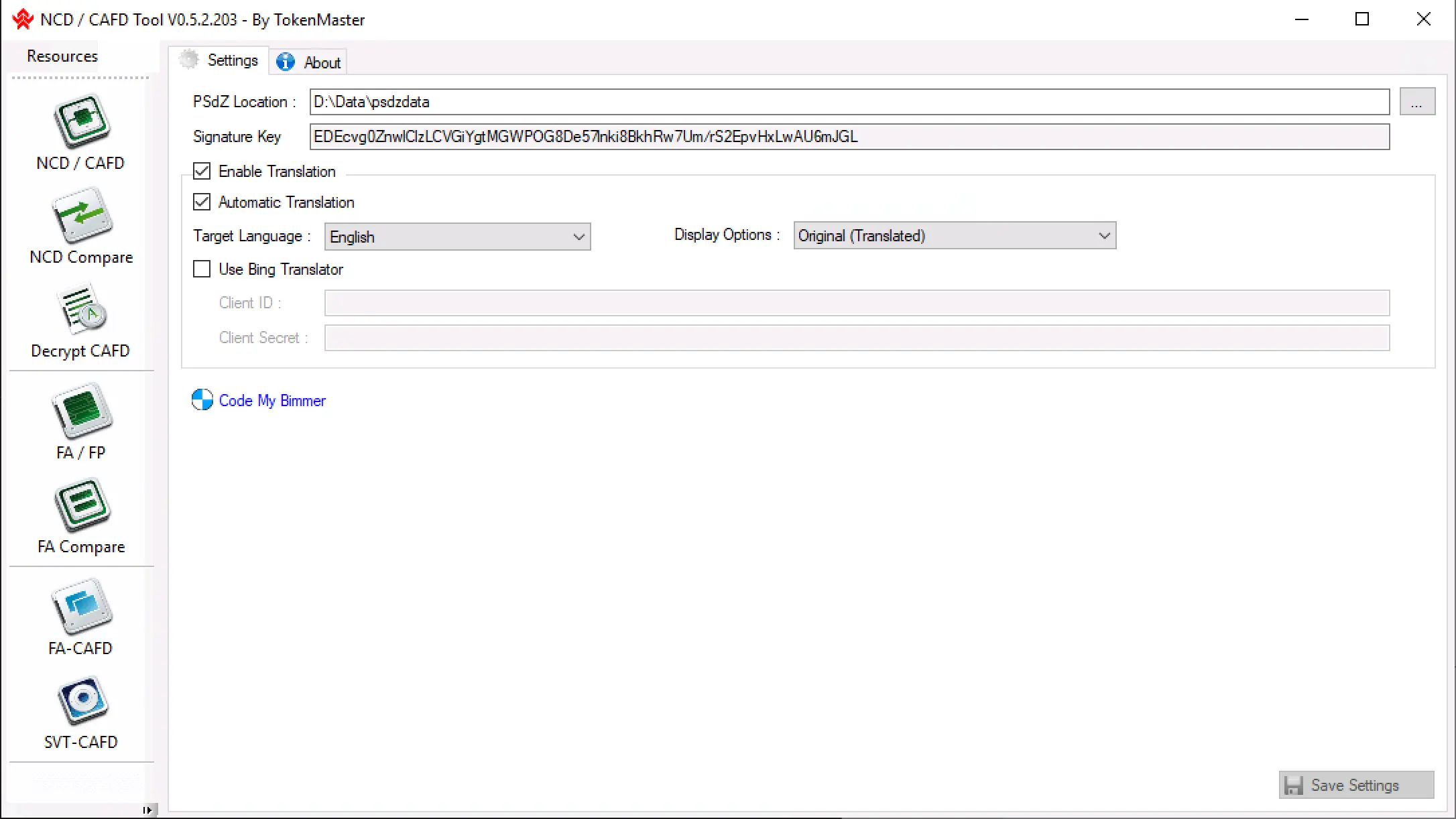

- Works with local PSdZData path and signature key for mapping
Package contents
- NCD KEY\
- CafData.dat
- language.en.xml
- NcdCafdTool.exe
- NcdCafdTool.exe.Config
- PSdZdata.dat
- Un.lck
Compatibility notes
Intended for BMW coding workflows that use E-Sys and PSdZData. Feature availability varies by I-Step level, CAFD version and the completeness of the local PSdZData set. Use results as guidance and verify against the target vehicle’s FA and SVT before applying changes.
Basic usage
- Point the tool to your local PSdZData folder and load NCD/CAFD or FA files
- Use [NCD Compare] to review differences, then confirm values in E-Sys
- Open [FA / FP] or [FA-CAFD] to evaluate option impacts on coding
- Export notes and keep full backups before any vehicle session
- Apply verified changes using your standard, approved coding procedure
Operating systems
Windows 7, Windows 8.1, Windows 10, Windows 11.
Minimum system requirements
CPU: dual-core 2.0 GHz or higher
RAM: 4 GB or more
Storage: 1 GB free space for the app; additional space required for PSdZData
Display: 1366×768 or higher
Network: not required for local operation
Admin rights: recommended for file access and updates
