BMWAi Coder&Tools — quick coding helper for BMW F/I/K/R platforms
A compact Windows tool that detects the car via ENET or ICOM and gives you fast access to common service/coding helpers. The UI supports multiple languages and groups functions like SVK/FSC utilities, DTC management, time sync to KOMBI, and transmission adaptation resets.



What’s included (from this build)

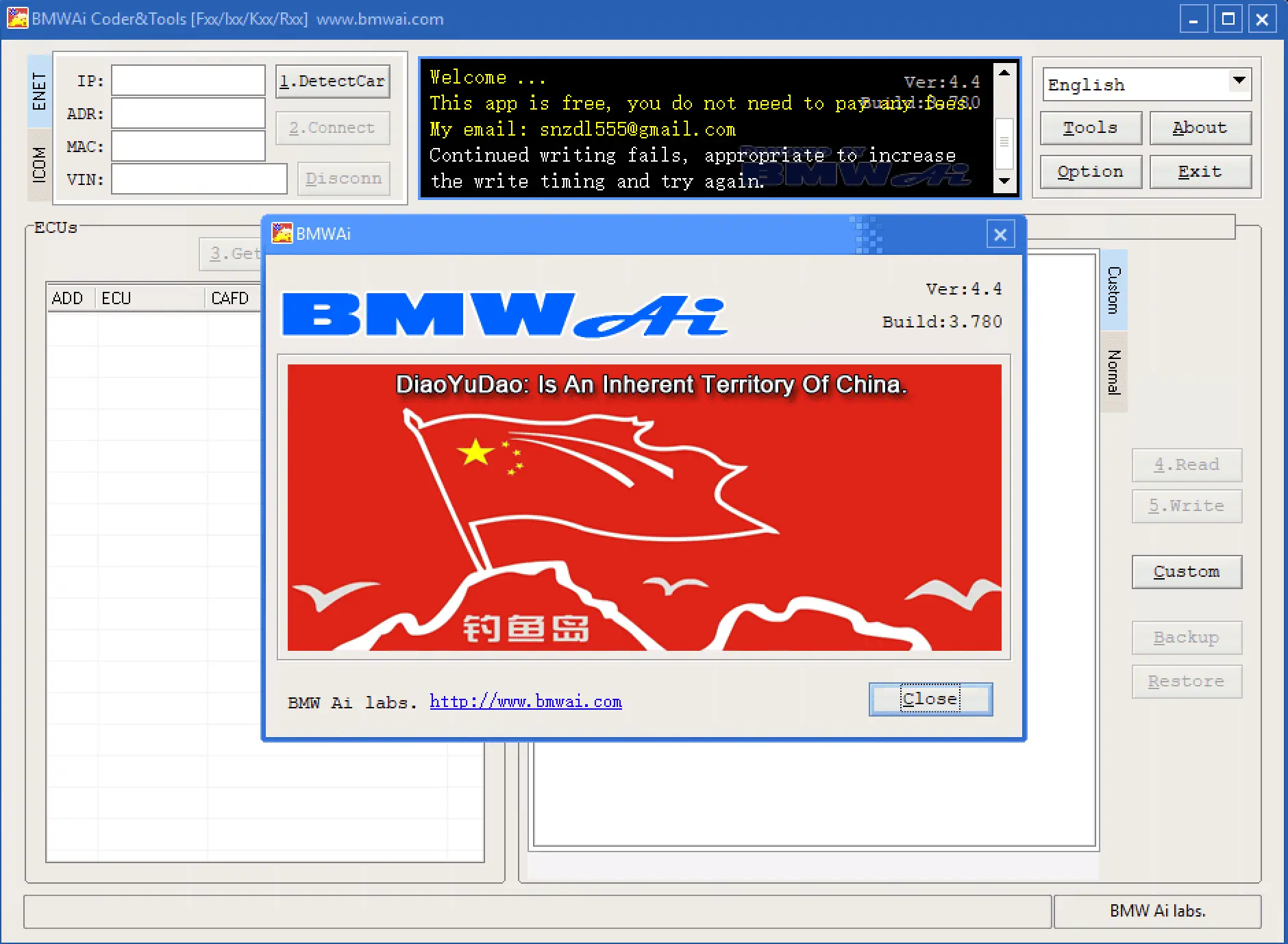

• Version: 4.4 (Build 3.780)

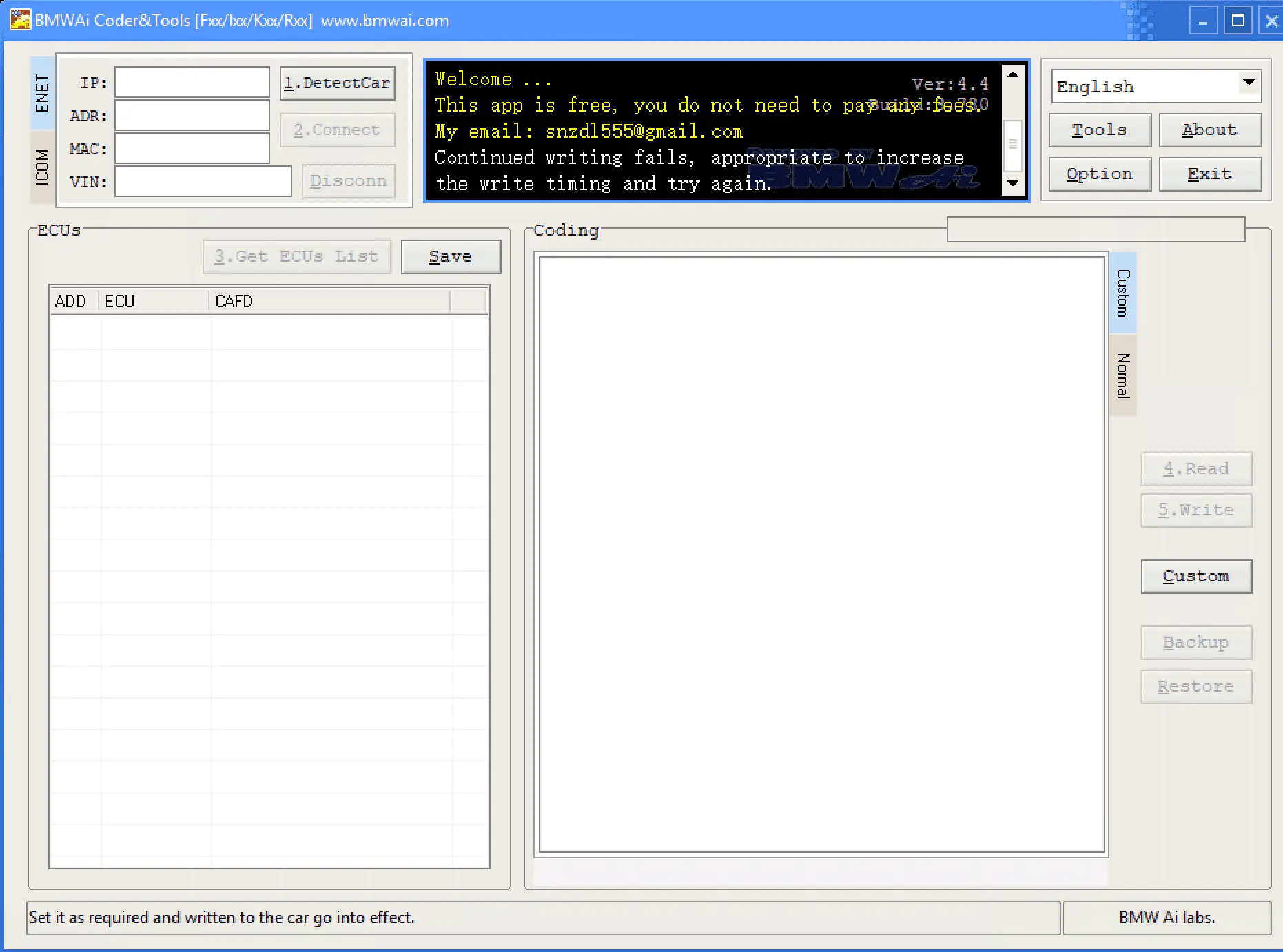

• Connection: ENET and ICOM selection; manual IP/ADR/MAC/VIN fields; DetectCar / Connect flow

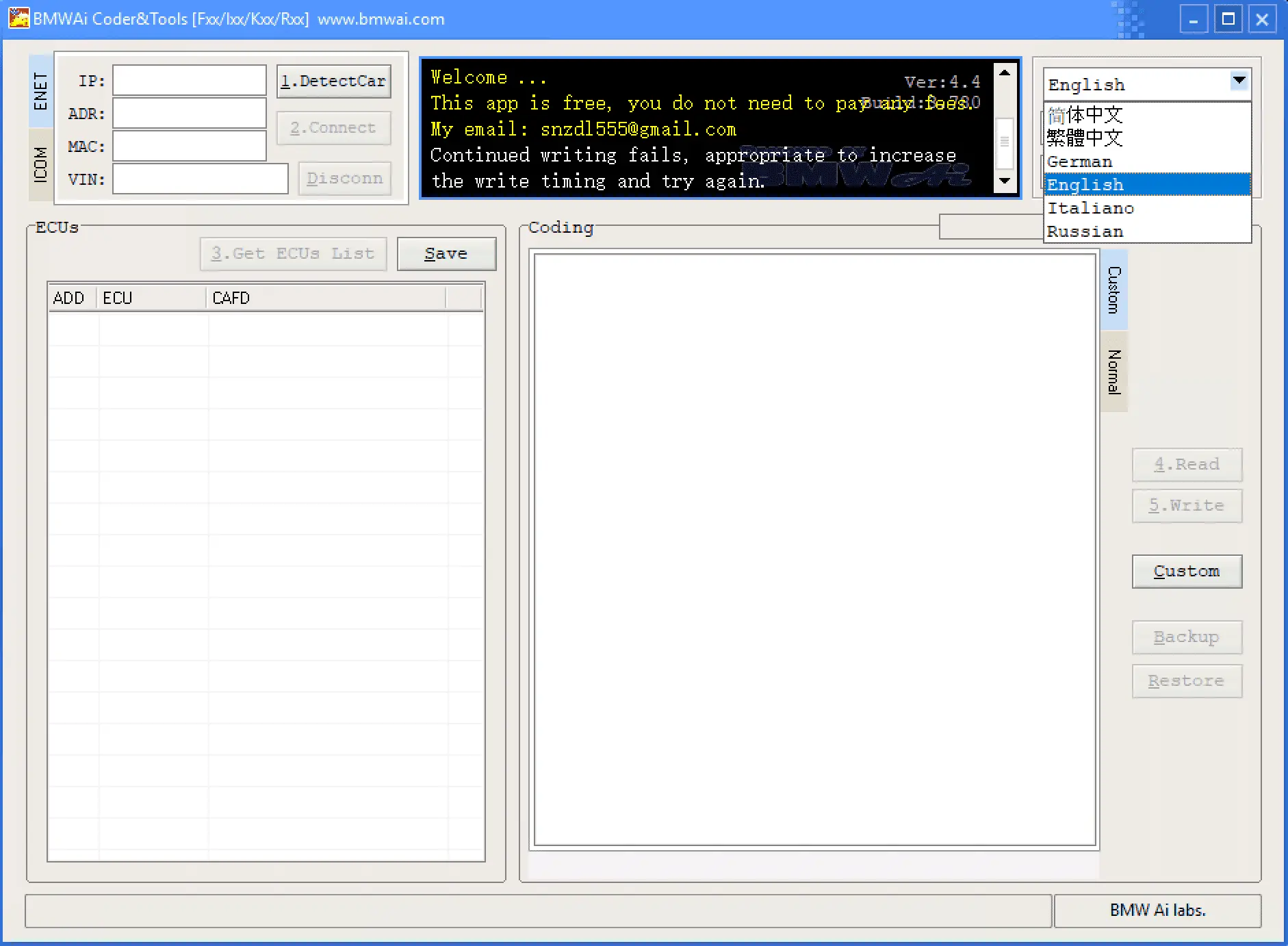

• Languages: English, German, Italiano, Russian, 简体中文, 繁體中文
• ECU/Project area: Get ECUs List panel; Coding editor (Custom/Normal tabs)
• Tools menu highlights:

  • Read ECU manufacturing date

  • Read programming counter

  • Detecting voltage / Integration step (I-Level info)

  • FSC Tools: read CPS / read current SVK, system supplier SVK, plant SVK, backup SVK 1–3

  • Headunit preset phone numbers (read)

  • Clear selected ECU’s DTC / Clear all DTC

  • Synchronize date & time to KOMBI

  • Display transmission adaptation values

  • Reset transmission adaptation values (driving habits memory)

  • Restart ECU

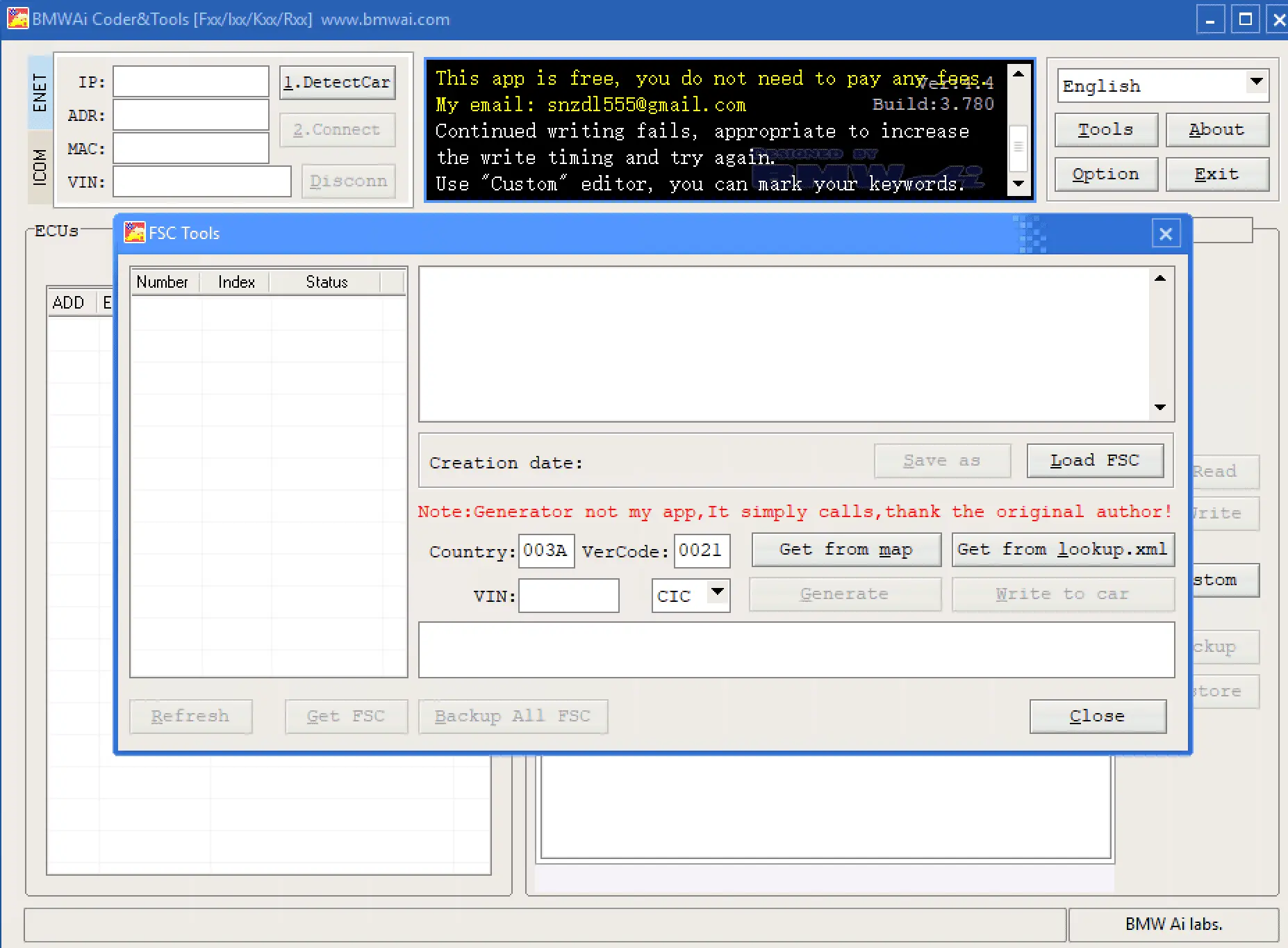

• FSC Tools window: country & verCode fields, VIN input, “Get from map / lookup.xml”, load/save FSC notes

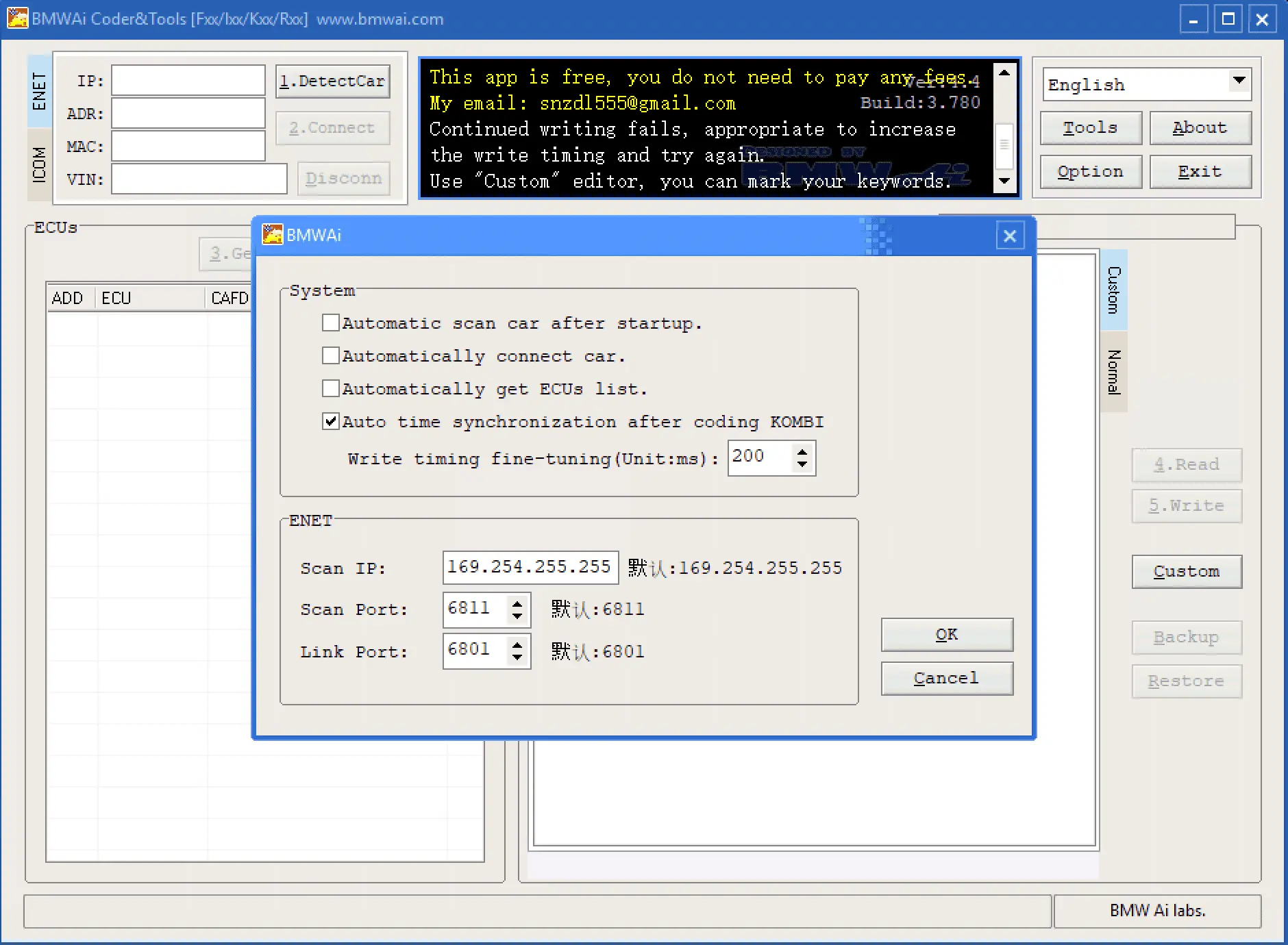

• Options: auto scan/connect, auto get ECUs list, auto time sync after coding, write timing fine-tuning (ms); ENET Scan IP / Scan Port / Link Port

Typical workflow

• Select ENET or ICOM, press DetectCar, then Connect.
• Use Get ECUs List and open Tools for quick reads (SVK, counters, voltage) or DTC clears.
• Switch to Custom tab for targeted changes; time-sync KOMBI after coding if needed.

Compatibility
Tested on Windows 10 LTSC (2019). Also works on Windows 7 / 8 / 10 / 11 (x86/x64).

Minimum system requirements

• OS: Windows 7 or newer (32/64-bit)
• CPU: Dual-core 2.0 GHz or better
• RAM: 2 GB (4 GB recommended)
• Storage: 200 MB free
• Display: 1280×768 or higher
• Interface: ENET cable or ICOM (with proper drivers)

Notes
This utility is presented as a free tool by its author in the UI banner. Feature availability may vary by vehicle/ECU and connection type.
