This is a lightweight, easy-to-use, and highly specific utility designed for a single, critical purpose: processing EEPROM files from Bosch EDC16C34 engine control units. It is an essential tool for workshops that frequently deal with PSA (Peugeot/Citroën), Ford, or Volvo vehicles equipped with this extremely common diesel ECU. The tool simplifies complex immobilizer tasks into just a few clicks.
Key Functions:
• One-Click Immobilizer Disable (Immo Off): The primary function. With a single click on the "IMMO OFF" button, the tool automatically patches the EEPROM file to permanently disable the vehicle's factory immobilizer system. This is a perfect solution for ECU swaps or critical immobilizer faults.
• Automatic PIN Code Retrieval: When you load an EEPROM file, the tool instantly reads and displays the immobilizer PIN code in the designated field. This PIN is often required for key programming.

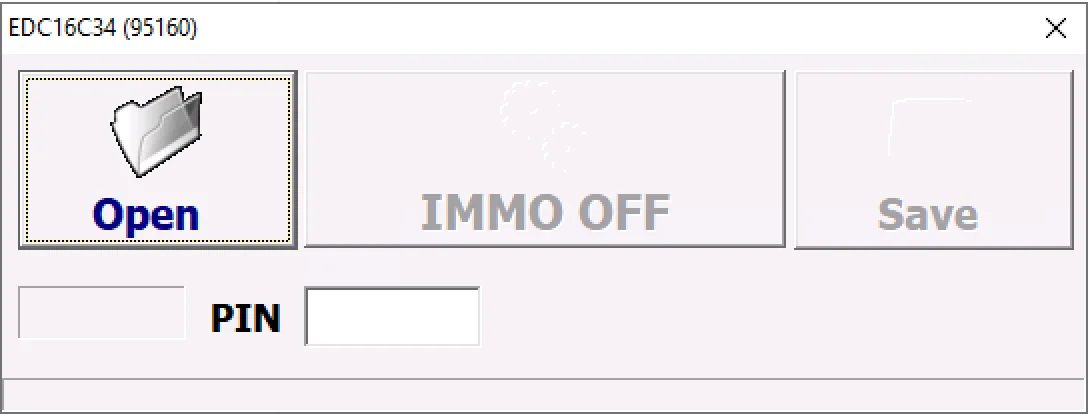

• Simple & Fast Operation: The interface is minimalist and purpose-built. The entire process is just three steps: Open the file, click "IMMO OFF," and save the new file.
Supported System:
• ECU: Bosch EDC16C34
• EEPROM: 95160
• Commonly Found In: A wide range of Peugeot, Citroën, Ford, Volvo, and Mazda vehicles, typically those with 1.6L and 2.0L diesel engines.
Simple Workflow:
Read the 95160 EEPROM from the EDC16C34 ECU using a serial programmer.
Open the saved .bin file in this tool.
The PIN code will be displayed automatically. Note it down if needed.
Click the "IMMO OFF" button. It will become inactive, indicating the patch has been applied.
Save the new, modified file.
Write the new file back to the EEPROM chip.
System Compatibility
This software has been fully tested and is confirmed to be working perfectly on Windows 10 LTSC (2019).
Disclaimer
• Source of Files: All software and resources provided in this post have been collected from public, open-source domains on the internet.
• User Responsibility: This is a professional tool for expert use. You, the user, assume all responsibility and risk. The authors of this post and the forum administration are not liable for any damage to your equipment or data that may result from its use.
