The Definitive Guide to Resetting and Adapting Used 8HP EGS on E70/E71.
This resource provides the necessary files and a step-by-step guide for resetting (virginizing) the 8HP automatic transmission control unit (EGS) on late-model E-series vehicles like the BMW X5 (E70) and X6 (E71).
What Problem Does This Solve?

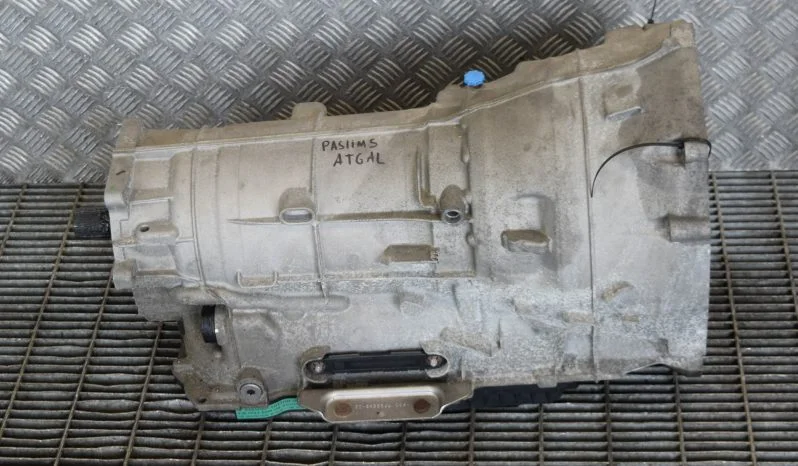

When installing a used 8HP transmission into an E70 or E71, the EGS module is locked to the donor vehicle's security system and VIN. This prevents it from functioning correctly in the new car. To adapt the used module, it must first be "virginized" or reset to a factory state.
This guide details a method using WinKFP in Expert Mode with a special program file (`.0pa`) to perform this reset.
The Reset Procedure
This is an advanced procedure that requires proficiency with BMW Standard Tools. Follow these steps carefully.
Step 1: Flash with the Patched File
- Unpack the `8hp-e-series-reseter.rar` archive.
- Ensure the included `.0pa` file is correctly placed in your WinKFP data folders.
- Connect to the vehicle with a reliable interface (ICOM is strongly recommended).
- Open WinKFP and activate Expert Mode.
- Select your EGS type and program the unit using the special `.0pa` file provided in the download.
- After the first flash is successfully completed, it is critical to re-flash the EGS immediately.
- Using WinKFP, program the EGS again, but this time select the original, correct software version for the vehicle you are working on.
- After the second flash, the EGS module is now "virgin" and ready to be adapted.
- Use ISTA or other diagnostic tools to clear all fault codes.
- Perform any necessary coding to match the EGS to the vehicle's specific options.
Video Tutorial
A full video walkthrough of this procedure will be added here soon.
System Requirements & Testing
- Operating System: This procedure uses standard BMW tools, which are tested and confirmed to be stable on Windows 10 LTSC 2019.
- Required Software: BMW Standard Tools (specifically WinKFP) and the correct SP-Daten for your vehicle.
- Required Hardware: A reliable BMW diagnostic interface (ICOM is strongly recommended for programming).
Disclaimer
This procedure is intended for advanced and professional users only. Using WinKFP in Expert Mode carries significant risks. An incorrect flash or interruption during the process can permanently damage the EGS module. Always use a stable power supply of at least 13.8V connected to the vehicle during any programming session. Use at your own risk.
