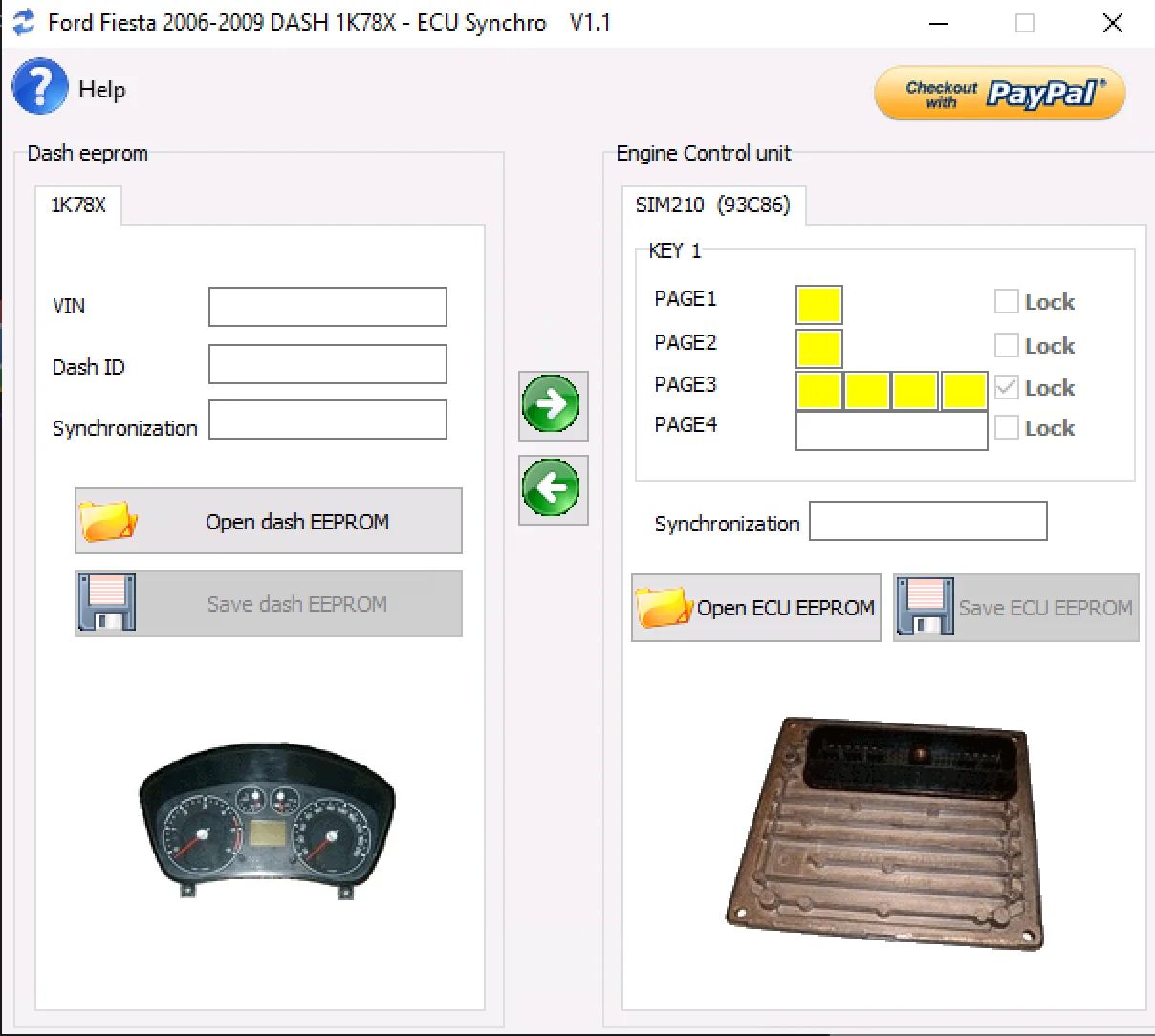

This is a specialized utility from Codecard.lt designed for the Ford Fiesta 2006-2009. Its primary purpose is to perform synchronization between the instrument cluster (DASH) and the SIM210 engine control unit (ECU), as well as program new transponder keys in "all keys lost" situations. The tool works by reading and writing to the EEPROM files from each module.

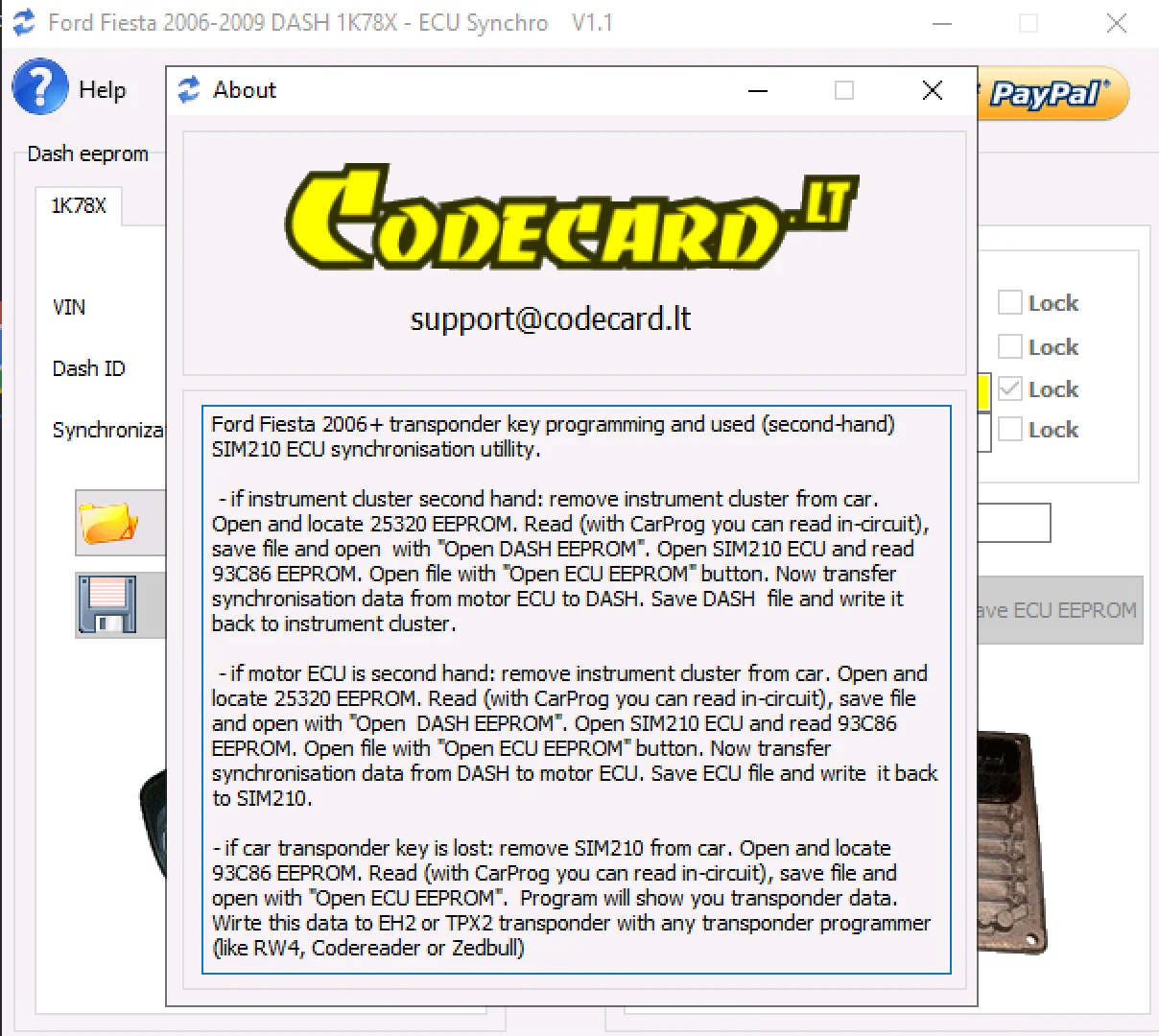

Key Functions & Use Cases
This tool provides solutions for three common scenarios:
• Used (Second-Hand) Instrument Cluster Installation: If you need to replace the dashboard with a used part, this tool allows you to transfer the synchronization data from the original motor ECU EEPROM file to the replacement dash EEPROM file, making it work with the car.
• Used (Second-Hand) Motor ECU Installation: If you need to replace the SIM210 motor ECU with a used part, this tool allows you to transfer the synchronization data from the original dash EEPROM file to the replacement ECU EEPROM file, adapting it to the vehicle.
• Transponder Key Programming (All Keys Lost): In a situation where the car transponder key is lost, this tool can process the EEPROM file from the SIM210 ECU. It will show you the transponder data , which can then be written to a new EH2 or TPX2 transponder using a separate programmer (like RW4, Codereader or Zedbull).
Supported Modules
• Instrument Cluster (DASH): 1K78X (with 25320 EEPROM)
• Engine Control Unit (ECU): SIM210 (with 93C86 EEPROM)
System Compatibility
This software has been fully tested and is confirmed to be working perfectly on Windows 10 LTSC (2019).
Disclaimer
• Source of Files: All software and resources provided in this post have been collected from public, open-source domains on the internet.
• User Responsibility: This is a professional tool for expert use. You, the user, assume all responsibility and risk. The authors of this post and the forum administration are not liable for any damage to your equipment or data that may result from its use.
