HardCut Limiter Diesel is a dedicated utility focused on diesel ECU limiter behavior, including hardcut style rev limiting and launch control related presets. The workflow is based on selecting a supported ECU family profile from an internal list, then applying the appropriate limiter or launch control method as part of a professional calibration process.



The in-app profile lists shown in the screenshots include multiple OEM diesel controllers used across VAG, BMW, PSA, Ford, Opel Vauxhall, Land Rover, Honda, Mercedes, Fiat, Kia, Hyundai, Renault, Dacia, Suzuki, Alfa Romeo, and Lancia platforms. Availability varies by ECU hardware, software number, and calibration strategy.

Highlights

• Profile based ECU selection lists for common diesel controller families
• Rev limiter and hardcut related presets tied to specific ECU types
• Launch control options where shown for supported ECU profiles, including 2500 rpm entries
• Controller family coverage includes EDC15, EDC16, EDC17, PCR2.1, DCM, SID, PPD, MJD, and MDG1 families

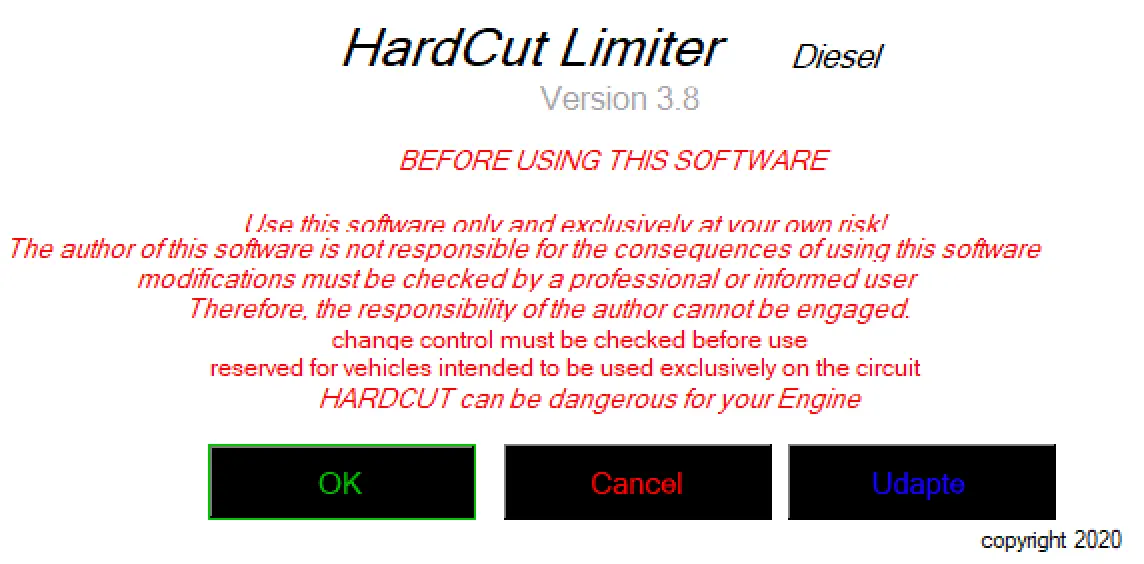

• Built-in safety warning screen shown on startup to confirm risk awareness
• Single installer package for workstation deployment

Package contents

• HardCut Limiter Diesel_setup.exe

Compatibility notes

• Availability varies by vehicle, ECU firmware, and dataset logic, confirm ECU type before use
• Some profiles reference stability control states in their labels, follow local laws and do not disable safety systems where prohibited
• Use verified inputs, keep original backups, and validate results on a controlled test setup

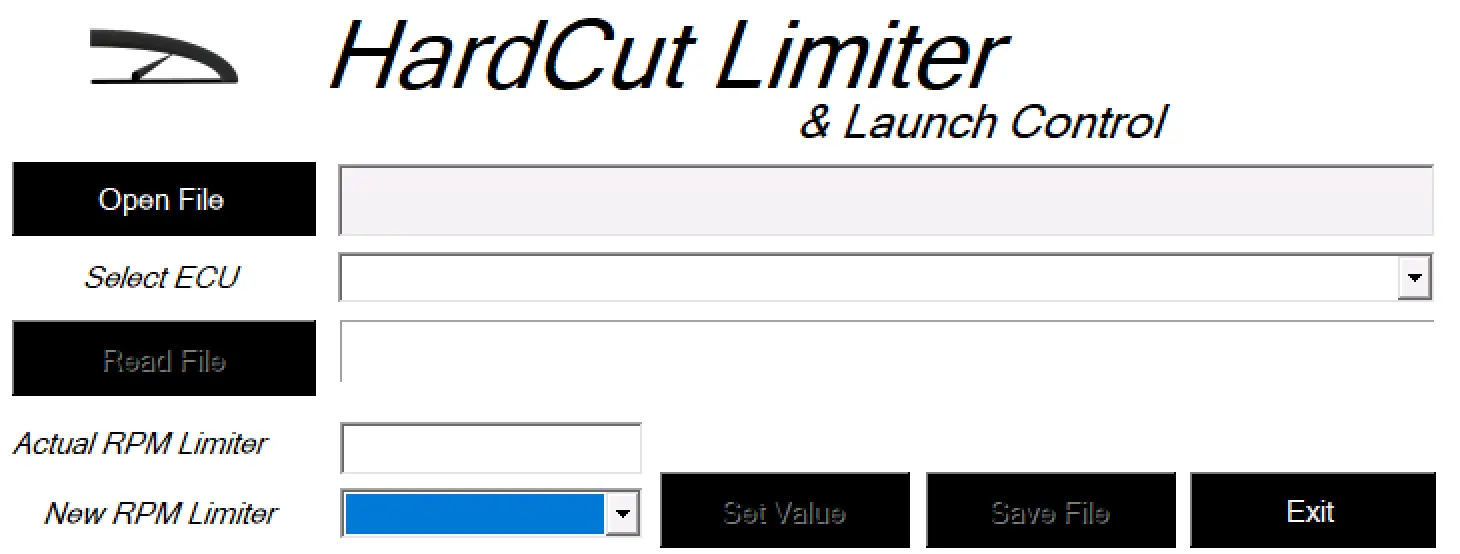

ECU profiles shown in the UI

• VAG EDC15P 1.4/1.9 TDI PD & Launch Control
• VAG EDC16 1.9/2.0 TDI PD & Launch Control
• VAG EDC17 CP14 / CP20 / C46 / C54 / C64
• VAG / Porsche 2.7 / 3.0 TDI CR EDC17 CP04 / CP14 / CP44
• VAG PCR2.1 1.6 TDI CR RevLimiter & Launch Control 2500 Rpm
• VAG Siemens/Continental PPD
• VAG EDC16 2.7 / 3.0 TDI CR & Launch Control
• VAG EDC17 U01 / U05--RevLimiter--
• VAG 1.2 TDI Delphi DCM3.7
• BMW EDC17 CP02 / CP09 / C06 / C41 / C45 / C50
• BMW EDC16 C31 / C35 & Manual Launch Control Method
• BMW / LAND ROVER EDC15C4 DDE4 +Launch Control 2500 rpm
• PSA / FORD EDC17C10
• PSA / FORD 1.6 HDI / 1.6 TDCI EDC16C34 / 2.0_2.2 HDI EDC15C2
• Mercedes EDC16C31
• FIAT / FORD / OPEL / PSA 1.3 JTD Multijet / CDTI / HDI Marelli MJD 6/8
• KIA / Hyundai EDC17C08
• Opel_Vauxhall PSG 16 "Rev_Limiter"
• Opel_Vauxhall EDC16 C9 / C39
• Opel_Vauxhall EDC17 C01 / C18 / C19
• Opel_Vauxhall / RENAULT / DACIA / SUZUKI / EDC16 C3 / CP33 / C36
• PSA / FORD 2.0 HDI / 2.0 TDCI DCM 3.5
• VAG 2.0 TDI EDC17CP14 Launch Control With ESP OFF
• VAG 2.7 / 3.0 TDI EDC17CP14 Launch Control With ESP OFF
• VAG 2.0 TDI EDC17C46 Launch Control With ESP OFF
• VAG 1.6 / 2.0 TDI EDC17C64 Launch Control With ESP OFF
• VAG 2.0 TDI EDC17C54 Launch Control With ESP OFF
• VAG 2.0 TDI EDC17C74 LC & Hardcut With ESP OFF
• VAG / PORSCHE 3.0 TDI EDC17CP44 Launch Control With ESP OFF
• VAG 2.0/2.5 TDI EDC17CP20 Launch Control With ESP OFF
• BMW EDC17 Launch Control
• BMW MDG1 MD1CP002 "HardCut"
• Alfa Romeo / FIAT / LANCIA / PSA EDC15C7 --Rev Limiter--
• FORD EDC17C70 1.5 TDCI
• HONDA EDC17C58 1.6 i-DTEC
• HONDA EDC16C31 2.2 CDTI
• PSA / FORD 2.0 HDI_TDCI SID803_803A--Rev Limiter--
• PSA / FORD 1.4 HDI_TDCI SID804--Rev Limiter--NEW--
• Land Rover Range Rover EDC17CP11

Basic usage

• Install the software on a dedicated calibration workstation
• Review the on-screen warnings and confirm you understand the operational risks
• Identify the exact ECU family on the vehicle, then select the matching profile in the tool
• Work only with verified calibration files and keep original backups for rollback
• Validate changes in a controlled environment and follow all safety and compliance requirements

Operating systems

• Microsoft Windows environment
• Exact supported Windows versions depend on the build and any bundled runtime components
• Administrator rights may be required for installation and file access

Minimum system requirements

• CPU: 2-core 2.0 GHz or better
• RAM: 4 GB minimum, 8 GB recommended
• Storage: 1 GB free for the app, additional space for project files and backups
• Network: optional, only needed for official documentation access
• Admin rights: required for installation and protected folders

Disclaimer

• No file hosting. This website does not host or store any software, firmware, license codes, or archives
• Editorial index only. Descriptions and screenshots are provided for reference and identification purposes
• No endorsement or affiliation. Trademarks and product names belong to their respective owners
• Licensing and EULAs. Users must follow vendor terms and local laws. Do not request restricted methods
• Compliance and emissions. Do not defeat safety systems or emissions controls where prohibited
• Safety and warranty risk. ECU operations can damage equipment or void warranties if performed improperly
• Security and integrity. Prefer official sources, verify integrity, and scan downloads before use
• Privacy. Do not share dumps or vehicle data unless you have the legal right to do so
