This package is an offline Kobelco service documentation set with an interactive model selector and linked PDF manuals. It is designed for workshop use when you need quick access to specifications, maintenance procedures, repair steps, and reference diagrams by excavator model and book code.



Highlights

• Interactive model selection for Kobelco MINI EXCAVATORS, CRAWLER EXCAVATORS, and WHEEL EXCAVATORS

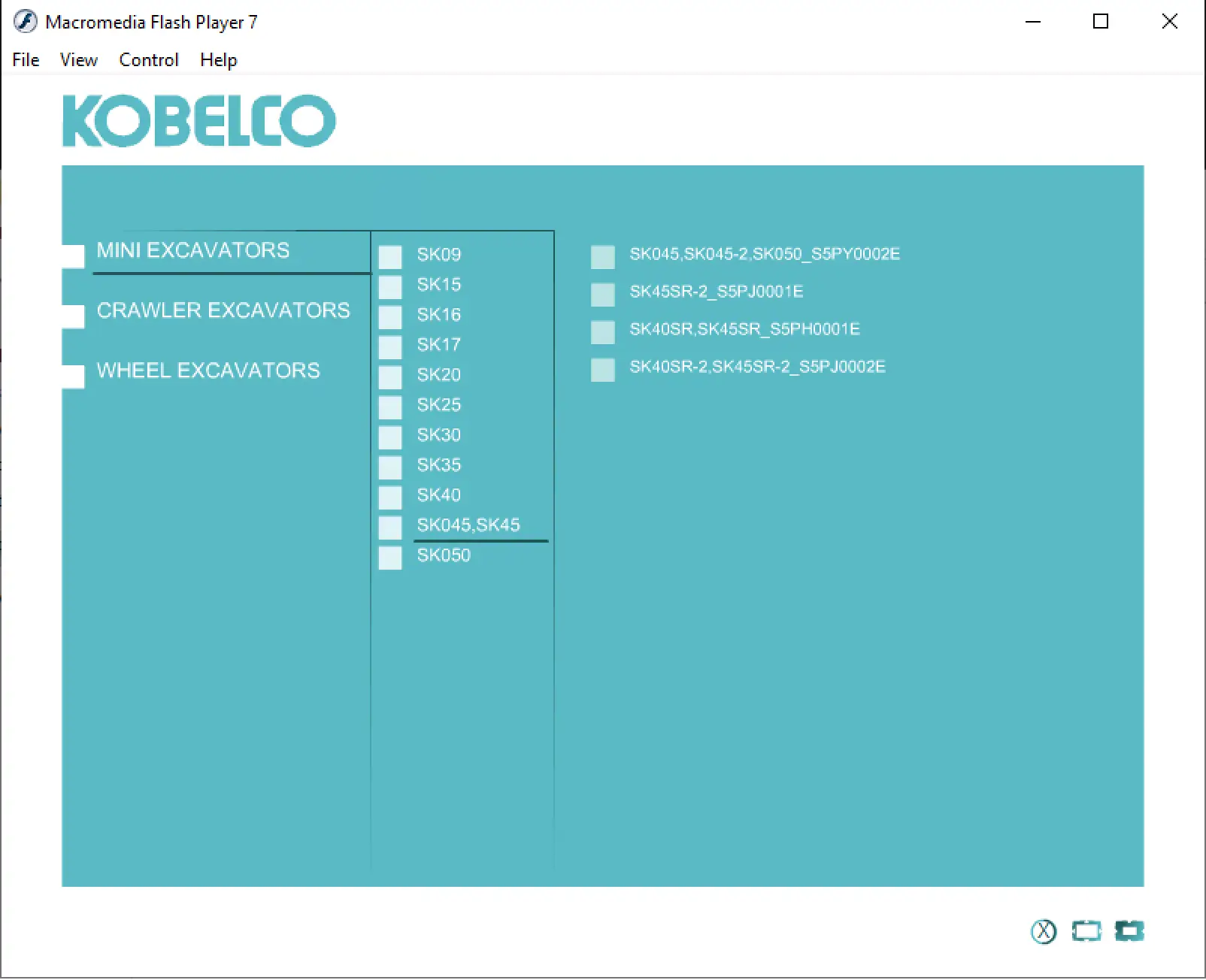

• Mini excavator coverage shown in the index includes SK09, SK15, SK16, SK17, SK20, SK25, SK30, SK35, SK40, SK045, SK45, SK050
• Mini excavator SR variants shown include SK40SR, SK40SR-2, SK45SR, SK45SR-2
• Crawler excavator coverage shown in the index includes SK60, SK70, SK80, SK100, SK115, SK120, SK135, SK170, SK200, SK210, SK220, SK230, SK235, SK250, SK310, SK330, SK430, SK450, SK480

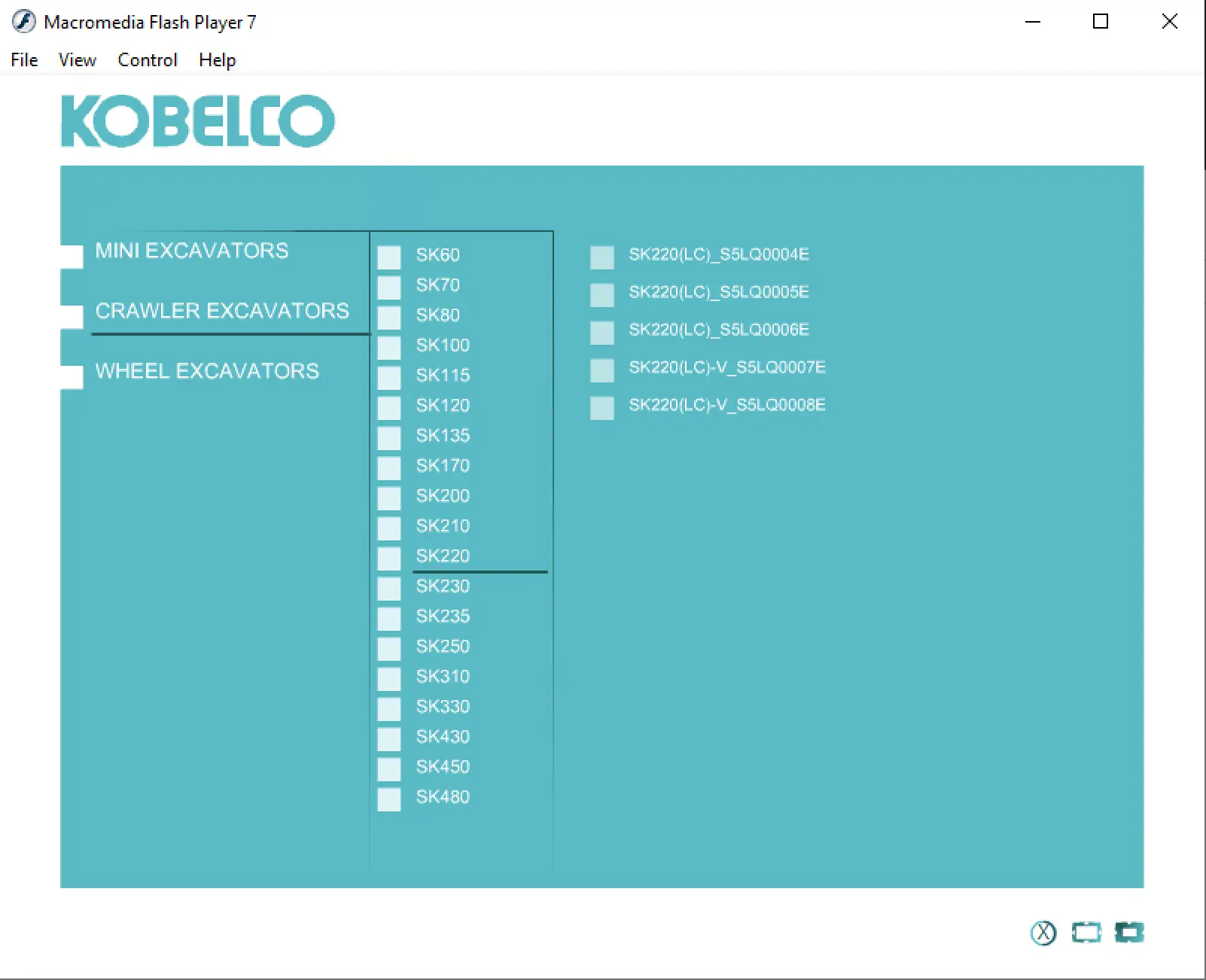

• Crawler excavator book codes shown include SK220(LC) S5LQ0004E, S5LQ0005E, S5LQ0006E, SK220(LC)-V S5LQ0007E, S5LQ0008E

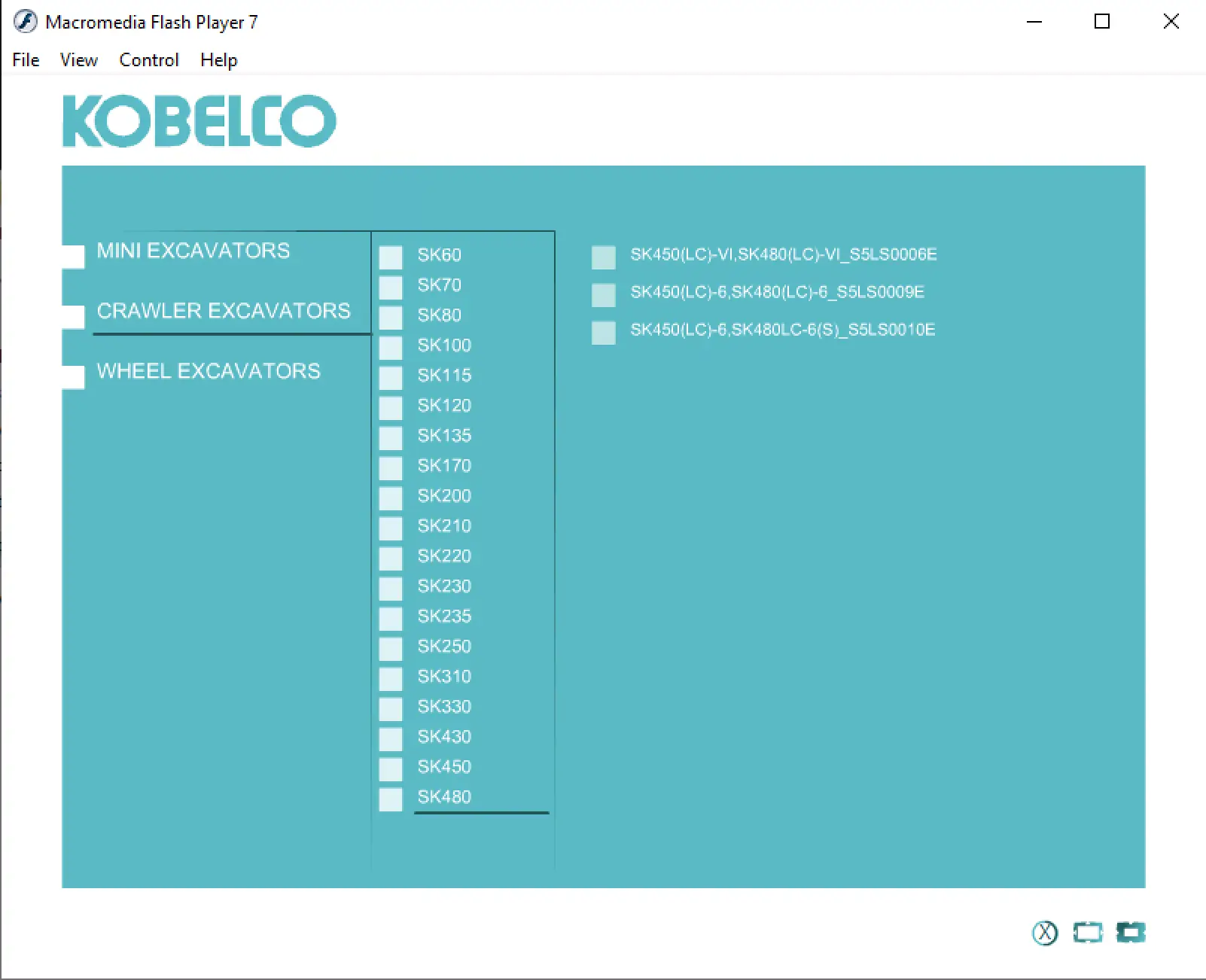

• Large crawler entries shown include SK450(LC)-VI and SK480(LC)-VI S5LS0008E, SK450(LC)-6 and SK480(LC)-6 S5LS0009E, SK480LC-6(S) S5LS0010E

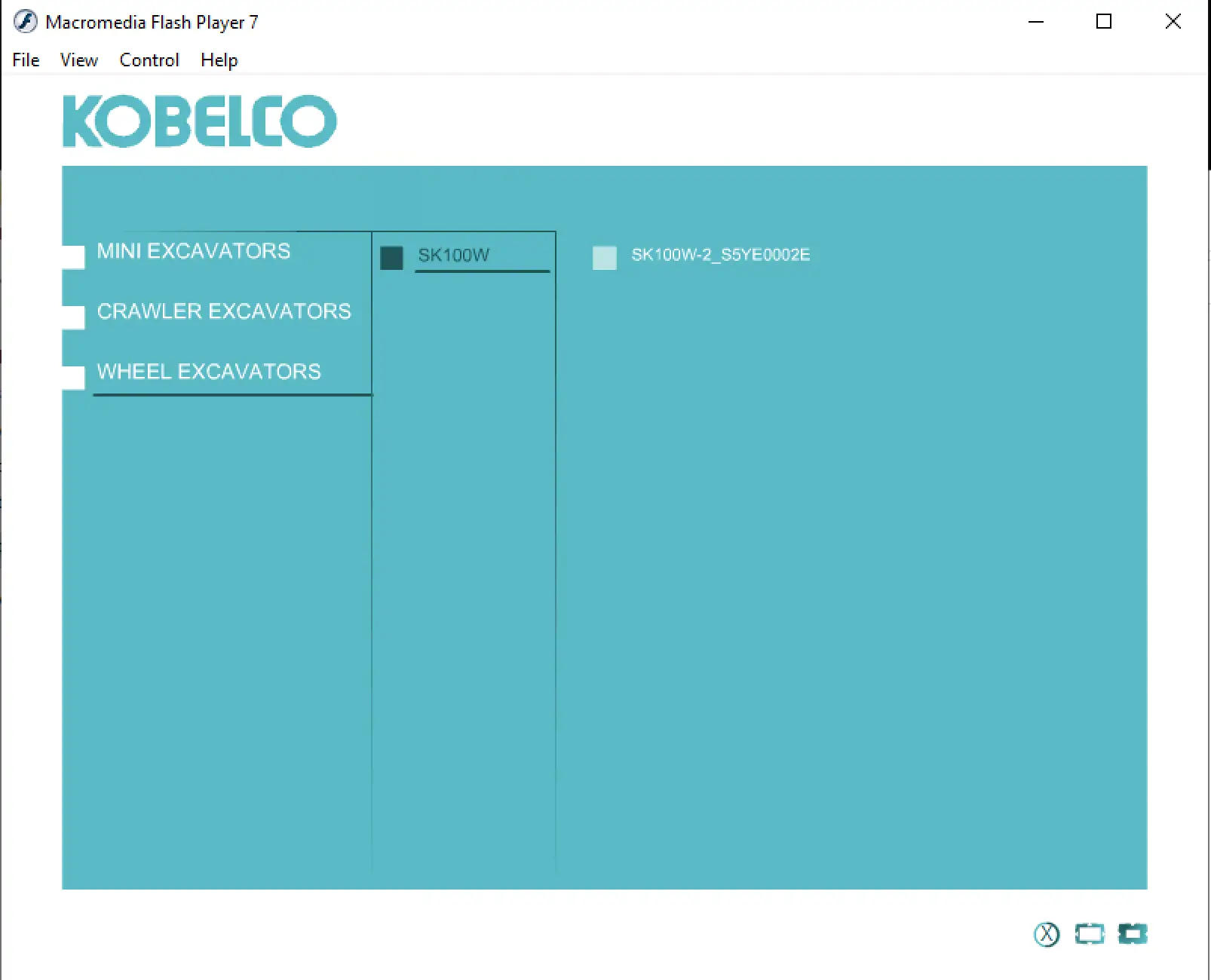

• Wheel excavator entry shown includes SK100W and SK100W-2 S5YE0002E

Package contents

• fscommand (folder)
• _desktop.ini
• 3_dvd_sm.exe
• Autorun.inf
• Kobelco.ico

Compatibility notes

• Manual availability varies by model designation, book code, and machine configuration
• Some entries are grouped under the same family name, so always confirm the exact code displayed in the selector before using a procedure
• The viewer uses legacy components, so behavior can differ across newer Windows builds and security policies

Basic usage

• Extract the archive to a local folder while keeping the original structure
• Run the included viewer and select the excavator type, then the model and book code
• Open the linked PDF section you need and use search to find procedures, specs, and diagrams
• Save model specific pages or reference tables for your job card if needed

Operating systems
Windows 7, Windows 8, Windows 10, Windows 11 (x86 and x64)

Minimum system requirements
CPU: Dual core or better
RAM: 2 GB minimum, 4 GB recommended
Storage: 4 GB free space or more for extraction and working files
Network: Not required for offline viewing
Rights: Administrator rights may be required depending on system policy
