Overview
A lightweight utility designed for Alientech KTAG backup projects. It unpacks full ECU backups, separates Micro, Flash and EEPROM, shows basic ECU/File info and lets you repack edited parts back into a single backup for bench or boot workflows.
Highlights
Package contents
Intended for KTAG style full backups from Bosch MEDC17/EDC17/ME(D)9, Marelli, Siemens/Continental, Delphi and similar ECUs. Exact support depends on the backup structure created by your flasher and the ECU family. Always verify checksums with your main tool before writing. Availability of some functions may vary by ECU and firmware.
Basic usage
A lightweight utility designed for Alientech KTAG backup projects. It unpacks full ECU backups, separates Micro, Flash and EEPROM, shows basic ECU/File info and lets you repack edited parts back into a single backup for bench or boot workflows.
Highlights
- One-click unpack of full backups into Micro, Flash and EEPROM parts
- File inspector with ECU ID and size reporting for quick validation
- Safe repack engine to assemble edited pieces back to a full backup
- Works with common Tricore and MPC5xx styled layouts used by KTAG
- Clear output paths and checkboxes to export only what you need
- Designed for bench technicians and calibration back-office tasks
Package contents
- KTag Backup Manager v1.43 application
- ReadMe and basic usage notes
Intended for KTAG style full backups from Bosch MEDC17/EDC17/ME(D)9, Marelli, Siemens/Continental, Delphi and similar ECUs. Exact support depends on the backup structure created by your flasher and the ECU family. Always verify checksums with your main tool before writing. Availability of some functions may vary by ECU and firmware.
Basic usage

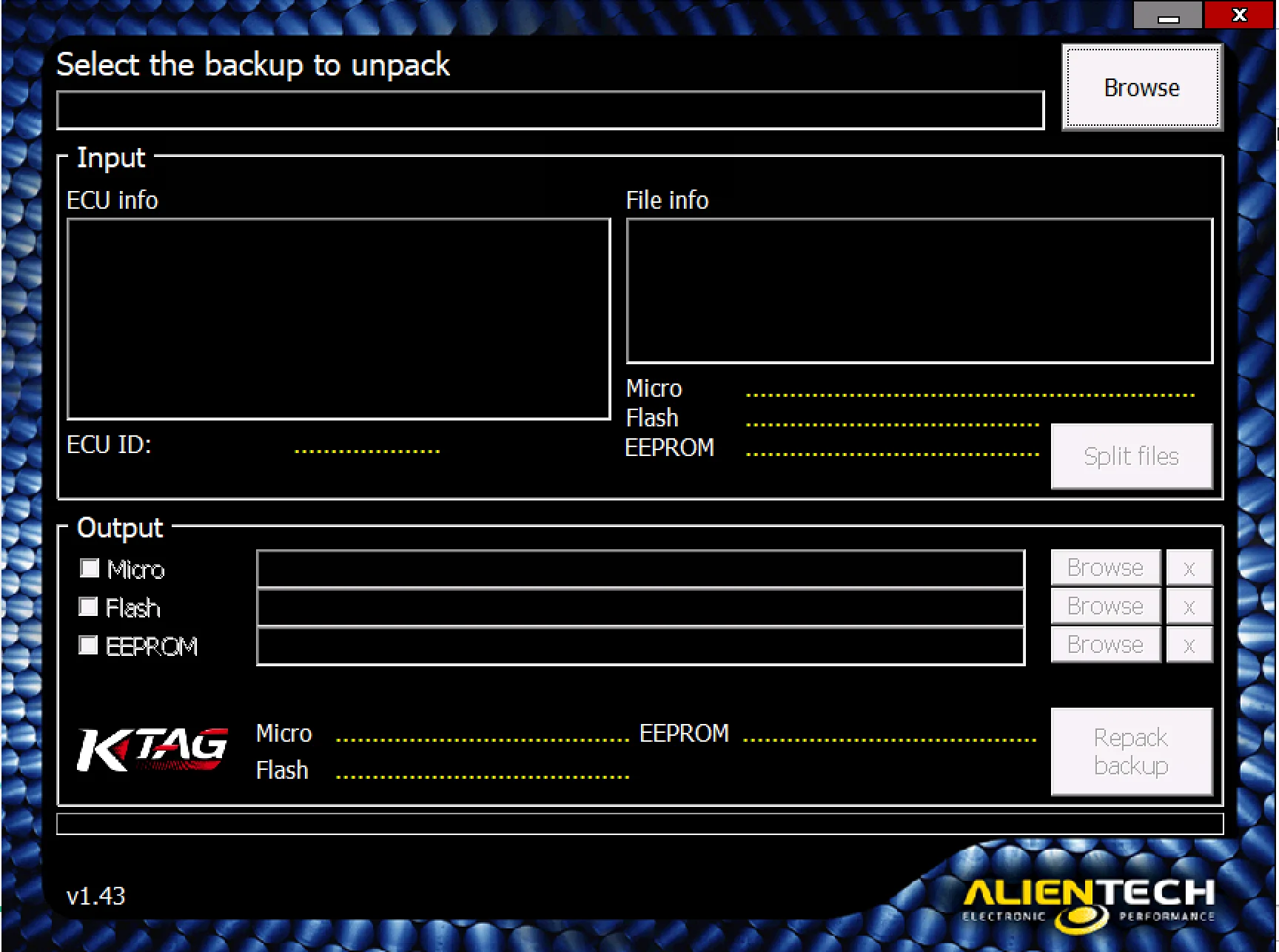

- Load a full backup with Browse and let the tool parse ECU/File info
- Tick the parts you want to export and choose output locations
- Edit Micro or EEPROM in your mapping editor if required
- Use Repack backup to build a consolidated file for your flasher
- Validate file integrity and perform a controlled bench test
- Windows 11 64 bit
- Windows 10 64 bit
- Windows 10 32 bit for legacy stations
- CPU Dual core 2.0 GHz or faster
- RAM 4 GB minimum
- Storage 200 MB free for temporary files
- USB storage for project transfers
- Administrator rights for installation and file access
