What is it
A toolkit for Volkswagen Group MIB2 Delphi head units that helps manage Feature Enablement Codes and service tasks on MST2 devices. Use it to back up InstallationManager data, read VCNR and VIN, prepare FEC files, and apply configuration scripts for unit servicing and region setup.



Highlights

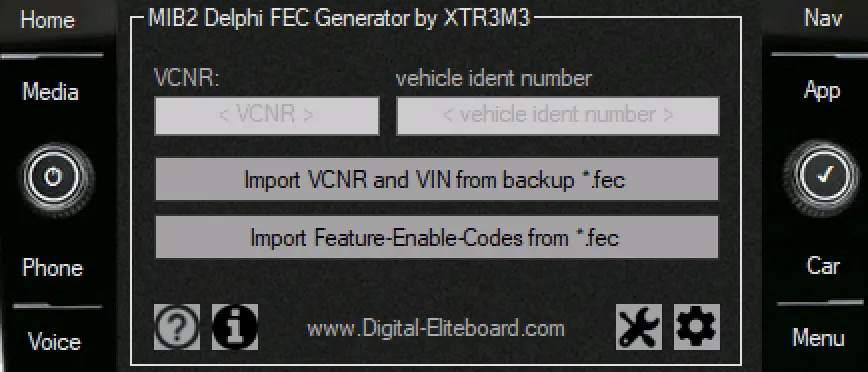

• FEC workflow to import VCNR and VIN from backup and to load Feature Enable Codes from .fec
• Quick backup and restore of InstallationManager data sets for multiple software packages
• Service scripts for MST2 including backup, configuration, FEC handling and US to EU region change

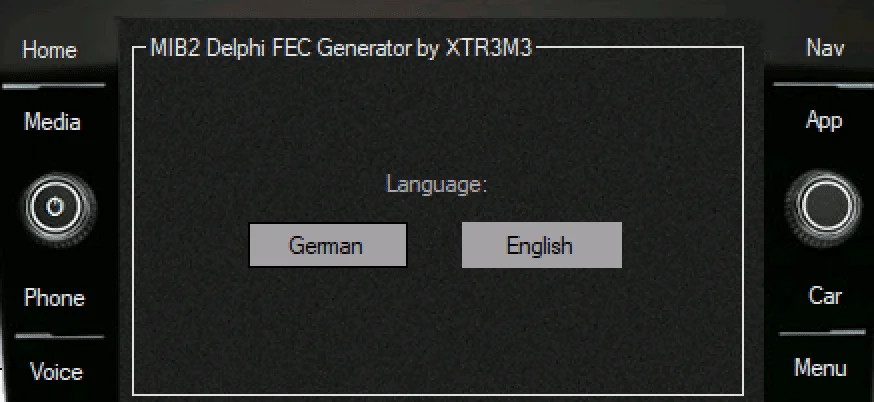

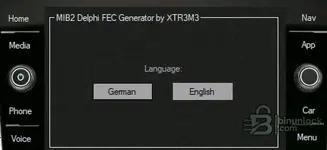

• Designed for VW Skoda and Seat MIB2 Delphi units with a clear two language interface
• Intended for feature management with valid codes and for workshop evaluation tasks

Included in this package

• Folders — InstallationManager Backup, Instruction, MIB2 Delphi Backup, Scripts
• InstallationManager packs — 0231 EU, 0635 EU, 0890 USA, 0891 EU
• Backup sets — backup_P0231.zip, backup_P0635.zip, backup_P0890_US.rar, backup_P0891.zip
• Service scripts — MST2_backup.sh, MST2_cid.sh, MST2_config.sh, MST2_fec.sh, MST2_fec_illegal_delete.sh, MST2_patch.sh, MST2_US2EU.sh
• Utilities — MIB2_Delphi_FEC_Generator and a license configuration helper

Basic workflow

• Create a full backup of the unit with the supplied script or InstallationManager backup
• Import VCNR and VIN from backup then load or prepare the required FEC file
• Apply the configuration script that matches the target package and region
• Reboot the unit and verify functions in the vehicle

Compatibility notes

• For MIB2 Delphi MST2 devices in VW Skoda and Seat models
• Available operations and features depend on software package and vehicle equipment

Operating systems

• Windows — for the FEC Generator and archive handling

Minimum system requirements

• CPU — dual core 2.0 GHz or better
• RAM — 4 GB or more
• Storage — 1 GB free space
• Card reader for SD media if required by your workflow
• Administrator rights to run utilities

Source and responsibility
Source of Files: All software and resources provided in this post are collected from public open sources on the internet. We do not claim to be the original authors or developers of this software.
• File Hosting: This forum does not host any files. All download links point to third party public cloud storage services. We are not responsible for the content hosted on external sites.
• User Responsibility: This software is provided for educational and evaluation purposes only. You assume all responsibility and risk associated with its use. The authors of this post and the forum administration are not liable for any damage to your equipment or data that may result from its use.
