Multiecuscan 5.2 is a Windows diagnostic application for FCA brands (Fiat, Alfa Romeo, Lancia,
Chrysler, Jeep, plus selected Suzuki/Dodge). It helps you identify modules, read/clear DTCs, stream
live data with graphs, run actuator tests, and perform guided adjustments. The UI is simple:
[F2] Select vehicle/module, [F10] Connect, [F11] Scan or start a simulation session for training.



Vehicle & module coverage

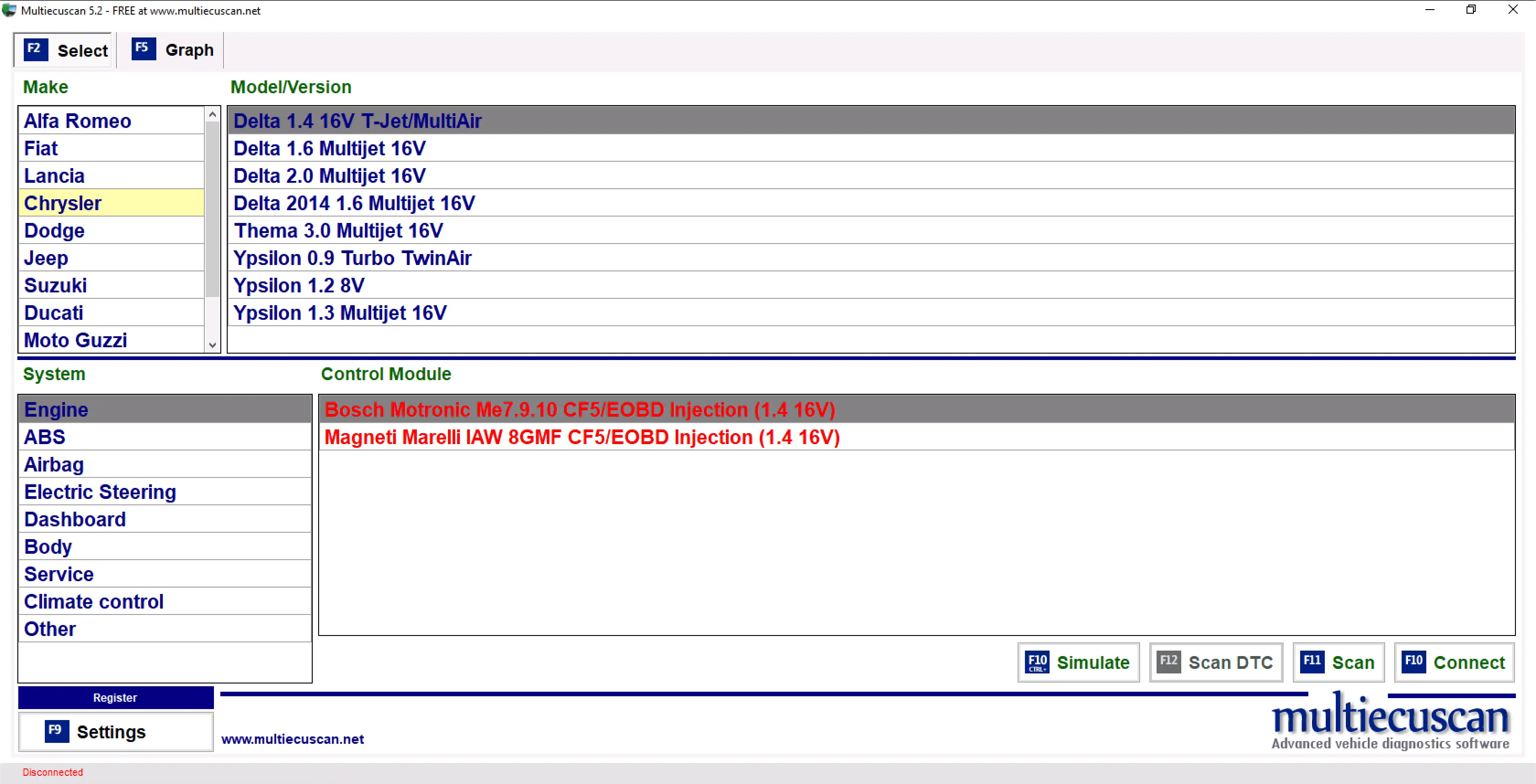

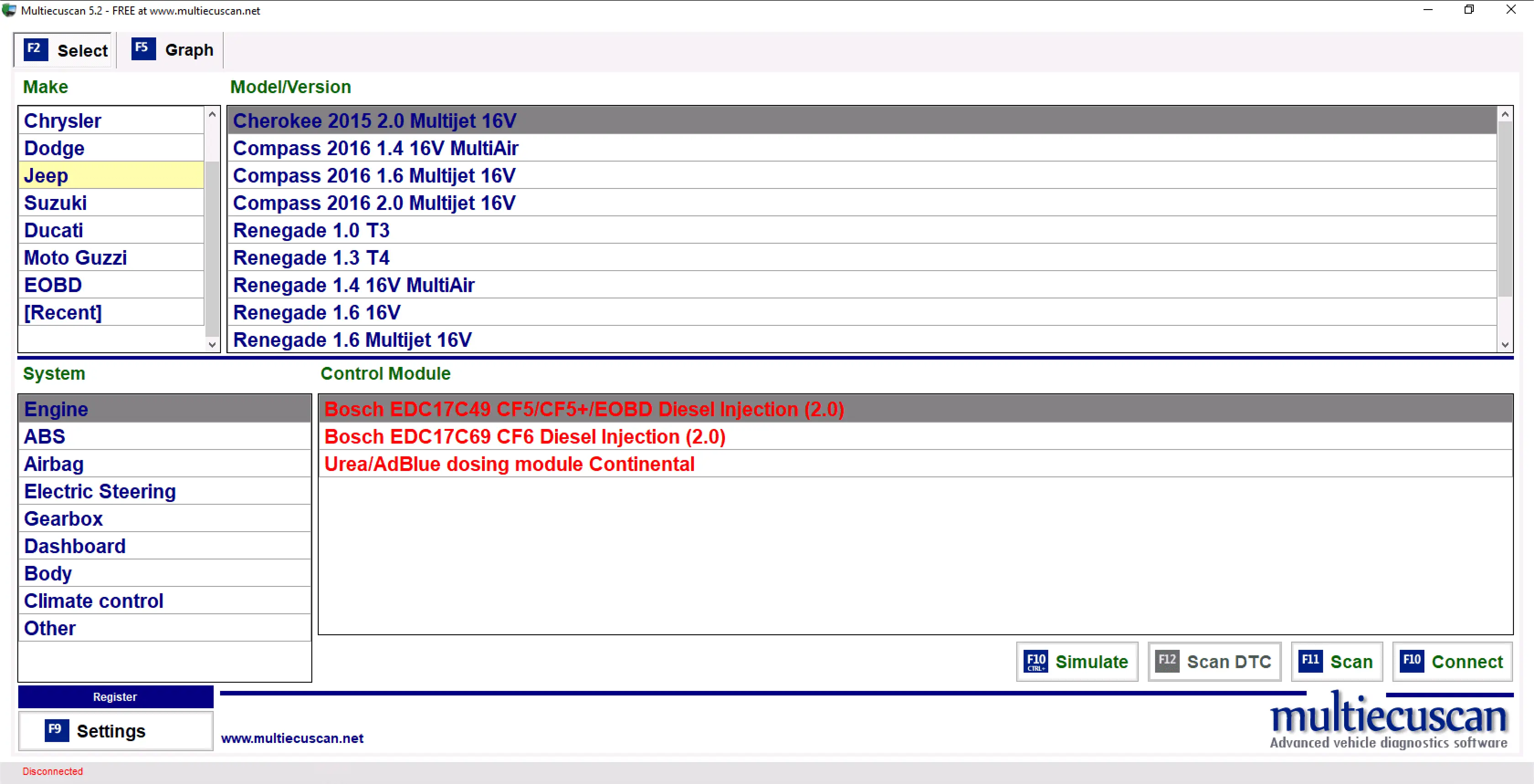

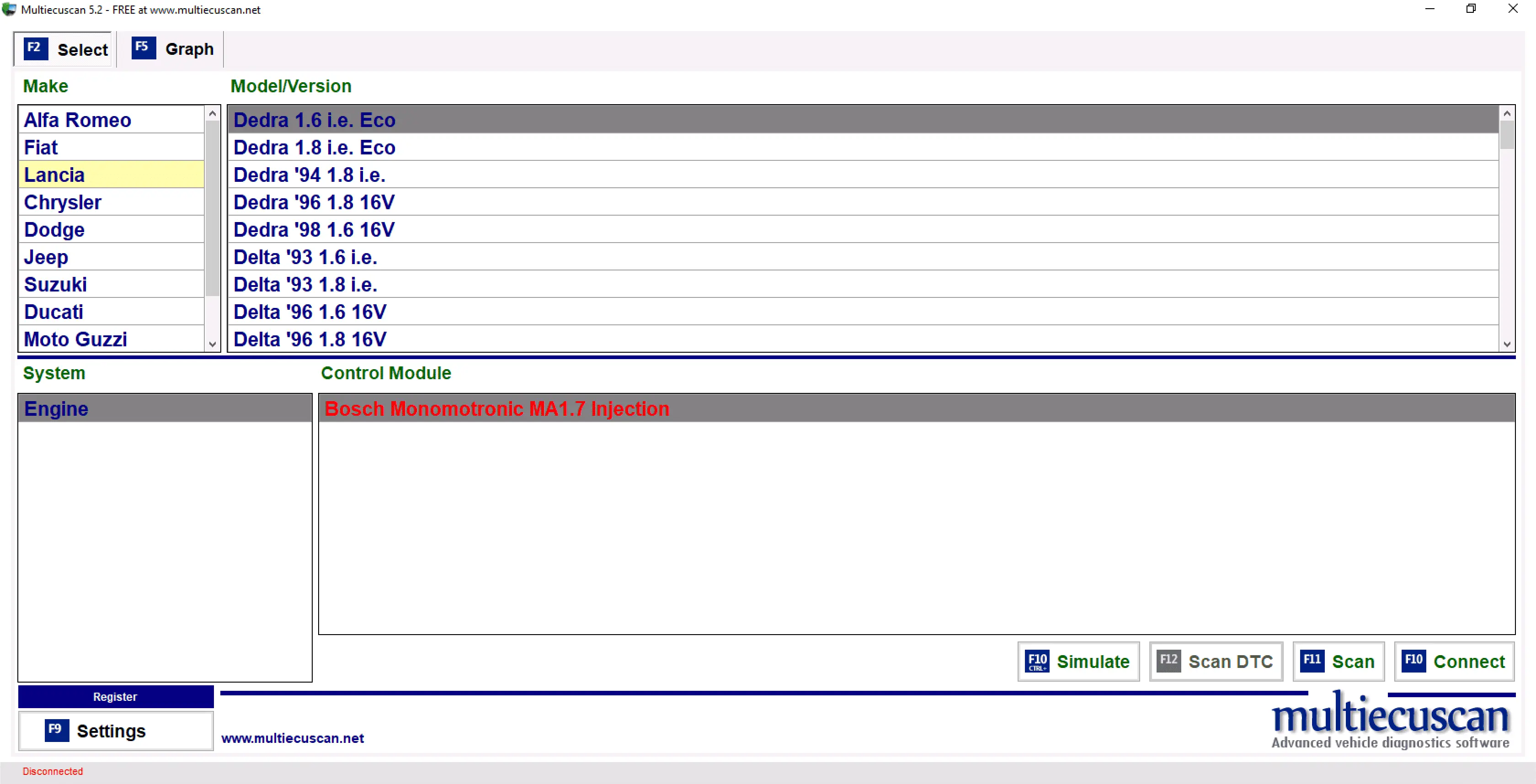

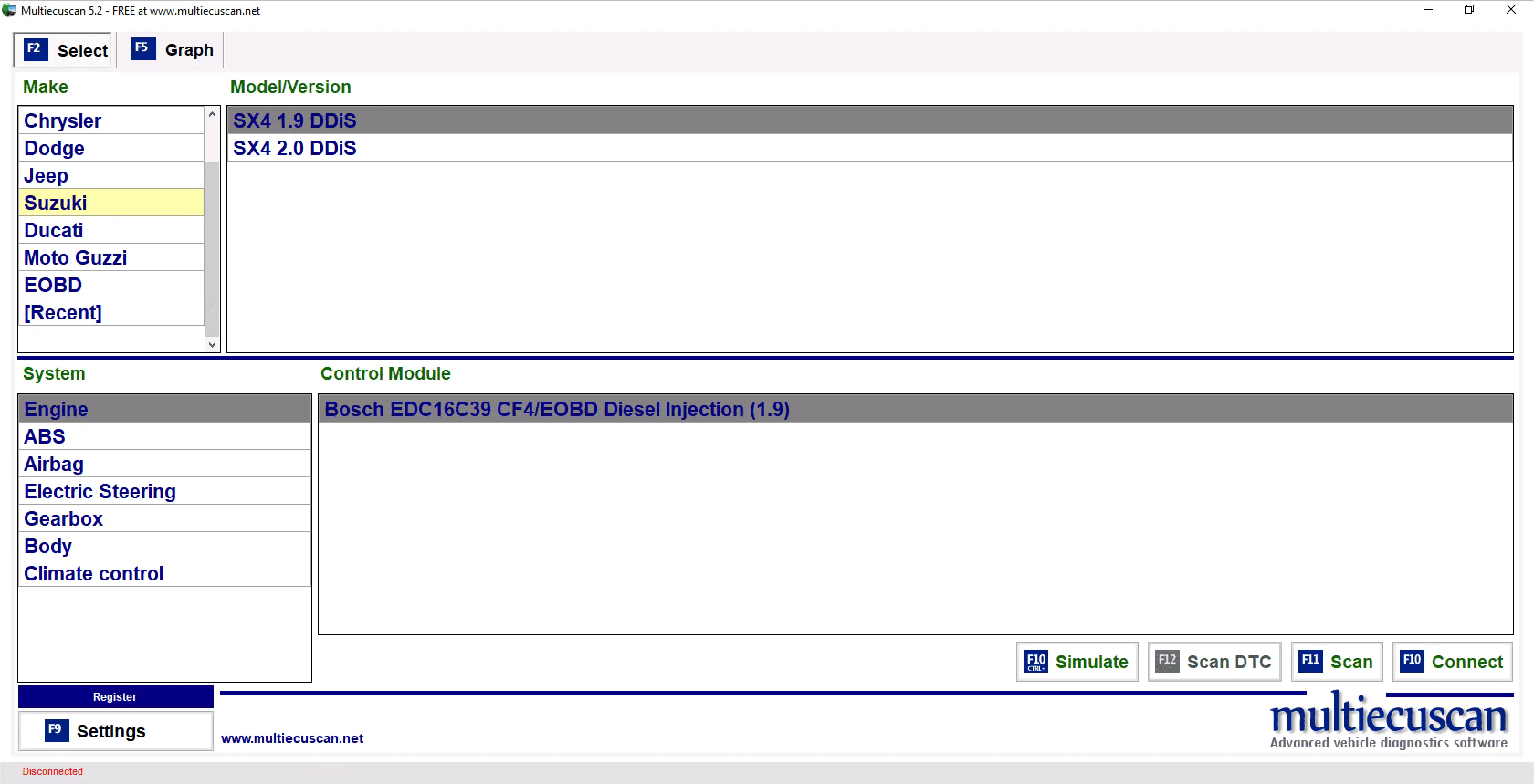

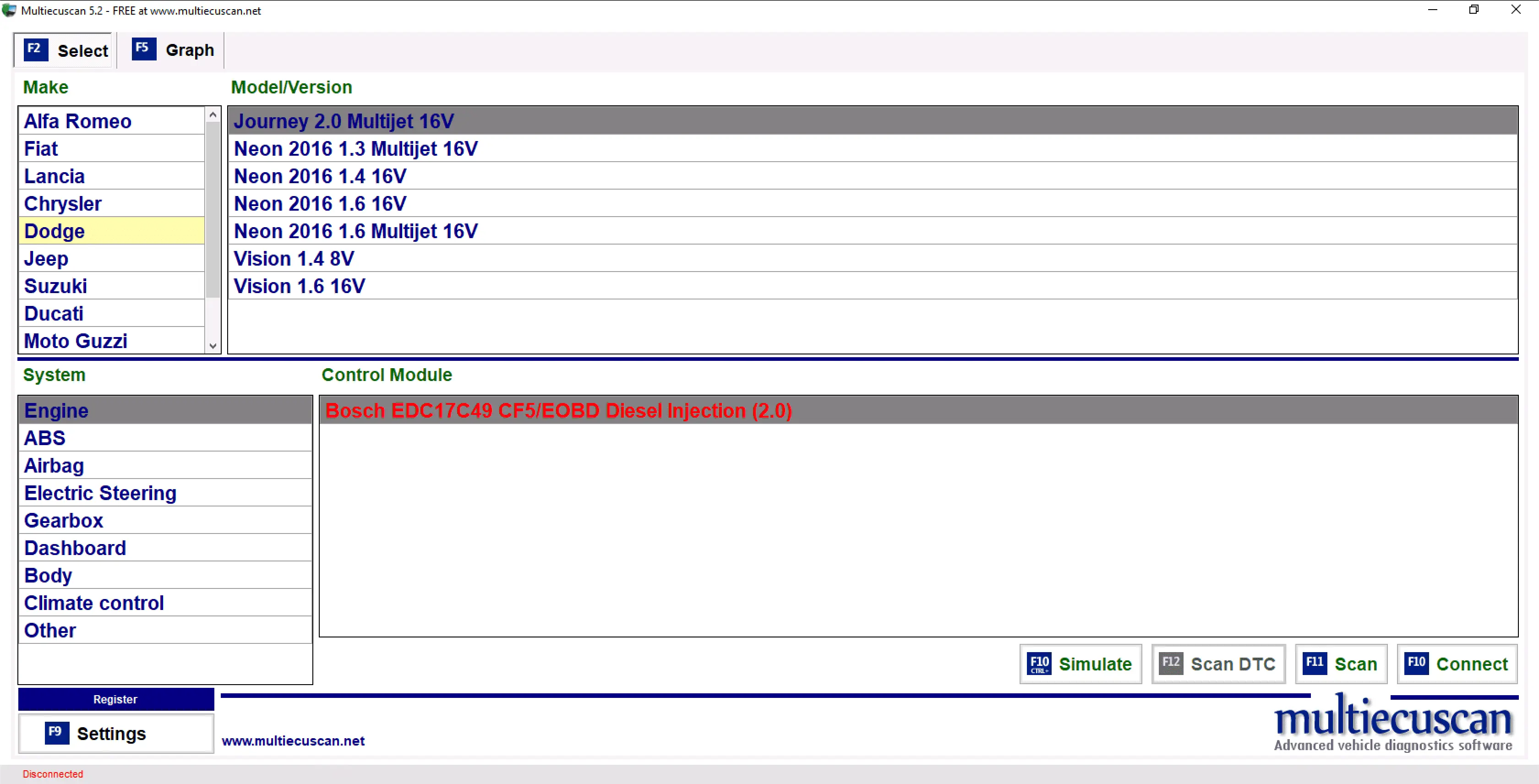

• Browse by Make → Model/Version; see available Systems (Engine, ABS, Airbag, Body,
  Dashboard, Electric Steering, Gearbox, Climate, etc.).
• Typical control units shown include Bosch EDC16/EDC17/Motronic and Magneti Marelli IAW families.
• Each model lists supported Control Modules so you know exactly what you can connect to.

Core workflow

• Select: choose vehicle, then system, then control module.
• Connect & Scan: quick module scan or full connection to the selected ECU.
• Info: view ISO ID, VIN, hardware/software numbers, and runtime counters for documentation.
• Errors: read/clear diagnostic trouble codes with status notes.
• Parameters: live values (RPM, temps, sensors, switches) with units and descriptions.

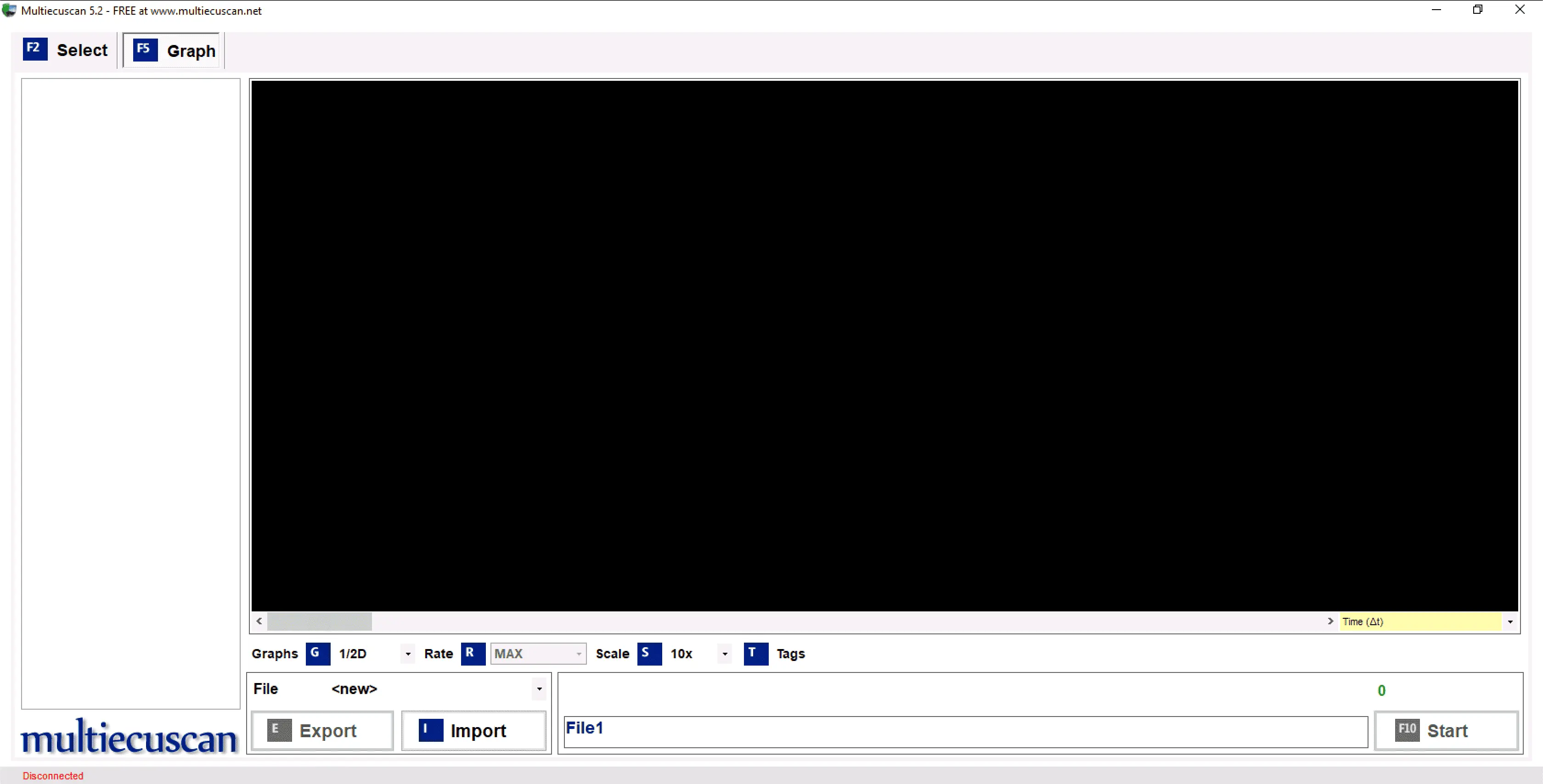

• Graph: build 1/2D graphs, set rate/scale, tag channels, import/export graph profiles; handy for
  test drives and before/after comparisons.
• Actuators: command tests (fans, pumps, lights, valves) to verify outputs in minutes.
• Adjustments: perform guided procedures where supported (e.g., service resets, calibration steps).

Simulation & logging

• Simulate any listed module to practice functions without a car attached—great for learning.
• Export logs/graphs for shop records and trend analysis.

Why workshops like it

• Clear model→module navigator saves time on identification.
• Consistent layout across systems reduces training overhead.
• Fast graphs help visualize issues and confirm fixes.

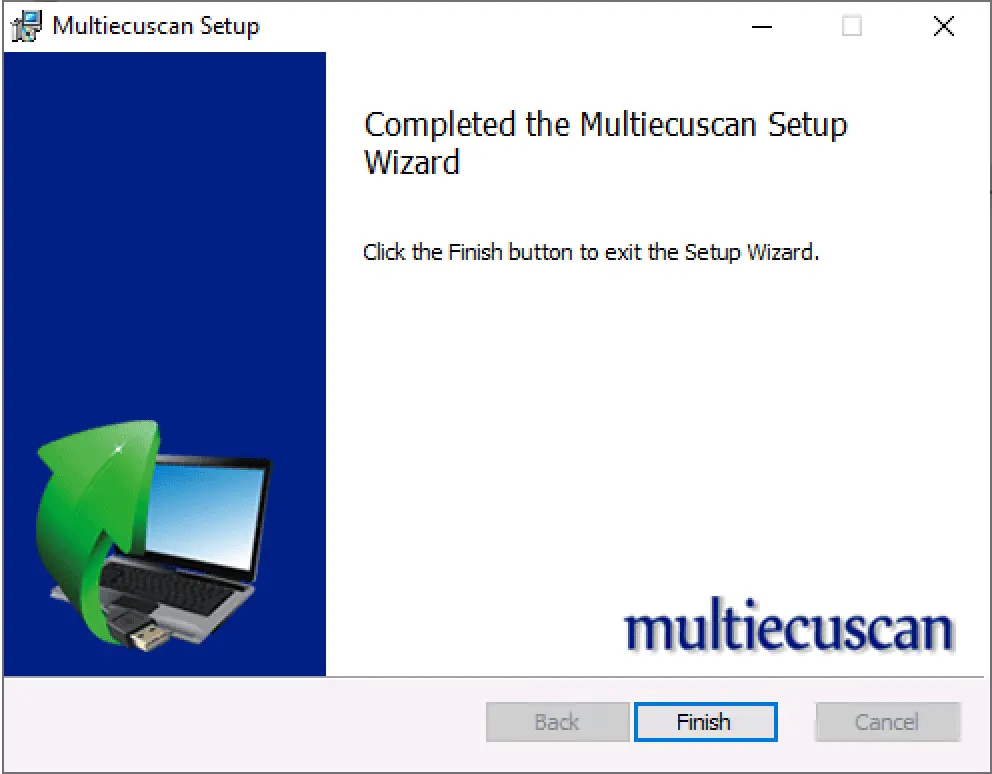

Compatibility & Minimum Requirements

• Tested on Windows 10 LTSC (2019); also runs on Windows 7/8/10/11 (32/64-bit).
• CPU: dual-core or better • RAM: 2 GB+ • Storage: 300 MB+ (more for logs/exports).
• ELM327/KKL-type interfaces and appropriate adapters may be required for some modules.

Disclaimer
This description summarizes features visible in the application and is provided for informational
purposes only. Files and links referenced here are indexed from public locations and may have been
shared by third parties, our forum does not host or modify them. Use diagnostic software only with
vehicles you are authorized to service, and follow all applicable licenses and laws.

---
