What is NEXIQ eTechnician?
NEXIQ eTechnician is a Windows diagnostic suite for heavy duty and light/medium duty vehicles. It helps fleet and workshop technicians read faults, view live parameters, run service tests like DPF regeneration and create printable reports using a compatible RP1210 adapter.
Key facts
Highlights
Package contents
Compatibility notes
Coverage and available calibrations vary by engine make, model year and ECM. Functions depend on network protocol and adapter capabilities. Use stable vehicle power for service tests. Availability may differ by region and firmware.
Basic usage
Operating systems
Minimum system requirements
CPU: dual-core or better. RAM: 4 GB. Storage: 2 GB free. One USB port for the adapter. Modern Chromium or Edge WebView runtime. Local administrator rights required.
References
Disclaimer
* Source of Files. All software and resources in this post are collected from public and open sources on the internet. We do not claim authorship or ownership.
* File Hosting. This forum does not host files. All links point to third party public cloud storage. We are not responsible for external content.
* User Responsibility. Software is provided for educational and evaluation purposes only. You use it at your own risk. Authors of the post and forum administration are not liable for any damage.
NEXIQ eTechnician is a Windows diagnostic suite for heavy duty and light/medium duty vehicles. It helps fleet and workshop technicians read faults, view live parameters, run service tests like DPF regeneration and create printable reports using a compatible RP1210 adapter.
Key facts

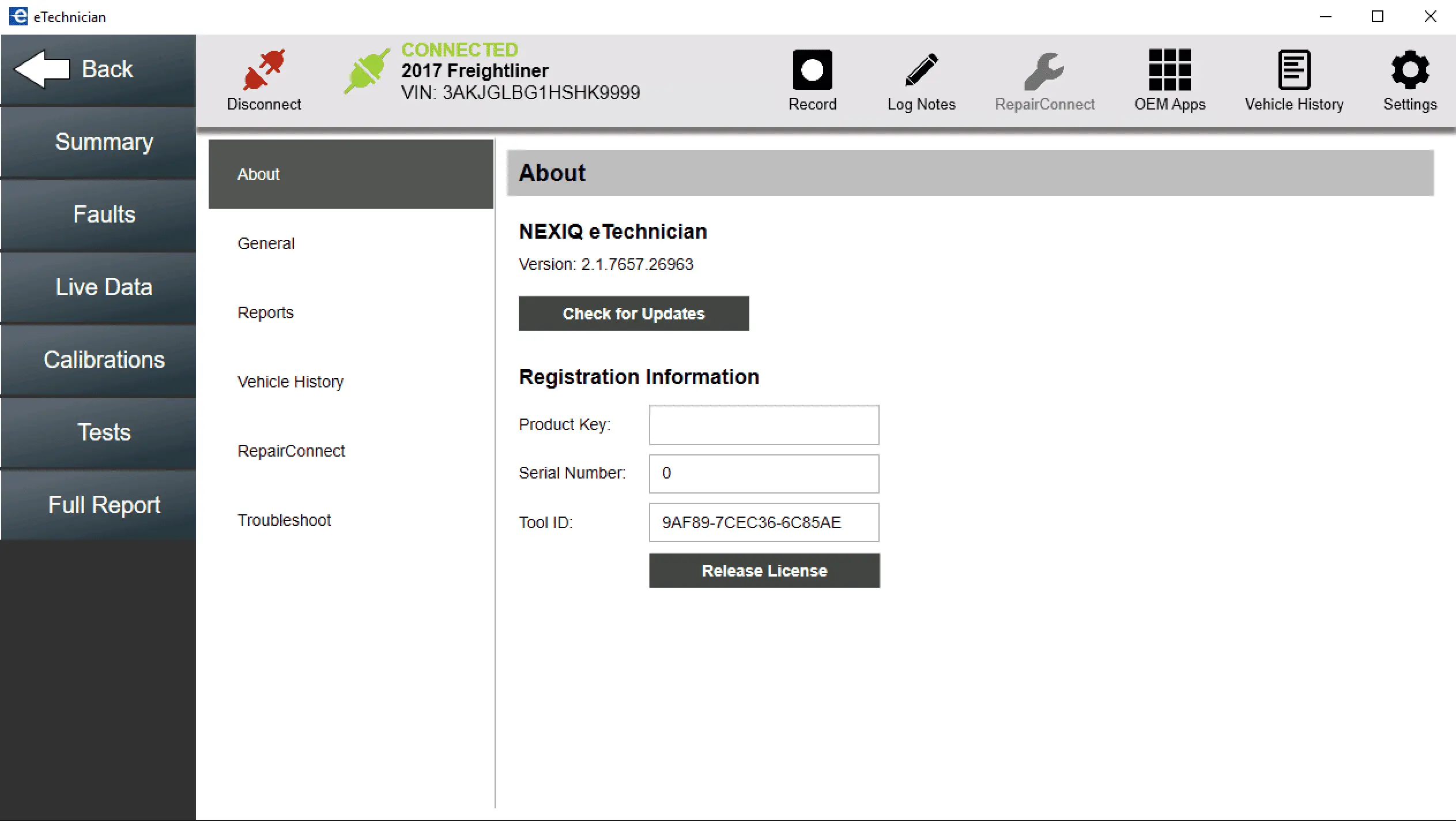

- Version: 2.1.7657.26963
- Interfaces: NEXIQ USB-Link family or compatible RP1210 adapters over J1939 and J1708/1587
- Vehicle classes: heavy duty and light/medium duty

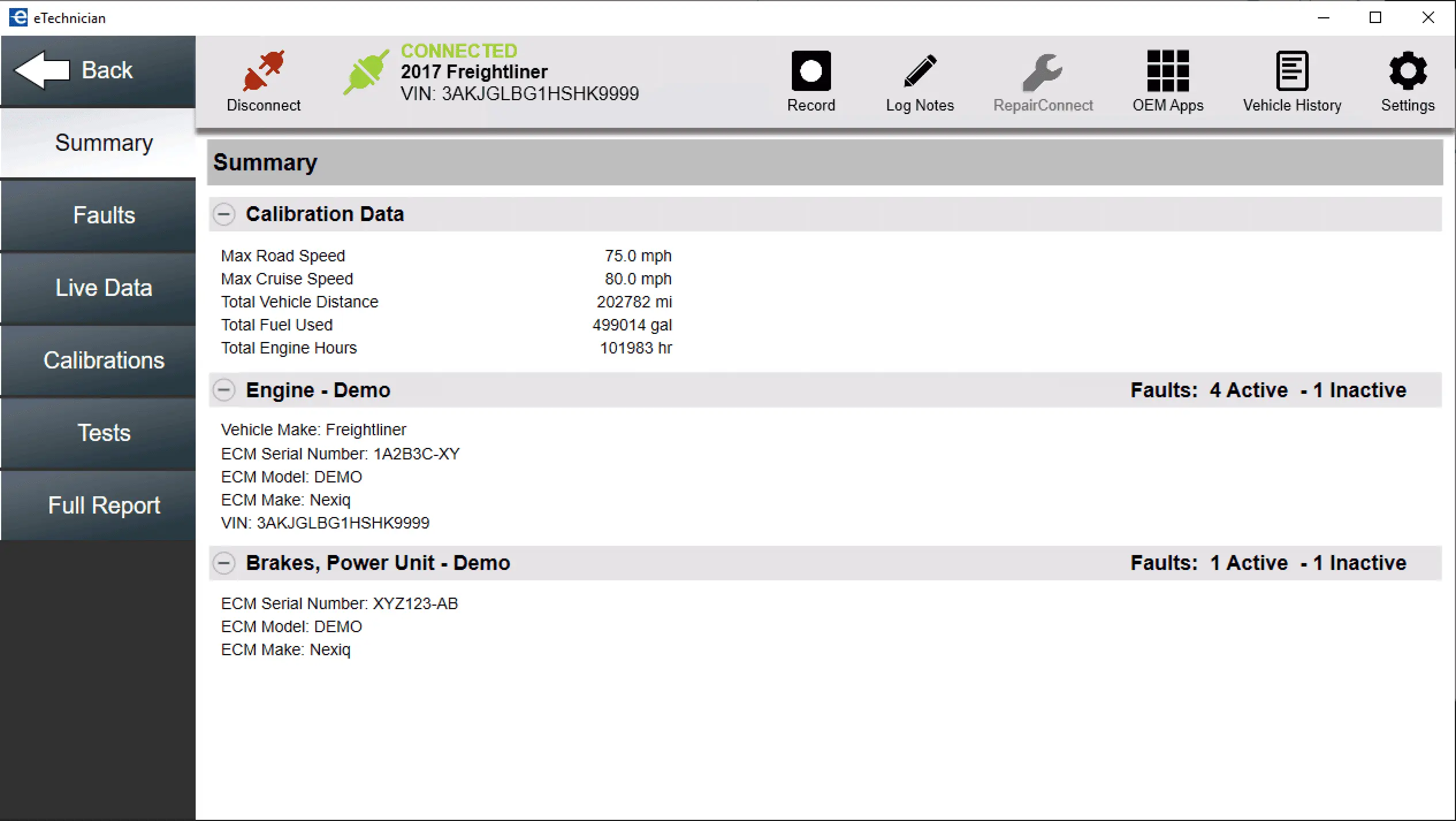

- Core modules: Summary, Faults, Live Data, Calibrations, Tests, Full Report, Vehicle History
- License: preconfigured installer with feature activation using valid codes
- Official site: https://www.nexiq.com/
Highlights
- Quick connect by vehicle class with clear DISCONNECTED/CONNECTED status

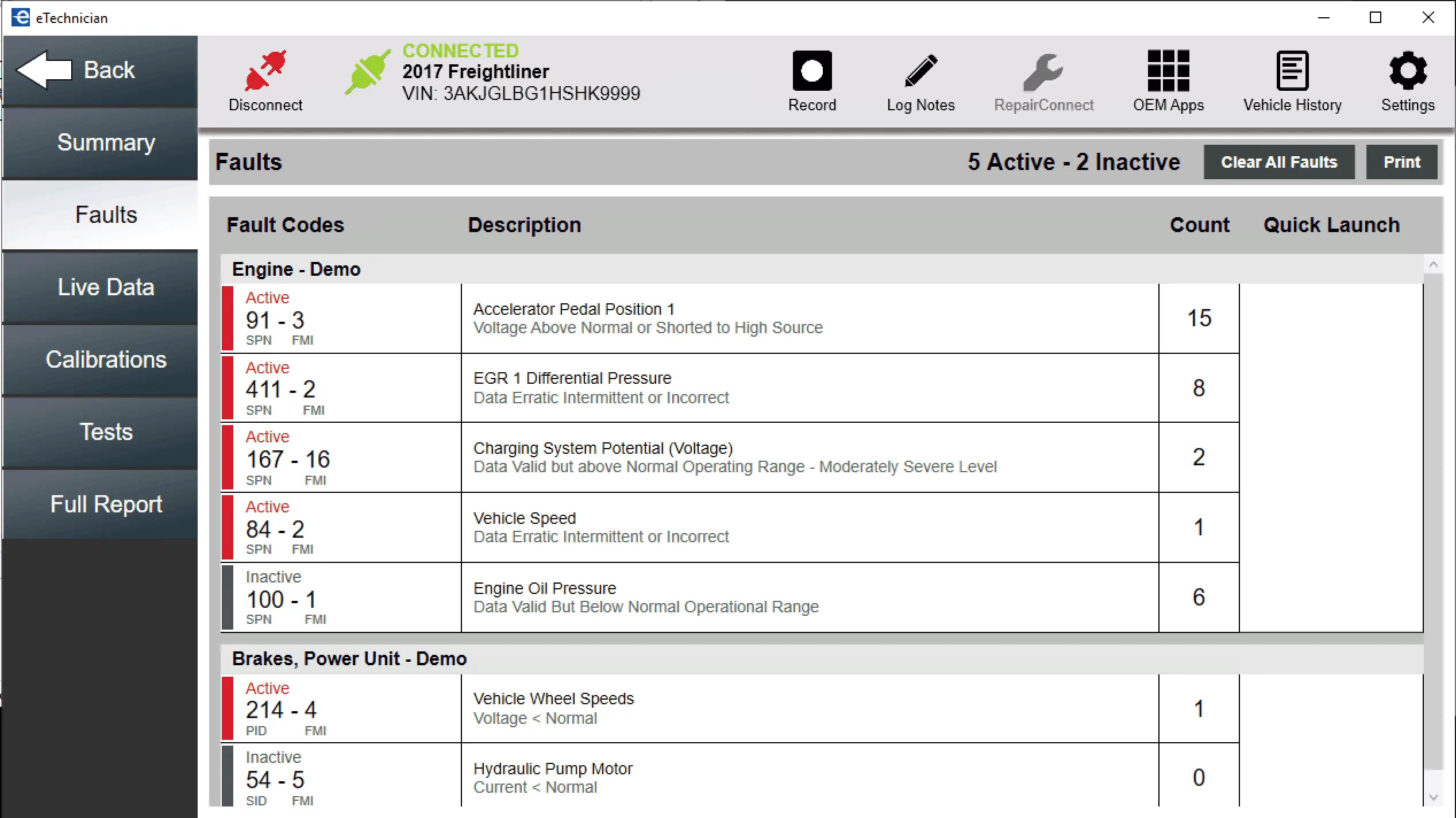

- Fault viewer with SPN and FMI plus counts and quick actions

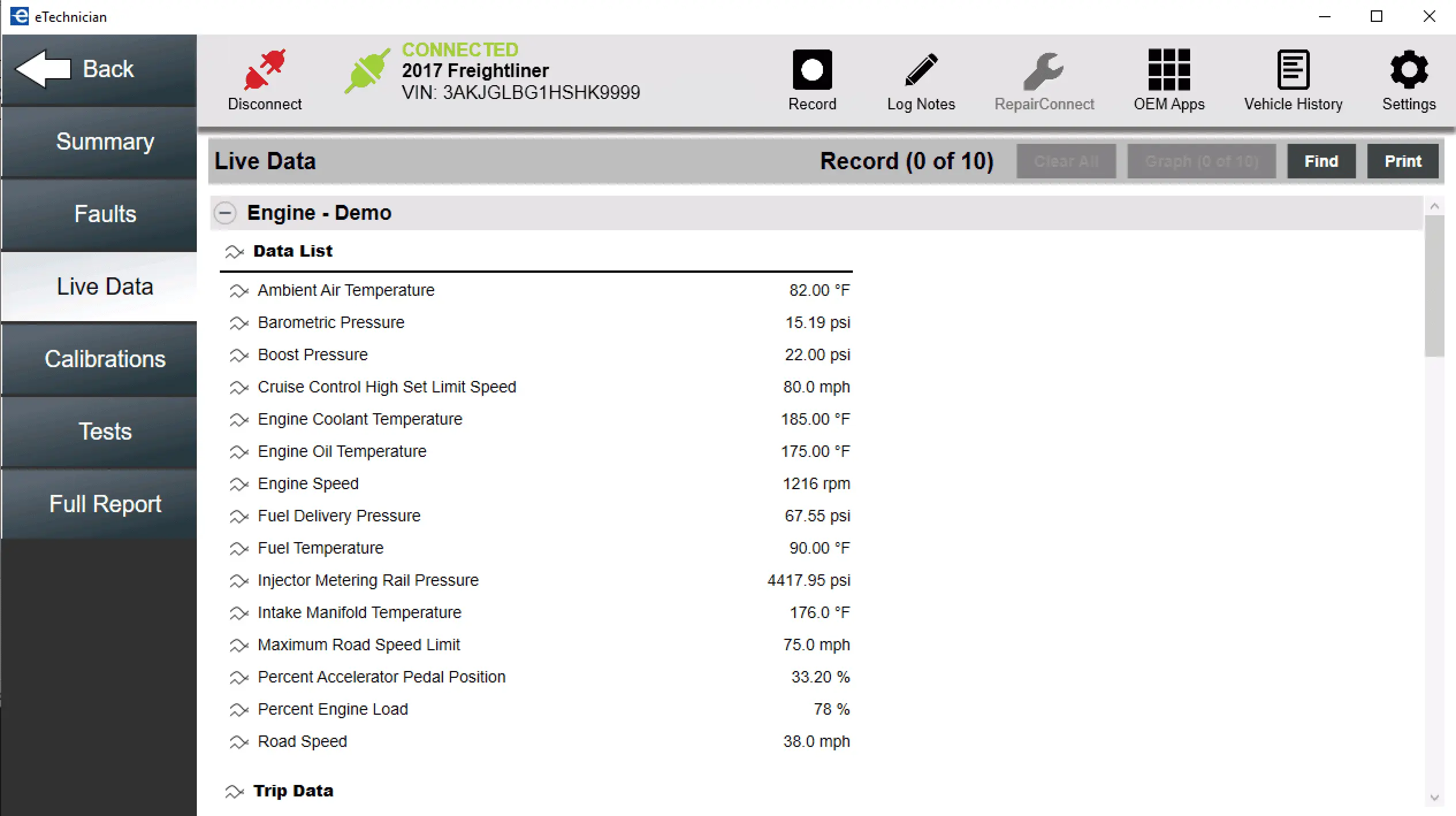

- Live Data list with find, print and record controls

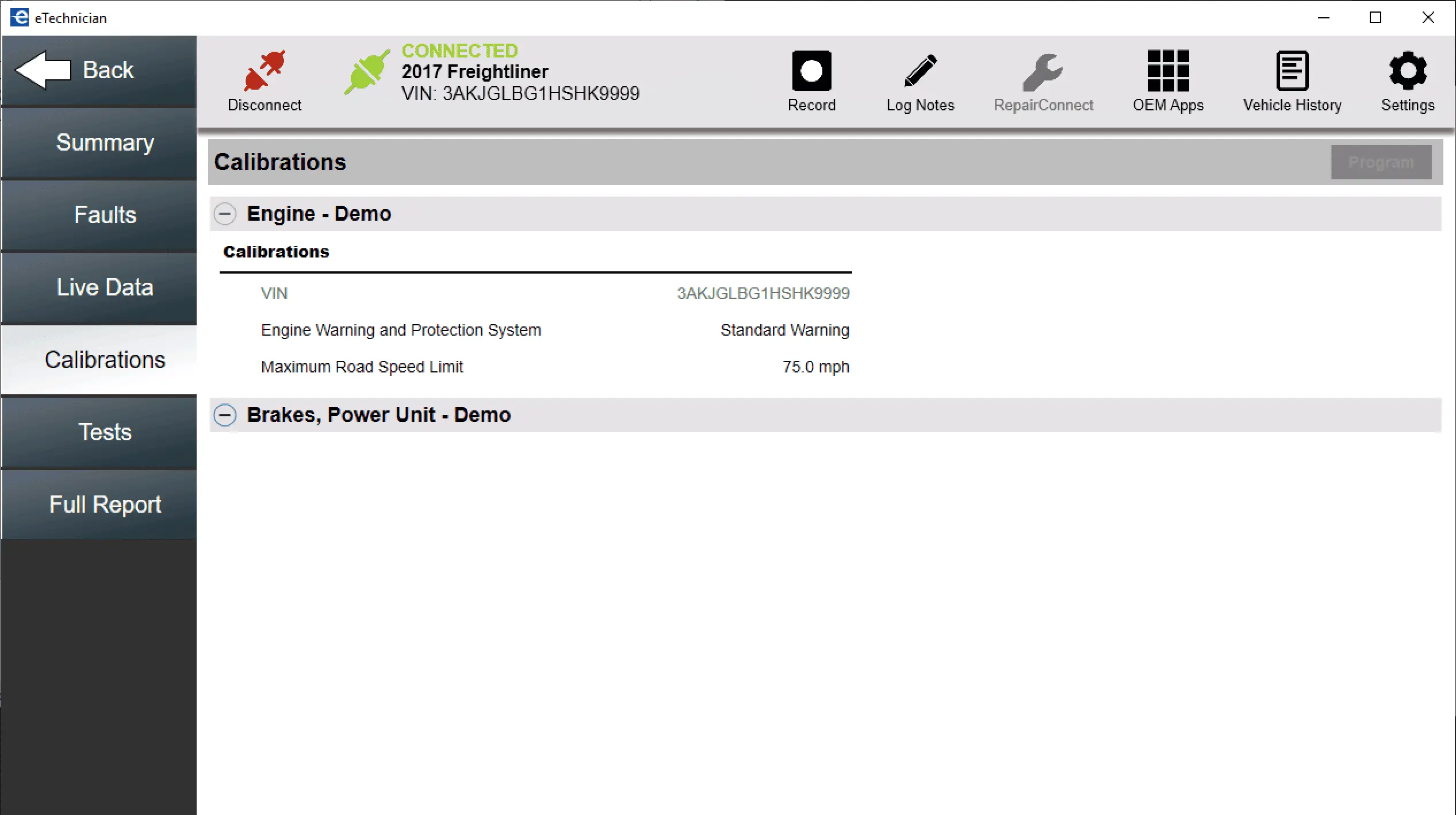

- Calibrations such as maximum road speed limit where supported

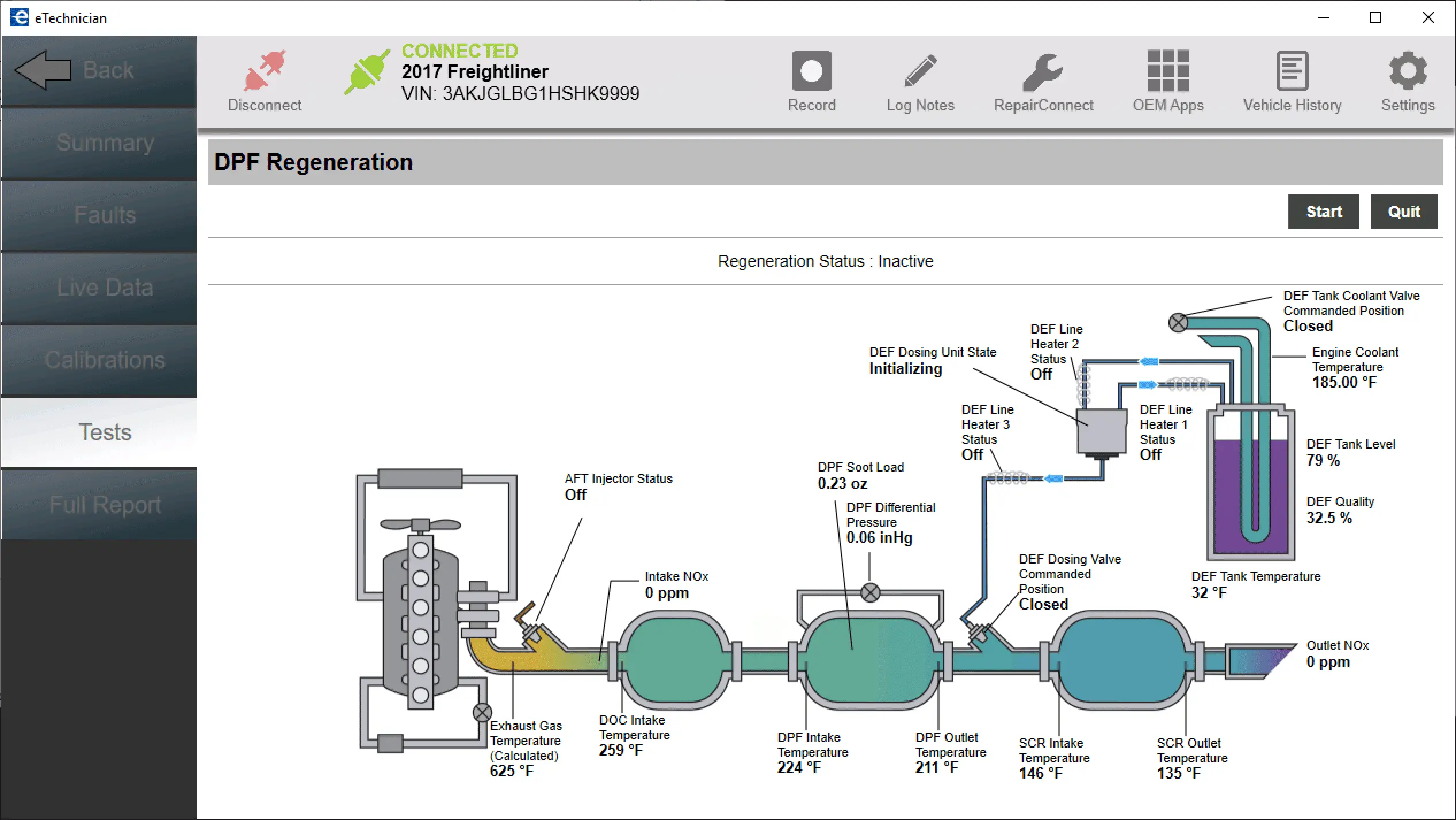

- DPF Regeneration and related aftertreatment tests with visual flow

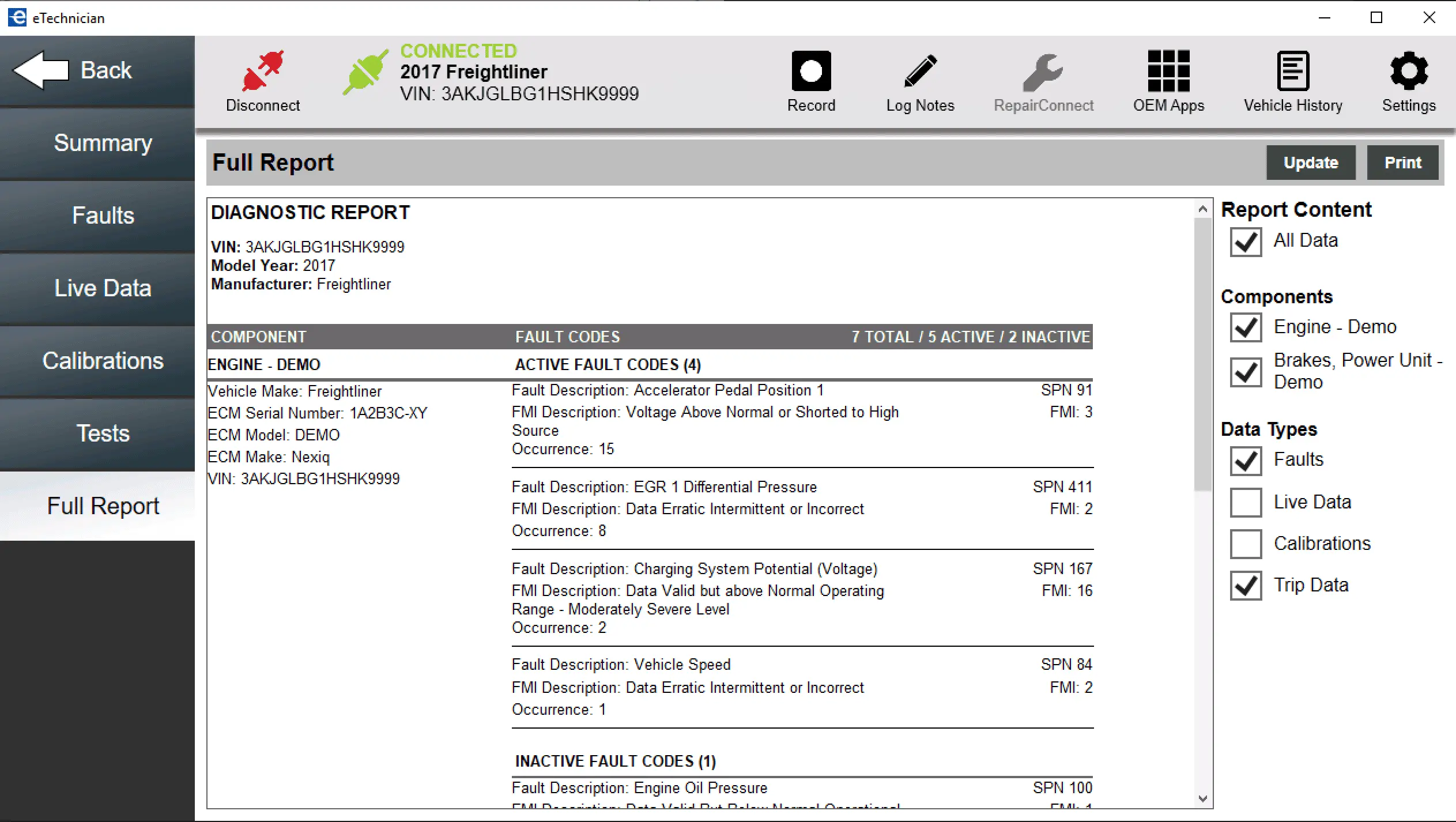

- Full Report generator with VIN, ECM details and selectable content
Package contents
- Exact file names will be listed from your archive on request
Compatibility notes
Coverage and available calibrations vary by engine make, model year and ECM. Functions depend on network protocol and adapter capabilities. Use stable vehicle power for service tests. Availability may differ by region and firmware.
Basic usage
- Install the application and connect a supported RP1210 adapter

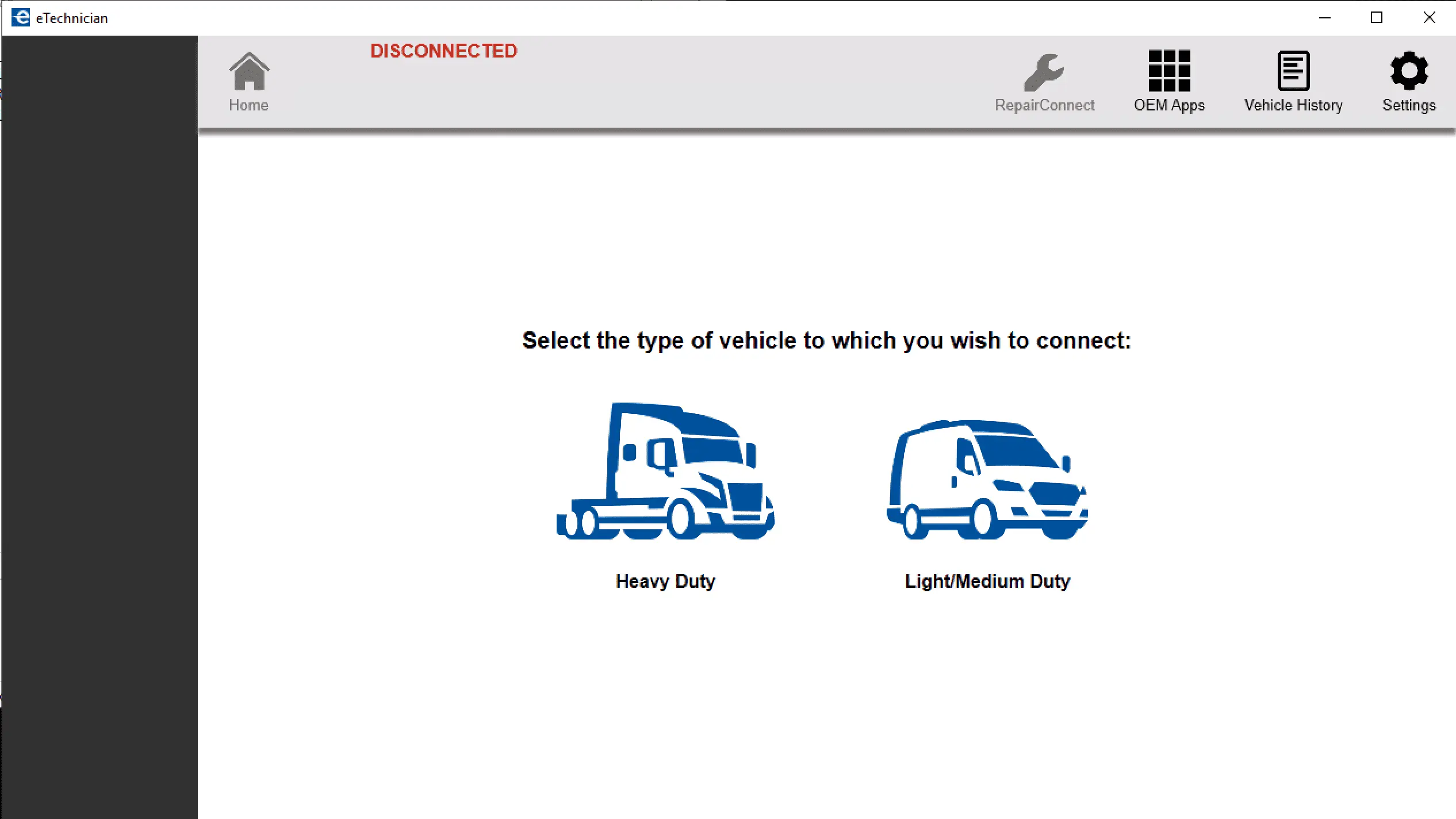

- Select Heavy Duty or Light/Medium Duty and establish communication
- Read Faults, review Live Data and run service Tests as required
- Apply supported Calibrations carefully and document changes
- Create a Full Report and save it to the work order
Operating systems
- Windows: 7, 8.1, 10, 11 • Architectures: x86 and x64
- macOS: use virtualization on Intel or Apple Silicon when required
Minimum system requirements
CPU: dual-core or better. RAM: 4 GB. Storage: 2 GB free. One USB port for the adapter. Modern Chromium or Edge WebView runtime. Local administrator rights required.
