This resource is for the NATS SIEMENS - Tek-Tronics PIN Code Calculator, a specialized utility for calculating the immobilizer PIN code for Nissan vehicles equipped with Siemens NATS (Nissan Anti-Theft System) control units.
What Problem Does This Tool Solve?
When programming new keys, adapting a new ECU, or performing other security-related tasks on older Nissan vehicles, the system requires a secret PIN code for access. This code is not readily available and is calculated based on several pieces of information printed on the label of the immobilizer control unit.
This calculator automates the process. You simply enter the details from the label, and the tool instantly calculates the correct PIN code needed to authorize your diagnostic or key programming tool.
Key Features
How to Use
System Requirements & Testing
Disclaimer
This software is a powerful tool intended for legitimate professional and educational purposes, such as creating spare keys or repairing your own vehicle. Using this tool for illegal activities is strictly prohibited. It is your responsibility to use this tool in compliance with your local laws. Use at your own risk.
What Problem Does This Tool Solve?
When programming new keys, adapting a new ECU, or performing other security-related tasks on older Nissan vehicles, the system requires a secret PIN code for access. This code is not readily available and is calculated based on several pieces of information printed on the label of the immobilizer control unit.
This calculator automates the process. You simply enter the details from the label, and the tool instantly calculates the correct PIN code needed to authorize your diagnostic or key programming tool.
Key Features
- Simple & Clear Interface: All required fields are clearly laid out, matching the information on the label.

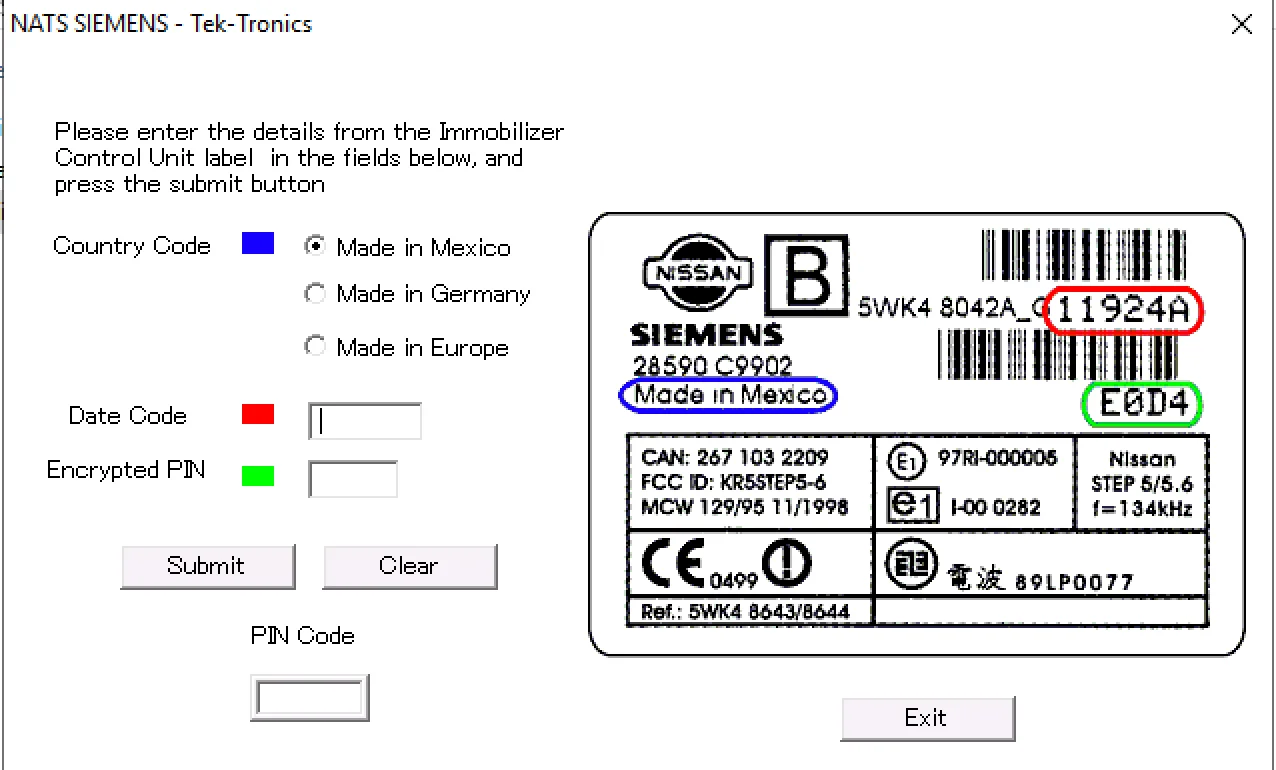

- Visual Guide: The software includes an example image of a Siemens NATS label with the required data (Country Code, Date Code, Encrypted PIN) clearly circled.
- Fast Calculation: Instantly generates the final PIN code after you submit the correct data.
How to Use
- Locate the NATS Module: Find and access the Siemens Immobilizer Control Unit in the vehicle.
- Read the Label: Carefully read the information from the unit's label, paying attention to the codes circled in the example image within the software.
- Enter Data into Calculator:
- Select the correct "Country Code" (e.g., Made in Mexico).
- Enter the "Date Code" (highlighted in red on the example).
- Enter the "Encrypted PIN" (highlighted in green on the example).
- Submit & Get Code: Press the "Submit" button. The correct "PIN Code" will be calculated and displayed in the bottom field.
- Use the PIN: Enter this calculated PIN into your diagnostic or key programming tool to gain security access.
System Requirements & Testing
- Operating System: This software is Windows-based and has been tested on Windows 10 LTSC 2019.
- Required Hardware: No special hardware is needed for the calculation itself, only for the subsequent key programming or diagnostic work.
Disclaimer
This software is a powerful tool intended for legitimate professional and educational purposes, such as creating spare keys or repairing your own vehicle. Using this tool for illegal activities is strictly prohibited. It is your responsibility to use this tool in compliance with your local laws. Use at your own risk.
