PEmicro PROGPPCNEXUS — Nexus/JTAG Flash & Production Tool

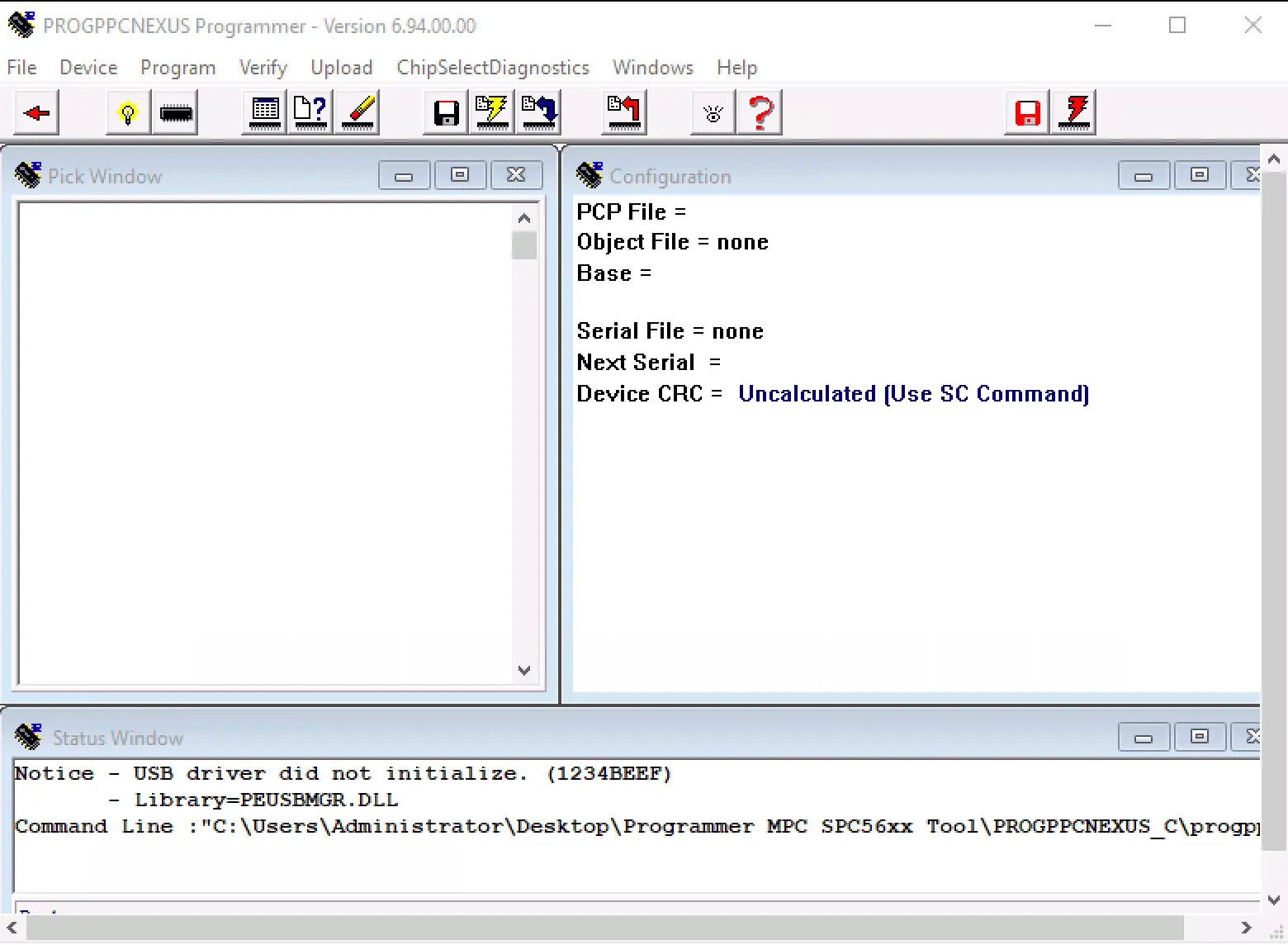

PROGPPCNEXUS is PEmicro’s GUI and command-line toolkit to program Power Architecture devices in-circuit. It works with PEmicro USB Multilink (Universal / Universal FX) and Cyclone programmers to reliably Program / Verify / Erase / Blank-Check / Upload memory on NXP MPC5xxx and ST SPC5 targets. Ideal for automotive ECUs and industrial controllers.



Highlights

• Interactive programmer plus scriptable CPROGPPCNEXUS for automation and production lines.
• Supports NXP/Freescale MPC55xx / MPC56xx / MPC57xx and STMicroelectronics SPC5 via Nexus/JTAG.

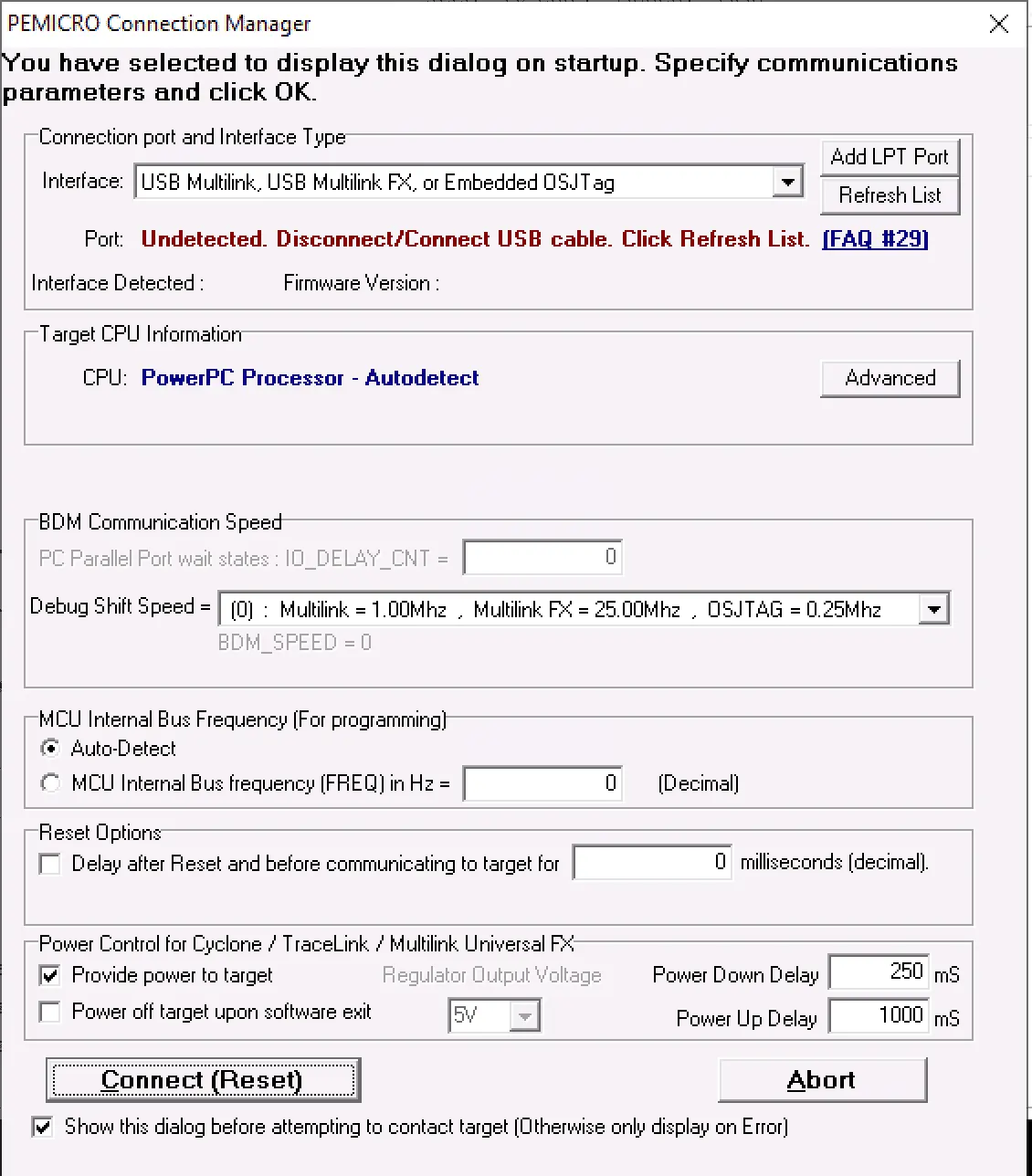

• Compatible with USB Multilink Universal / Universal FX and Cyclone LC/FX hardware.
• Core tasks: Program, Verify, Erase, Blank Check, Upload, display status, and CRC checks.
• In-circuit operation through the device debug module for fast, reliable turnaround.

Typical use cases

• Production flashing with serial numbering and scripts.
• Field or lab updates of PowerPC e200–based controllers.
• Engineering bring-up, memory erase/recover, and verification.

Compatibility
Tested on Windows 10 LTSC (2019). Also runs on Windows 7 / 8 / 10 / 11 (x86/x64).

Minimum system requirements

• OS: Windows 7 or newer (32/64-bit)
• CPU: Dual-core 2.0 GHz or better
• RAM: 2 GB (4 GB recommended)
• Storage: 200 MB free
• Ports: One USB 2.0/3.x port
• Hardware: PEmicro USB Multilink Universal/FX or Cyclone LC/FX; target with Nexus/JTAG header
