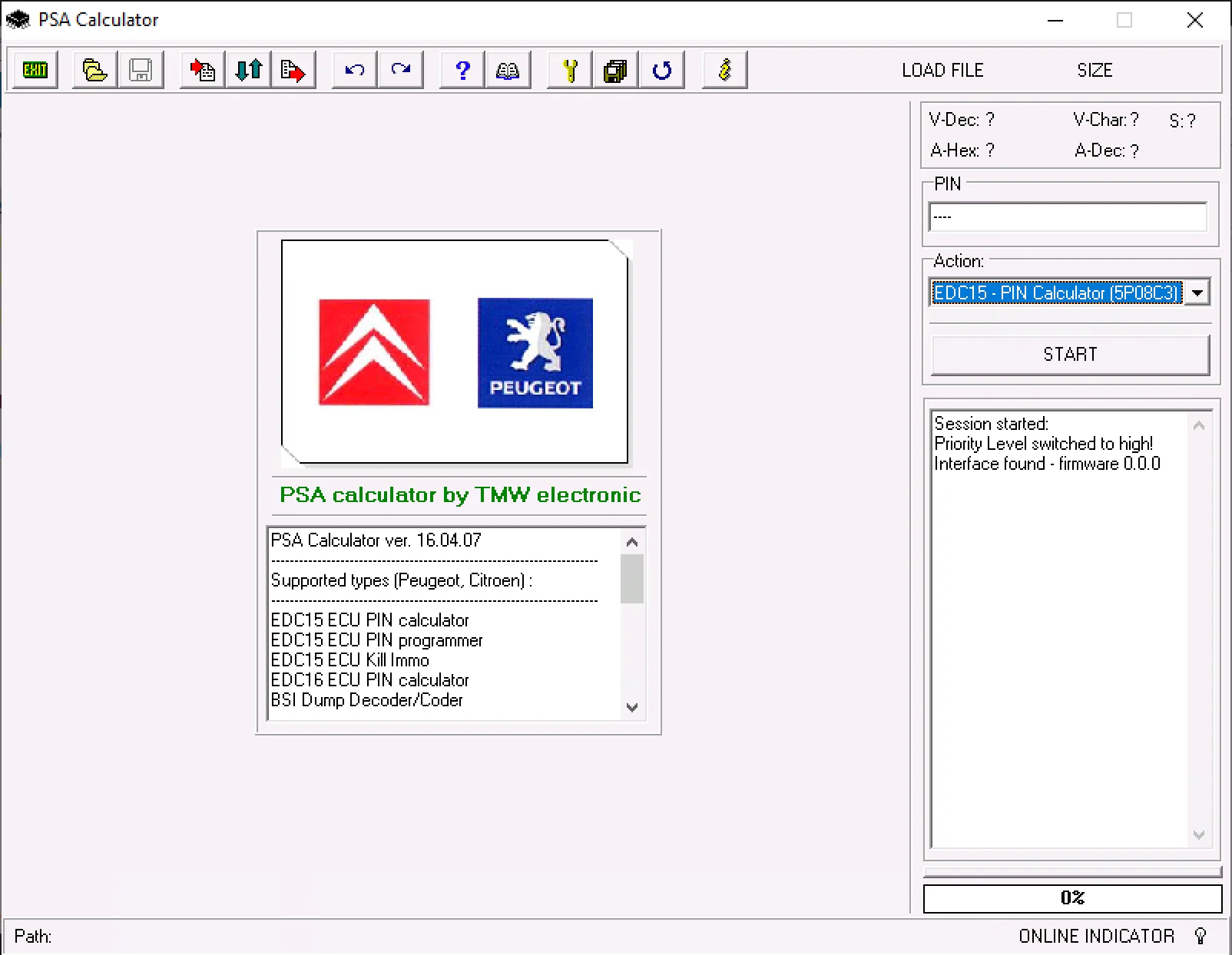

PSA Calculator is a multi-purpose utility by TMW electronic designed for technicians working with Peugeot and Citroën vehicles. This single tool combines several essential functions for working with immobilizer systems, including PIN code calculation, programming, immobilizer removal, and BSI dump decoding. The software works by loading a memory dump file from an ECU or BSI and then performing the selected action on that file.




Supported Actions & ECUs

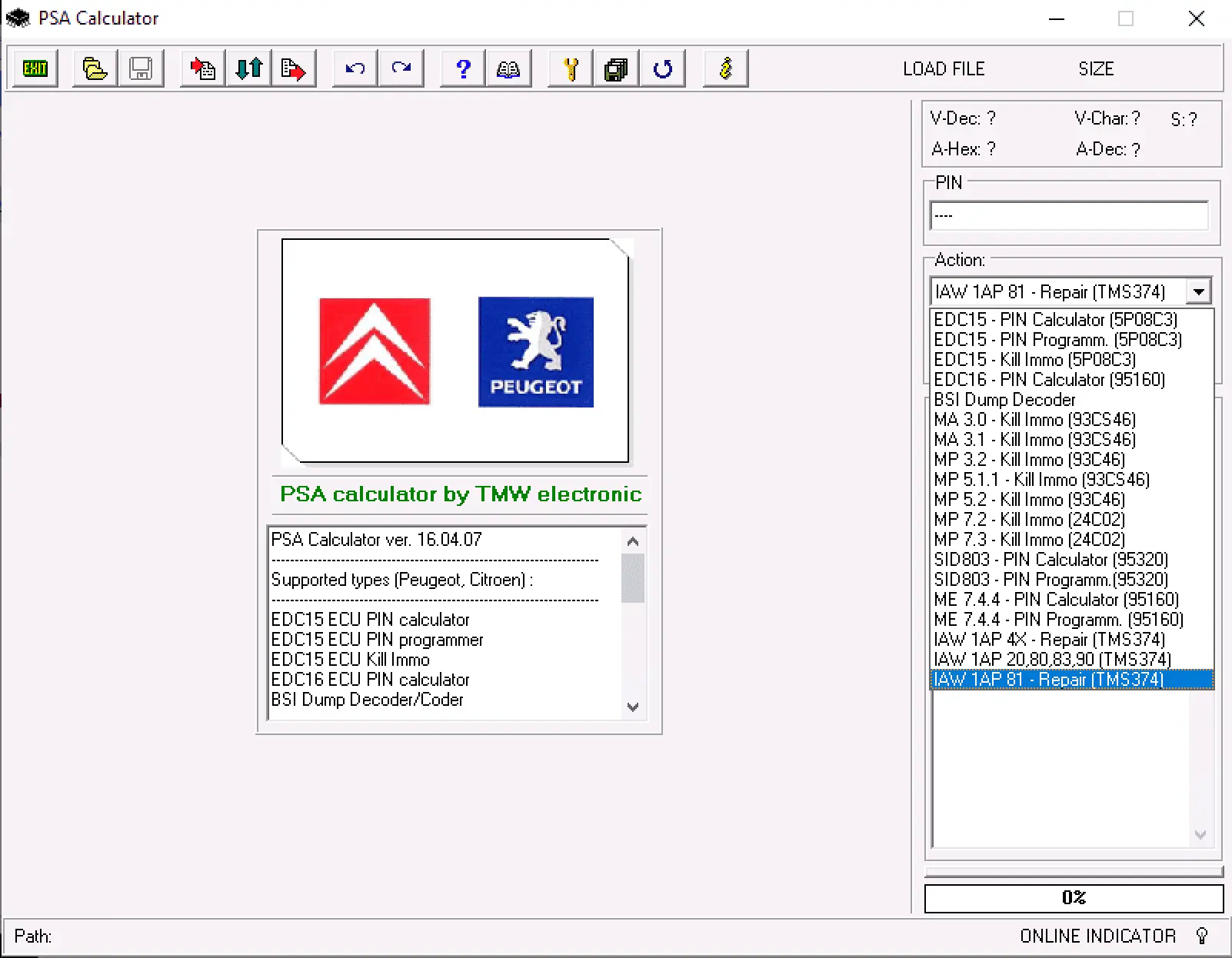

This tool provides a wide range of functions for various control units. The full list of available actions includes:

• IAW 1AP.81 - Repair (TMS374)

• EDC15 - PIN Calculator (5P08C3)

• EDC15 - PIN Programmer (5P08C3)

• EDC15 - Kill Immo (5P08C3)

• EDC16 - PIN Calculator (95160)

• BSI Dump Decoder

• MA 3.0 - Kill Immo (93CS46)

• MA 3.1 - Kill Immo (93CS46)

• MP 5.1.1 - Kill Immo (93C46)

• MP 5.2 - Kill Immo (93C46)

• MP 7.2 - Kill Immo (24C02)

• MP 7.3 - Kill Immo (24C02)

• SID803 - PIN Calculator (95320)

• SID803 - PIN Programmer (95320)

• ME 7.4.4 - PIN Calculator (95160)

• ME 7.4.4 - PIN Programmer (95160)

• IAW 1AP.4X - Repair (TMS374)

• IAW 1AP.20,80,83,90 (TMS374)

System Compatibility
This software has been fully tested and is confirmed to be working perfectly on Windows 10 LTSC (2019).

Disclaimer
• Source of Files: All software and resources provided in this post have been collected from public, open-source domains on the internet.

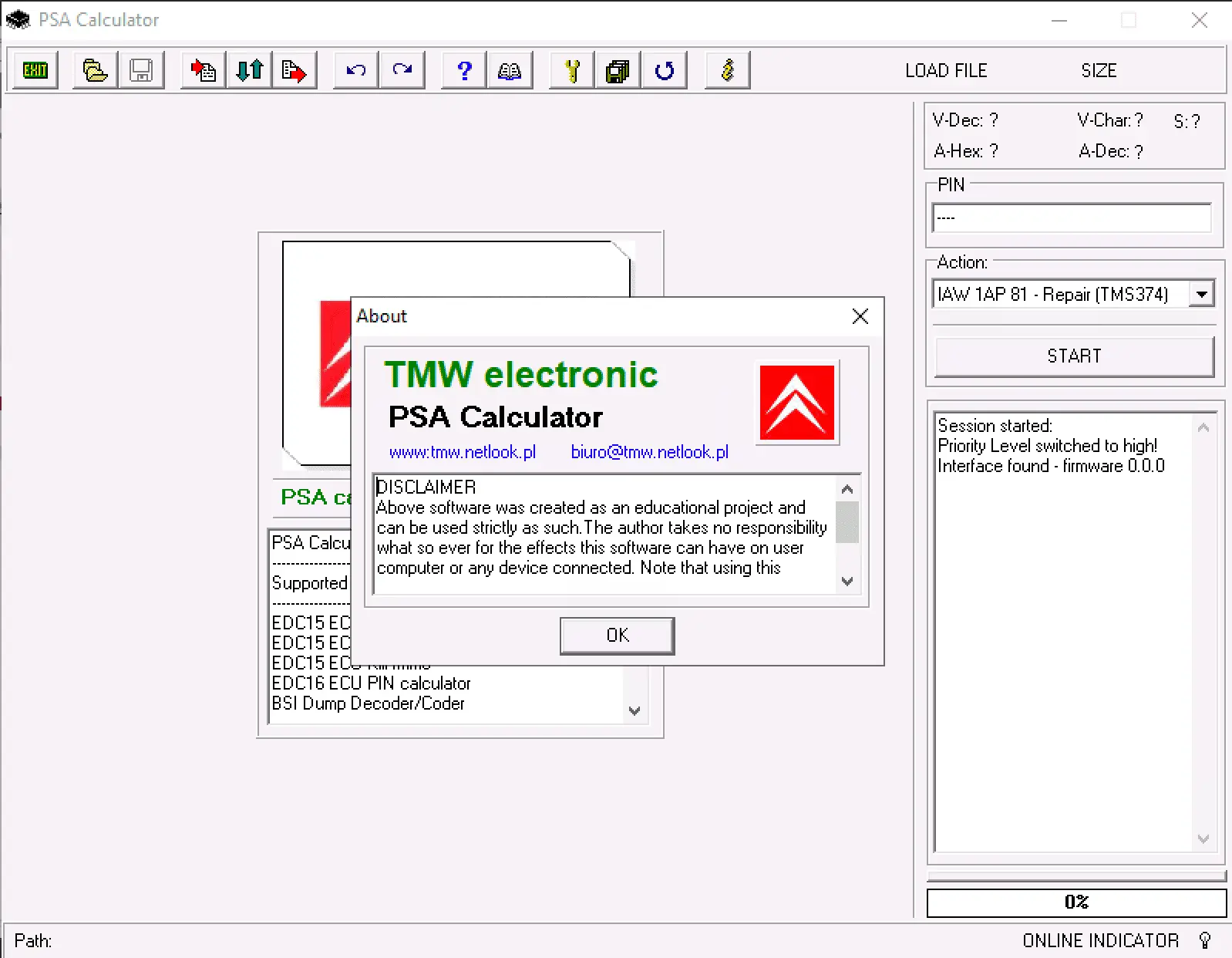

• Author's Note: The software's author states this was "created as an educational project" and that they take "no responsibility what so ever for the effects this software can have on user computer or any device connected."
• User Responsibility: This is a professional tool for expert use. You, the user, assume all responsibility and risk. The authors of this post and the forum administration are not liable for any damage to your equipment or data that may result from its use.
