PSA Engine ECU Encode is a straightforward and effective utility designed to read the immobilizer PIN code from a wide variety of engine control units (ECUs) used in PSA group vehicles (Peugeot & Citroën). The software works by analyzing an EEPROM file that has been read from the ECU. The user simply loads the file, and the tool automatically calculates and displays the security code required for key programming and other immobilizer-related procedures.



Key Functions

• PIN Code Extraction: Automatically reads the immobilizer PIN from an EEPROM dump and displays it in the "Code" field.

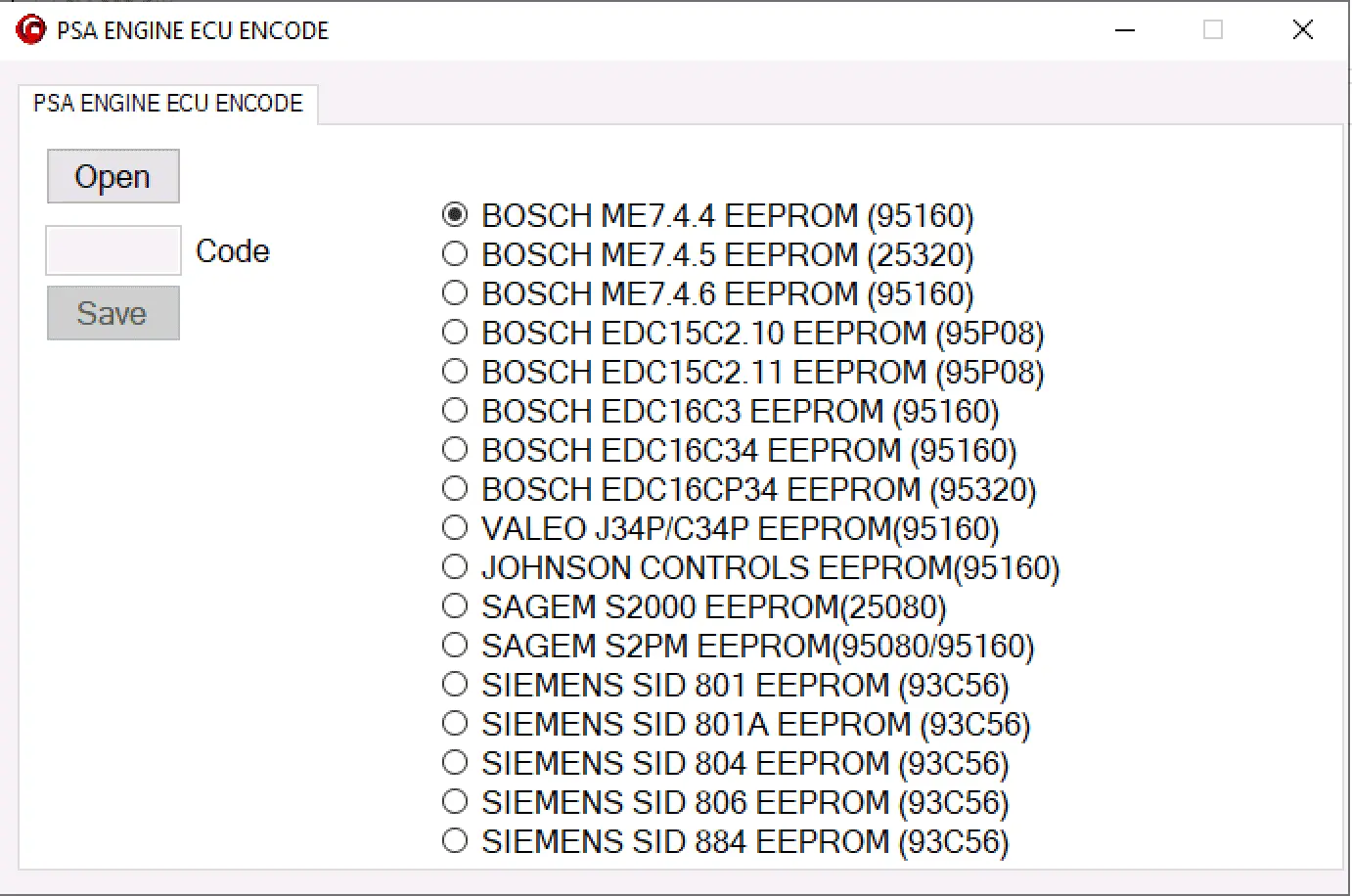

• Simple File Handling: Features an "Open" button to load the EEPROM file and a "Save" button for any modifications.

Extensive ECU Support
This tool supports a comprehensive list of common ECUs found in PSA vehicles:

• BOSCH ME7.4.4 EEPROM (95160)

• BOSCH ME7.4.5 EEPROM (25320)

• BOSCH ME7.4.6 EEPROM (95160)

• BOSCH EDC15C2.10 EEPROM (95P08)

• BOSCH EDC15C2.11 EEPROM (95P08)

• BOSCH EDC16C3 EEPROM (95160)

• BOSCH EDC16C34 EEPROM (95160)

• BOSCH EDC16CP34 EEPROM (95320)

• VALEO J34P/C34P EEPROM(95160)

• JOHNSON CONTROLS EEPROM(95160)

• SAGEM S2000 EEPROM(25080)

• SAGEM S2PM EEPROM(95080/95160)

• SIEMENS SID 801 EEPROM (93C56)

• SIEMENS SID 801A EEPROM (93C56)

• SIEMENS SID 804 EEPROM (93C56)

• SIEMENS SID 806 EEPROM (93C56)

• SIEMENS SID 884 EEPROM (93C56)

System Compatibility
This software has been fully tested and is confirmed to be working perfectly on Windows 10 LTSC (2019).

Disclaimer
• Source of Files: All software and resources provided in this post have been collected from public, open-source domains on the internet.
• User Responsibility: This is a professional tool for expert use. You, the user, assume all responsibility and risk. The authors of this post and the forum administration are not liable for any damage to your equipment or data that may result from its use.
