Texa Cable Reference Images for Connector Identification

This reference archive groups Texa cable photos and related image materials into separate folders for AGRI, bike, CAR, and Truck use cases. It is suited for visual connector identification, cable comparison, and workshop reference when checking plug shape, pin layout, and adapter type before service work.

Highlights​

• Sector based folder structure for AGRI, bike, CAR, and Truck categories

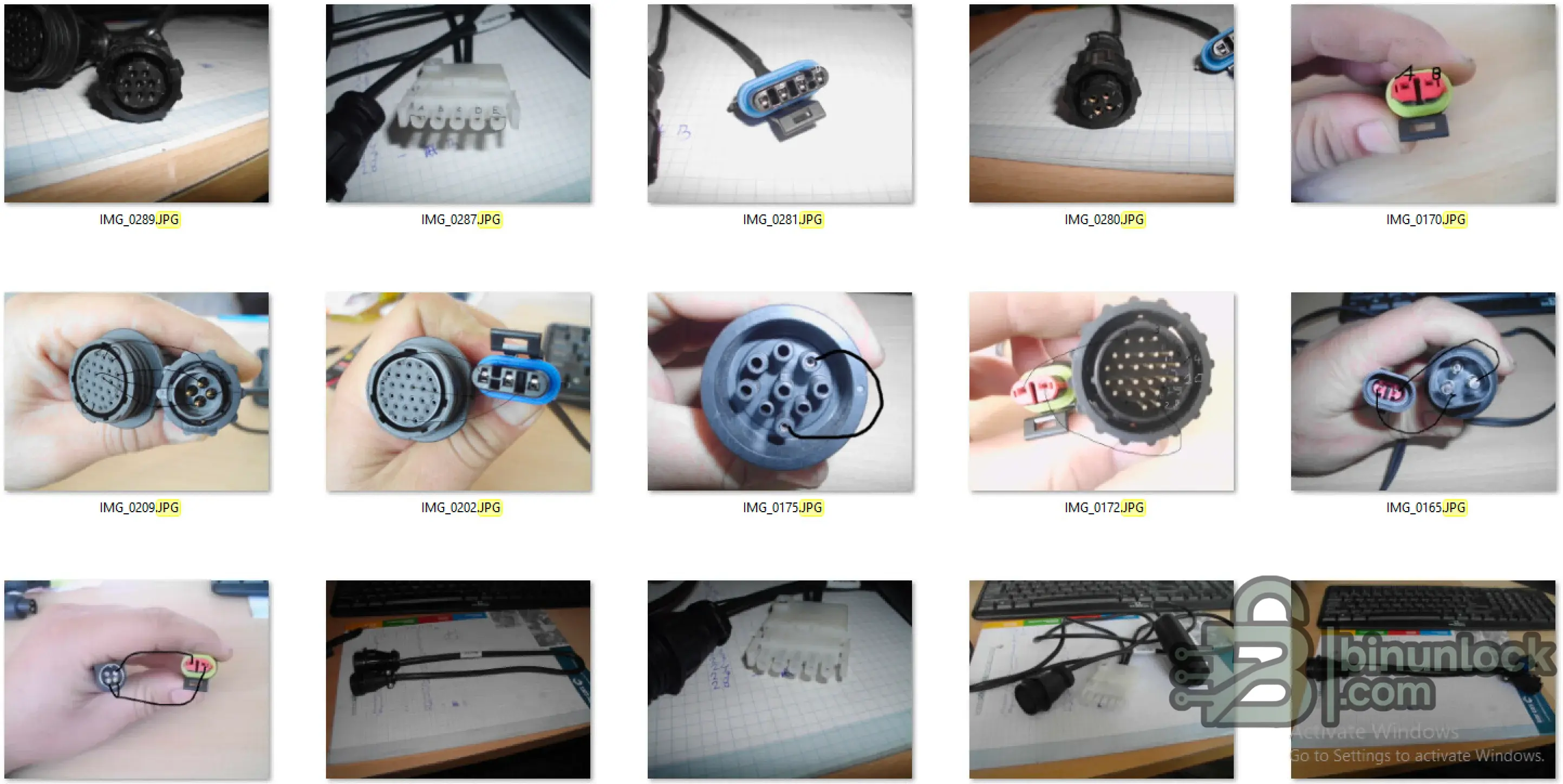

• Photo reference material for cable ends, connector faces, and adapter views
• Useful for connector identification before test, diagnosis, or bench work
• Supports image based comparison of plug shape, pin position, and cable type
• Includes separate reference image files for workshop review

Package contents​

• AGRI
• Agri zip
• bike
• CAR
• Truck
• IMG_0253.JPG

Compatibility notes​

• The provided package view shows reference folders and image files rather than a dedicated diagnostic application
• Content coverage may vary by cable family, vehicle segment, and image set
• Connector appearance should always be verified against the physical cable before use
• Measurements, descriptions, and visual references may not be present for every adapter type
• Availability varies by cable version, hardware revision, and workshop source material

Basic usage​

1. Open the folder that matches the required vehicle segment
2. Review the available images for connector shape and pin orientation
3. Compare the reference photo with the physical cable or adapter in hand
4. Use the material alongside official service information when confirming fitment
5. Keep separate notes for measurements, labeling, and workshop findings
