This is a specialized utility for Volkswagen Auto Group (VAG) vehicles, version 1.8, designed for advanced immobilizer-related tasks. The software provides a suite of three core functions: adapting new or used instrument clusters to a vehicle, cloning engine control units, and managing the immobilizer status on popular Bosch EDC16 ECUs.
Key Functions
The tool is organized into three main tabs:

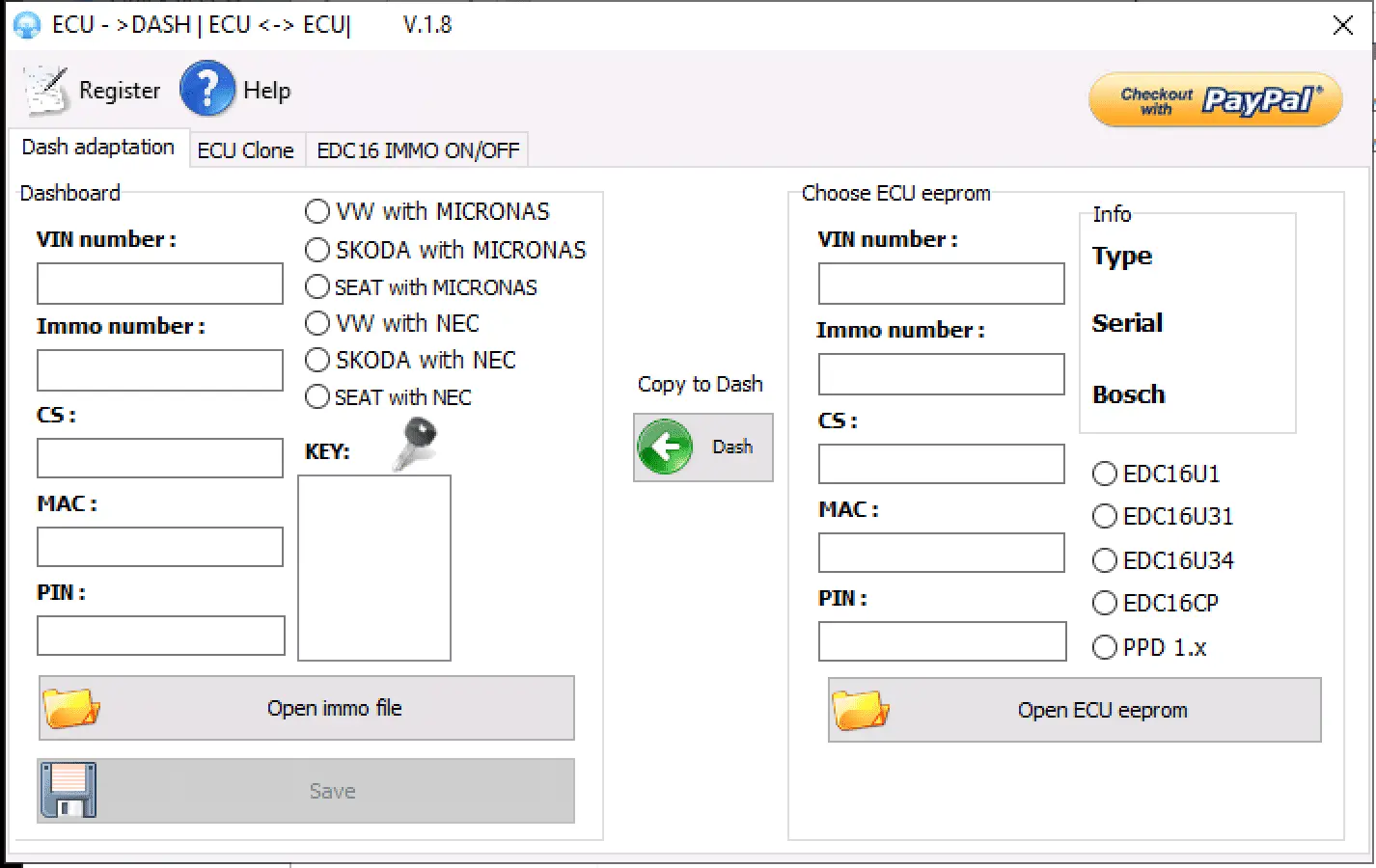

• Dash Adaptation: This function allows you to synchronize immobilizer data from the ECU to the instrument cluster (Dashboard). It is used when installing a new or used dashboard into a vehicle. It supports dashboards from VW, SKODA, and SEAT with MICRONAS or NEC processors. The tool reads and transfers the VIN number, Immo number, CS (Component Security), MAC, and PIN data.

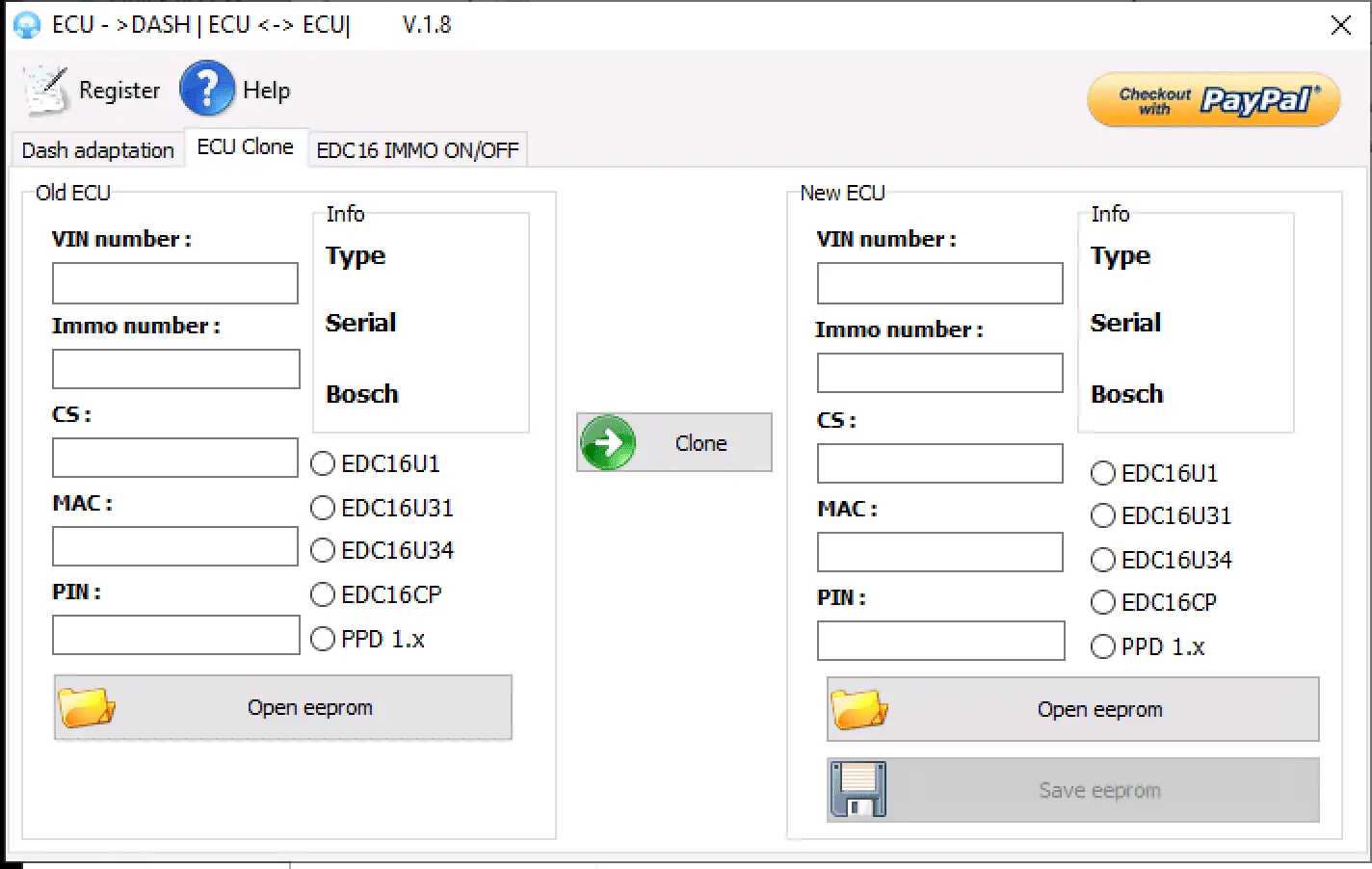

• ECU Clone: This feature is designed for cloning engine control units. It reads all critical immobilizer data from an "Old ECU" EEPROM file and transfers it to a "New ECU" EEPROM file, making the replacement unit a perfect match for the vehicle. This function supports various Bosch ECUs, including EDC16U1, EDC16U31, EDC16U34, EDC16CP, and PPD 1.x.

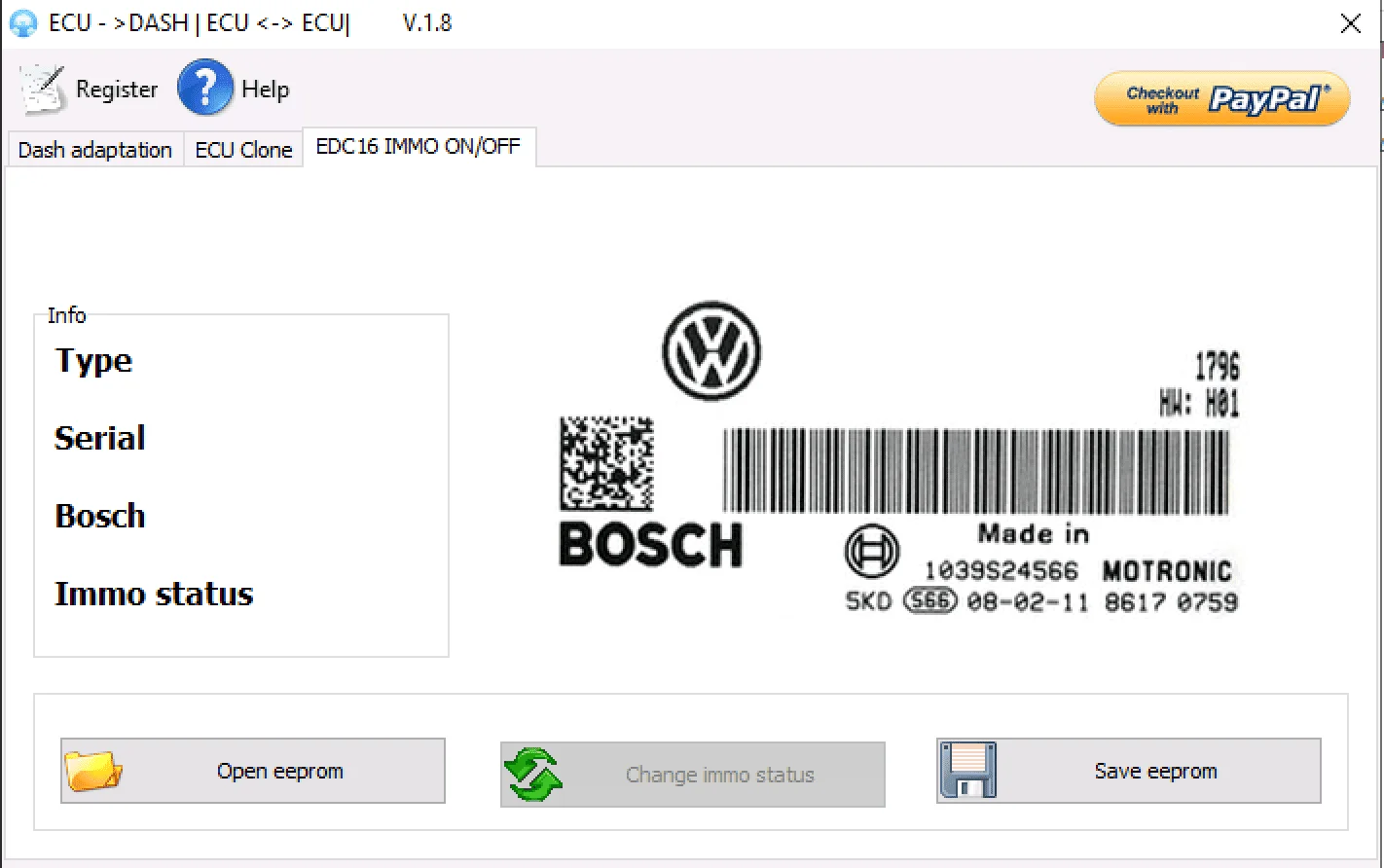

• EDC16 IMMO ON/OFF: A dedicated function for managing the immobilizer status on Bosch EDC16 ECUs. It allows you to load an EEPROM file, view its current status, and enable or disable the immobilizer system with the "Change immo status" button.
System Compatibility
This software has been fully tested and is confirmed to be working perfectly on Windows 10 LTSC (2019).
Disclaimer
• Source of Files: All software and resources provided in this post have been collected from public, open-source domains on the internet.
• User Responsibility: This is a professional tool for expert use. You, the user, assume all responsibility and risk. The authors of this post and the forum administration are not liable for any damage to your equipment or data that may result from its use.
