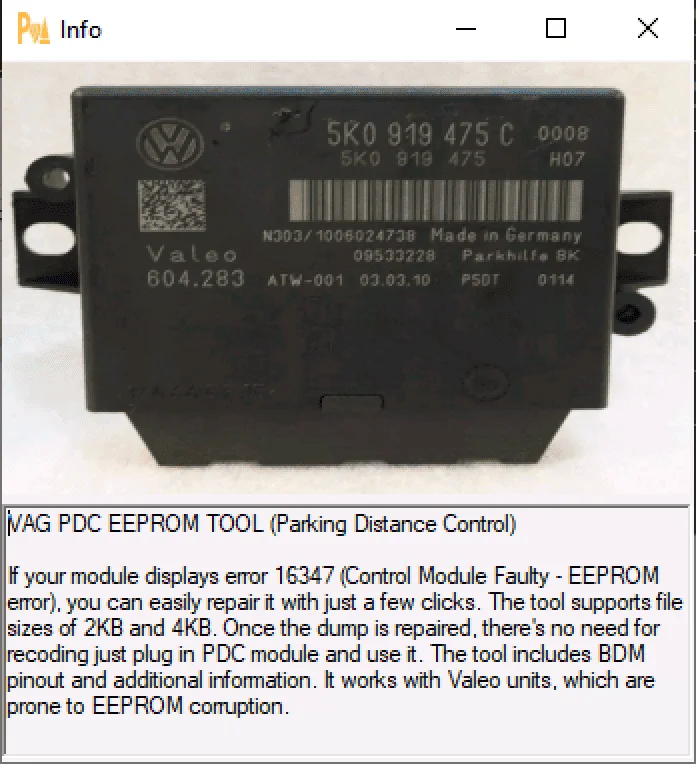

VAG PDC EEPROM Repair is a lightweight utility that restores Parking Distance Control modules by fixing corrupted EEPROM dumps. It is designed for VW Audi Skoda and SEAT Valeo units commonly showing the fault 16347 — Control Module Faulty EEPROM. The app repairs 2 KB and 4 KB dumps so the module can be reused without recoding.
Highlights
- One-click dump repair for Valeo PDC controllers
- Supports 2 KB and 4 KB EEPROM sizes with automatic checksum correction
- Reads SW, HW, serial number and date straight from the file for easy identification
- No recoding required after write back — plug in and test

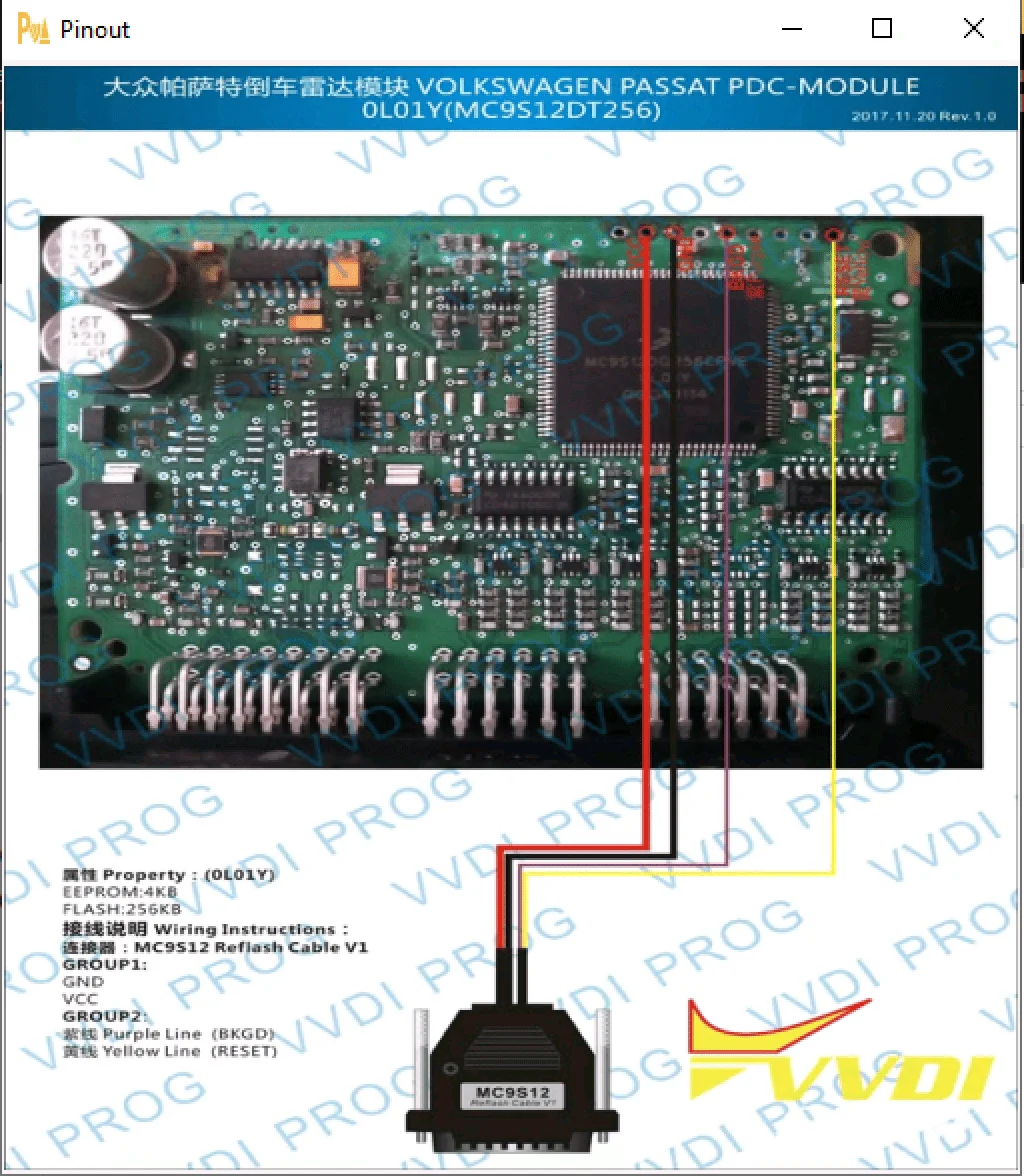

- Built-in BDM pinout reference for MC9S12DT256 0L01Y boards used on Passat, Golf, Octavia, Leon and others
- Works with popular programmers (VVDI Prog, UPA-USB, Orange5 and similar) to read and write the EEPROM
Typical workflow
- Read the PDC module EEPROM in circuit or via BDM/JTAG using your programmer

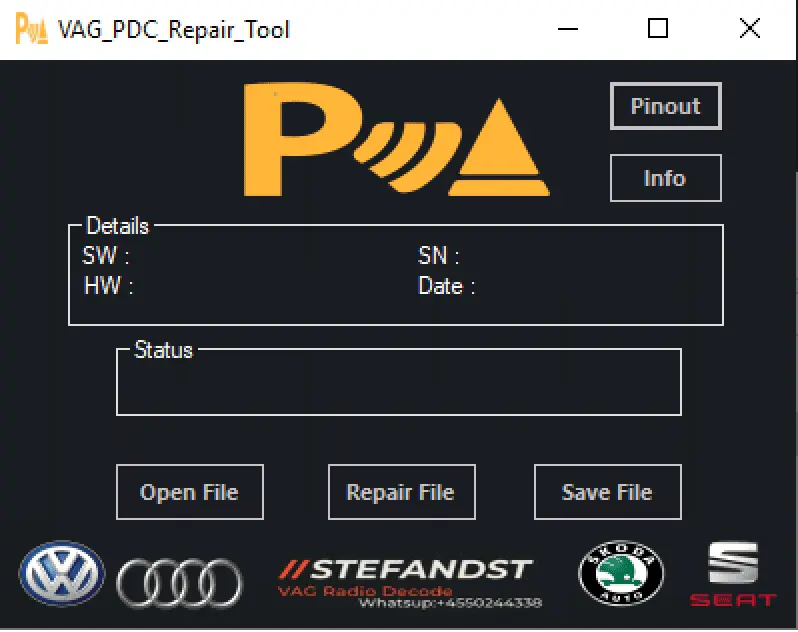

- Open the dump in the tool and press Repair File
- Save the corrected dump and write it back to the module
- Refit the unit and clear DTCs — parking aid should operate normally again
Compatibility notes
- Valeo PDC controllers used across VAG platforms (for example 5K0 919 475C and similar families)
- MC9S12-based boards with 0L01Y mask supported by the included pinout
Operating systems
- Windows — 7, 8.1, 10, 11 (32/64-bit)
Minimum system requirements
- CPU — 1.0 GHz or better
- RAM — 1 GB or more
- Storage — 50 MB free space
- Display — 1024×768 or higher
- EEPROM programmer capable of reading/writing the target board
