An official-style guide that explains Vehicle Diagnostic Protection (SFD) in the Volkswagen Group and how to unlock SFD-protected control units in ODIS Service. It covers user registration, roles in the Dealer Portal / Group Retail Portal, and the complete online and offline token activation workflow.
What SFD does
SFD replaces legacy 5-digit security access with a token-based system to protect writing functions (coding, adaptation, parameterization, routines) while allowing normal read services. Stage 1 adds access protection and logging; Stage 2 adds tamper protection with end-to-end safeguarding between VAG back-end and ECUs. Two-factor authentication (PKI/SecurID/OTP apps) is supported.
How it works (quick view)
- Online activation (standard): Tester requests a token from the SFD back-end → token is issued and logged → tester forwards token to ECU → write access is granted for the session.
- Manual activation (offline fallback): Save ECU request structure → generate token via SFD web app in the Dealer/Group Retail Portal → load token to tester (e.g., USB) → send to ECU. One-time, ECU-specific
- Guided Fault Finding can request and close SFD automatically; self-diagnosis offers “Access authorization” with Online or Manual modes. Control units relock automatically (or on command).
Included content

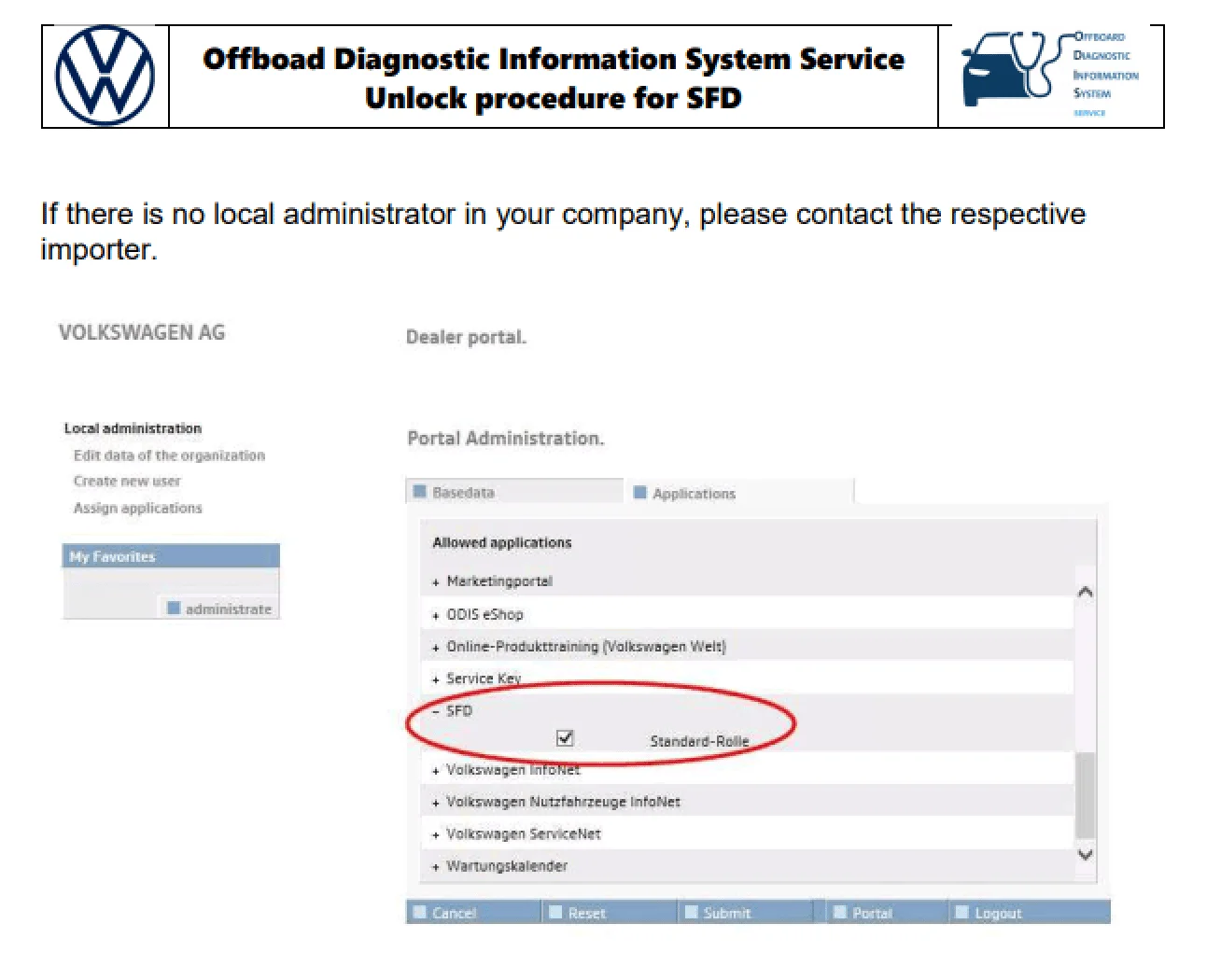

- User/role setup in the Dealer Portal (SFD standard role assignment)
- Token generation pages and example screens
- GFF and Self-diagnosis sequences with status readouts and relock options
Format & compatibility
- PDF manual — opens on Windows, macOS, Linux, iOS and Android with any modern PDF reader
Minimum system requirements
- PDF reader application
- CPU — 1.0 GHz or better; RAM — 1 GB+
- Storage — 20 MB free space
