Quick take
VAG Virtual Cockpit Tool is a Windows utility for MQB-platform clusters (Audi/VW/Škoda/SEAT). It identifies modules, reads/writes EEPROM, handles key/ID data reads, and performs service interval operations—purpose-built for bench/off-road engineering and authorized workshop tasks.
Toolkit
Coverage
MQB clusters used in Audi (A3/TT/Q2 and related), Volkswagen (Golf/Passat/Polo/Tiguan, etc.), Škoda and SEAT models—coverage depends on the specific cluster hardware/flash.
Workflow
Requirements & tips
Platform support
Windows 7 / 8.1 / 10 / 11.
Tested on Windows 10 LTSC (2019); also verified on current Windows 11 builds.
Minimum system requirements
Legal notice
Cluster value alignment and similar functions must be used only for legitimate repair/replacement and in compliance with local laws and OEM policies. The information above is compiled from publicly available sources; our forum does not host or distribute software.

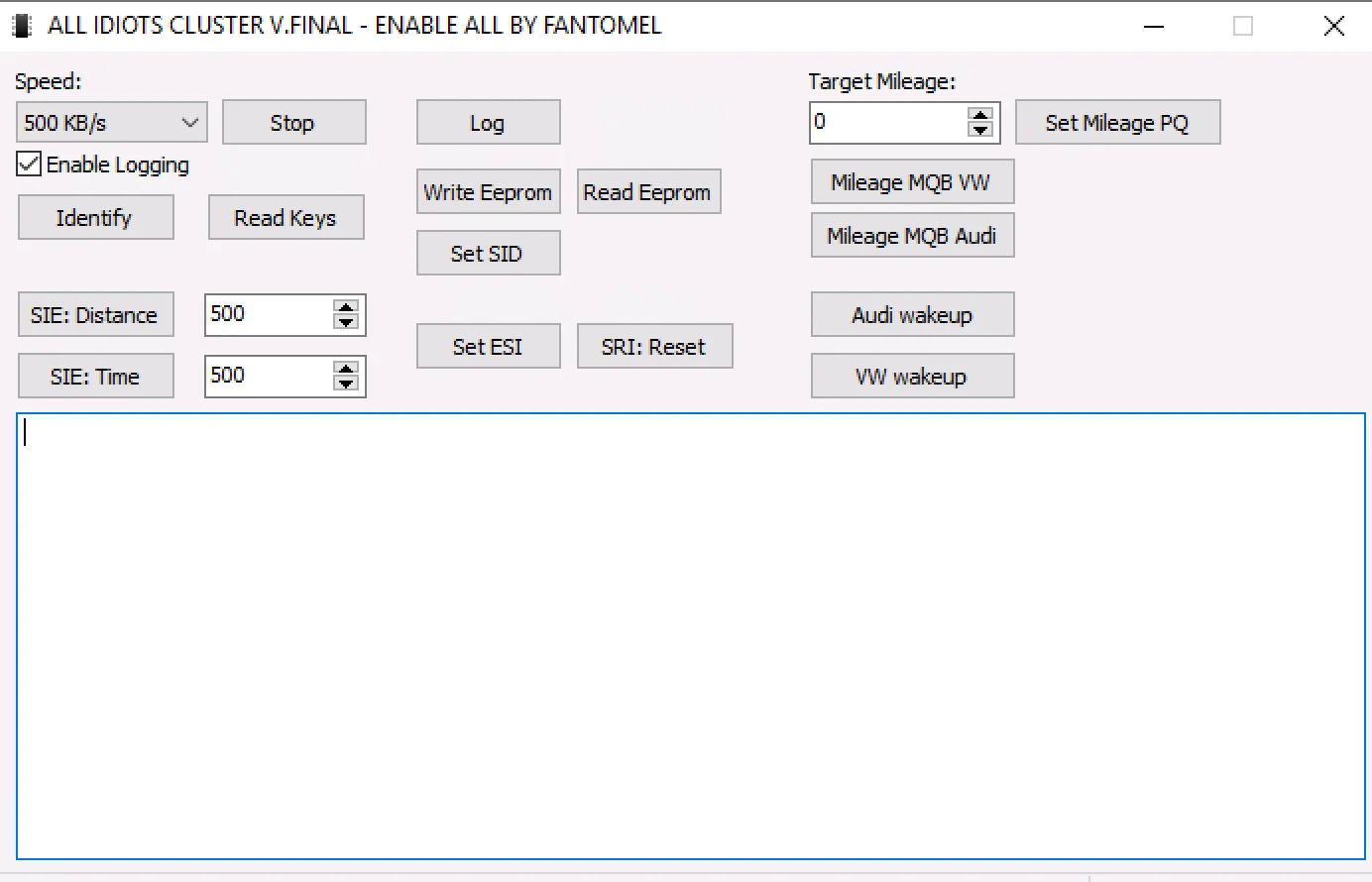

VAG Virtual Cockpit Tool is a Windows utility for MQB-platform clusters (Audi/VW/Škoda/SEAT). It identifies modules, reads/writes EEPROM, handles key/ID data reads, and performs service interval operations—purpose-built for bench/off-road engineering and authorized workshop tasks.
Toolkit
| Identify | Detects MQB cluster, protocol and basic IDs |
| Read/Write EEPROM | Backup/restore supported EEPROM areas |
| Read Keys | Pull key-related data where supported |
| SID / ESI / SRI | Set SID, set ESI (distance/time), and Service Reminder reset |
| Target mileage (authorized use) | Cluster value alignment after replacement; PQ / MQB VW / MQB Audi buttons |
| Wake-up helpers | Audi wakeup and VW wakeup for stable comms |
| Logging | Optional session log for reports and troubleshooting |
Coverage
MQB clusters used in Audi (A3/TT/Q2 and related), Volkswagen (Golf/Passat/Polo/Tiguan, etc.), Škoda and SEAT models—coverage depends on the specific cluster hardware/flash.
Workflow
- Choose bus speed → tick Enable Logging.
- Press Identify to confirm communication and protocol.
- Use Read EEPROM / Write EEPROM for safe backups or restoration.
- Apply Set SID / Set ESI / SRI: Reset as needed for service operations.
- For cluster alignment after replacement, use the appropriate Target Mileage function (PQ / MQB VW / MQB Audi) where legally permitted.
Requirements & tips
- Compatible CAN/UDS interface (OBD bench or breakout) and stable 12–14 V supply
- Always save a full EEPROM backup before changes
- Use wake-up helpers if the cluster sleeps during operations
Platform support
Windows 7 / 8.1 / 10 / 11.
Tested on Windows 10 LTSC (2019); also verified on current Windows 11 builds.
Minimum system requirements
- CPU: Dual-core 2.0 GHz or better
- RAM: 2–4 GB
- Storage: 200 MB free
- Display: 1280×720+
Legal notice
Cluster value alignment and similar functions must be used only for legitimate repair/replacement and in compliance with local laws and OEM policies. The information above is compiled from publicly available sources; our forum does not host or distribute software.
