Overview
Toolkit for servicing VCDS-compatible HEX-V2 style interfaces. It focuses on bench recovery of AVR/FTDI electronics, restoring hardware IDs 0x44/0x46 and re-enabling multi-language resources for use with Windows VCDS software. VCDS is a Windows-based diagnostic platform for VW, Audi, SEAT and Škoda. The genuine HEX-V2 interface contains an embedded license and acts as a dongle for the software.
Highlights
Package contents
Compatibility notes
For bench service of HEX-V2-type USB interfaces used with VCDS on VW-Audi group vehicles. Outcomes depend on PCB revision, MCU and FTDI chip. Use only with matching hardware IDs and verified dumps. Genuine Ross-Tech interfaces include their own license and may require no such servicing. Availability varies by vehicle and firmware.
Basic usage
Operating systems
Windows 7, Windows 8, Windows 10, Windows 11 — x86 and x64. As of VCDS Release 22.3, a native build exists for Windows on ARM when used with HEX-NET or HEX-V2.
Minimum system requirements
Dual-core CPU, 2 GB RAM, 300 MB free storage, USB 2.0 port, local administrator rights, optional internet for driver downloads and official documentation
Disclaimer
Source of Files. All software and resources in this post are collected from public and open sources on the internet. We do not claim authorship or ownership.
File Hosting. This forum does not host files. All links point to third party public cloud storage. We are not responsible for external content.
User Responsibility. Software is provided for educational and evaluation purposes only. You use it at your own risk. Authors of the post and forum administration are not liable for any damage.
Toolkit for servicing VCDS-compatible HEX-V2 style interfaces. It focuses on bench recovery of AVR/FTDI electronics, restoring hardware IDs 0x44/0x46 and re-enabling multi-language resources for use with Windows VCDS software. VCDS is a Windows-based diagnostic platform for VW, Audi, SEAT and Škoda. The genuine HEX-V2 interface contains an embedded license and acts as a dongle for the software.
Highlights
- Prepared EEPROM and FLASH sets for HW 0x44 and HW 0x46 with 1.96 firmware
- FTDI configuration templates for FT_Prog to rewrite USB descriptors and VID/PID where appropriate
- USBasp command files for in-circuit AVR programming on typical clone PCBs
- Utilities to check hardware type and write language resources without editing by hand
- Step-by-step structure suitable for lab repair and documentation

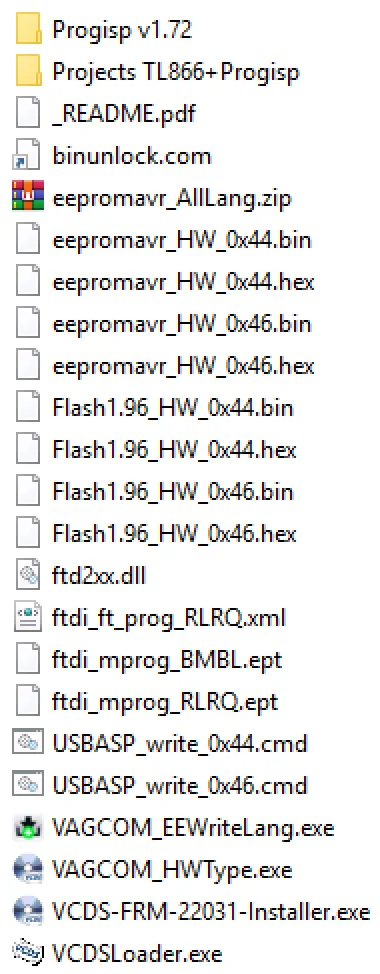

Package contents
- Progisp v1.72\ (programmer utility)
- Projects TL866+Progisp\ (examples for TL866 users)
- _README.pdf
- eepromavr_AllLang.zip
- eepromavr_HW_0x44.bin, eepromavr_HW_0x44.hex
- eepromavr_HW_0x46.bin, eepromavr_HW_0x46.hex
- Flash1.96_HW_0x44.bin, Flash1.96_HW_0x44.hex
- Flash1.96_HW_0x46.bin, Flash1.96_HW_0x46.hex
- ftd2xx.dll
- ftdi_ft_prog_RLRQ.xml
- ftdi_mprog_BMBL.ept, ftdi_mprog_RLRQ.ept (FTDI EEP/EPT templates)
- USBASP_write_0x44.cmd, USBASP_write_0x46.cmd
- VAGCOM_EEWriteLang.exe
- VAGCOM_HWType.exe
- VCDS-FRM-22031-Installer.exe
Compatibility notes
For bench service of HEX-V2-type USB interfaces used with VCDS on VW-Audi group vehicles. Outcomes depend on PCB revision, MCU and FTDI chip. Use only with matching hardware IDs and verified dumps. Genuine Ross-Tech interfaces include their own license and may require no such servicing. Availability varies by vehicle and firmware.
Basic usage
- Identify the interface hardware type with the included checker and save full backups
- Program the AVR with USBasp or your preferred tool using the corresponding 0x44 or 0x46 set
- Apply FTDI settings via FT_Prog templates, then verify USB descriptors and serials
- Load language resources and confirm proper enumeration in Windows Device Manager
- Install VCDS and test basic communication on a bench simulator before vehicle use
Operating systems
Windows 7, Windows 8, Windows 10, Windows 11 — x86 and x64. As of VCDS Release 22.3, a native build exists for Windows on ARM when used with HEX-NET or HEX-V2.
Minimum system requirements
Dual-core CPU, 2 GB RAM, 300 MB free storage, USB 2.0 port, local administrator rights, optional internet for driver downloads and official documentation
