WABCO TOOLBOX PLUS is a PC diagnostic suite for WABCO systems on heavy duty trucks buses and trailers. Version 13.7.0.1 provides guided troubleshooting live data tests parameter setup and calibration for ABS EBS ECAS and safety systems using J1939 and J1708 communication through RP1210 diagnostic adapters.
Highlights

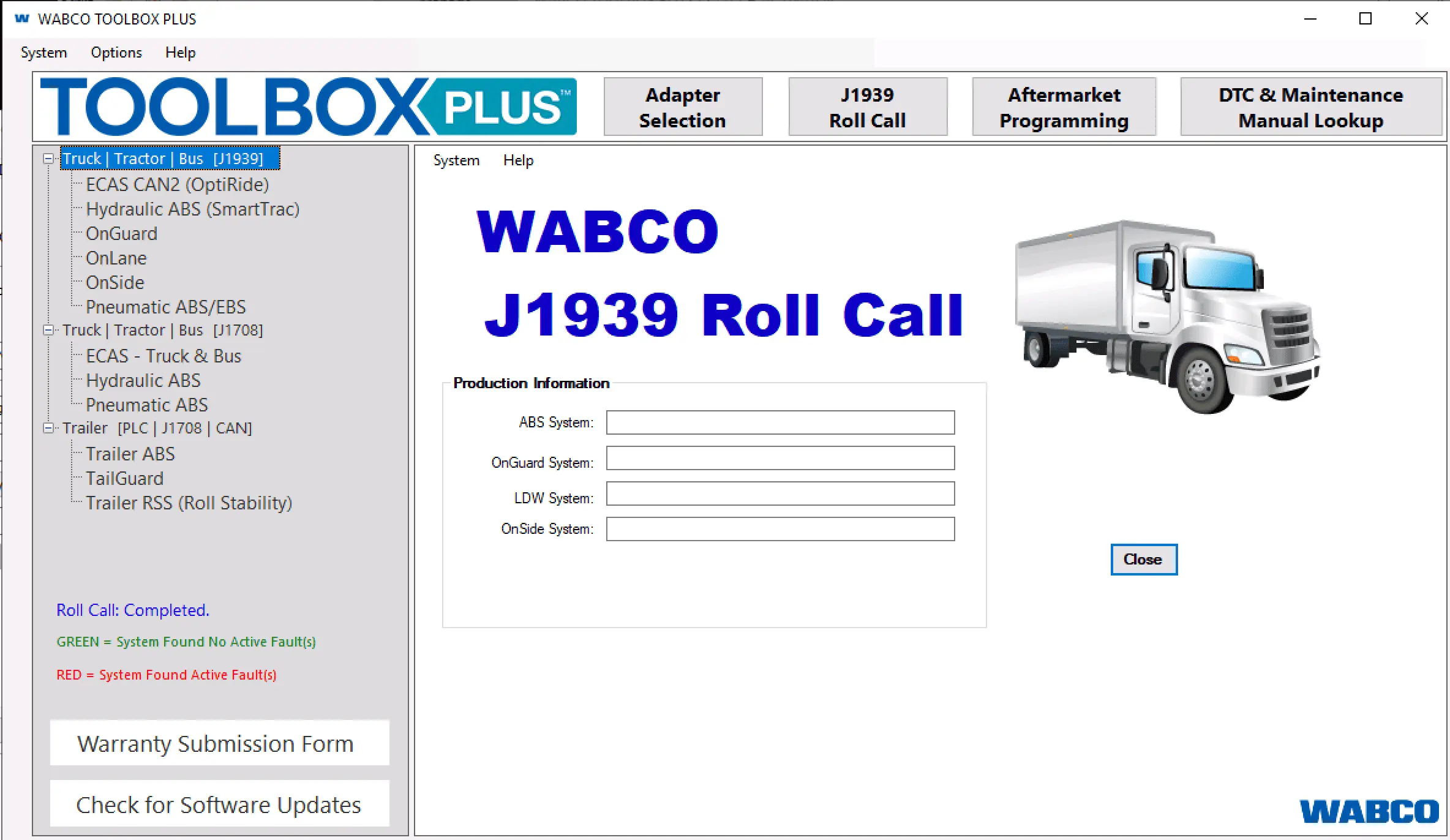

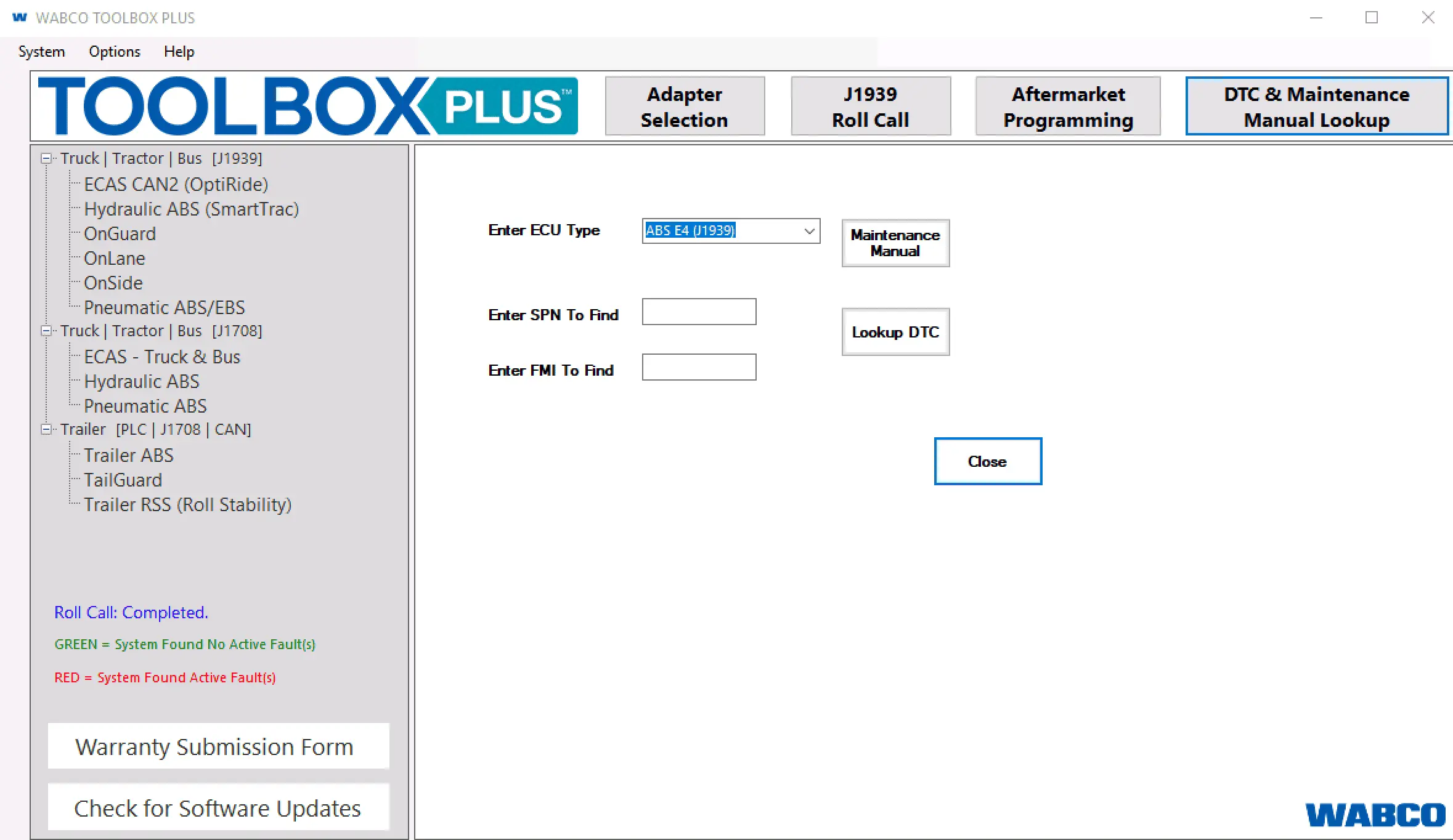

- Unified launcher with Adapter Selection J1939 Roll Call Aftermarket Programming and DTC and Maintenance Manual Lookup

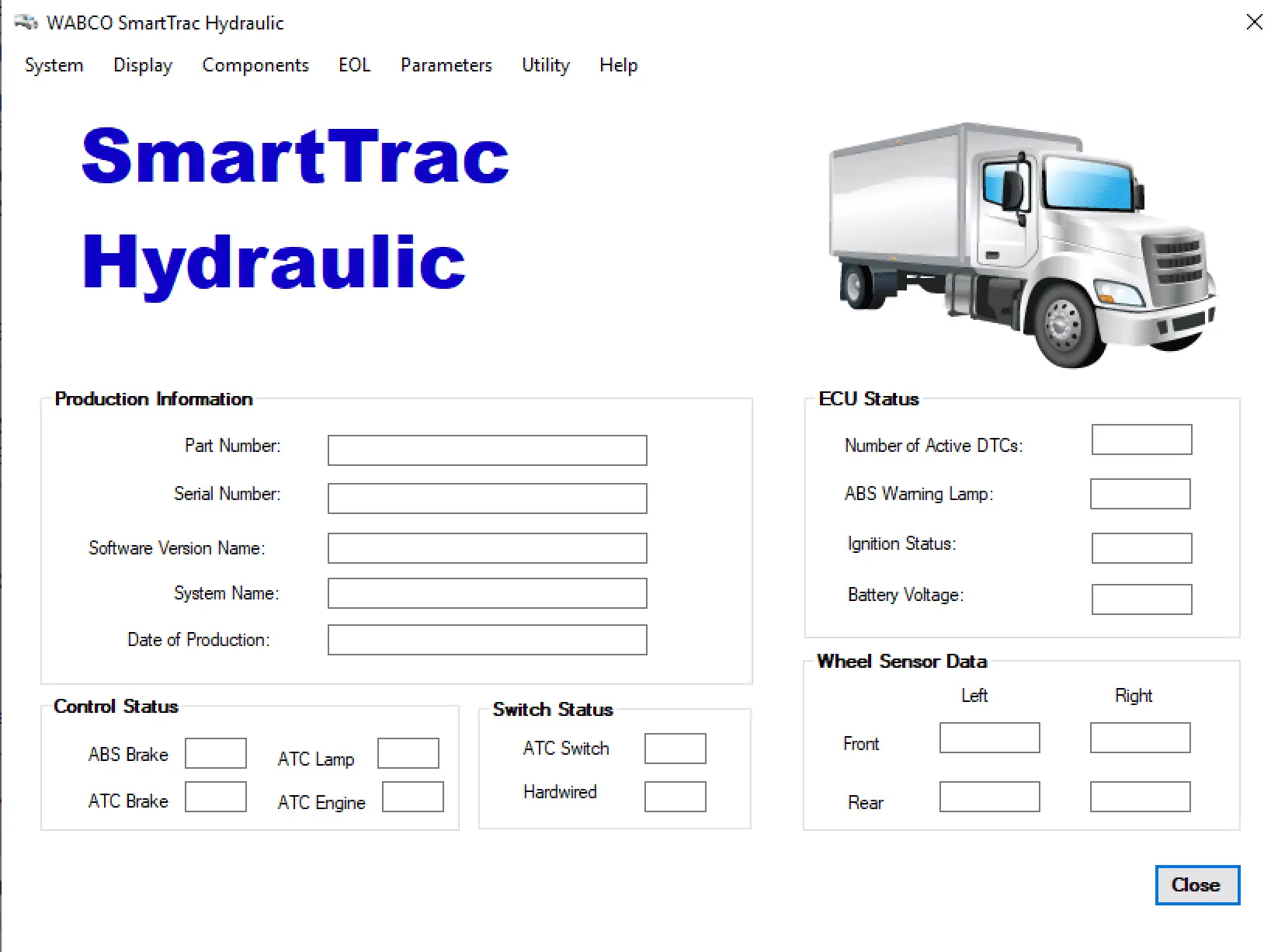

- System coverage in the tree for ECAS CAN2 SmartTrac Hydraulic ABS OnGuard OnLane OnSide Pneumatic ABS and EBS

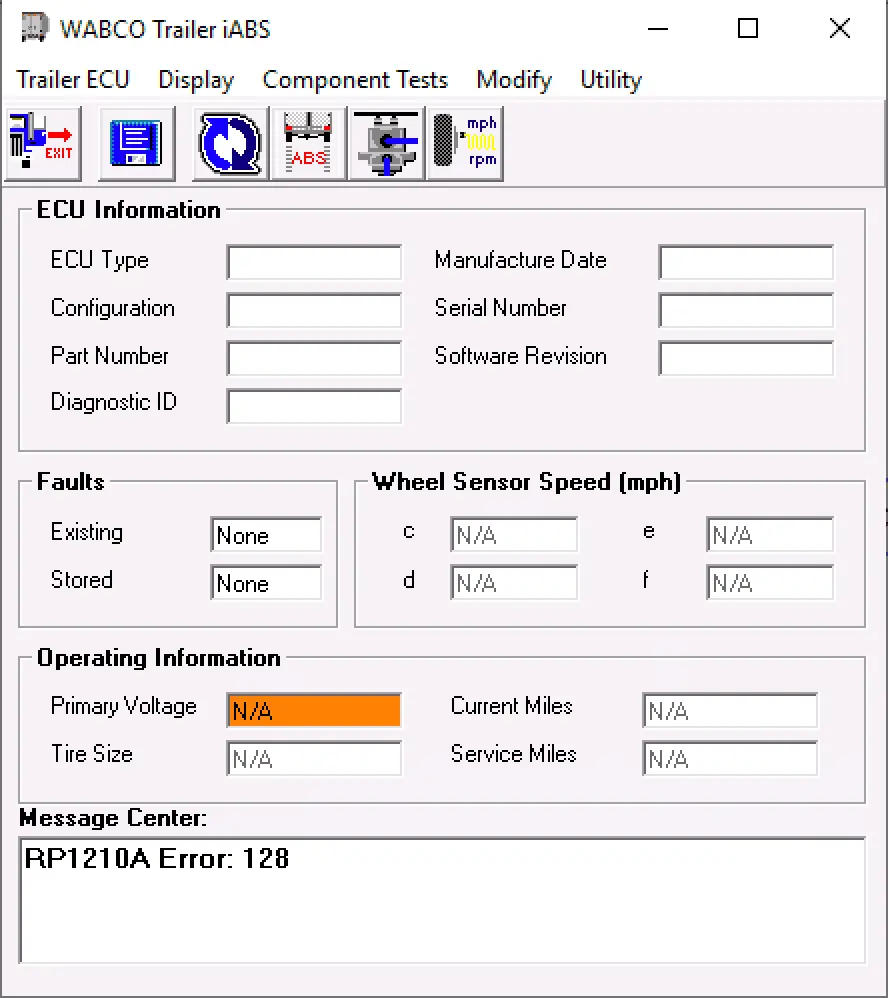

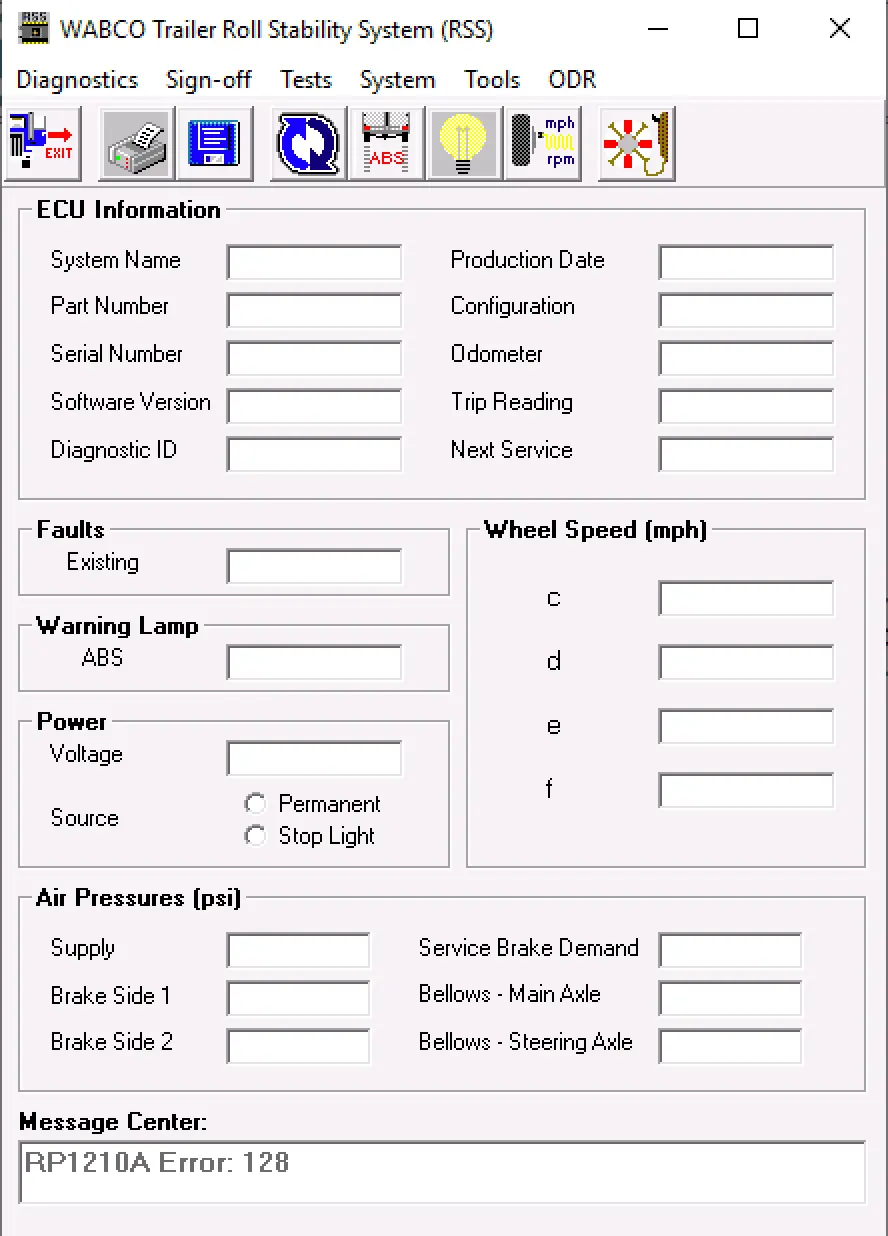

- Trailer support including iABS TailGUARD and Trailer RSS Roll Stability
- Read and clear DTCs view live values run component tests and execute end of line procedures

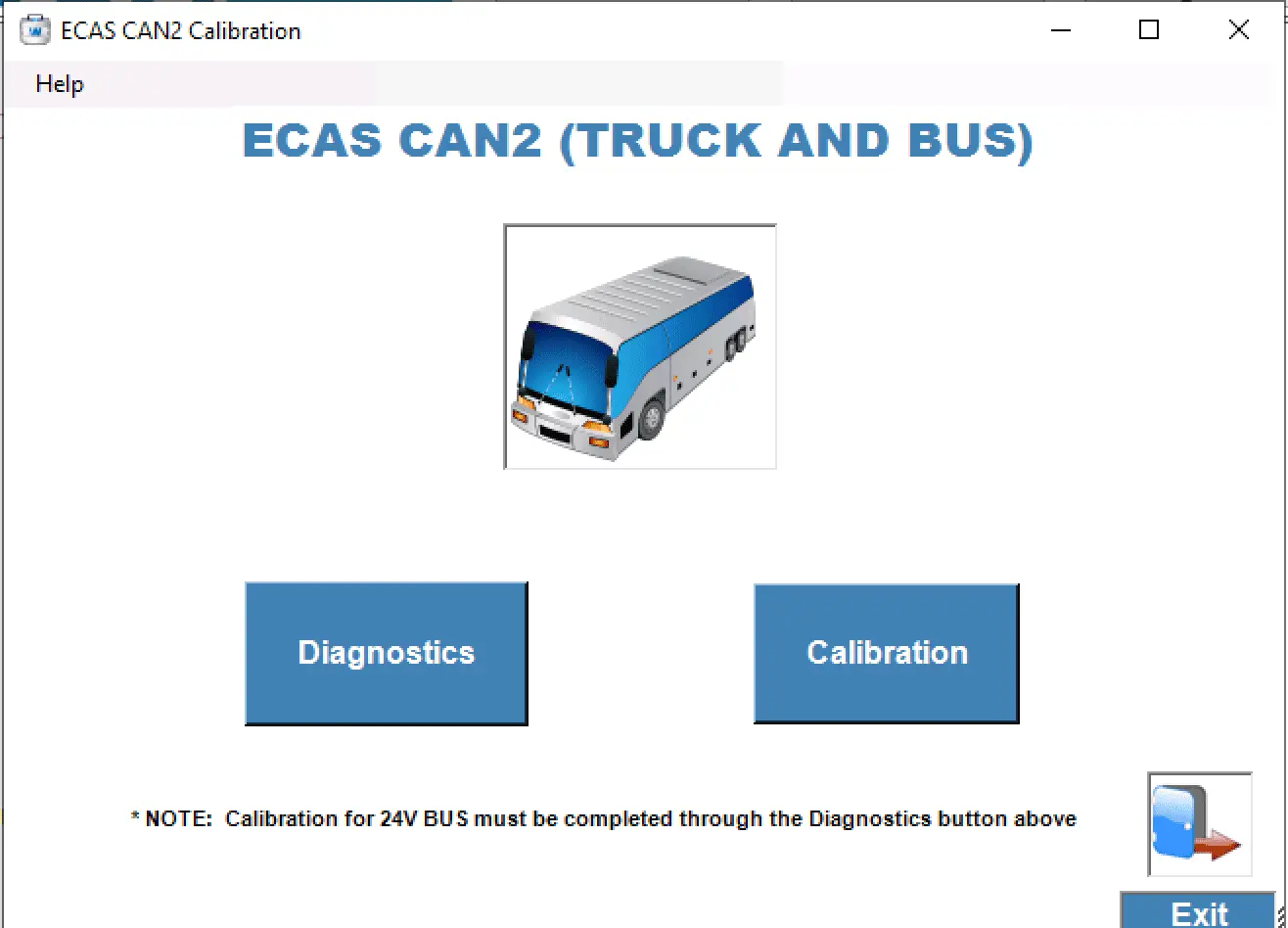

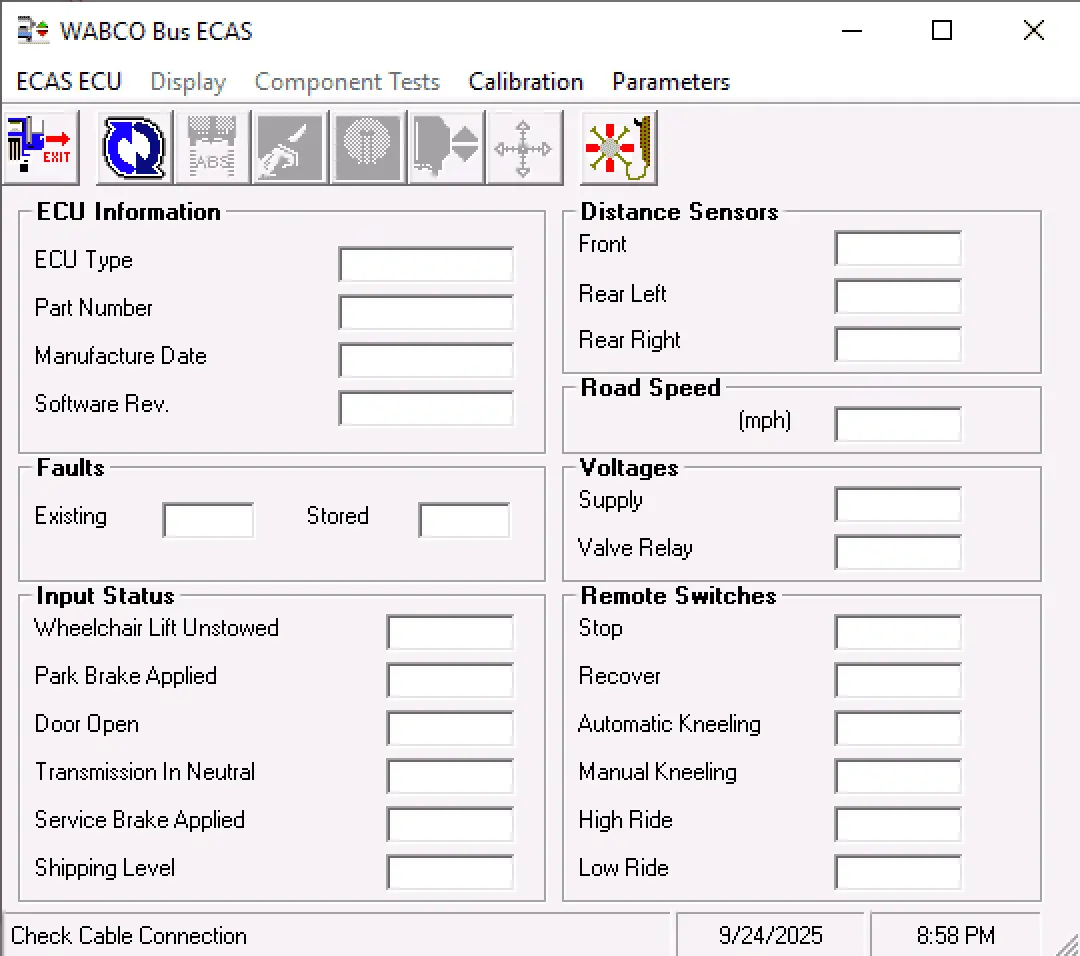

- Calibration flows for ECAS and related suspension systems with on screen guidance

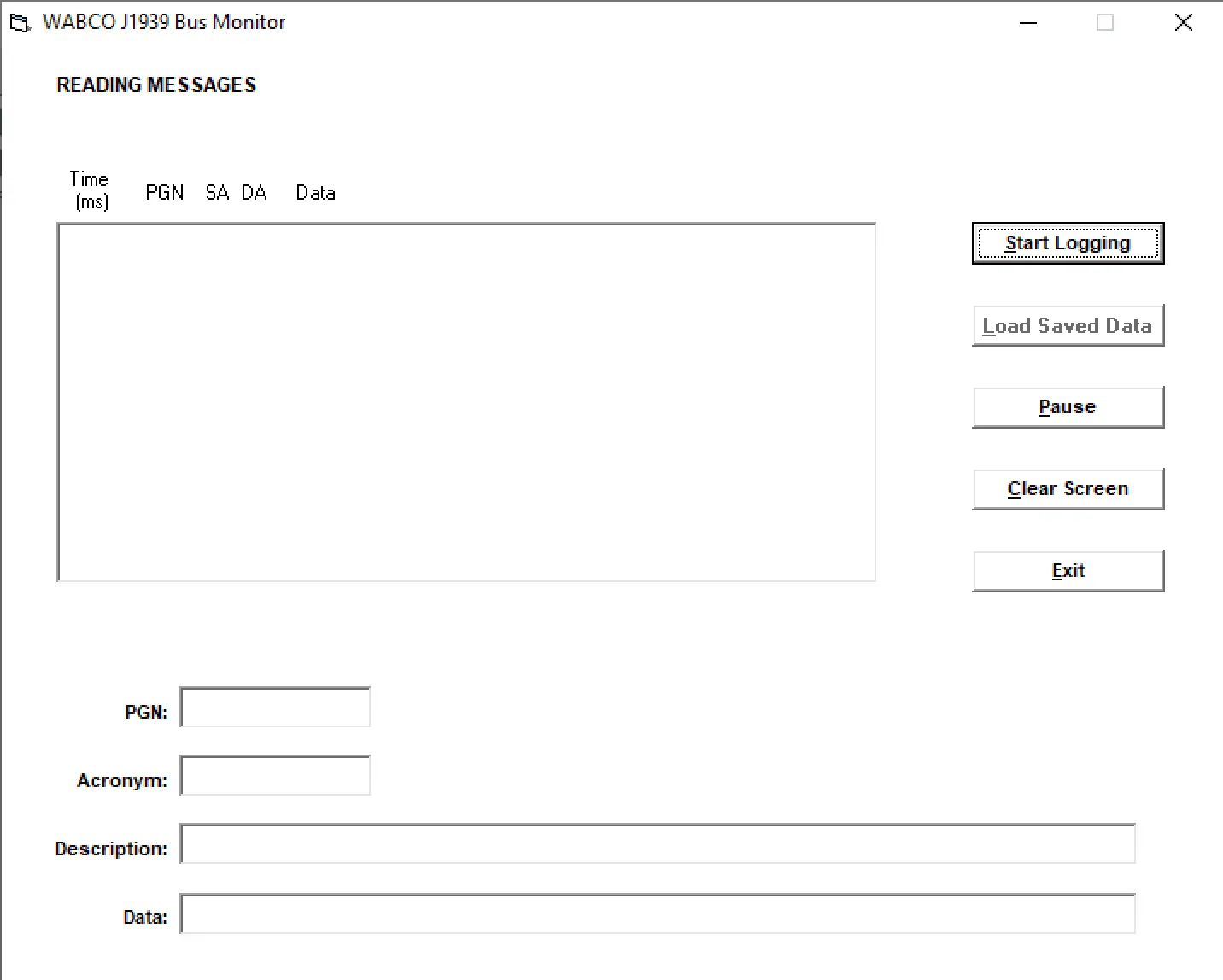

- J1939 Bus Monitor for message logging and analysis during road tests or bench work
Included in this package
- WABCO TOOLBOX PLUS 13.7.0.1 installer
- License configuration helper for evaluation setup
Typical workflow
- Connect an RP1210 compliant adapter and select it in Adapter Selection
- Run J1939 Roll Call to identify installed WABCO systems on the vehicle
- Open the target application then read faults view live data and perform component tests
- Use calibration or parameter pages to configure or commission modules after repair
Compatibility notes
- Designed for WABCO brake and safety systems on North American and global heavy duty platforms
- Functions and menus vary by installed system and vehicle configuration
Operating systems
- Windows — Windows 7 Windows 8.1 Windows 10 and Windows 11
Minimum system requirements
- CPU — dual core 2.0 GHz or better
- RAM — 4 GB or more
- Storage — 1 GB free space
- Display — 1366 x 768 or higher
- Interface — RP1210 compatible adapter with J1939 and J1708 capability
- Administrator rights to install and run
