DUSH-Book & SRS-BOOK — Airbag Repair Reference Library

Bin · Sunday at 19:12

Bin submitted a new resource:

DUSH-Book & SRS-BOOK — Airbag Repair Reference Library - v7.9 + v1.4 illustrated SRS repair guide, EEPROM pinouts, module locations

Introduction
DUSH-Book and SRS-BOOK are illustrated reference tools for airbag systems. They help technicians identify modules, locate EEPROM chips and follow safe teardown steps with clear photos and notes.

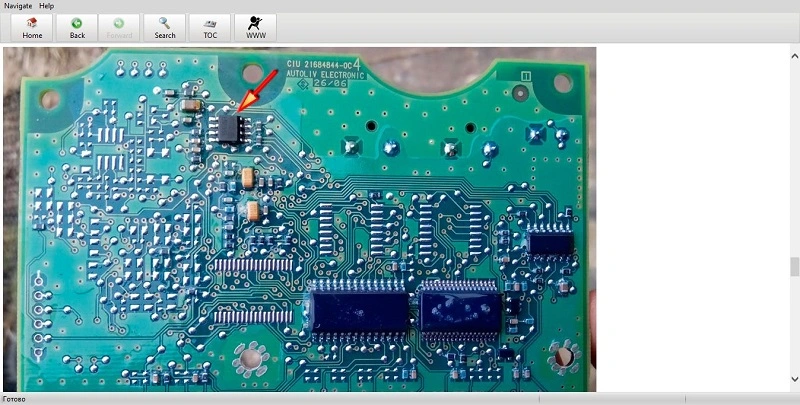

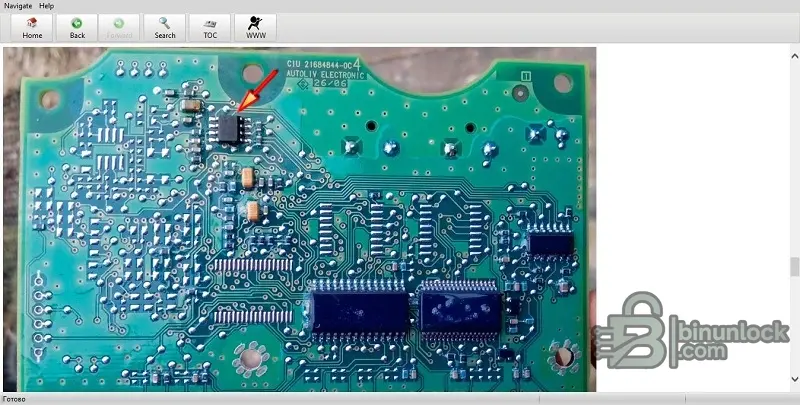

View attachment 1238

Highlights

Step by step disassembly photos for clusters and SRS ECUs

EEPROM location and device ID callouts such as 93C46 where shown...
