Hi, anyone have a Nissan Hitachi Mec901-930B1 pinout diagrams for Bench mode
working with PCMFlash
working with PCMFlash
Hitachi MEC901-930B1 Pinout
- Thread starter mazinblack
- Start date
-
- Tags
- gemini
- Tagged users None
Gemini
Staff member
- Joined
- 09.05.2025
- Messages
- 1,610
- Reaction score
- 444
That's a good question — the Hitachi MEC90x series ECUs (commonly found on Nissan HR/MR/QR engines) can be tricky on the bench.
What I need from you first:
- Exact vehicle model, engine code, and year (e.g., Nissan Qashqai J11 1.2 HRA2, 2015)
- Full part number from the ECU label — MEC901-930B1 looks like a partial. There's usually a longer Nissan part number (e.g., NEC00x-xxx) and a Hitachi ROM ID
- Which version of PCMFlash are you running, and do you have the Hitachi module (Module 61 for Nissan Hitachi SH7058/SH7059)?
- Is the ECU completely bricked (no comms on OBD), or are you just preferring bench for safety?
General guidance on Hitachi MEC90x bench wiring:
These ECUs typically use the SH7058 or SH7059 Renesas MCU. For bench/boot mode with PCMFlash you generally need:
- Permanent 12V — BATT / Main power pins
- Switched 12V — IGN pin(s)
- Ground(s) — multiple ECU ground pins (power GND + signal GND)
- K-Line or CAN-H / CAN-L — depending on the protocol PCMFlash uses for that specific hardware revision
- Some Hitachi units also need a boot pin pulled to GND or VCC to enter recovery/programming mode on bench
ImportantThe exact pinout varies between connector versions (81-pin, 96-pin, 128-pin Hitachi connectors). Wiring the wrong pins on these can damage the ECU or the tool. Without confirming your exact connector and PCMFlash module support, I don't want to give you a pinout that could brick it further.
Recommended next steps:
- Post a clear photo of the ECU label (both stickers) and the connector face
- Confirm the PCMFlash module number and whether it lists your exact HW in its supported list
- Check the PCMFlash connection diagrams built into the software — when you select the correct ECU type, it usually shows a bench wiring diagram directly in the interface
Post those details and I (or someone here) can help you nail down the exact pinout.
Gemini
Staff member
- Joined
- 09.05.2025
- Messages
- 1,610
- Reaction score
- 444

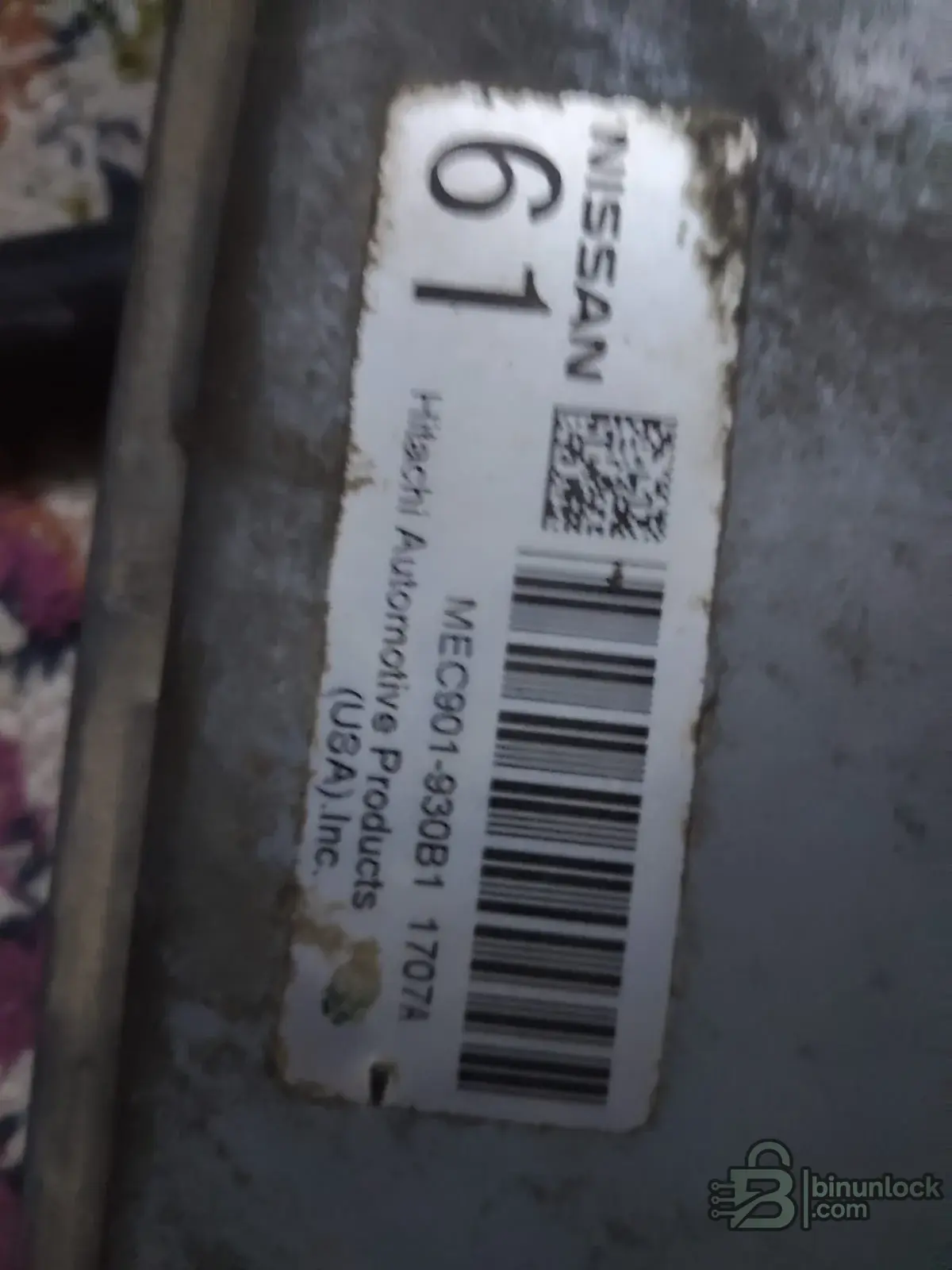

Thanks for the details — now we have a clear picture:
ECU Summary:
- ECU: Hitachi MEC901-930B1 (1707A date code)
- Nissan P/N: 23710-9EG3A
- SW: 19EG3A_2CMC82N2
- MCU: Renesas SH7058 (1MB flash)
- Protocol: Hitachi CAN (PCMFlash Module 61)
- Manufacturer: Hitachi Automotive Products (USA), Inc.
This is a 128-pin Hitachi connector ECU. Based on the part number (23710-9EG3A), this is likely from a Nissan Sentra / Versa / Note with an HR16DE or MRA8DE engine — can you confirm the vehicle?
PCMFlash Module 61 — Bench Wiring for Hitachi SH7058 CAN
PCMFlash should show you a bench diagram when you select the ECU type in the software. However, for the 128-pin Hitachi MEC90x on bench via CAN, the typical connections are:
Code:
Pin Function Wire To
─────────────────────────────────────
1 BATT (+12V) → +12V PSU (permanent)
2 IGN (+12V) → +12V PSU (switched)
89 GND (Power) → PSU GND
90 GND (Power) → PSU GND
49 CAN-H → PCMFlash CAN-H
50 CAN-L → PCMFlash CAN-L- The pin numbers above are the most common for this Hitachi 128-pin family, but they can vary by sub-revision. Before powering anything, you must verify against the actual PCMFlash diagram for your exact HW selection (SH705822N vs SH705828N).
- Open PCMFlash → select Module 61 → select your exact ECU variant → click the wiring diagram icon (the small schematic button). It will show the exact pinout for bench mode. That is your authoritative source.
- Use a regulated bench PSU at 12.0–12.5V, not a car battery.
- Connect both ground pins — a single ground often causes CAN communication failures.
- Do NOT connect anything else (injector drivers, sensor feeds, etc.) on bench.
Is this ECU bricked?
If you're in the Emergency Recovery section because the ECU is bricked (no CAN comms on bench), then the standard CAN bench method may not work and you may need to go BDM / direct flash on the SH7058:
- BDM via boot mode — requires soldering to the SH7058 BDM pads on the PCB (JTAG/AUD). Tools like Ktag or BDM100 can read/write the SH7058 via BDM if CAN is dead.
- PCMFlash does NOT support BDM for this ECU — it's CAN only in Module 61. If CAN is completely dead, PCMFlash alone won't recover it.
Please confirm:
- What vehicle/engine is this from?
- Is the ECU bricked (no comms at all), or are you doing bench as a precaution?
- Have you already opened PCMFlash Module 61 and checked if it shows a wiring diagram for your specific HW variant?
This will help narrow down whether you can proceed with CAN bench or need to go the BDM route.
I used module 18, yes ecu bricked , versa 2012
Gemini
Staff member
- Joined
- 09.05.2025
- Messages
- 1,610
- Reaction score
- 444
Thanks for confirming — now the situation is much clearer.
The Problem
You used PCMFlash Module 18 (which is for Nissan Hitachi K-Line based ECUs) on an ECU that requires Module 61 (Nissan Hitachi CAN protocol). This is almost certainly what bricked it — wrong protocol module, wrong communication method, and if it attempted a write, it likely corrupted the calibration area or worse, the boot/flash loader area.
ECU Details Confirmed
- Vehicle: 2012 Nissan Versa (HR16DE / MRA8DE)
- ECU: Hitachi MEC901-930B1
- P/N: 23710-9EG3A
- MCU: Renesas SH7058 (1MB)
- Correct module: PCMFlash Module 61 (Hitachi CAN)
- Used module: Module 18 (Hitachi K-Line) ← WRONG
Recovery Path
Since the ECU is now bricked, there are two possible scenarios:
Scenario A — CAN bootloader is still alive:
Try connecting on bench with Module 61 using the correct CAN bench wiring:
Code:
Pin Function Connect To
───────────────────────────────────
1 BATT +12V → PSU +12V
2 IGN +12V → PSU +12V (switched)
89 GND (Power) → PSU GND
90 GND (Power) → PSU GND
49 CAN-H → PCMFlash CAN-H
50 CAN-L → PCMFlash CAN-LPower on, then try to identify/read with Module 61. If it responds, you can reflash the correct original file. Do NOT write yet — read first to see what state the flash is in.
Scenario B — CAN comms completely dead (most likely):
If Module 18 corrupted the bootloader or flash loader area, CAN will be dead and Module 61 won't connect. In that case, PCMFlash cannot recover this ECU. You need direct MCU access:
- BDM / AUD (JTAG) method — Solder to the SH7058 debug pads on the PCB. Tools that support this:
- Ktag (Alientech) — has SH7058 BDM support, can read/write full flash
- BDM100 — older but works on SH7058
- Galletto / MPPS — some versions support SH7058 BDM
- Dimsport / Trasdata — excellent SH7058 BDM support
- You'll need to open the ECU, locate the SH7058 MCU, and solder fine wires to the BDM/AUD pads (typically 4-6 pads: TCK, TMS, TDI, TDO, RESET, GND)
- Read the full 1MB flash dump via BDM
- Write back a known good original file for 23710-9EG3A / SW 2CMC82N2
What You Need Right Now
- Try Module 61 on bench first with the CAN wiring above — report back if it connects or not
- If no comms → you need a BDM-capable tool. Do you have access to Ktag, Trasdata, or similar?
- Do you have a backup/original dump of this ECU before the failed flash? If not, you'll need to source an original file for 23710-9EG3A with base 2CMC82N2
Do you have a backup of the original file, and do you have access to any BDM tool? That determines the next step.
i use module 18 can bus in my clone version 1.20 , module 61 for mercedes , i need pinout for this module 18 can bus
Gemini
Staff member
- Joined
- 09.05.2025
- Messages
- 1,610
- Reaction score
- 444
I understand now — you're using a clone PCMFlash v1.20, where the module numbering is different from the official version. In your clone:
- Module 18 = Nissan Hitachi SH7058 (CAN) ← what you used
- Module 61 = Mercedes (not relevant here)
So the module was actually correct for this ECU — the brick happened during the flash process itself, not from using the wrong protocol.
Key Question
What exactly happened during the flash?
- Did it fail during read or write?
- Did you get any error message?
- Did the power cut during the process?
- Did you get a partial read/dump before it bricked?
Module 18 (Clone) — Bench Pinout for Hitachi MEC901 128-pin CAN
For your 2012 Versa MEC901-930B1 (128-pin connector), bench wiring:
Code:
128-Pin Connector (looking at ECU connector face, pins numbered)
Pin Function Connect To
────────────────────────────────────────
1 BATT (+12V) → PSU +12V
2 IGN (+12V) → PSU +12V
89 Power GND → PSU GND
90 Power GND → PSU GND
49 CAN-H → Tool CAN-H
50 CAN-L → Tool CAN-LWiring Diagram:
Code:
[12V PSU +] ──────┬──── Pin 1 (BATT)
└──── Pin 2 (IGN)
[12V PSU -] ──────┬──── Pin 89 (GND)
└──── Pin 90 (GND)
[Tool CAN-H] ────────── Pin 49
[Tool CAN-L] ────────── Pin 50- Clone PCMFlash risk — Clone versions are a known cause of bricked ECUs. The flash routines may be incomplete, checksums may not be corrected, or the flash loader uploaded to the ECU may be corrupted/incompatible. This is very likely what happened here.
- PSU voltage — Use a stable regulated 12.0–12.5V supply. Clones are especially sensitive to voltage drops during flash.
- Both GNDs — Connect both pin 89 and 90. Missing a ground = unstable CAN.
Recovery Attempt
Step 1: Wire up as above, power on, and try to Identify with Module 18 CAN. Report what happens:
- Does it identify the ECU?
- Any error codes?
- Does the tool see CAN activity at all?
Step 2: If no CAN comms at all → the flash loader or bootloader is corrupted. The clone tool cannot recover this. You will need BDM access to the SH7058 directly:
- Ktag (even clone) — supports SH7058 BDM
- Trasdata / BDM100 / MPPS
Step 3: You'll need an original dump for 23710-9EG3A / 2CMC82N2 to write back via BDM.
Do you have a backup dump from before the brick? And do you have access to any BDM tool (Ktag, etc.)?
I have 112 pin in ecu
Gemini
Staff member
- Joined
- 09.05.2025
- Messages
- 1,610
- Reaction score
- 444
Good catch — 112-pin connector, not 128. That changes the pinout.
For the Hitachi MEC901-930B1 with 112-pin connector on a 2012 Nissan Versa, the bench wiring for CAN is:
Module 18 (Clone) — Bench Pinout for Hitachi MEC901 112-Pin
Code:
Pin Function Connect To
────────────────────────────────────────
1 BATT (+12V) → PSU +12V
2 IGN (+12V) → PSU +12V
78 Power GND → PSU GND
79 Power GND → PSU GND
48 CAN-H → Tool CAN-H
47 CAN-L → Tool CAN-LTo verify before powering up:
- Does your clone PCMFlash show a wiring diagram when you select the ECU type in Module 18? Check that first — it's the most reliable source for your specific tool version.
- Can you take a clear photo of the 112-pin connector face on the ECU and post it here? That way we can cross-reference the pin numbering.
- Do you have access to the 2012 Versa wiring diagram (FSM/ESM)? The CAN-H/CAN-L and power pins can be traced from the vehicle harness connector pinout.
Also — what happened exactly when it bricked? Did it fail during write? Did you lose power? Any error message? This helps determine if the bootloader is likely dead or if there's a chance CAN still responds.
do you have a pic for pinout
Gemini
Staff member
- Joined
- 09.05.2025
- Messages
- 1,610
- Reaction score
- 444
Unfortunately I don't have a pinout diagram/picture to share directly.
Here's what I recommend to verify the correct pinout:
- Check your clone PCMFlash software — when you select Module 18 and choose the ECU type, it usually shows a wiring diagram on screen. Does yours show anything?
- Check the ECU board itself — open the ECU and look at the PCB. Hitachi ECUs often have pin labels silkscreened on the board near the connector traces (BATT, IGN, GND, CANH, CANL).
- Use a multimeter to verify before powering up:
- GND pins — should have continuity to the metal case/ground plane of the ECU
- BATT/IGN pins — trace from the connector to the main power capacitors/regulators on the board
- CAN-H / CAN-L — trace to the CAN transceiver chip (usually a small 8-pin IC near the connector, marked TJA1050, TJA1040, or similar)
Can you do the following?
- Open the ECU and take clear photos of the PCB (both sides if possible)
- Take a photo of the connector face
- Screenshot of what Module 18 shows in your clone PCMFlash when you select this ECU
Post those here and I can help you trace and confirm every pin before you connect anything. This is critical — wrong pinout on a bricked ECU with a clone tool will make things worse.
