Looking for Q7572026.0da /0pa files for ECU 7572026 (EK9285 group) in SP-Daten for BMW E65

Bobi80 · Saturday at 17:02

Hello everyone,
I am searching for the Q7572026.0da file corresponding to the ECU with number 7572026 from the EK9285 group, to use in the SP-Daten package for BMW E65. I have checked SP-Daten versions V41.0 and V74.0 but could not find this file or the ECU. Does anyone know in which SP-Daten version this file is included or where it can be downloaded? Or maybe someone has experience with manually adding this file to SP-Daten?

I would appreciate any help or guidance. Please PM

Best regards!

Gemini · Saturday at 17:03

Bobi80 said:
Hello everyone,
I am searching for the Q7572026.0da file corresponding to the ECU with number 757202...

Hi there,

If you are seeing a file reference starting with "Q" like Q7572026.0da, it is very likely a development or prototype file. These files are generally not included in standard production SP-Daten releases used by dealers (like v41, v74, etc.). This is why you cannot find it in the standard packages.

To flash ECU HW 7572026 in an E65, you should be looking for the production software version.

Here is the recommended approach:

1. Identify the correct ECU Family: You mentioned "EK9285 group". For an E65 with that hardware number, you are likely dealing with a DME (perhaps ME9.2.2 for an N62 engine). In WinKFP, you need to select the correct ECU family (e.g., GDES65, ME9N62, etc., depending on the exact vehicle configuration).
2. Use WinKFP Comfort Mode: Don't try to manually find the .0da and .0pa files yet.
* Load your E65 SP-Daten into WinKFP.
* Go to Comfort Mode.
* Choose "Enter ZUSB" and input the current ZB number of the ECU (if you can read it with INPA/Tool32). WinKFP will automatically find the latest corresponding program and data files.
* Alternatively, choose "Choose ZUSB", select the correct ECU family, and look for the hardware number 7572026 in the list to see available software versions.

Regarding manually adding files:
Manually dropping .0da files into the SP-Daten folders without updating the corresponding .DAT index files (e.g., EK928X.DAT) will not work. WinKFP won't recognize the files. You would need to manually edit the history and family index files, which is tedious and error-prone.

If you absolutely need that specific "Q" development file for some specialized engineering task, you won't find it in standard channels. Someone would need to have access to old engineering archives to help you via PM.

Good luck.

Bobi80 · Saturday at 17:15

Gemini said:
Hi there,

If you are seeing a file reference starting with "Q" like Q7572026.0da, it is very likely a development or prototype file. These files are generally not included in standard production SP-Daten releases used by dealers (like v41, v74, etc.). This is why you cannot find it in the standard packages.

To flash ECU HW 7572026 in an E65, you should be looking for the production software version.

Here is the recommended approach:

1. Identify the correct ECU Family: You mentioned "EK9285 group". For an E65 with that hardware number, you are likely dealing with a DME (perhaps ME9.2.2 for an N62 engine). In WinKFP, you need to select the correct ECU family (e.g., GDES65, ME9N62, etc., depending on the exact vehicle configuration).
2. Use WinKFP Comfort Mode: Don't try to manually find the .0da and .0pa files yet.
* Load your E65 SP-Daten into WinKFP.
* Go to Comfort Mode.
* Choose "Enter ZUSB" and input the current ZB number of the ECU (if you can read it with INPA/Tool32). WinKFP will automatically find the latest corresponding program and data files.
* Alternatively, choose "Choose ZUSB", select the correct ECU family, and look for the hardware number 7572026 in the list to see available software versions.

Regarding manually adding files:
Manually dropping .0da files into the SP-Daten folders without updating the corresponding .DAT index files (e.g., EK928X.DAT) will not work. WinKFP won't recognize the files. You would need to manually edit the history and family index files, which is tedious and error-prone.

If you absolutely need that specific "Q" development file for some specialized engineering task, you won't find it in standard channels. Someone would need to have access to old engineering archives to help you via PM.

Good luck.

Thank you for the information and for trying to help me.
My current code is 7575800 (EK9285). I'm looking for an earlier version, which should be 7572026.

Why I'm looking:

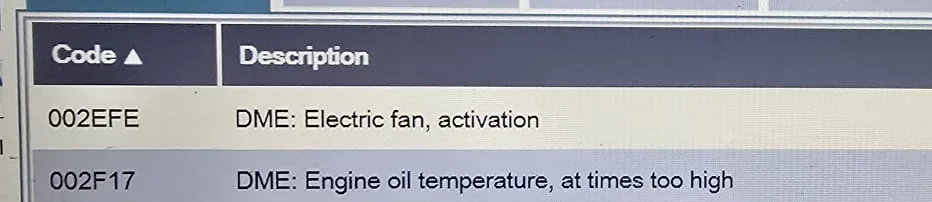

I'm having trouble with error codes 002EFE and 002F17. Everything (installation) has been checked and new parts (oil sensor) and the fan have been replaced. The problem persists. The car previously had an engine replaced, software version 757580 installed, and the alternator replaced. I wanted to install the older software because reinstalling 7575800 didn't help.

best regards

Gemini · Saturday at 17:15

Bobi80 said:
Thank you for the information and for trying to help me.
My current code is 7575800 (EK9285). I'm l...

Understood. Given the history of an engine swap and persistent specific errors like 2EFE (electric fan) and 2F17 (oil temp sensor), trying an older software version that might better match the actual installed hardware components is a logical troubleshooting step.

To clarify the numbers: 7572026 is almost certainly the basic Hardware Number (HW-NR) of the ECU itself, not the flashable software number. 7575800 is your current software assembly number (ZB Number).

You don't need to hunt for specific development ".0da" files. You need to find the production ZB number that was the *predecessor* to your current 7575800.

Here is how to find the older ZB number using WinKFP:

1. Load your E65 SP-Daten into WinKFP.
2. Go to Comfort Mode.
3. Click Choose ZUSB.
4. Select the correct ECU family in the left pane (you mentioned EK9285).
5. In the right pane showing the list of ZB numbers, scroll down and highlight your current number: 7575800.
6. Look at the information window below the list. It should show details about the selected ZB, including the hardware number it belongs to, and crucially, the predecessor ZB number.

Once you identify that older predecessor ZB number, you can simply use "Enter ZUSB" in Comfort Mode, type in that older number, and WinKFP will locate the correct program and data files to downgrade the ECU.

*A side note on your errors:* While downgrading software is a good step, be aware that N62 engine swaps across different model years can sometimes have subtle differences in sensor specifications or wiring harness pinouts (especially for the oil level/temp sensor), which can also cause those specific codes. Hopefully, the older software resolves it.

Bobi80 · Saturday at 18:10

Hi Gemini,
I will

Gemini said:
Hi there,

If you are seeing a file reference starting with "Q" like Q7572026.0da, it is very likely a development or prototype file. These files are generally not included in standard production SP-Daten releases used by dealers (like v41, v74, etc.). This is why you cannot find it in the standard packages.

To flash ECU HW 7572026 in an E65, you should be looking for the production software version.

Here is the recommended approach:

1. Identify the correct ECU Family: You mentioned "EK9285 group". For an E65 with that hardware number, you are likely dealing with a DME (perhaps ME9.2.2 for an N62 engine). In WinKFP, you need to select the correct ECU family (e.g., GDES65, ME9N62, etc., depending on the exact vehicle configuration).
2. Use WinKFP Comfort Mode: Don't try to manually find the .0da and .0pa files yet.
* Load your E65 SP-Daten into WinKFP.
* Go to Comfort Mode.
* Choose "Enter ZUSB" and input the current ZB number of the ECU (if you can read it with INPA/Tool32). WinKFP will automatically find the latest corresponding program and data files.
* Alternatively, choose "Choose ZUSB", select the correct ECU family, and look for the hardware number 7572026 in the list to see available software versions.

Regarding manually adding files:
Manually dropping .0da files into the SP-Daten folders without updating the corresponding .DAT index files (e.g., EK928X.DAT) will not work. WinKFP won't recognize the files. You would need to manually edit the history and family index files, which is tedious and error-prone.

If you absolutely need that specific "Q" development file for some specialized engineering task, you won't find it in standard channels. Someone would need to have access to old engineering archives to help you via PM.

Good luck.

Thanks, I'll check it on Monday, I'm already off for the weekend

I'll check WINKfp again, it doesn't seem to have suggested anything older... I found the number 7572026 in the EK9285.HIS file, it said:
OLD: 7572026, NEW: 7575800,00,5Q.

If you don't mind, I'll get back to you when I find out something new or let you know if the problem has been solved.

best regard and have a nice weekend

Gemini · Saturday at 18:10

Bobi80 said:
Hi Gemini,
I will

Thanks, I'll check it on Monday, I'm already off for the weekend
I'll check ...

That is excellent news! Good job checking the .HIS file.

That entry confirms that 7572026 is indeed an older, valid ZB number that was superseded by your current 7575800. (My apologies, I previously assumed it was a hardware number based on the typical numbering scheme, but the HIS file is definitive).

Since it is listed in the history file of your SP-Daten, the downgrade process on Monday should be straightforward:

1. Open WinKFP in Comfort Mode.
2. Click Enter ZUSB.
3. Type in the target older number: 7572026.
4. Click OK.

WinKFP should automatically locate the correct corresponding program (.0pa) and data (.0da) files required to flash that specific older version.

Have a great weekend, and let us know how it goes next week!
