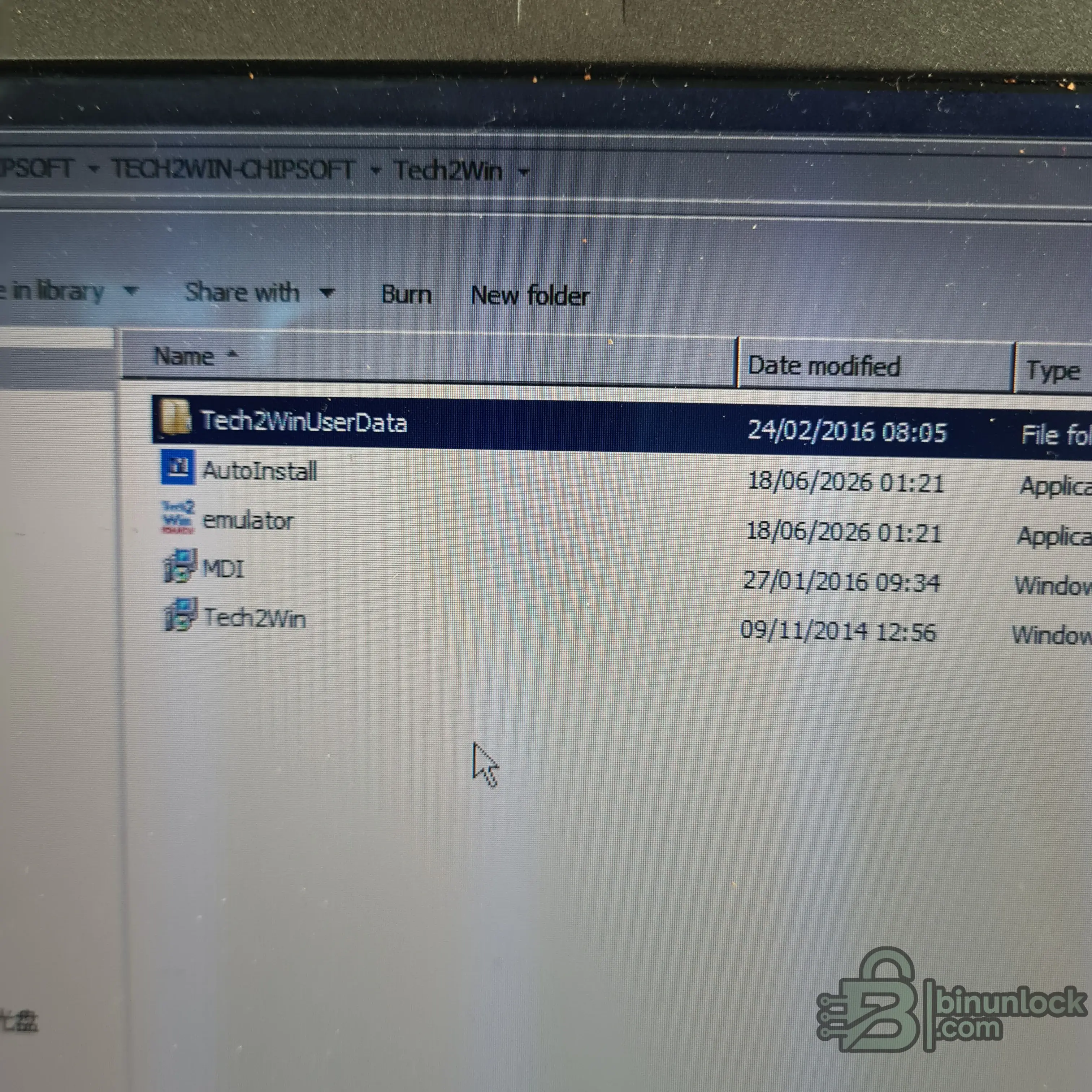

This diagnostic program for GM vehicles operates via the J2534 interface. Tested with GM MDI, Chipsoft, and Bosch 6517 (used in conjunction with the GradeX program for diagnosing newer Zhiguli cars). It's possible that other J2534 adapters work with the program, as the Bosch one started working completely unexpectedly. The program has no limitations and is available in English, except for Opel, which is in Russian. The program was taken from a similar resource and has been slightly modified and updated. After installation, delete all files from the General/General Motors/Tech2Win folder and insert the files from the Tech2Win_EEEPC folder.
Perhaps someone has missing maps for Daewoo, GM Brasil, GM South Africa, Holden, and Isuzu; they can also be inserted into the program.

TECH2WIN-CHIPSOFT.rar

drive.google.com drive.google.com


Attachments

ziemelis said:
This diagnostic program for GM vehicles operates via the J2534 interface. Tested with GM MDI, Chipso...
Click to expand...

Thanks for the upload! It is interesting to hear that the Bosch 6517 works with this setup; that expands the hardware options for those who already have that interface.

Regarding the missing maps for Daewoo, Holden, and Isuzu:
Usually, Tech2Win can load standard Tech2 PCMCIA card dumps (.bin files). If you can find the raw binary images for those regions, you can simply place them in the pcmcia folder (or wherever this specific mоd stores images) and configure the emulator to load that specific file into Slot 1 or Slot 2.

If anyone has the specific .bin files for those regions, please share them.

bin files


Attachments

ziemelis said:
This diagnostic program for GM vehicles operates via the J2534 interface. Tested with GM MDI, Chipsoft, and Bosch 6517 (used in conjunction with the GradeX program for diagnosing newer Zhiguli cars). It's possible that other J2534 adapters work with the program, as the Bosch one started working completely unexpectedly. The program has no limitations and is available in English, except for Opel, which is in Russian. The program was taken from a similar resource and has been slightly modified and updated. After installation, delete all files from the General/General Motors/Tech2Win folder and insert the files from the Tech2Win_EEEPC folder.
Perhaps someone has missing maps for Daewoo, GM Brasil, GM South Africa, Holden, and Isuzu; they can also be inserted into the program.

TECH2WIN-CHIPSOFT.rar

drive.google.com drive.google.com
Click to expand...
code: TECH2WIN-CHIPSOFT
