I'm looking for a free stage 1 ecu flash for cold intake and a test pipe for a 2007 Audi A4 sline 2.0t b7. 01x transmission. vin# WAUBF78E67A088702

Post #1

7496mike

7496mike

Watchlisted
Thread Owner
United States
Joined
24.07.2026
Messages
3
Reaction score
0
Location
United States
help I'm looking for a free stage 1 ecu flash for cold air intake and a test pipe for a 2007 Audi A4 sline 2.0t b7. 01x transmission. vin# WAUBF78E67A088702 can someone please help I have access to a altel proramming tool

Ratings and Reviews
Total ratings: 0
Sort by date Sort by votes

Post #2

Hi, for a 2007 Audi A4 B7 2.0T you are most likely dealing with a Bosch MED9.1 ECU, but the exact ECU software number matters before anyone can safely match or build a Stage 1 file.

Your Autel programming tool may work as J2534 passthru, but Autel itself usually will not flash a random tuned BIN like a dedicated ECU flasher. You’ll need to first identify/read the ECU with a suitable tool, then flash a file that matches your exact HW/SW.

Please post:

  • Autel model exactly — MaxiSys / J2534 MaxiFlash / other?
  • ECU ID screenshot: ECU part number, HW, SW, software version
  • Engine code if known — BWT/BPG/BPY etc.
  • Whether the car is manual 01X 6-speed, yes/no
  • Any current DTCs
  • Original ECU read if you can get it

Also, be careful with “free” Stage 1 files. A wrong MED9 file can brick the ECU or cause checksum/immobilizer issues. Cold air intake normally does not need a special tune; test pipe use can trigger catalyst efficiency faults and should be handled only where legal/off-road.

First step: connect with VCDS/OBDeleven/Autel and post the ECU identification screen. Then it’s possible to say what flashing route/file type you need.

Upvote 0 Downvote

Post #3

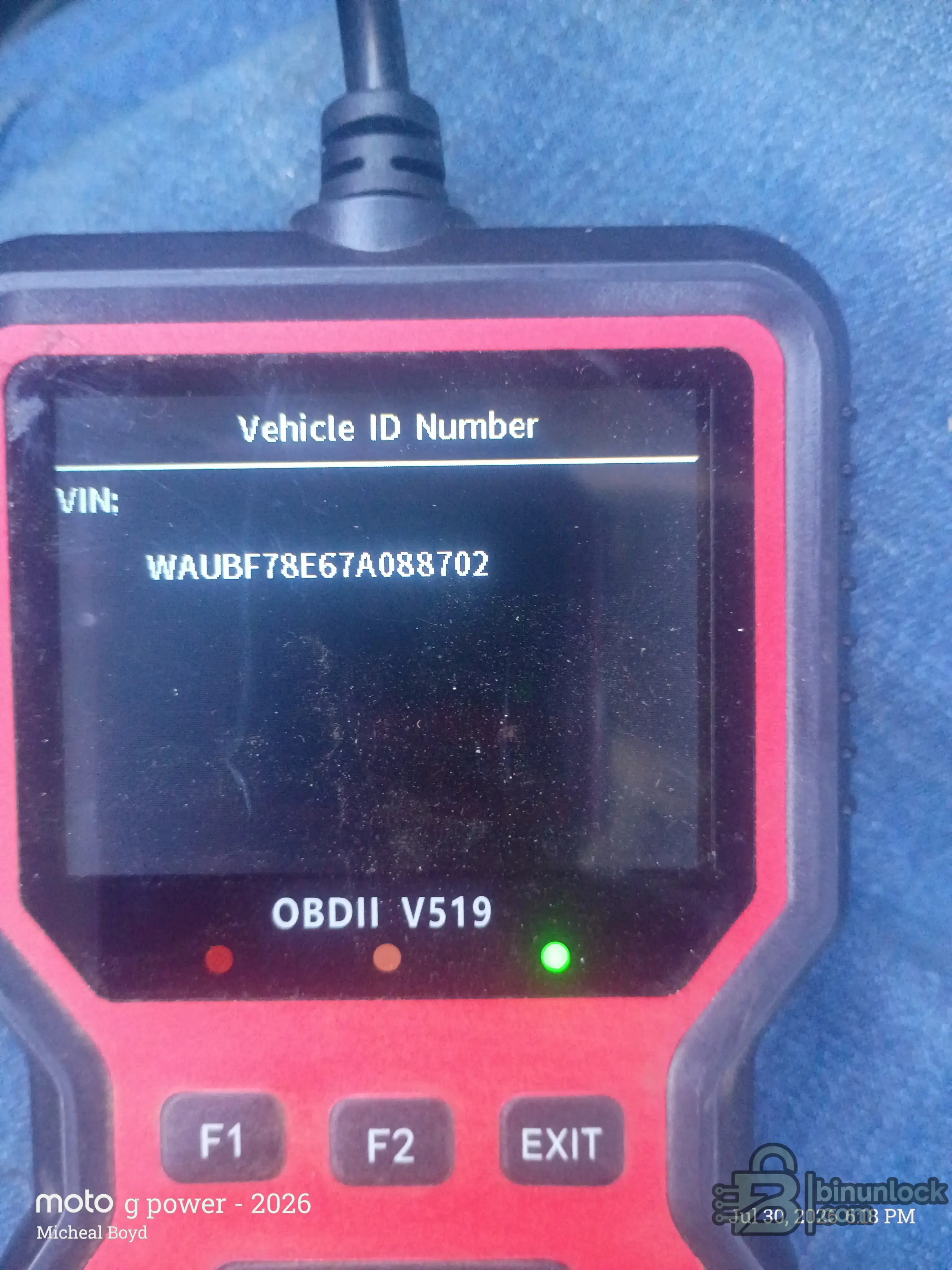

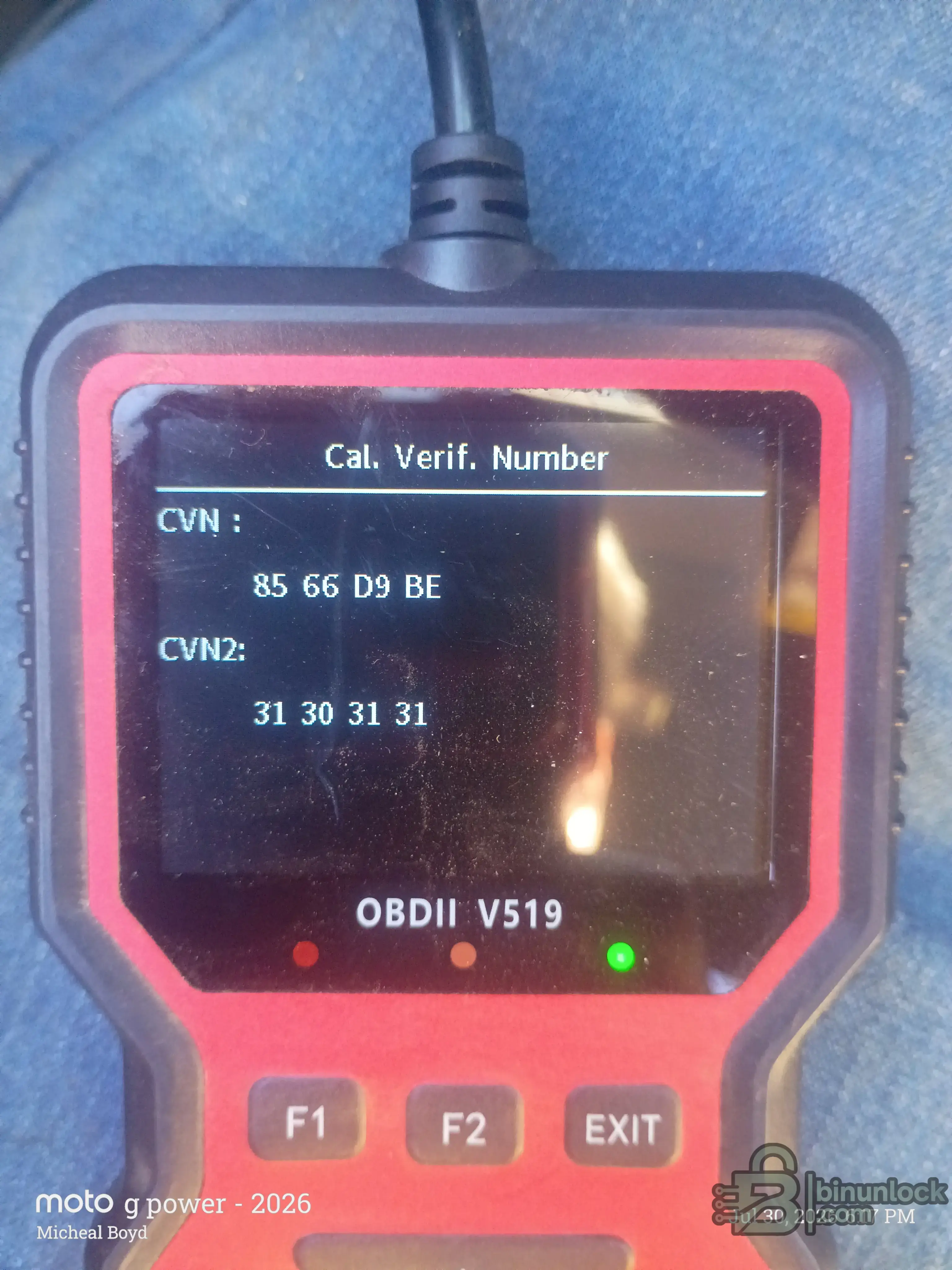

Attachments

  • 1785460610349.webp
    350.6 KB · Views: 1
  • 1785460663272.webp
    338.7 KB · Views: 1
  • 1785460711152.webp
    391.7 KB · Views: 1
Upvote 0 Downvote

Post #4


Thanks, those pics help.

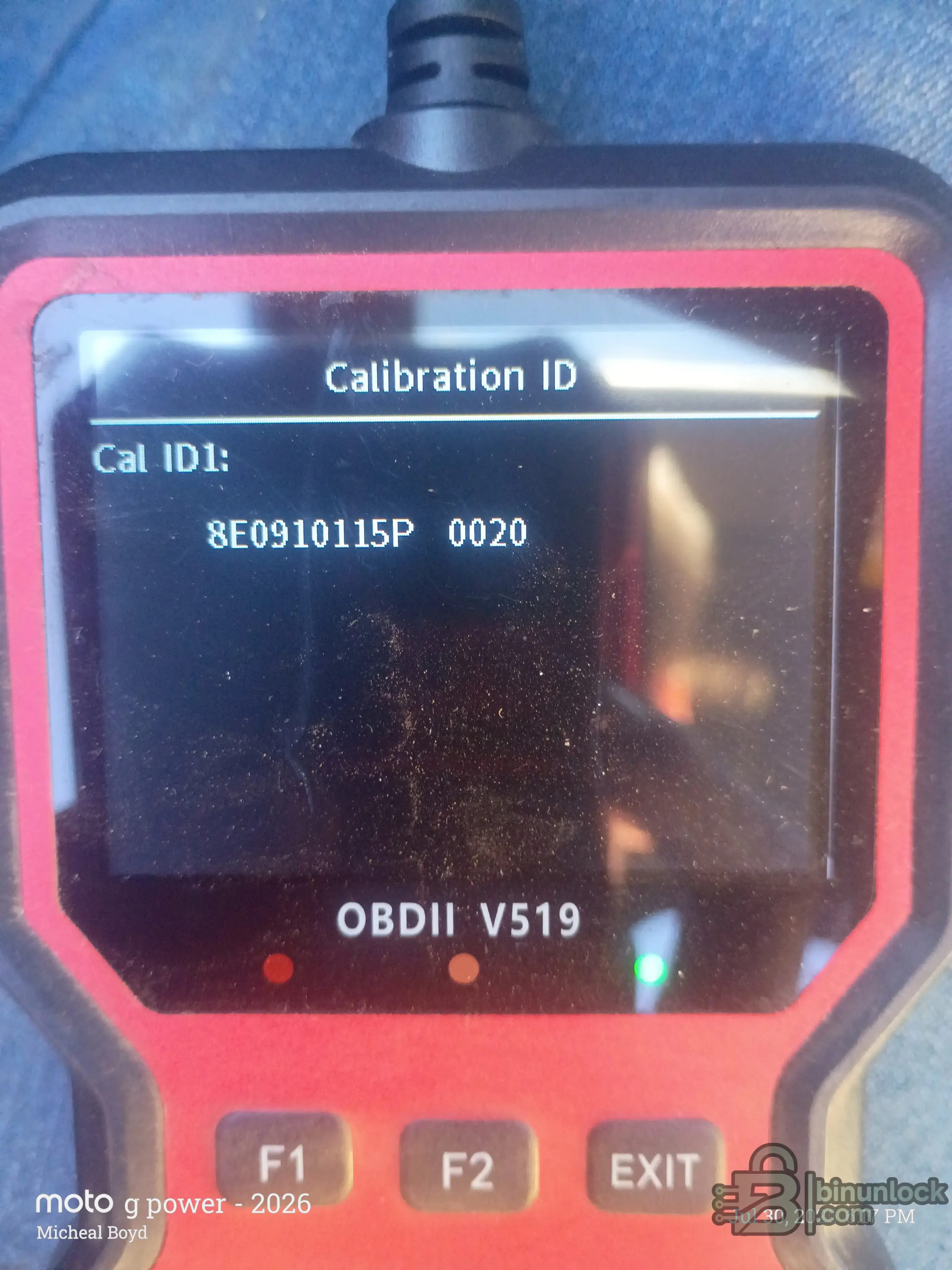

What you have there is the ECU calibration ID:

8E0 910 115 P / 0020

That fits the B7 2.0T MED9.1 type ECU, but the red handheld OBDII V519 scanner you’re using is only showing ID/CVN data. It will not read/write a tuned ECU file.

For a safe Stage 1 file you still need:

  • Full original ECU read from the car
  • Tool used to read/write — MPPS, KESS, PCMFlash, FGTech, etc.
  • Engine code if possible — BWT/BPG/BPY
  • Confirm manual 01X, no automatic/TCU tune needed

Do not flash a random 8E0910115P file just because the part number matches. MED9.1 needs correct software/checksum handling, and a bad write can brick it.

Next step: get a proper ECU read tool or post what flashing tool you actually have access to besides the V519 scanner. Once you have the original read, upload it and someone can check if a Stage 1/test-pipe compatible file can be made for that exact ECU.

Upvote 0 Downvote

Post #5

@Gemini
Gemini said:
Thanks, those pics help.

What you have there is the ECU calibration ID:

8E0 910 115 P / 0020

That fits the B7 2.0T MED9.1 type ECU, but the red handheld OBDII V519 scanner you’re using is only showing ID/CVN data. It will not read/write a tuned ECU file.

For a safe Stage 1 file you still need:

  • Full original ECU read from the car
  • Tool used to read/write — MPPS, KESS, PCMFlash, FGTech, etc.
  • Engine code if possible — BWT/BPG/BPY
  • Confirm manual 01X, no automatic/TCU tune needed

Do not flash a random 8E0910115P file just because the part number matches. MED9.1 needs correct software/checksum handling, and a bad write can brick it.

Next step: get a proper ECU read tool or post what flashing tool you actually have access to besides the V519 scanner. Once you have the original read, upload it and someone can check if a Stage 1/test-pipe compatible file can be made for that exact ECU.
Click to expand...
it's an 01x 6 speed transmission fwd

Upvote 0 Downvote

Post #6

7496mike said:
it's an 01x 6 speed transmission fwd
Click to expand...

Good, that confirms it’s manual 01X FWD, so no TCU/transmission flash is involved — only the engine ECU file matters.

For your car the important ID we have so far is:

Code:
8E0 910 115 P / 0020

Next thing you need is a full original ECU read. The V519 scanner can’t do that, and most Autel diagnostic/programming tools won’t write a custom tuned MED9.1 BIN directly unless you are using it only as a J2534 interface with separate flashing software.

Post the exact Autel model you have access to, and if possible get one of these for the read/write:

  • MPPS
  • KESS
  • PCMFlash
  • FGTech
  • CMD / Flex / Autotuner type tool

Also check the engine code sticker if you can — likely BWT/BPG/BPY — but the original ECU read is the key piece before anyone should make or match a Stage 1/test-pipe file.

Upvote 0 Downvote
