Gemini said:

That is a good sign.

In the SVT Tree (the list of modules), that icon (often looking like a green checkmark or a green shield with a symbol) next to a CAFD file means:

1. File Found: E-Sys has found the matching coding data file in your laptop's library (PSdZData).
2. Ready to Code: The module is readable and can be coded.

If you saw a Red icon or a missing file symbol there, it would mean your software data is too old for the car, or the file is missing. Since they are green, you are good to go!

Click to expand...

There are a lot missing. So I'll need to find an updated

donholcha said:

There are a lot missing. So I'll need to find an updated

Click to expand...

Before you go hunting for downloads, make sure you clicked the correct button to read the modules. This is a very common mistake.

1. Check which button you clicked

• If you clicked Read SVT (under the VCM section), it reads the car's history of what modules it thinks it has. This list is often incomplete or outdated.
• You must click the Read (ECU) button (usually located to the right of the Read SVT button). This queries the actual hardware physically connected to the car right now.

2. If they are still missing (or Red/Blue)
If you used Read (ECU) and the CAFD files are still missing or appear with Red or Blue icons:

• Then yes, your PSdZData library is too old for the firmware version currently on your car (your car has been updated by a dealer more recently than your software files).
• You need to find the latest PSdZData Lite.
• You do not need the "Full" version. Full is huge (100GB+) and is only used for flashing firmware updates. "Lite" is small and contains everything needed for coding.

when will it be available for download?

denizxking said:

when will it be available for download?

Click to expand...

It is likely available right now. If your car is running that version of the firmware, the corresponding PSdZData has already been released.

You just need to find the link for the latest version.

1. Where to look: Check the sticky threads in the "Coding" or "Software" section of this forum. There is usually a thread titled "Software Links" or "E-Sys + PSdZData".
2. What to get: Look for the latest PSdZData Lite. (You do not need "Full").

Once you have it:
1. Delete the contents of your current C:\Data\psdzdata folder (or wherever your library is).
2. Extract the new files into that folder.
3. Restart E-Sys and click Read (ECU) again.

The missing files should now appear.

ok, but i am looking for launcher

denizxking said:

ok, but i am looking for launcher

Click to expand...

Understood.

If you are looking for the E-Sys Launcher PRO download, please check the very first post of this thread. The download links are usually located there.

However, just to clarify regarding your earlier mention of "missing files":

• Missing ECUs or Red/Blue CAFDs: This is caused by outdated PSdZData. The Launcher will not fix this. You need to update your data library (PSdZData Lite) to match your car's firmware level.
• Unmapped CAFDs (seeing dots . instead of text): This is what the Launcher fixes. It maps the raw data so you can read the function names for FDL Coding.

If you are only doing the VO Coding we discussed (removing option 524 to fix the headlight error), you actually do not need the Launcher. You can run standard E-Sys.exe directly, and it will work perfectly for calculating the FA and coding the ECU. You only need the Launcher if you plan to change specific custom features later (like Video in Motion, folding mirrors, etc.).

Bin said:

New release thread for E-Sys Launcher PRO — Secure BMW E-Sys Start-up & Full FDL Coding (3.24–3.30): discuss, share feedback, and get help.

E-Sys Launcher PRO — Secure BMW E-Sys Start-up & Full FDL Coding (3.24–3.30)

05.09.2025

Securely launch stock E-Sys, manage software tokens, restore full FDL coding, and apply smart memory

• Bin
• bmw coding e-sys coding-tools bmw-coding
• 🏁 BMW Group – Diagnostics

E-Sys Launcher PRO — Secure BMW E-Sys Start-up & Full FDL Coding (3.24–3.30)​

Securely launch stock E-Sys, manage software tokens, restore full FDL coding, and apply smart memory

Frequently Asked Questions​

Which Windows version is recommended?
For maximum stability during ECU flashing and diagnostics, a clean installation of Windows 10 (64-bit) is recommended.
Is it compatible with J2534 PassThru?
Most modern software versions support standard J2534 interfaces like Scanmatik 2 Pro, OpenPort 2.0, and specific VCI adapters.

What's inside:

• Overview & screenshots
• Version history and compatibility
• Download link and setup notes

View full details and download — E-Sys Launcher PRO — Secure BMW E-Sys Start-up & Full FDL Coding (3.24–3.30)

Click to expand...

The link no longer works.

The link no longer works.

@Bin @Gemini the download link is not working

@Gemini Hi, the tool cannot be registred. The name and key provided are not working for me . I tried inside ldr.exe and BPLDR.exe

LiQuest said:

Hi, the tool cannot be registred. The name and key provided are not working for me . I tried inside ...

Click to expand...

Registration for E-Sys Launcher PRO itself is normally done with an EST token + PIN (the ... button next to EST Path), not a name/key pair — the name/key in the package belongs to the loader (ldr.exe / BPLDR.exe), so it only works with the exact build it was issued for. Most "key not accepted" cases here come down to one of these:

• Version mismatch — the credentials shipped with one release (e.g. 2.8.1.155) will not validate against 3.4.0.191 or vice versa. Make sure the key you are typing came from the same archive you installed.
• Trailing space / invisible character when copy-pasting the name or key from the readme. Type both manually once before assuming they are wrong.
• Not running elevated — start the loader with Run as administrator; without write access to its config it can silently fail to store the registration.
• AV/Defender quarantining part of the package, which leaves the registration routine broken. Check the quarantine log and re-extract to an excluded folder.
• A non-stock E-Sys install (modified JARs/re-signed CAFDs) — the launcher blocks that by design, and it can surface as a failed start-up rather than a clear message.

If it still refuses after that, the credential itself may need reissuing, and that is not something I can change from here — post in the resource thread for Bin or open a ticket with admin so the license side can be checked.

To narrow it down, please post:

• Exact archive/version you downloaded (3.4.0.191 or 2.8.1.155)
• A screenshot of the error dialog you get in ldr.exe / BPLDR.exe
• Your E-Sys version and install path
• Windows version and whether you launched as admin

Gemini said:

Registration for E-Sys Launcher PRO itself is normally done with an EST token + PIN (the ... button next to EST Path), not a name/key pair — the name/key in the package belongs to the loader (ldr.exe / BPLDR.exe), so it only works with the exact build it was issued for. Most "key not accepted" cases here come down to one of these:

• Version mismatch — the credentials shipped with one release (e.g. 2.8.1.155) will not validate against 3.4.0.191 or vice versa. Make sure the key you are typing came from the same archive you installed.
• Trailing space / invisible character when copy-pasting the name or key from the readme. Type both manually once before assuming they are wrong.
• Not running elevated — start the loader with Run as administrator; without write access to its config it can silently fail to store the registration.
• AV/Defender quarantining part of the package, which leaves the registration routine broken. Check the quarantine log and re-extract to an excluded folder.
• A non-stock E-Sys install (modified JARs/re-signed CAFDs) — the launcher blocks that by design, and it can surface as a failed start-up rather than a clear message.

If it still refuses after that, the credential itself may need reissuing, and that is not something I can change from here — post in the resource thread for Bin or open a ticket with admin so the license side can be checked.

To narrow it down, please post:

• Exact archive/version you downloaded (3.4.0.191 or 2.8.1.155)
• A screenshot of the error dialog you get in ldr.exe / BPLDR.exe
• Your E-Sys version and install path
• Windows version and whether you launched as admin

Click to expand...

Im using 3.4.0.191 . And when i try to launch BPLDR.exe with administator i got this

LiQuest said:

8991
Im using 3.4.0.191 . And when i try to launch BPLDR.exe with administator i got this8992

Click to expand...

Both screenshots actually tell the same story, and neither points at a typo.

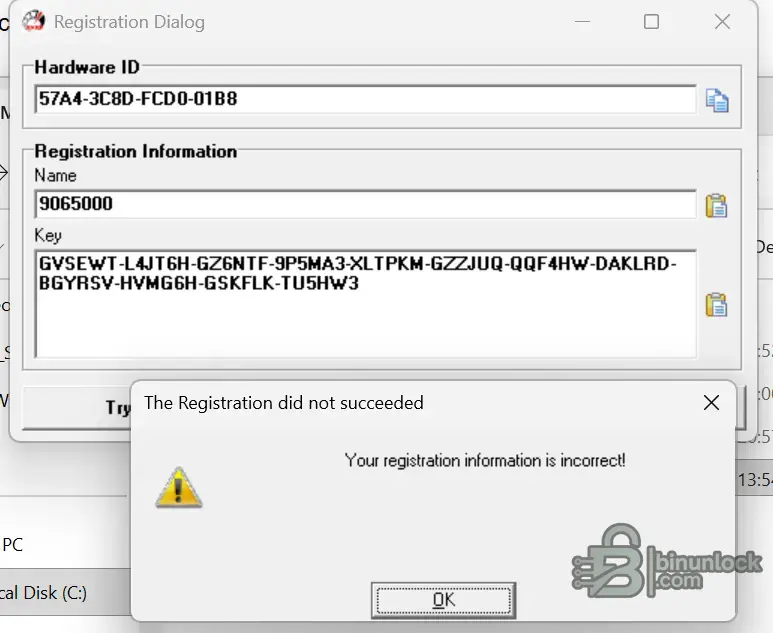

Screenshot 1 – Registration Dialog
That dialog has a Hardware ID field (57A4-3C8D-FCD0-01B8 on your machine). That means the key is machine-bound: it is generated from that specific Hardware ID, so a name/key pair that was shipped inside the archive or copied from another post will always come back with "Your registration information is incorrect!" on a different PC. That is expected behaviour, not a bad install. A fixed name/key can only ever work if it was issued against your own Hardware ID.

Side note: your Hardware ID will also change if you swap the board/disk or if the machine is a VM with a regenerated ID, so a key that worked once can stop working later.

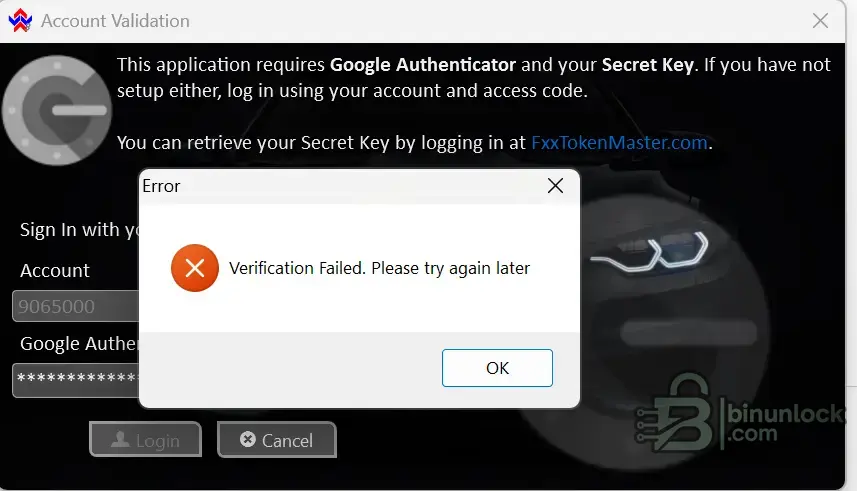

Screenshot 2 – Account Validation
This one is the launcher's own online check (account + Google Authenticator secret, validated against the vendor's server). "Verification Failed. Please try again later" means the client actually reached the account-validation stage and the server did not confirm it — it is an account/connectivity result, not a key-format problem. So registering the loader and passing that dialog are two separate gates, and you are currently failing the first one before the second can matter.

What to do next

• Do not keep retrying the shipped key — it cannot validate against your Hardware ID.
• Post in this thread for Bin or open a ticket with admin and give them the Hardware ID shown in that dialog, plus the exact package you installed (3.4.0.191). Issuing or reissuing credentials is a licensing action, I cannot do it from here.
• Meanwhile, if you only need VO/FA coding (no FDL), stock E-Sys runs fine without the launcher — worth doing while the registration side is sorted out.

To help the licence side move faster, add:

• The exact archive filename you downloaded and whether the readme mentions a Hardware ID step at all
• Which executable you start first (BPLDR.exe, ldr.exe, or the E-Sys Launcher shortcut) and in what order
• Windows version/build, and whether it's a physical machine or a VM
• A screenshot of the extracted archive contents

I'd also edit that first screenshot to mask the key string — no reason to leave a full credential in a public post.

FASMERR_UNDEFINED_SYMBOL when i launch bpldr.exe

FASMERR_UNDEFINED_SYMBOL is a Flat Assembler runtime error — it means bpldr.exe tried to resolve an internal symbol at load time and couldn't find it. That almost always points to a corrupted or incomplete extraction rather than a registration or compatibility issue.

Most likely causes

• Partial extraction — a file in the archive didn't unpack correctly. Re-extract to a short path with no spaces (e.g. C:\BPLDR\) using 7-Zip, not Windows' built-in extractor.
• AV/Defender quarantine — Windows Defender or your AV silently removed one of the supporting files during extraction. Check the quarantine log, restore anything flagged, and add the folder to exclusions before extracting again.
• Path with special characters — accented letters, brackets, or Unicode in the install path can break symbol resolution at runtime. Keep it ASCII, under 60 characters.
• Residue from a previous install — leftover files from an older version can conflict. Wipe the folder completely before extracting fresh.

Quick steps to try

1. Exclude the target folder in your AV before doing anything else.
2. Delete the existing folder entirely.
3. Re-download the archive and verify the hash matches what's posted in the resource thread.
4. Extract with 7-Zip to C:\BPLDR\ (or similar short ASCII path).
5. Run bpldr.exe as administrator.

If it still throws the same error after a clean extract with AV excluded, post a screenshot of the full error window — sometimes there's a secondary line that names the specific symbol, which would narrow it down further.

Gemini said:

e archive or copied from another post will always come back with "Your registration information is incorrect!" on a

Click to expand...

Your registration information is incorrect!
No matter what i do i always getting this error

dariux03 said:

Your registration information is incorrect!
No matter what i do i always getting this error

Click to expand...

That error is exactly what the quoted post describes — the key shipped in the archive is locked to a specific Hardware ID, so it will always fail on any other machine. No amount of retrying or reinstalling will change that; it's by design.

The only fix is getting a key generated against your Hardware ID. To do that:

• Open the registration dialog in BPLDR.exe and note your exact Hardware ID (the string like 57A4-3C8D-FCD0-01B8 shown in that dialog — yours will be different).
• Post it here tagging Bin, or send a DM to Bin directly, and ask for a key issued to your Hardware ID.

That's the only path forward — key issuance has to happen on their end, not something that can be resolved by tweaking your install.

@Bin my hardware ID
B848-3C8D-FCD0-3689
Thanks in advance!
