EGSFlash is an Android full flash tool for BMW transmission control units. It programs complete BIN files, including original stock firmware and compatible modified or tuned files.
Supported and detected gearbox families:
Controllers marked as experimental or temporarily blocked are already recognized by EGSFlash and are intended to receive expanded programming support in future updates.
The application provides automatic EGS identification, compatibility pre-check, built-in write-protection bypasses, checksum correction, write verification and detailed programming logs.

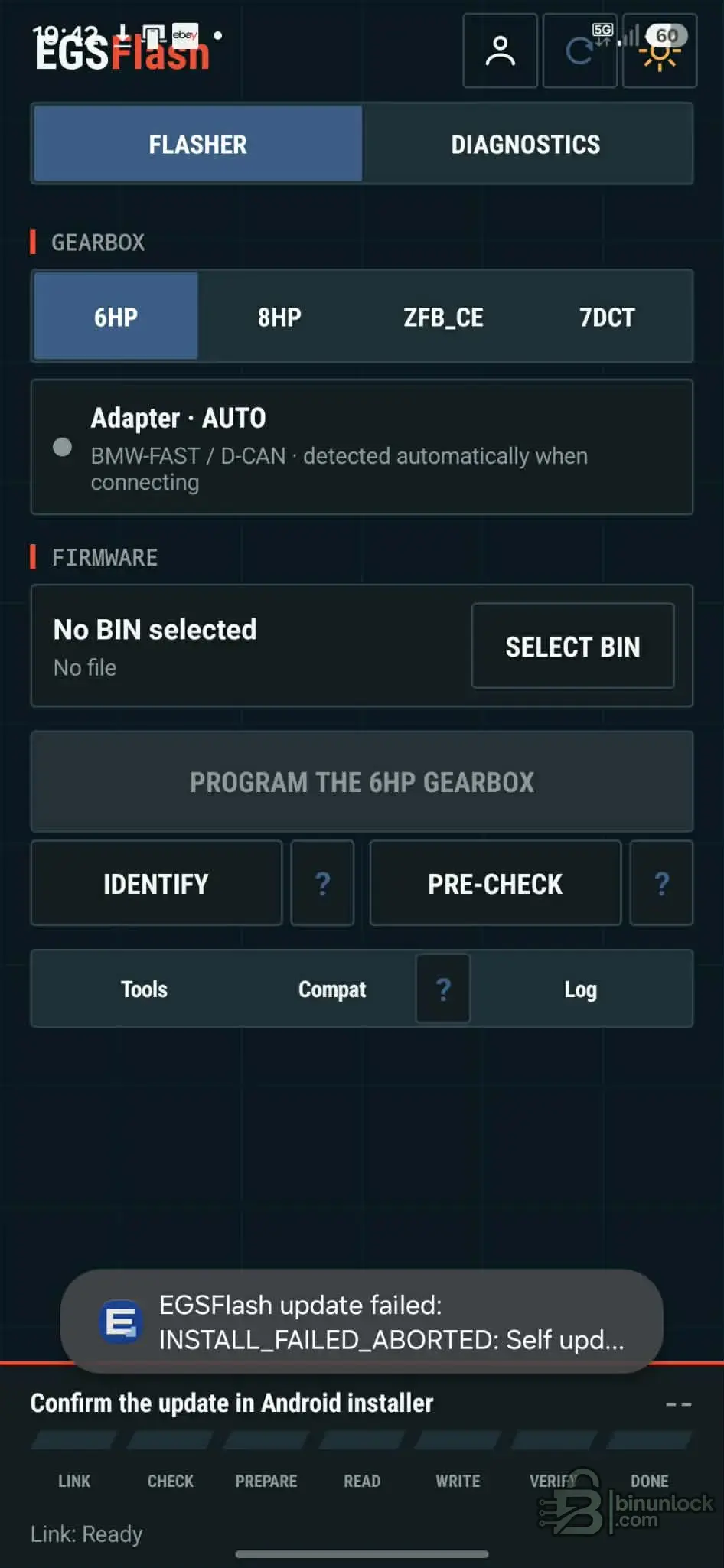

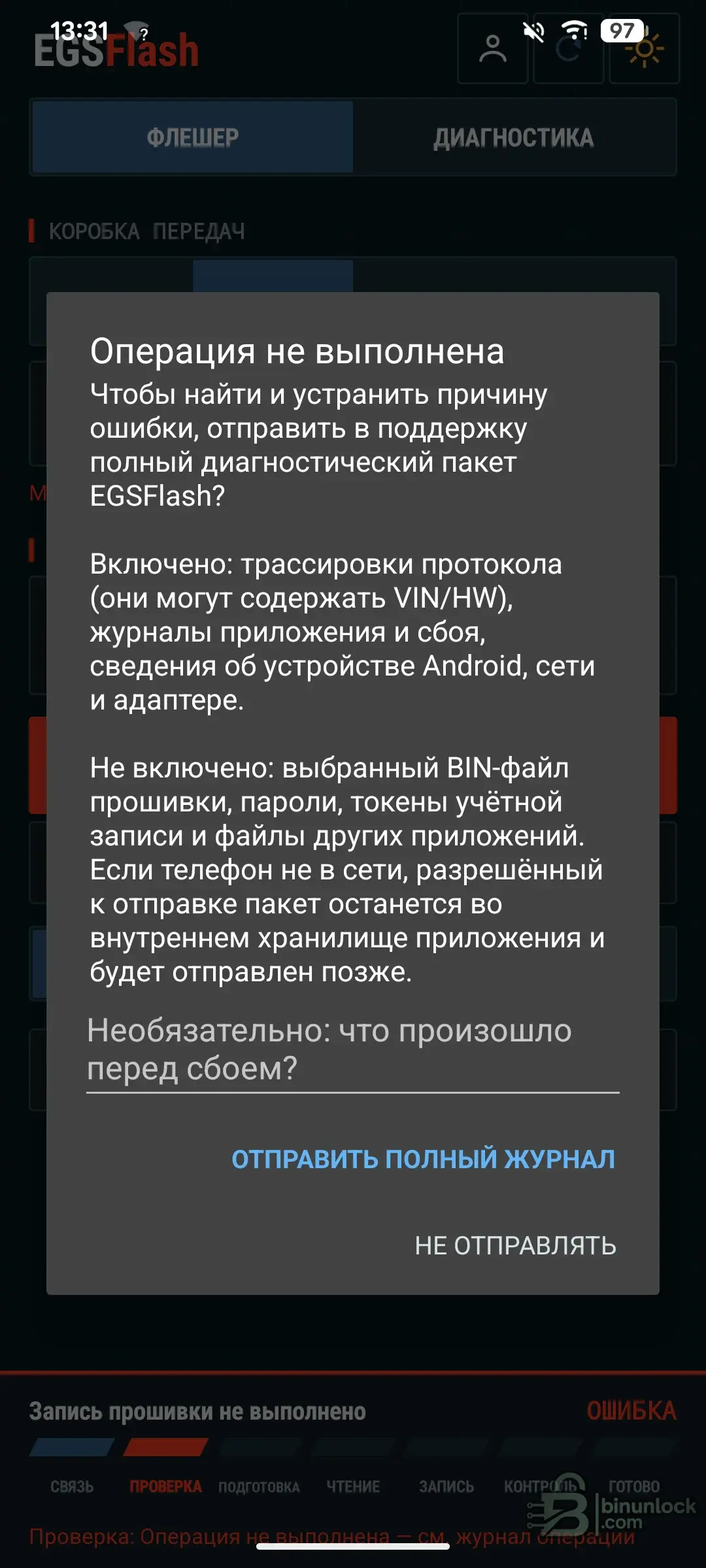

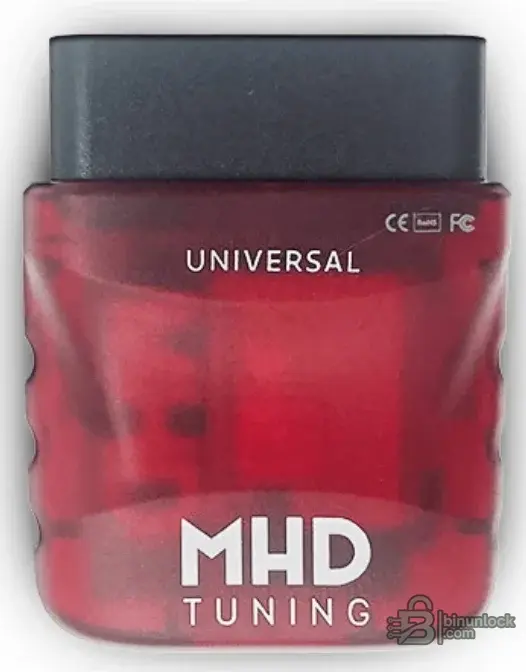

EGSFlash is currently undergoing field testing, so results may depend on the EGS hardware and diagnostic adapter, especially on ZF 8HP units. If a write error occurs, post the complete log file for analysis. Application updates are installed automatically from within the flasher.
Testing challenge: The user who successfully flashes the highest number of different transmission types will receive a 2-year license. The next five users will each receive a 1-year license.
Supported and detected gearbox families:

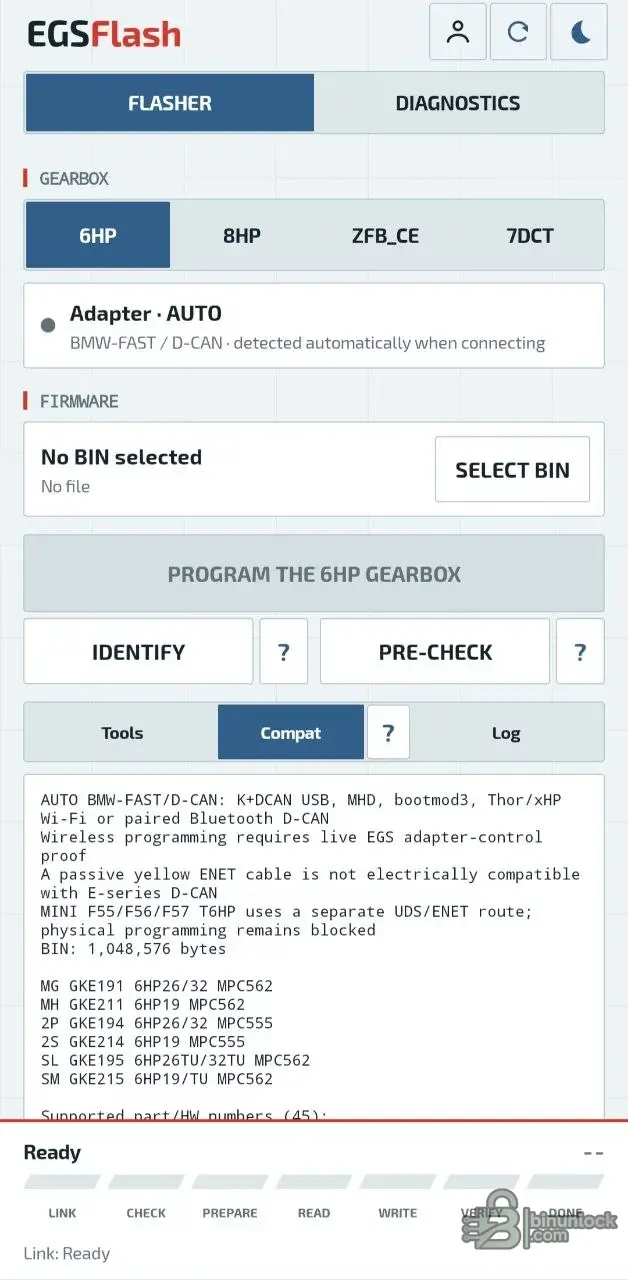

- BMW ZF 6HP: 6HP19, 6HP19TU, 6HP26, 6HP26TU, 6HP32 and 6HP32TU — GKE191/MG, GKE211/MH, GKE194/2P, GKE214/2S, GKE195/SL and GKE215/SM controllers with MPC555 or MPC562.

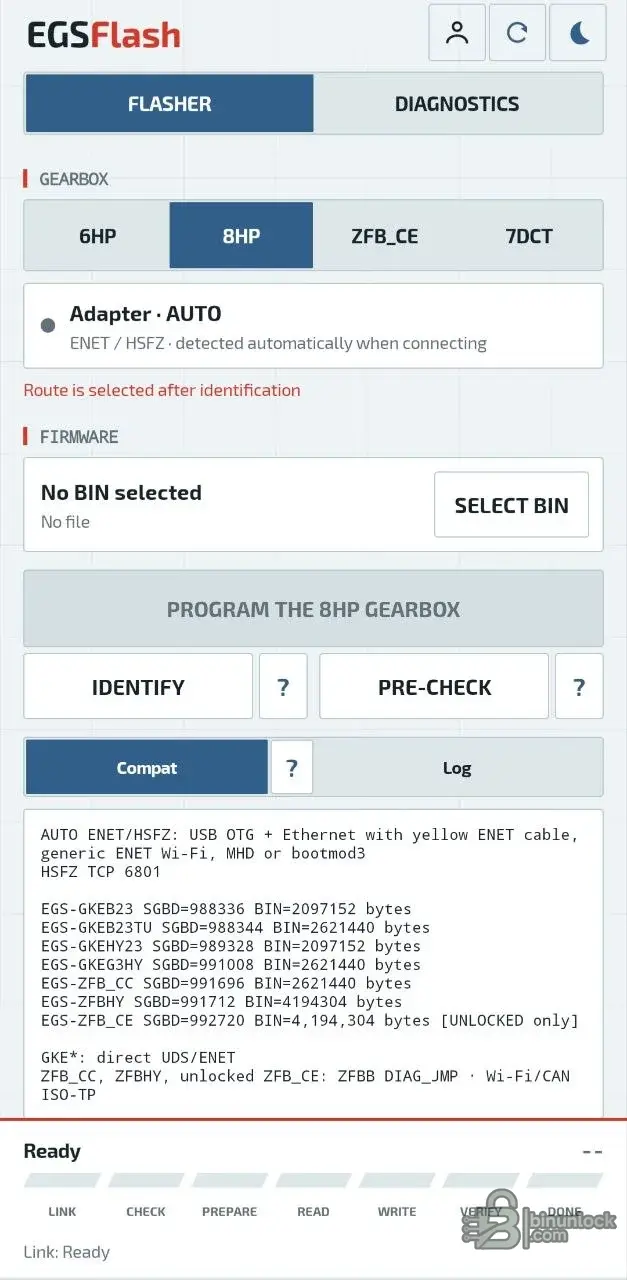

- BMW ZF 8HP: GKEB23 (SGBD 988336), GKEB3TU (988344), GKEHY23 (989328), GKEG3HY (991008), ZFB_CC (991696), ZFBHY (991712) and ZFB_CE (992720).

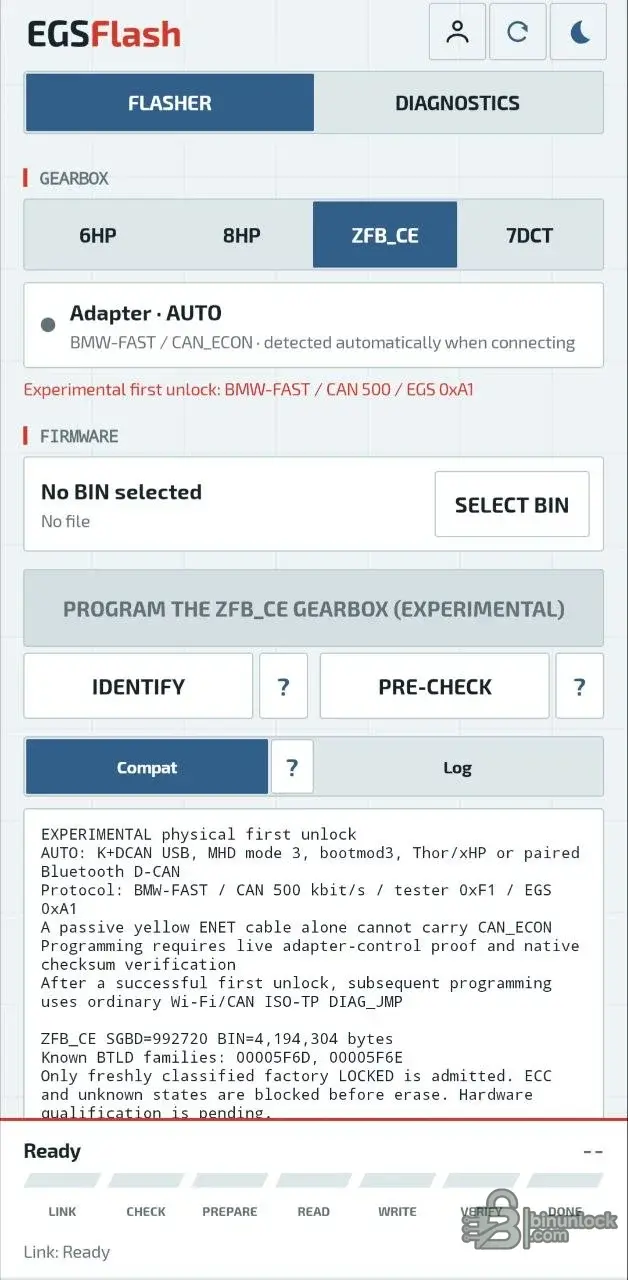

- ZFB_CE: BTLD 00005F6D and 00005F6E — experimental first unlock and full flash programming. Only eligible controller states are currently accepted.

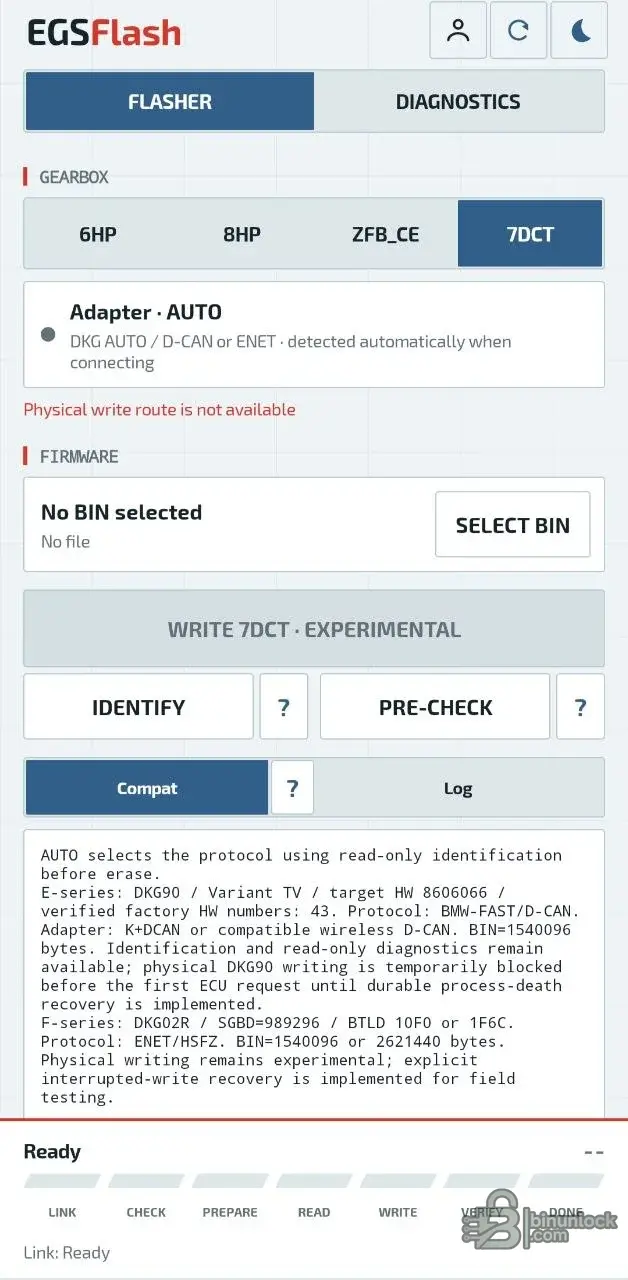

- BMW 7DCT/DKG: DKG90 for E-series and DKG02R for F-series, including SGBD 989296 and BTLD 10E0/1F6C. Identification and diagnostics are available; physical writing is experimental or temporarily blocked depending on the variant.
- MINI 7HP: F55, F56 and F57 through the separate UDS/ENET route. The controller is recognized, while physical programming is currently blocked.
Controllers marked as experimental or temporarily blocked are already recognized by EGSFlash and are intended to receive expanded programming support in future updates.
The application provides automatic EGS identification, compatibility pre-check, built-in write-protection bypasses, checksum correction, write verification and detailed programming logs.
EGSFlash is currently undergoing field testing, so results may depend on the EGS hardware and diagnostic adapter, especially on ZF 8HP units. If a write error occurs, post the complete log file for analysis. Application updates are installed automatically from within the flasher.
Testing challenge: The user who successfully flashes the highest number of different transmission types will receive a 2-year license. The next five users will each receive a 1-year license.
