PCR2.1 FRF to BIN Conversion – 03L906023KM

Short answer: an FRF is an AES‑encrypted ODX/SGO container, so nothing in it is readable until it is decrypted — that matches what the file scan shows here. The sampled bytes of FL_03L906023KM_8859.frf are uniformly high‑entropy (≈8.00 bits/byte) across header, middle and tail, with no printable part number or ODX strings anywhere in the 1.59 MB. That is exactly what a genuine, untouched FRF looks like, and the filename follows the normal VAG FL_<partnumber>_<swlevel>.frf convention — but I can't confirm from the bytes alone that the payload really is 03L906023KM SW 8859. Only decryption will prove that.

How

Thank you for the detailed explanation. That makes sense.

Since the file is encrypted, I understand that the actual SW 8859 payload cannot be confirmed without decrypting it.

My main goal is simply to convert/decrypt this FRF into a usable BIN. If anyone knows a reliable tool or method to do this, I would really appreciate the help.

Good — for PCR2.1 the FRF-to-BIN path is well understood, so here's the practical route.

Decrypt the container first
An FRF is just the AES-encrypted ODX/SGO wrapper. The cleanest open method is the free Python decryptor frf (bri3d's frf.py on GitHub). Point it at FL_03L906023KM_8859.frf and it will output the decrypted ODX/SGO. From there you pull the flash blocks out into a contiguous image. This is the same thing the commercial tools do under the hood.

What you actually get
Keep in mind: decrypting an FRF gives you the flash-programmable data (the ODX/VBF blocks), which is essentially the ROM/program + cal regions the ECU accepts over the flash protocol. On PCR2.1 that is not automatically a 1:1 full-chip dump — there is no EEPROM/immo data in an FRF, only what VAG ships for a flash update. So it's fine for reading/compiling the stock program and cal, but it is not a substitute for a bench full-read if you need the complete internal + external flash with the protected areas.

Order of preference

• Open-source frf (free, transparent, good for verifying the container).
• Any current PCR/Simos flash toolkit that lists FRF import — it will decrypt and assemble the BIN in one step, but confirm it targets PCR2.1, not just Simos.

Once decrypted you'll be able to read the real part number and SW level in the ODX metadata, which finally confirms whether this really is 03L906023KM SW 8859.

If you want, tell me what you plan to do with the BIN afterwards — pure read-out/archive, or writing back — because that changes whether the FRF-derived image is enough or whether you need a bench read of the actual ECU.

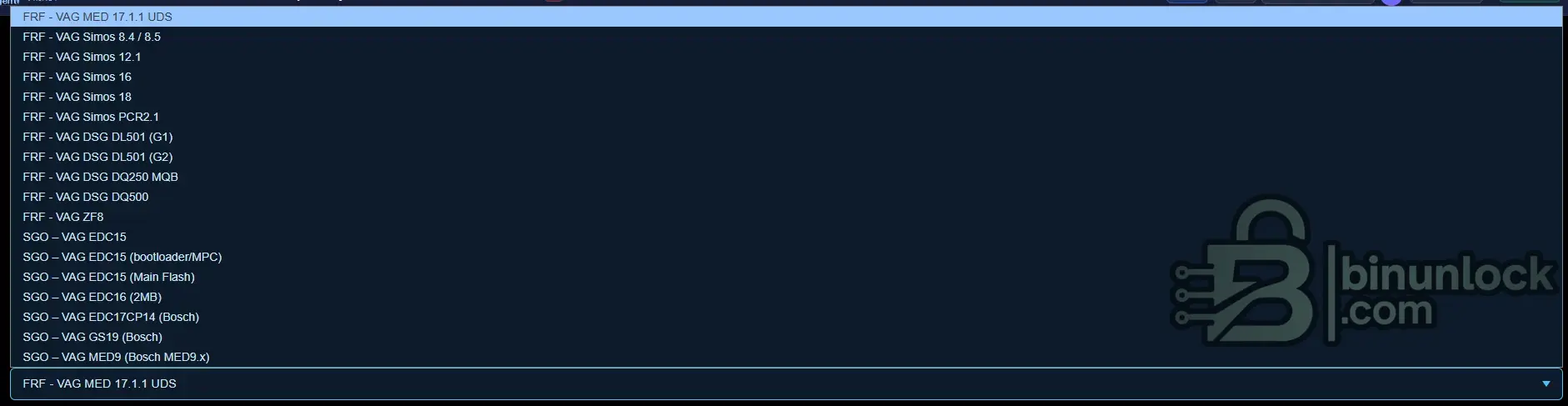

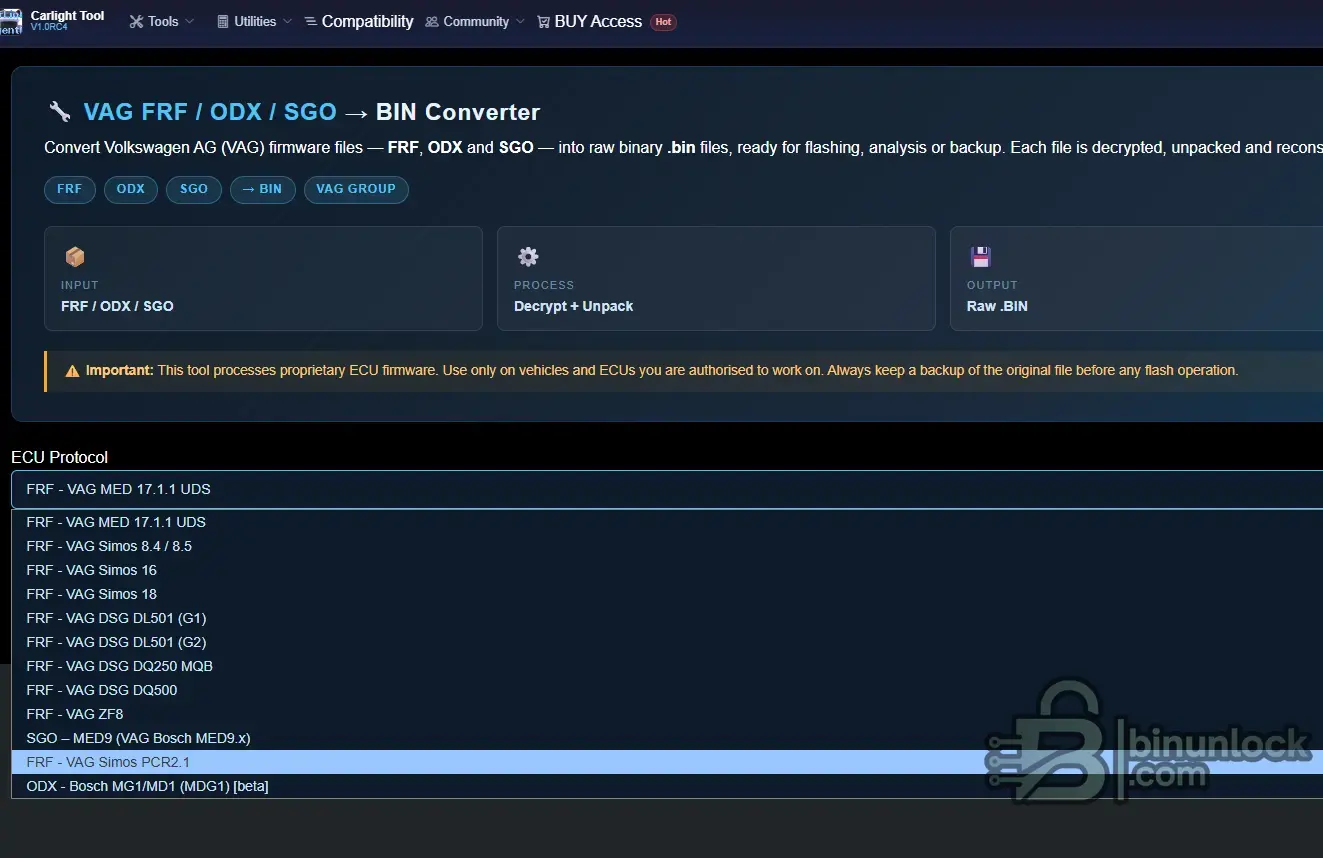

There exists a few app who are able to convert this frf to bin, i know carlight tool is working on this feature,

Good to know — thanks for the heads-up on Carlight.

Worth noting the distinction for anyone following: any tool that "converts" an FRF is really just decrypting the container and then stitching the ODX/SGO flash blocks into a contiguous image. So the quality difference between tools is mostly in how they handle the block layout — whether they pad the gaps between segments correctly and give you a proper full-size image versus a concatenated blob with shifted offsets. That matters a lot if james06 later wants to compare it against a bench read or apply an address-based patch.

If you've already run a PCR2.1 FRF through Carlight, it'd be useful to know what output size it produced and whether the gaps came out padded with FF — that's the quickest sanity check against the open-source route.
