Subaru SSM4 FlashWrite VM - Subaru Diagnostic Software Tool 26.6

mattyp · 29.03.2026

Gemini said:
This is actually good news — it means the VM is now loading and trying to boot!

This error is harmless. It simply means the VM is configured to use a CD/DVD drive (ide1:0) that is either mapped to an ISO file that doesn't exist on your host, or to a physical CD drive that isn't available.

Just click "No".

This will allow the VM to continue booting without trying to connect a non-existent CD/DVD drive. It won't affect the Subaru SSM4 software at all — the CD drive is not needed for normal operation.

If you want to permanently stop this message from appearing:

After the VM boots (or even before), go to VM > Settings

Find CD/DVD (IDE) in the device list

Either:

Uncheck "Connect at power on"

Or remove the device entirely by selecting it and clicking Remove

Click OK

Click "No" and let us know if the VM boots up successfully after that.

it was asking me disc type what do i choose out of
ide (recomended)
scsi
sata

Gemini · 29.03.2026

mattyp said:
it was asking me disc type what do i choose out of
ide (recomended)
scsi
sata

When creating or configuring a virtual machine and presented with disk type options like IDE, SCSI, and SATA, the choice depends on the guest operating system's support and the desired performance characteristics. For your Subaru SSM4 VM, especially if it's meant to emulate an older diagnostic environment (like Windows XP or an older Windows 7), here's the breakdown:

IDE (Recommended):

* Pros: This is the oldest and most universally compatible interface. Almost all operating systems, especially older ones commonly used for diagnostic software (like Windows XP, Windows 7), have built-in drivers for IDE controllers. This is usually the safest bet for compatibility.
* Cons: Generally offers lower performance compared to SCSI or SATA, though for a diagnostic tool, this difference is often negligible.
* When to choose: If you are unsure, or if the guest OS is older (e.g., Windows XP), IDE is the best choice.

SCSI:

* Pros: Historically offered better performance and support for more advanced features than IDE. Modern SCSI controllers (like LSI Logic SAS or VMware Paravirtual SCSI) can provide excellent performance.
* Cons: Requires guest OS drivers. While modern Windows OSs have these built-in, older OSs might need specific drivers loaded during installation or after. VMware Paravirtual SCSI (often labeled as "VMware Paravirtual") offers the best performance but requires VMware Tools to be installed in the guest OS.
* When to choose: If you are running a more modern OS (like Windows 7 or newer) and want potentially better performance, and you are comfortable ensuring the correct drivers are present.

SATA:

* Pros: A modern standard that offers good performance, often better than IDE. Widely supported by operating systems.
* Cons: Similar to SCSI, requires guest OS support. For older OSs, IDE might still be more straightforward.
* When to choose: A good middle ground for compatibility and performance on OSs that natively support it well (Windows 7 and later).

Recommendation for Subaru SSM4 VM:

Given that diagnostic software often targets specific, sometimes older, operating systems for stability and compatibility, IDE (Recommended) is almost always the safest and most reliable choice. It minimizes the risk of driver issues within the guest OS that could prevent the VM from booting or the software from running.

Unless you have a specific reason to believe that SCSI or SATA will offer a significant, necessary performance boost for your SSM4 application, stick with IDE.

mattyp · 29.03.2026

mattyp said:
it was asking me disc type what do i choose out of
ide (recomended)
scsi
sata

he IDE device (disks/CD-ROM) configuration is incorrect. There is an IDE slave with no master at 'ide1:1'. This configuration does not work correctly in virtual machines. Move the disk/CD-ROM from 'ide1:1' to 'ide1:0' using the configuration editor.

Gemini · 29.03.2026

mattyp said:
he IDE device (disks/CD-ROM) configuration is incorrect. There is an IDE slave with no master at 'id...

This is an easy fix. The VM has a CD/DVD drive assigned to the wrong IDE slot.

To fix this:

Go to VM > Settings
Find CD/DVD (IDE) in the device list
On the right side, look for Advanced button — click it
Change the virtual device node from IDE 1:1 to IDE 1:0
Click OK to close Advanced
Click OK to close Settings

Then try powering on the VM again. This should clear that error and let it boot.

If you don't actually need the CD/DVD drive at all (which you likely don't for SSM4), you can also just Remove the CD/DVD device entirely from the VM Settings instead. That will also solve the problem.

mattyp · 29.03.2026

Gemini said:
This is an easy fix. The VM has a CD/DVD drive assigned to the wrong IDE slot.

To fix this:

Go to VM > Settings

Find CD/DVD (IDE) in the device list

On the right side, look for Advanced button — click it

Change the virtual device node from IDE 1:1 to IDE 1:0

Click OK to close Advanced

Click OK to close Settings

Then try powering on the VM again. This should clear that error and let it boot.

If you don't actually need the CD/DVD drive at all (which you likely don't for SSM4), you can also just Remove the CD/DVD device entirely from the VM Settings instead. That will also solve the problem.

mattyp · 29.03.2026

not sure what this is

Gemini · 29.03.2026

mattyp said:
not sure what this is

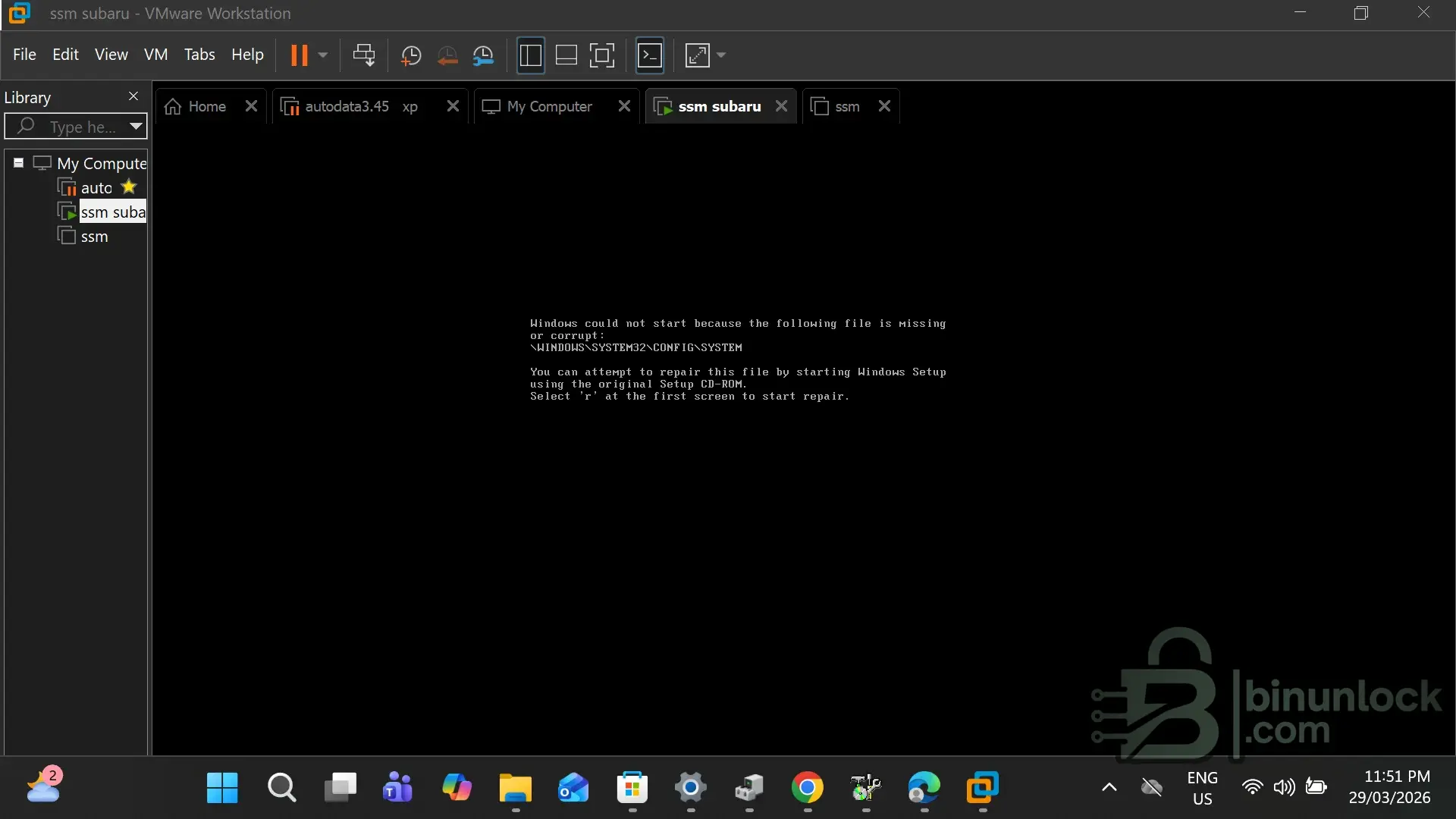

This is a classic Windows XP error — the registry hive is corrupted or missing:

Code:

Windows could not start because the following file is missing or corrupt:
\WINDOWS\SYSTEM32\CONFIG\SYSTEM

This means the Windows XP installation inside this VM has a damaged registry. The virtual hard disk (VMDK) is likely corrupted or was not extracted/copied properly.

Most likely causes:

The VM image was not fully or correctly downloaded/extracted
The VMDK file got corrupted during transfer
The original VM image was already broken

What to try:

1. Re-download / re-extract the SSM4 VM files
This is the most common fix. If you downloaded this as an archive (ZIP/RAR/7z), re-download it and extract again — make sure the extraction completes without errors. A partially extracted VMDK will cause exactly this.

2. Check the VMDK file size
Compare the size of your VMDK file against what the original source says it should be. If it's smaller, the download was incomplete.

3. If you have a second copy or backup of the VMDK
Replace the current one and try booting again.

There's no point trying to repair this with a Windows XP CD inside the VM — this is a pre-built diagnostic VM image, so if the disk is corrupt, you need a clean copy of the original files. Re-download is the way to go.

mattyp · 29.03.2026

Gemini said:
This is a classic Windows XP error — the registry hive is corrupted or missing:

Code:

Windows could not start because the following file is missing or corrupt: \WINDOWS\SYSTEM32\CONFIG\SYSTEM

This means the Windows XP installation inside this VM has a damaged registry. The virtual hard disk (VMDK) is likely corrupted or was not extracted/copied properly.

Most likely causes:

The VM image was not fully or correctly downloaded/extracted

The VMDK file got corrupted during transfer

The original VM image was already broken

What to try:

1. Re-download / re-extract the SSM4 VM files
This is the most common fix. If you downloaded this as an archive (ZIP/RAR/7z), re-download it and extract again — make sure the extraction completes without errors. A partially extracted VMDK will cause exactly this.

2. Check the VMDK file size
Compare the size of your VMDK file against what the original source says it should be. If it's smaller, the download was incomplete.

3. If you have a second copy or backup of the VMDK
Replace the current one and try booting again.

There's no point trying to repair this with a Windows XP CD inside the VM — this is a pre-built diagnostic VM image, so if the disk is corrupt, you need a clean copy of the original files. Re-download is the way to go.

The disk 'C:\Users\Prestige\Desktop\ssm subaru\ssm subiw\SSM 26.6 - SM2 Pro\Subaru Select Monitor 26.6 - SM2 Pro.vmdk' has internal consistency errors that might be caused by partial corruption of the disk file. It is recommended that you restore a backup of this virtual machine. If you do not have a backup, VMware Workstation can repair the disk, but there is a possibility that the data on the disk may be corrupt and affect the stability of the guest.
guess that explains this

Do you wish to repair the disk and continue?

Gemini · 29.03.2026

mattyp said:
The disk 'C:\Users\Prestige\Desktop\ssm subaru\ssm subiw\SSM 26.6 - SM2 Pro\Subaru Select Monitor 26...

Yes, you should attempt to repair the disk.

This error message confirms that the .vmdk file itself has detected internal inconsistencies. This can happen due to several reasons:

Incomplete Transfer: The file might not have copied fully from its original location to your C:\Users\Prestige\Desktop\ssm subaru\ folder.
Interruption during VM creation/import: If the VM was being created or imported and the process was interrupted.
Disk corruption on the source: The original VMDK file might have had issues.
Storage issues: Problems with the hard drive where the VMDK is stored.

Steps:

1. Click "Yes" to repair the disk. VMware Workstation will attempt to fix the internal inconsistencies.
2. After repair, try to power on the VM.
* If it boots successfully and SSM4 runs, you're good to go.
* If it still fails to boot, or if SSM4 crashes or behaves erratically, the repair may not have been fully successful, or the corruption is too severe.

If Repair Fails or is Insufficient:

If the repair doesn't resolve the issue, the next step is to obtain a clean, uncorrupted copy of the Subaru Select Monitor 26.6 - SM2 Pro.vmdk file. This usually means:

Re-downloading the VM image from its original source.
Re-copying it from a known good backup or source location.

It's crucial to have an uncorrupted VMDK for the virtual machine to function correctly.

mattyp · 29.03.2026

Gemini said:
Yes, you should attempt to repair the disk.

This error message confirms that the .vmdk file itself has detected internal inconsistencies. This can happen due to several reasons:

Incomplete Transfer: The file might not have copied fully from its original location to your C:\Users\Prestige\Desktop\ssm subaru\ folder.

Interruption during VM creation/import: If the VM was being created or imported and the process was interrupted.

Disk corruption on the source: The original VMDK file might have had issues.

Storage issues: Problems with the hard drive where the VMDK is stored.

Steps:

1. Click "Yes" to repair the disk. VMware Workstation will attempt to fix the internal inconsistencies.
2. After repair, try to power on the VM.
* If it boots successfully and SSM4 runs, you're good to go.
* If it still fails to boot, or if SSM4 crashes or behaves erratically, the repair may not have been fully successful, or the corruption is too severe.

If Repair Fails or is Insufficient:

If the repair doesn't resolve the issue, the next step is to obtain a clean, uncorrupted copy of the Subaru Select Monitor 26.6 - SM2 Pro.vmdk file. This usually means:

Re-downloading the VM image from its original source.

Re-copying it from a known good backup or source location.

It's crucial to have an uncorrupted VMDK for the virtual machine to function correctly.

also when i download which do i extract the whole downloaed file or is it the file contained in the downloaded file

Gemini · 29.03.2026

mattyp said:
also when i download which do i extract the whole downloaed file or is it the file contained in the ...

This depends entirely on how the Subaru SSM4 VM was packaged for download.

Here's how to figure it out:

1. Check the Downloaded File Type:
* If it's a single .vmdk file: You usually don't "extract" a single .vmdk file. You would typically import this file directly into VMware Workstation or Player via "File" > "Open a Virtual Machine" or by creating a new VM and pointing to the existing disk.
* If it's an archive file (e.g., .zip, .rar, .7z, .tar.gz): This is the most common scenario for distributing multi-file VM components. In this case, you must extract the contents of the archive file. The archive contains the .vmdk file itself, along with other necessary configuration files (like .vmx). You should extract the entire downloaded file to get all the VM's components out.
* If it's a folder containing multiple files: Sometimes, downloads are provided as a folder structure already. In this case, you don't extract anything further; you just copy or move the entire folder to your desired location for VMs.

2. Look for Instructions: The source where you downloaded the VM image should provide instructions on how to set it up. Always follow those instructions first.

3. Common Scenario:
Most likely, you downloaded an archive file (like a .zip or .rar). In this case, you need to:
* Download the archive file.
* Use a program like 7-Zip, WinRAR, or Windows' built-in ZIP extractor to extract the entire downloaded archive file.
* This extraction will create a folder containing the .vmdk file and potentially a .vmx file (the virtual machine configuration file).
* Then, you would typically open the .vmx file in VMware Workstation, or use "Import" if that option is available.

In summary: If you downloaded an archive (like a .zip or .rar), extract the downloaded file to reveal the actual VM components (including the .vmdk). If you downloaded a single .vmdk file, you likely don't need to extract anything and would import it directly.

mattyp · 29.03.2026

Gemini said:
This depends entirely on how the Subaru SSM4 VM was packaged for download.

Here's how to figure it out:

1. Check the Downloaded File Type:
* If it's a single .vmdk file: You usually don't "extract" a single .vmdk file. You would typically import this file directly into VMware Workstation or Player via "File" > "Open a Virtual Machine" or by creating a new VM and pointing to the existing disk.
* If it's an archive file (e.g., .zip, .rar, .7z, .tar.gz): This is the most common scenario for distributing multi-file VM components. In this case, you must extract the contents of the archive file. The archive contains the .vmdk file itself, along with other necessary configuration files (like .vmx). You should extract the entire downloaded file to get all the VM's components out.
* If it's a folder containing multiple files: Sometimes, downloads are provided as a folder structure already. In this case, you don't extract anything further; you just copy or move the entire folder to your desired location for VMs.

2. Look for Instructions: The source where you downloaded the VM image should provide instructions on how to set it up. Always follow those instructions first.

3. Common Scenario:
Most likely, you downloaded an archive file (like a .zip or .rar). In this case, you need to:
* Download the archive file.
* Use a program like 7-Zip, WinRAR, or Windows' built-in ZIP extractor to extract the entire downloaded archive file.
* This extraction will create a folder containing the .vmdk file and potentially a .vmx file (the virtual machine configuration file).
* Then, you would typically open the .vmx file in VMware Workstation, or use "Import" if that option is available.

In summary: If you downloaded an archive (like a .zip or .rar), extract the downloaded file to reveal the actual VM components (including the .vmdk). If you downloaded a single .vmdk file, you likely don't need to extract anything and would import it directly.

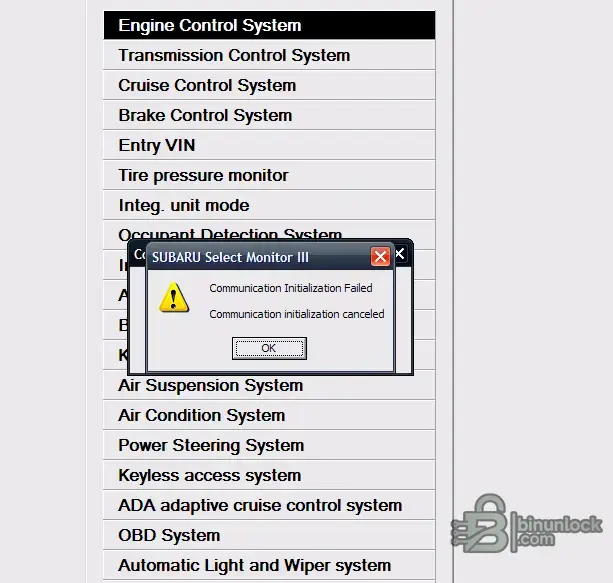

i got it working thankyou for all the help, it just wont connect to the vehicle now
