ECU Modules Repair Helper is a large illustrated offline reference for engine-control electronics. The searchable help system covers multimeter basics, electronic-injection principles, main ECU components and controller-specific pages that connect common faults with board locations, power stages, memories, regulators, protection devices and output drivers.
This resource is documentation rather than an automated diagnostic program. It is useful at the bench after normal wiring, power, ground and communication checks have narrowed the fault to the control module.
This resource is documentation rather than an automated diagnostic program. It is useful at the bench after normal wiring, power, ground and communication checks have narrowed the fault to the control module.
What this resource is for#
Use the reference to identify board sections, locate components and plan measurements on supported legacy ECM families. The diagrams can help an electronics technician understand which circuit controls injectors, ignition coils, idle actuators or supply regulation before replacing parts.Confirmed functions#
- Searchable contents, index and favorites in the Windows HTML Help viewer
- Introductions to multimeters, injection systems and common electronic components
- Illustrated ECU board layouts with numbered component callouts
- Controller pages covering known symptoms, defects and repair considerations
- Printable offline topics for workshop reference
Supported controllers, files and vehicles#
- Magneti Marelli 4SF, 4AFB, G7/G7.1, IAW 1ABG, 5NF, 6LP and related Fiat/Ford/VW families
- Bosch Motronic, EDC and ME references including Bosch 3.8.3, LE-Jetronic, MP7.2 and ME7.4.4 examples
- GM Multec, HSFI and Motronic variants
- Ford EEC IV/EEC V and Marelli applications
- Siemens Sirius and selected Mercedes, Fiat, GM and VAG controller pages
- Exact coverage is determined by the table of contents and board revision shown in each article
Package contents#
- Single compiled CHM knowledge base
- Illustrated component-location pages
- Fault and repair articles organized by ECU family

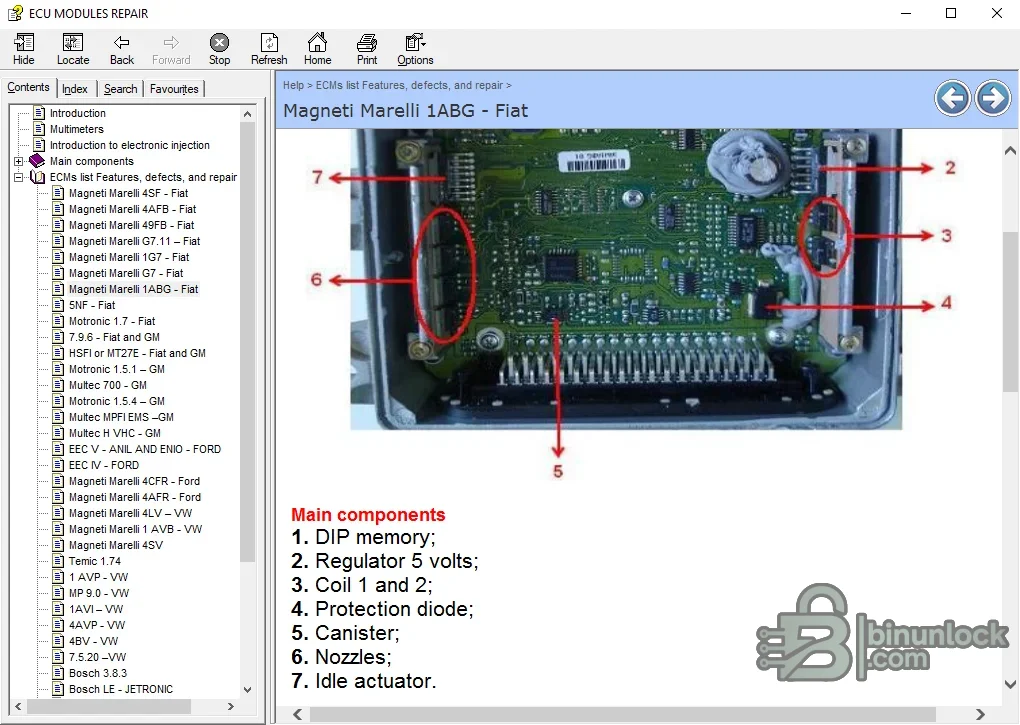

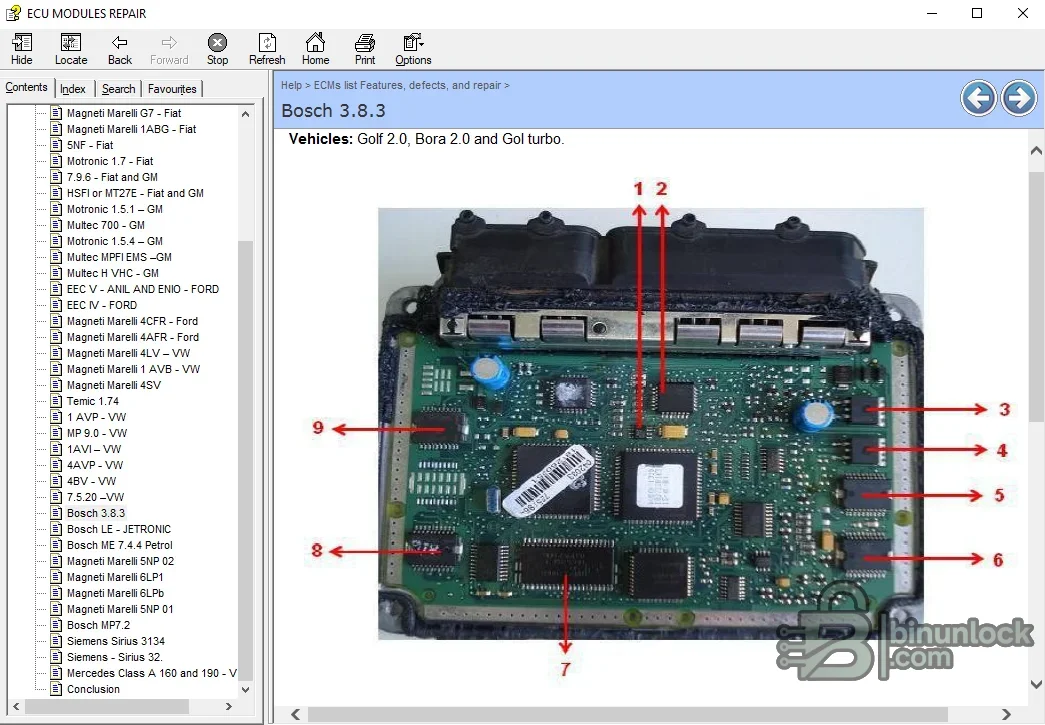

- Main and preview screenshots showing Marelli and Bosch board documentation
System and interface requirements#
- Windows PC with Microsoft HTML Help viewer available
- Electronics bench with current-limited supply, multimeter and appropriate oscilloscope
- ESD-safe tools and module pinout/wiring information
- Experience with high-density automotive circuit boards and safe soldering practice
- No vehicle interface is required to read the documentation
Recommended workshop workflow#
- Confirm external power, grounds, network and actuator wiring before opening an ECU
- Identify the exact controller and board revision from labels and PCB markings
- Use the matching reference page to plan non-destructive measurements
- Compare suspect signals with a known-good unit or service data
- Document every replaced component and bench-test the module with current limiting before vehicle installation
Compatibility limits and responsible use#
- A picture for a similar ECU is not a substitute for tracing the actual board
- Some modules contain conformal coating, multilayer tracks and security devices not visible in a photograph
- Replacing a burnt driver without repairing the external short can destroy it again
- The reference does not provide firmware, immobilizer coding or guaranteed repair outcomes
Troubleshooting#
- CHM opens blank: copy it to a local trusted folder and use Windows file Properties to unblock it if appropriate
- Images or navigation missing: verify the file hash and open with the Windows HTML Help viewer
- Board differs from the article: stop and identify the exact hardware revision
- Repeated component failure: test connected loads and harness insulation before reinstalling the ECU
