BMW 2AB2 / 2AB6 EGS Workspace - ISN Reset, EEPROM, DTC & ENET Tool

BMW 2AB2 / 2AB6 EGS Workspace - ISN Reset, EEPROM, DTC & ENET Tool

2AB2 / 2AB6 EGS Workspace is a Windows service utility for BMW EGS workflows over ENET / ZGW.

The application combines BMW gateway and EGS identification, local EEPROM-assisted VIN / ISN analysis, normal and shadow DTC diagnostics, ECU reset and a guarded 2AB2 / 2AB6 EGS reset workflow in one workspace.

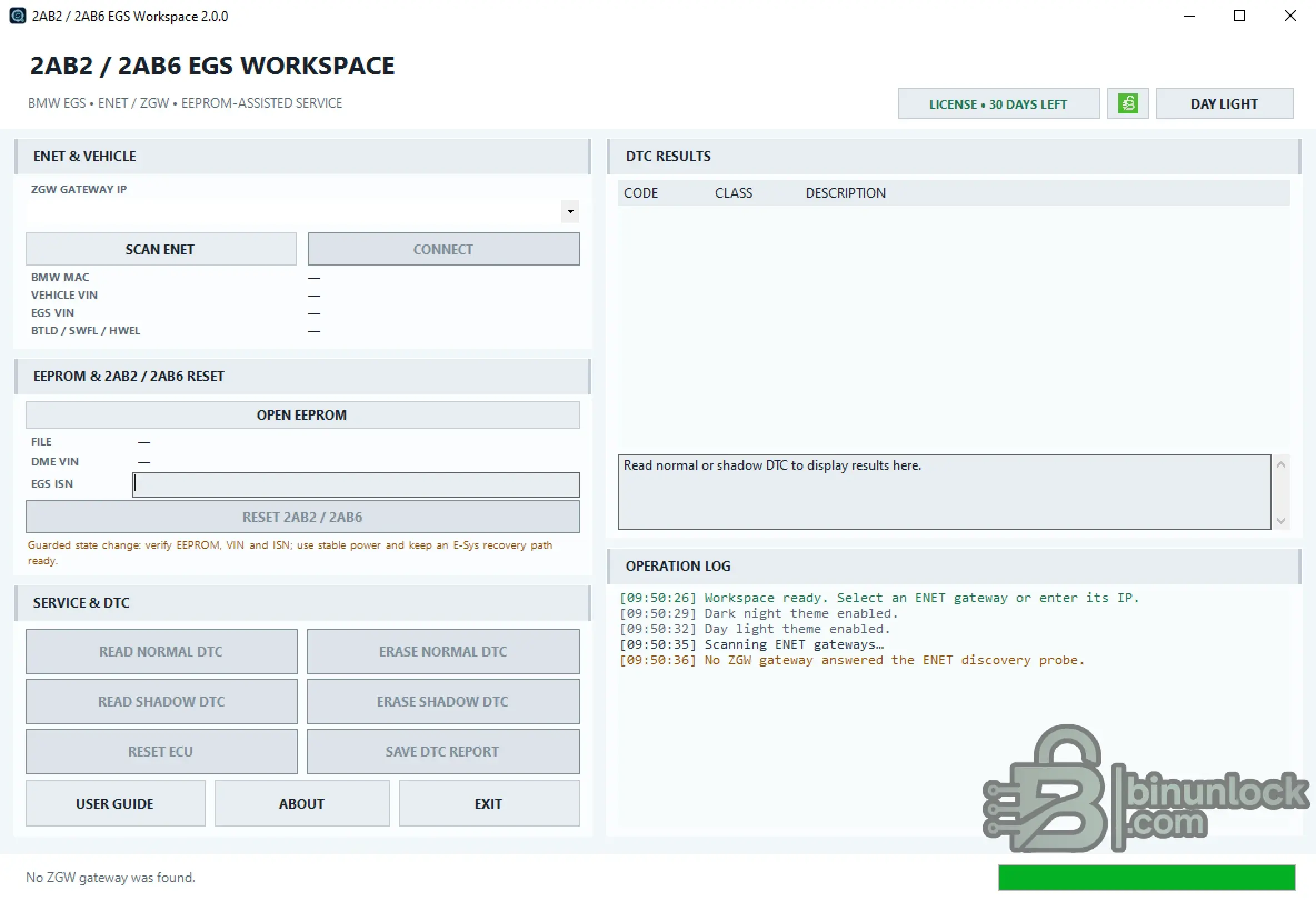

BMW 2AB2 2AB6 EGS Workspace showing ENET ZGW connection, EEPROM ISN analysis, DTC diagnostics and guarded EGS reset functions.

Key Features

BMW EGS service workspace
BMW ENET / ZGW network discovery
Manual ZGW IPv4 connection
BMW MAC identification
Vehicle VIN reading
EGS VIN identification
BTLD / SWFL / HWEL information
Local EEPROM VIN / ISN analysis
16-byte EGS ISN extraction
Guarded 2AB2 / 2AB6 reset
Normal EGS DTC reading
Shadow EGS DTC reading
Normal DTC erase
Shadow DTC erase
EGS ECU reset
Decoded DTC results with code, class and description
Save DTC report to TXT
Chronological operation log
Dark Night / Day Light themes
HWID-based offline licensing

ENET / ZGW & EGS Identification

The workspace can automatically scan the local BMW ENET network or connect to a separately verified ZGW IPv4 address.

After successful identification, the application can display:

ZGW Gateway IP
BMW MAC
Vehicle VIN
EGS VIN
BTLD / SWFL / HWEL software and hardware records

The vehicle VIN, EGS VIN and software identity should always be verified before any state-changing operation.

EEPROM & EGS ISN

EEPROM analysis is performed locally on the Windows computer and does not upload the selected binary.

Supported EEPROM size:

Code:

128 KiB to 192 KiB

The local parser can search the supported DME / EGS EEPROM image for:

Recognized BMW VIN
16-byte EGS ISN
32-character hexadecimal ISN display

Recognized VIN prefixes include:

Code:

WBA
LBV
5UX

OPEN EEPROM is read-only and does not modify the selected binary.

Do not pad, crop, concatenate or manually alter an EEPROM file to bypass the supported size or parsing checks.

2AB2 / 2AB6 EGS Reset

The dedicated reset workflow uses the 16-byte ISN derived from the loaded EEPROM together with the selected BMW ZGW / EGS connection.

The reset action is intentionally guarded by two operator confirmations.

Before using it, verify:

Correct vehicle and EGS
Correct ZGW address
Vehicle VIN and EGS VIN
BTLD / SWFL / HWEL identity
Correct EEPROM source
DME VIN
32-character EGS ISN
Stable regulated programming power
Reliable wired ENET connection
Prepared E-Sys BTLD / SWFL recovery path

Important:

A reset completion message is not a substitute for post-operation verification.

After a 2AB2 / 2AB6 reset, re-identify the EGS and complete the required BTLD / SWFL verification or recovery workflow before relying on the result.

EGS Diagnostics

Normal and shadow diagnostic memories are handled separately.

Available service functions:

READ NORMAL DTC
READ SHADOW DTC
ERASE NORMAL DTC
ERASE SHADOW DTC
RESET ECU
SAVE DTC REPORT

Decoded DTC results are displayed with:

Code
Class
Description
Complete selected DTC text

Save the required Before report before erasing diagnostic memory.

Local Vehicle Workflow

Vehicle communication is performed locally over the BMW ENET network.

The workflow does not depend on remote ECU processing or uploading EEPROM / vehicle data to a backend.

Internet access is outside the vehicle workflow and is used only for license acquisition or opening the BinUnlock website.

Validation Status

Protocol frames, parsers and error paths have passed deterministic and isolated UDP / TCP testing.

A controlled comparison on physical EGS bench hardware is still pending.

Until that validation is completed, state-changing functions should be used only by qualified technicians in a controlled authorized service workflow.

System Requirements

Windows 7 SP1 / 8.1 / 10 / 11
Microsoft .NET Framework 4.8
1024 × 768 or greater display
BMW ENET cable
Active IPv4 Ethernet adapter
Stable workshop programming supply
E-Sys / ISTA and competing diagnostic sessions closed during operation

Documentation

The English User Guide is included with the resource:

Code:

User_Guide_EN.pdf

The manual contains the complete connection, EEPROM, diagnostics, reset, safety, troubleshooting and post-operation workflow.

File Integrity

File: 2AB2_2AB6_EGS_Workspace_2.0.0.exe

Version: 2.0.0

SHA-256:

Code:

7a2fb733063c72857911562c7b606b4aba9fd8e742a1009a82d66c81d4c1555e

VirusTotal:
View VirusTotal report

The VirusTotal report above corresponds to the executable identified by the exact SHA-256 hash shown above.

Always compare the downloaded executable with this SHA-256 before running the application.

Important

2AB2 / 2AB6 EGS Workspace is intended for authorized professional BMW transmission-control service work.

State-changing operations require the correct vehicle, verified EGS identity, known EEPROM source, stable power, reliable wired ENET and a prepared recovery path.

Do not use a VIN, ISN, EEPROM or ZGW address from an unverified source, and do not blindly repeat a reset after an ambiguous or failed result.

BMW 2AB2 / 2AB6 EGS Workspace - ISN Reset, EEPROM, DTC & ENET Tool 2.0.0
