DDE MAP Sensor Studio is an offline Windows calibration utility for detecting, comparing and changing the manifold absolute pressure (MAP) sensor linearization inside supported BMW DDE binary files.

It is designed for BMW M57, M57N, M57N2 and M57TOP applications using supported DDE4 / DDE5 / DDE6 control units.

The software allows a DDE calibration to be adapted for a different physically installed MAP sensor, restored to an earlier sensor profile or checked to determine which MAP linearization is already present in a BIN.

Checksum handling, ORI / TUN verification, sensor part-number information, pinout references and technical report export are included as supporting service functions.

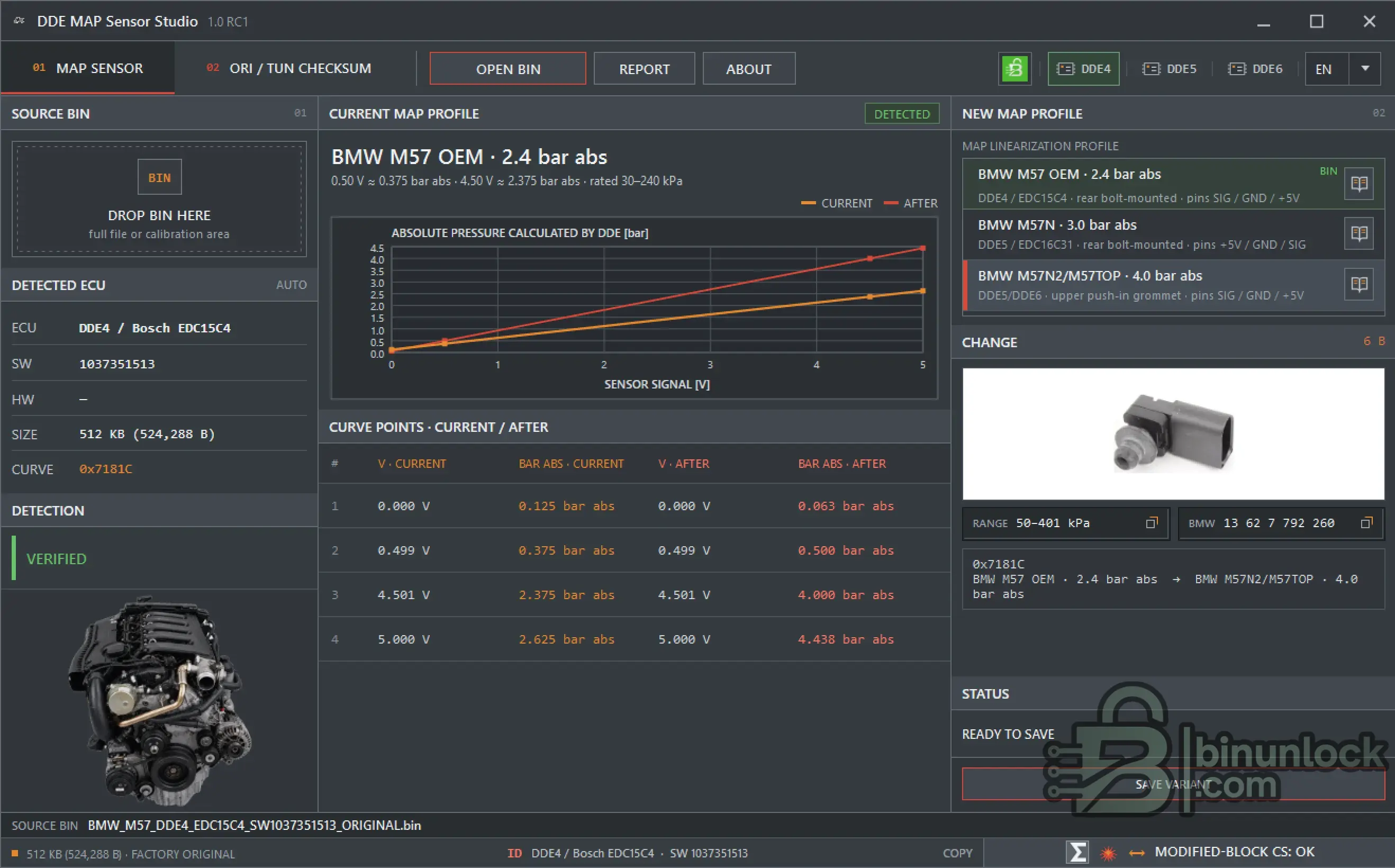

BMW DDE MAP Sensor Studio showing DDE4 Bosch EDC15C4 M57 MAP sensor linearization conversion with current and after pressure curves.

Key Features

Automatic BMW DDE / ECU identification
Automatic SW and available HW detection
Automatic MAP linearization discovery
No manual curve offset required
BMW M57 OEM MAP sensor profile
BMW M57N MAP sensor profile
BMW M57N2 / M57TOP MAP sensor profile
Current vs After pressure graph
Four-point MAP linearization display
Absolute-pressure values shown directly in bar
BMW sensor part-number reference
Changes only the required MAP-curve bytes
Native Bosch checksum recalculation where supported
Post-save BIN and checksum verification
ORI / TUN checksum comparison workspace
CAL / CS / Outside Domain difference analysis
MAP sensor electrical pinout reference
Known BMW ECU connector / cavity routing
Technical report export
35 interface languages
Automatic Windows language detection
Manual language selector
Completely offline operation

Supported BMW DDE Families

DDE4 / Bosch EDC15C4

BMW M57
Typical 512 KiB full BIN
MAP context: anwLDF_KL
Native Bosch CR2 BMW checksum
Multiple independent factory M57 files verified

DDE5 / Bosch EDC16C31

BMW M57N
Typical 2.5d / 3.0d applications
MAP context: BPSCD_pLin_CUR
Early and later BMW MAP layouts supported when positively identified
Native descriptor-based Bosch ADD32 checksum

DDE6 / Bosch EDC16C35

BMW M57N2
BMW M57TOP
Typical 2.5d / 3.0d and compatible 535d layouts
MAP context: BPSCD_pLin_CUR
Native descriptor-based Bosch ADD32 checksum

Not supported for MAP writing:

Code:

M47 / M47N / M47N2
EDC17
MD1
Unknown or ambiguous ECU / SW

Even if individual identifiers are visible in a BIN, export remains blocked unless the supported DDE / SW structure and one unique MAP curve are positively identified.

Supported MAP Sensor Profiles

All pressures displayed by the application are absolute pressure - bar abs.

Approximate boost relative to atmosphere is:

Code:

Boost = Absolute Pressure - Current Atmospheric Pressure

BMW M57 OEM MAP Sensor

Code:

BMW: 13 62 2 246 977
Rated range: 30-240 kPa

0.50 V -> approx. 0.375 bar abs
4.50 V -> approx. 2.375 bar abs
5.00 V -> approx. 2.625 bar abs

Raw curve:
125, 375, 2375, 2625 hPa

Typical application:

Code:

DDE4 / EDC15C4
BMW M57

BMW M57N MAP Sensor

Code:

BMW: 13 61 7 787 142
Rated range: 35-314 kPa

0.50 V -> 0.500 bar abs
4.50 V -> 3.000 bar abs
5.00 V -> approx. 3.313 bar abs

Raw curve:
188, 500, 3000, 3313 hPa

Typical application:

Code:

DDE5 / EDC16C31
BMW M57N

BMW M57N2 / M57TOP MAP Sensor

Code:

BMW: 13 62 7 792 260
Rated range: 50-401 kPa

0.50 V -> 0.500 bar abs
4.50 V -> 4.000 bar abs
5.00 V -> approx. 4.438 bar abs

Raw curve:
63, 500, 4000, 4438 hPa

Typical application:

Code:

DDE5 / DDE6
BMW M57N2 / M57TOP

The currently detected profile is highlighted in the interface.

After a supported BIN has been positively analyzed, the required target profile can be selected according to the physical MAP sensor actually installed on the engine.

How the MAP Curve Is Identified

DDE4

The BIN may contain several similar four-point pressure curves, so simply searching for four numeric values is not considered sufficient.

The real MAP calibration is identified from its verified position and surrounding calibration context.

DDE5 / DDE6

The application verifies the relevant MAP structure using:

BPSCD_pLin_CUR context
Voltage-axis structure
Diagnostic limits
Post-curve signature
Applicable shifted-layout translation

If more than one possible curve is detected or the structure cannot be confirmed, modification is blocked.

What Changes Inside the BIN

For a supported file, DDE MAP Sensor Studio:

Reads the BIN without modifying the original
Records the source SHA-256
Identifies DDE / ECU, SW, available HW and file size
Finds the MAP linearization and current sensor profile

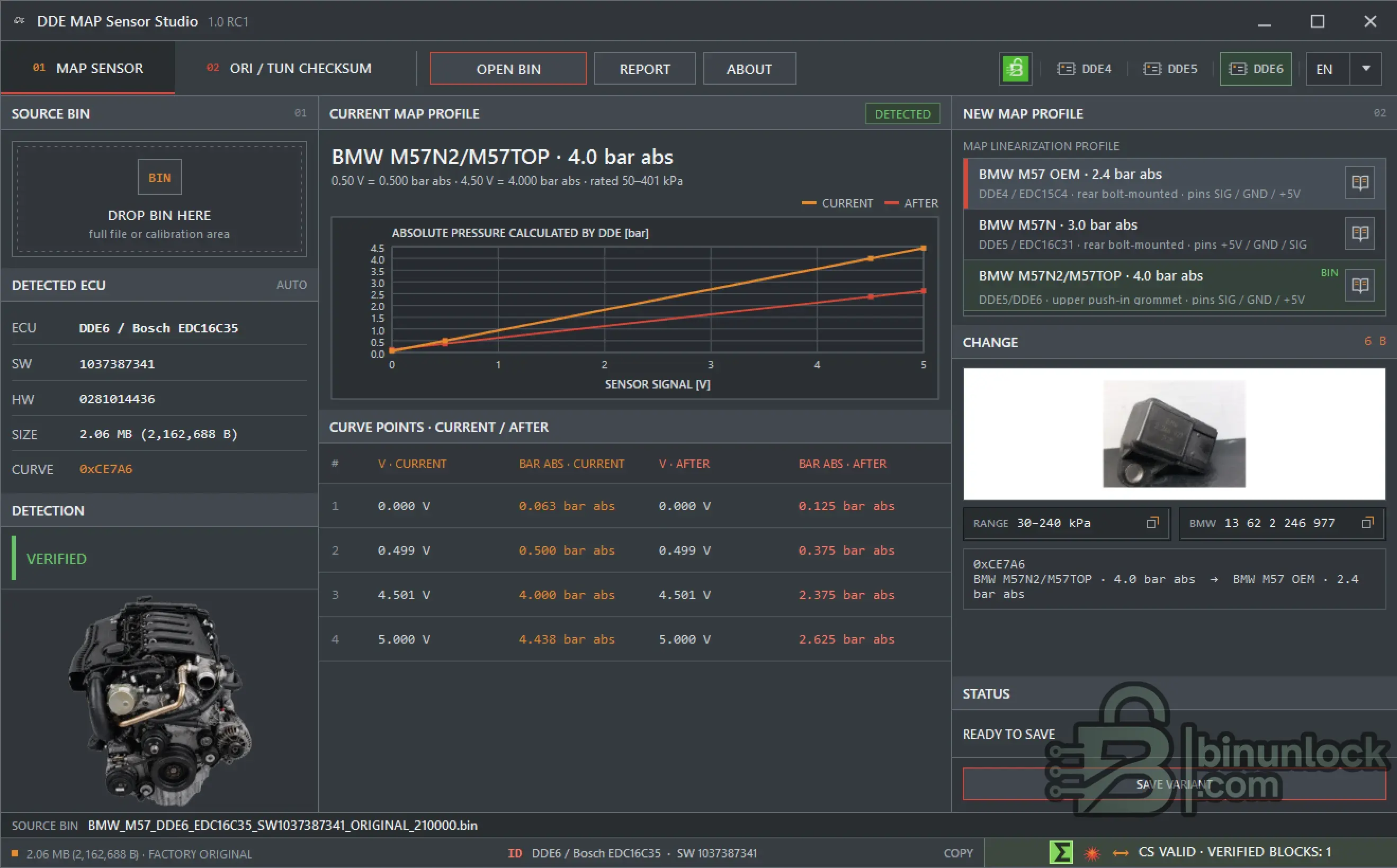

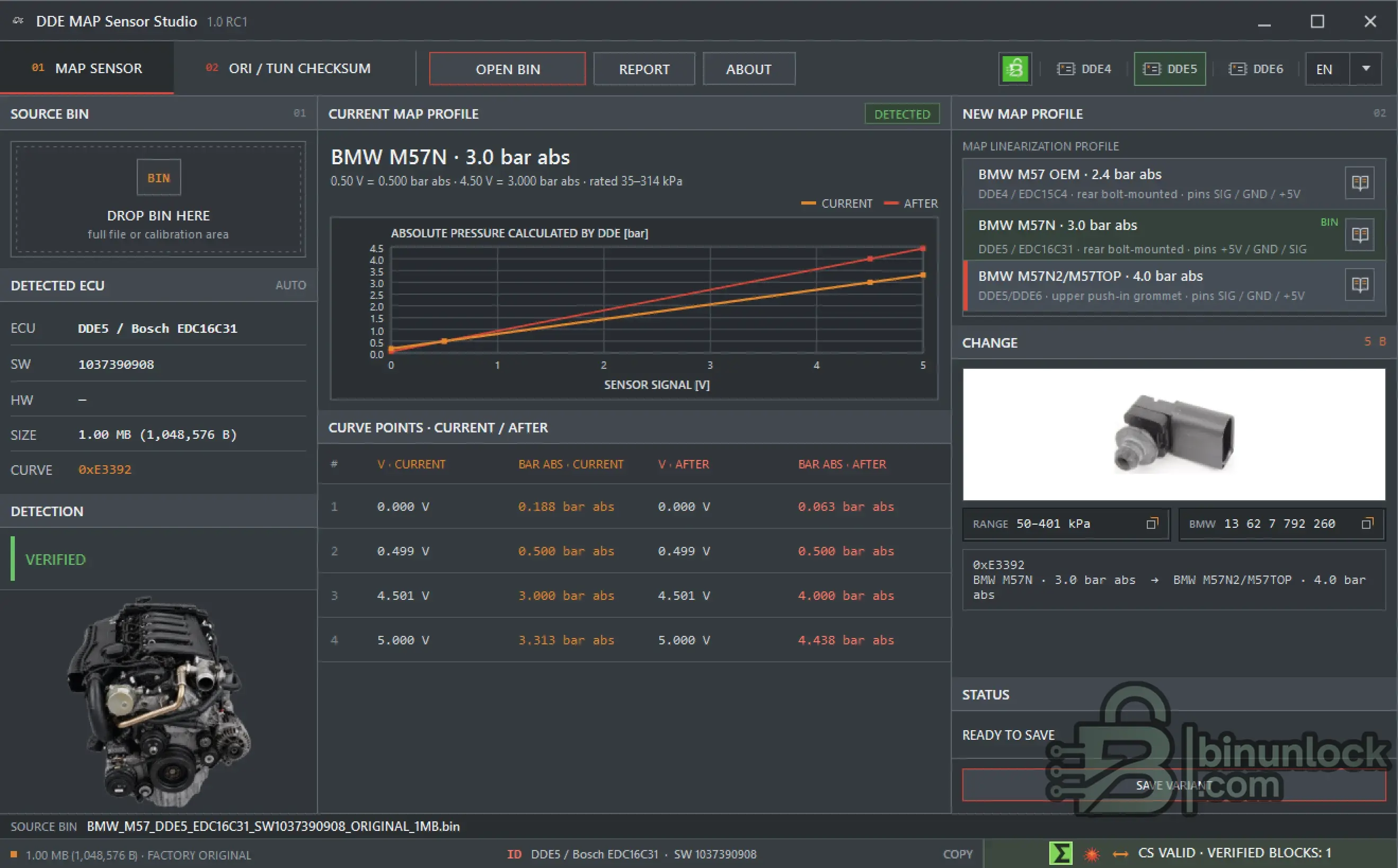

Displays CURRENT / AFTER curves and all four pressure points
Builds an exact byte-change plan
Restricts changes to MAP linearization and required checksum storage
Recalculates supported Bosch checksum blocks
Analyzes the completed file again
Verifies DDE, SW, MAP profile and checksum state
Publishes the result as a separate BIN only after verification

The original source BIN is never overwritten.

Normal verified result:

Code:

PATCH + All_CS_ok + VERIFY

If the DDE / SW and MAP curve are positively identified but native checksum correction is unavailable for that exact layout, the software clearly reports:

Code:

PATCH + VERIFY - CS BY FLASHER
CS_NOT_CORRECTED

Such a file must only be programmed with a flashing tool that correctly recalculates the checksum for the specific ECU.

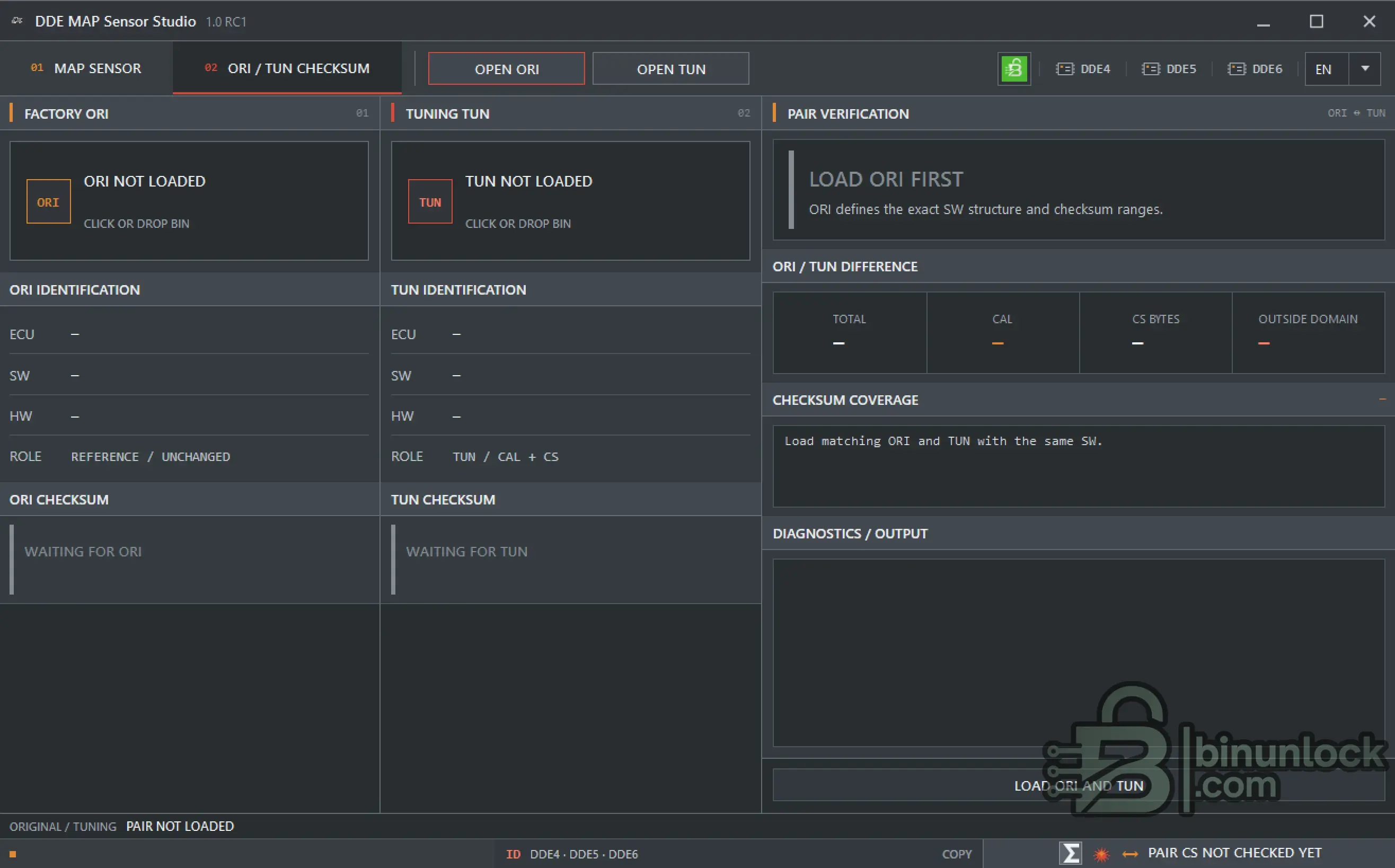

ORI / TUN Checksum

The second workspace accepts a factory ORI and its corresponding TUN.

It provides:

DDE / SW / HW pair verification
ORI checksum verification
TUN checksum verification
TOTAL difference count
CAL difference count
Checksum-storage byte detection
Outside Domain detection
Native checksum recalculation where supported
Separate verified output

Differences are divided into:

Code:

TOTAL
CAL
CS
OUTSIDE DOMAIN

Saving is blocked when an unknown modification exists outside the supported checksum domain.

This workspace does not evaluate tuning quality or transfer calibration maps between different software versions.

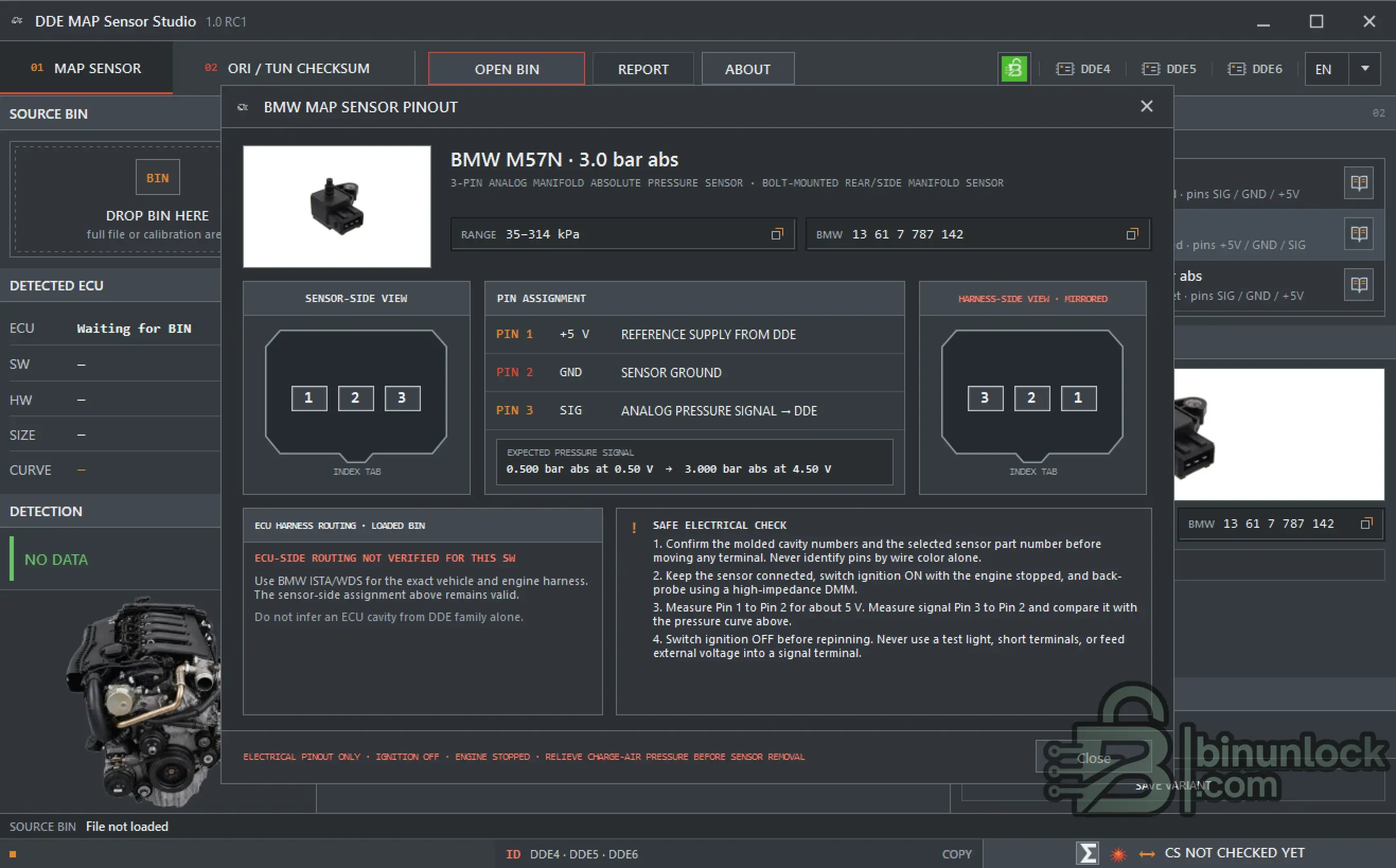

MAP Sensor Pinout

M57 OEM and M57N2 / M57TOP sensors

Code:

Pin 1 - SIG
Pin 2 - GND
Pin 3 - +5 V

M57N sensor

Code:

Pin 1 - +5 V
Pin 2 - GND
Pin 3 - SIG

Important: On the M57N sensor, the outer +5 V and signal pins are reversed compared with the M57 OEM and M57N2 / M57TOP sensors.

Never repin a connector using wire color alone. Verify molded cavity numbers and confirm the electrical signals with an appropriate DMM.

For catalogued M57 software, known ECU-side routing can also be displayed.

DDE4 / EDC15C4 - X2413, 52-pin

Code:

+5 V - cavity 14
SIG  - cavity 15
GND  - cavity 16

DDE5 / DDE6 - X2411, 96-pin

Code:

+5 V - cavity 32
SIG  - cavity 54
GND  - cavity 80

For an unknown SW, exact ECU cavities are intentionally not guessed.

Use ISTA / WDS or the correct BMW wiring documentation for the exact vehicle.

Recommended Workflow

Keep an untouched backup of the original ECU read
Load a raw uncompressed BIN
Verify detected DDE, SW, file size, curve location and current MAP profile
Confirm the exact BMW part number of the physical sensor
Verify its installation and pin assignment
Select the required MAP profile
Review CURRENT / AFTER pressure values
Save the result under a new descriptive filename
Confirm All_CS_ok or the explicit CS_NOT_CORRECTED state
Program the file using the correct method for the ECU
After startup, read DTC and compare actual manifold pressure with atmospheric pressure while the engine is stopped

Interface Languages

DDE MAP Sensor Studio supports 35 interface languages:

English (EN), العربية (AR), Български (BG), Čeština (CS), Dansk (DA), Deutsch (DE), Ελληνικά (EL), Español (ES), Eesti (ET), Suomi (FI), Français (FR), Hrvatski (HR), Magyar (HU), Bahasa Indonesia (ID), Italiano (IT), 日本語 (JA), 한국어 (KO), Lietuvių (LT), Latviešu (LV), Norsk Bokmål (NO), Nederlands (NL), Polski (PL), Português Europeu (PT), Română (RO), Русский (RU), Slovenčina (SK), Slovenščina (SL), Srpski — Latinica (SR), Svenska (SV), ไทย (TH), Türkçe (TR), Українська (UK), 简体中文 (ZH-CN), 繁體中文 (ZH-TW), ქართული (KA).

The interface can automatically follow the Windows system language or be changed manually using the built-in language selector.

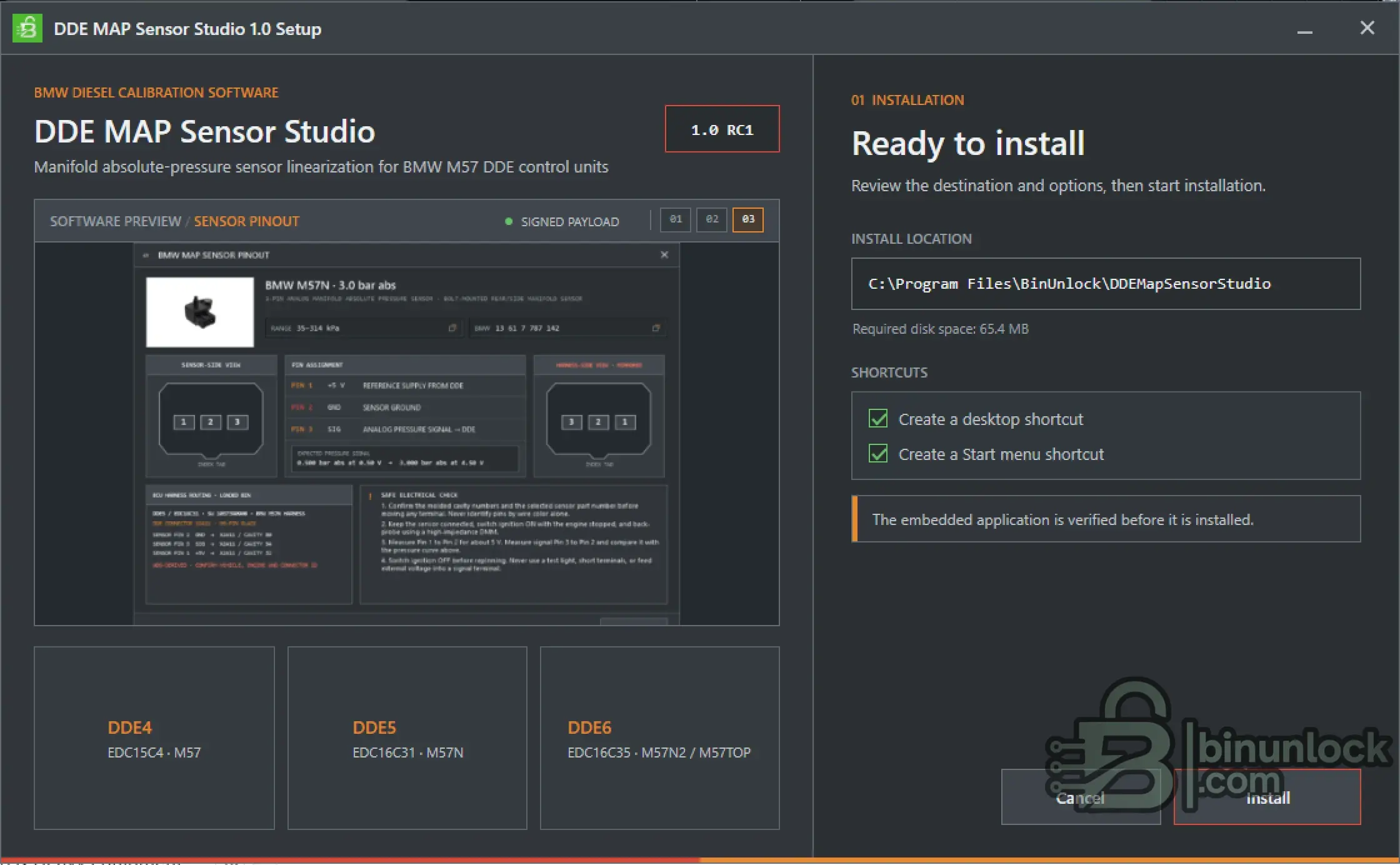

System Requirements

Windows 10 / Windows 11 x64
Self-contained application
No separate .NET installation required
Automatic Windows language detection
Manual ISO language selector
Technical report export

File Integrity

Release: DDE MAP Sensor Studio 1.0 RC1

SHA-256:

Code:

c68198dfa03eb96337f37098e35209b1535611b0c5523f9cbbde6c52b760272d

VirusTotal:
View VirusTotal report

The VirusTotal report above corresponds to the executable identified by the exact SHA-256 hash shown above.

Important

The selected MAP profile must match the physical MAP sensor actually installed on the vehicle.

Changing the sensor linearization does not itself increase engine power or requested boost pressure.

DDE MAP Sensor Studio does not modify boost targets, fuel quantity, SOI, torque limiters, turbocharger control, DPF / EGR or other tuning calibrations.

Incorrect MAP linearization or wiring can cause incorrect pressure readings, limp mode, starting problems or unsafe boost control.

Always preserve the original BIN, verify the sensor part number and wiring, use the correct flashing method and validate actual manifold pressure after programming.
