BMW MG1 - TC29x Flash Patch, 1CR Repair & FSC Generator 2.0.0

BMW MG1 Workspace - TC29x Flash раtсh, 1CR Repair & FSC Generator

BinUnlock MG1 Workspace is an offline Windows file-processing utility for supported BMW gasoline MG1 / TC29x DME flash files.

The application combines three focused workflows in one workspace:

• Flash раtсh
• 1CR Repair
• FSC Bundle Generator

Both flash workflows operate on an exact 8 MiB / 8,388,608-byte bench-read file, automatically recalculate the required MG1 checksum and publish a new verified output without overwriting the original source.





Key Features

• Offline BMW gasoline MG1 / TC29x file processing
• Exact 8 MiB flash inspection
• BMW MG1 Flash раtсh
• Dedicated 1CR Repair workflow
• E-Sys SWSigStatus rejected repair support
• Automatic MG1 checksum recalculation
• Source SHA-256 inspection
• Verified output SHA-256
• Original source file is never overwritten
• Output reopen and integrity verification
• Verified BMW FSC Bundle generation
• 11 supported FSC Application IDs
• VIN last 7 / Generator ID / Order ID input
• Individual FSC verification
• Atomic FSC ZIP generation
• Light / Dark interface themes
• Activity log with operation and hash information

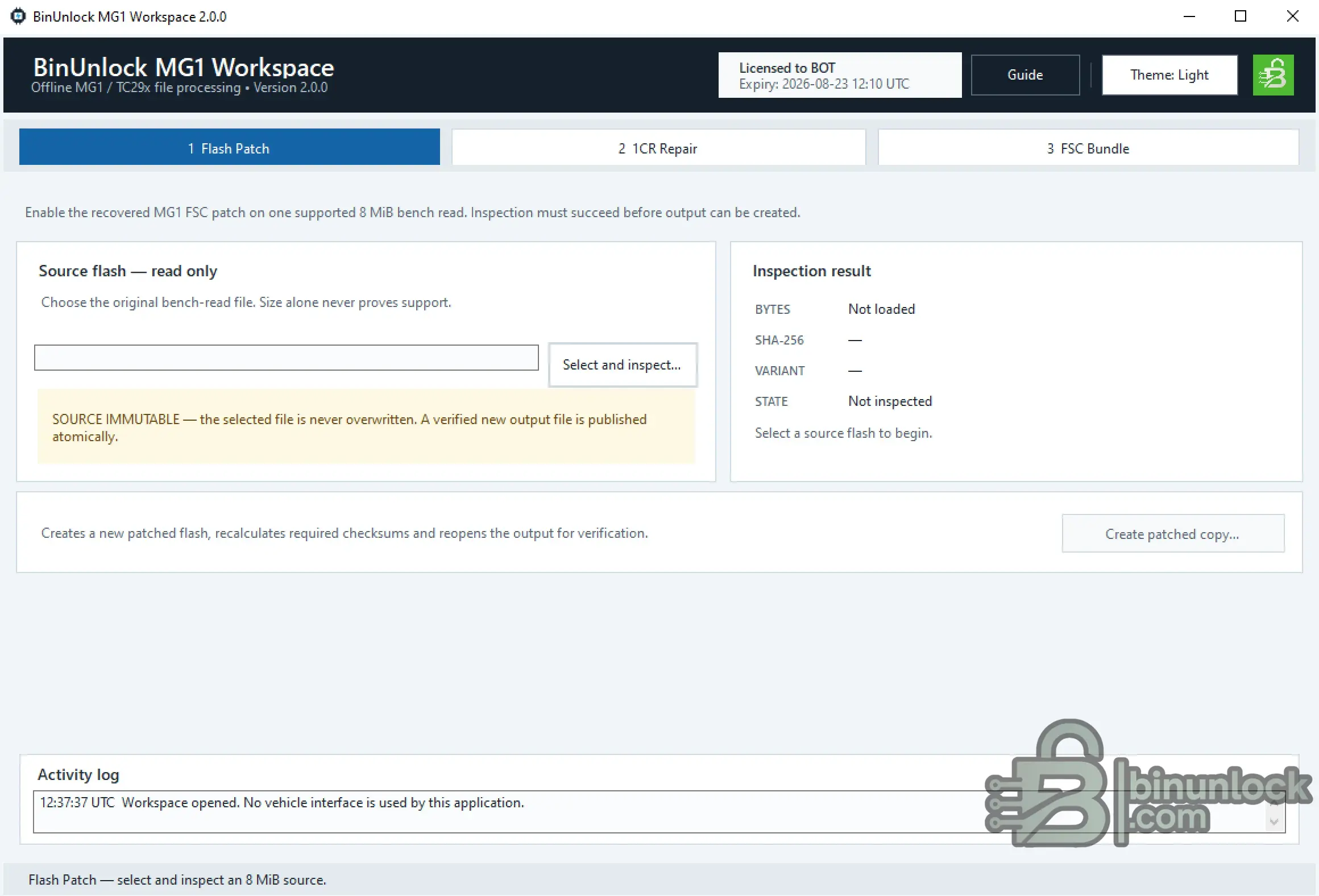

BMW MG1 / TC29x Flash раtсh

Flash раtсh is intended for a supported raw gasoline MG1 / TC29x bench read.

Required source size:


Before creating an output, MG1 Workspace inspects the complete source file and displays:

• File size
• Source SHA-256
• Detected variant
• Current раtсh state
• Inspection result

Only a source that passes the supported inspection state can be processed.

The software creates a new patched copy, recalculates the required checksum and reopens the finished file for verification.

The selected source is never overwritten.

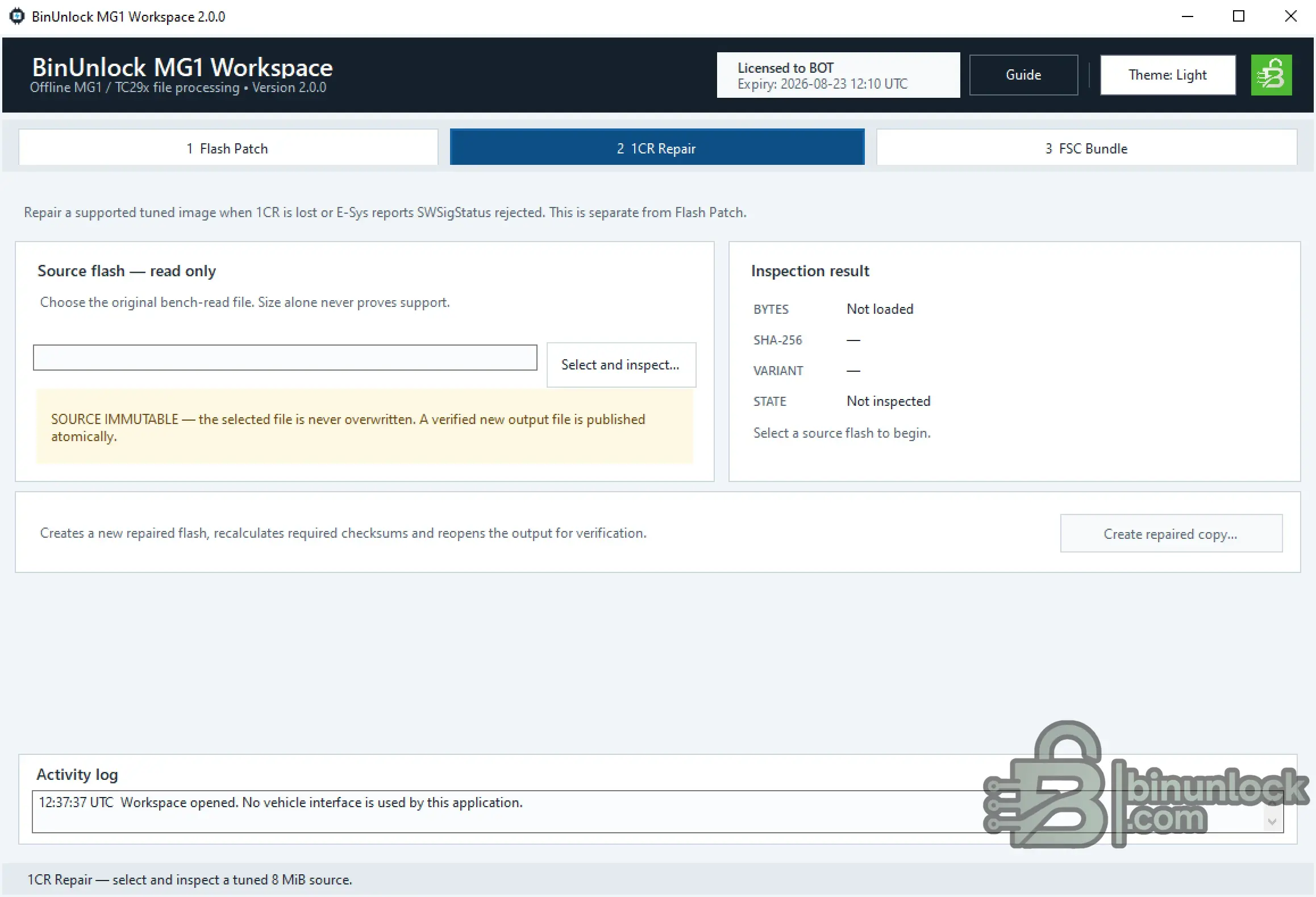

1CR Repair After Tuning

A separate 1CR Repair workflow is included for supported tuned MG1 flash files.

Use this function when:

• The DME flash has already been tuned
• The original 1CR no longer works after tuning
• E-Sys reports SWSigStatus rejected
• The exact tuned 8 MiB image passes inspection as Ready for 1CR Repair

The repair is applied to a new output file and the required checksum is recalculated automatically.

Important:

1CR Repair is not a general tuning repair function.

It is intended specifically for the supported post-tuning 1CR / SWSigStatus condition. An unsupported, already repaired or ambiguous file should not be forced through the workflow.

Click to expand...

Automatic Checksum & File Verification

Flash раtсh and 1CR Repair automatically perform the required supported MG1 checksum recalculation after the file modification.

Before reporting success, the application verifies the published output again.

Verification includes:

• Expected file length
• Expected changed ranges
• Checksum processing
• Output reopening
• Final SHA-256 calculation

The resulting SHA-256 can be retained with the workshop job record and compared with the exact file selected later in the bench programming tool.

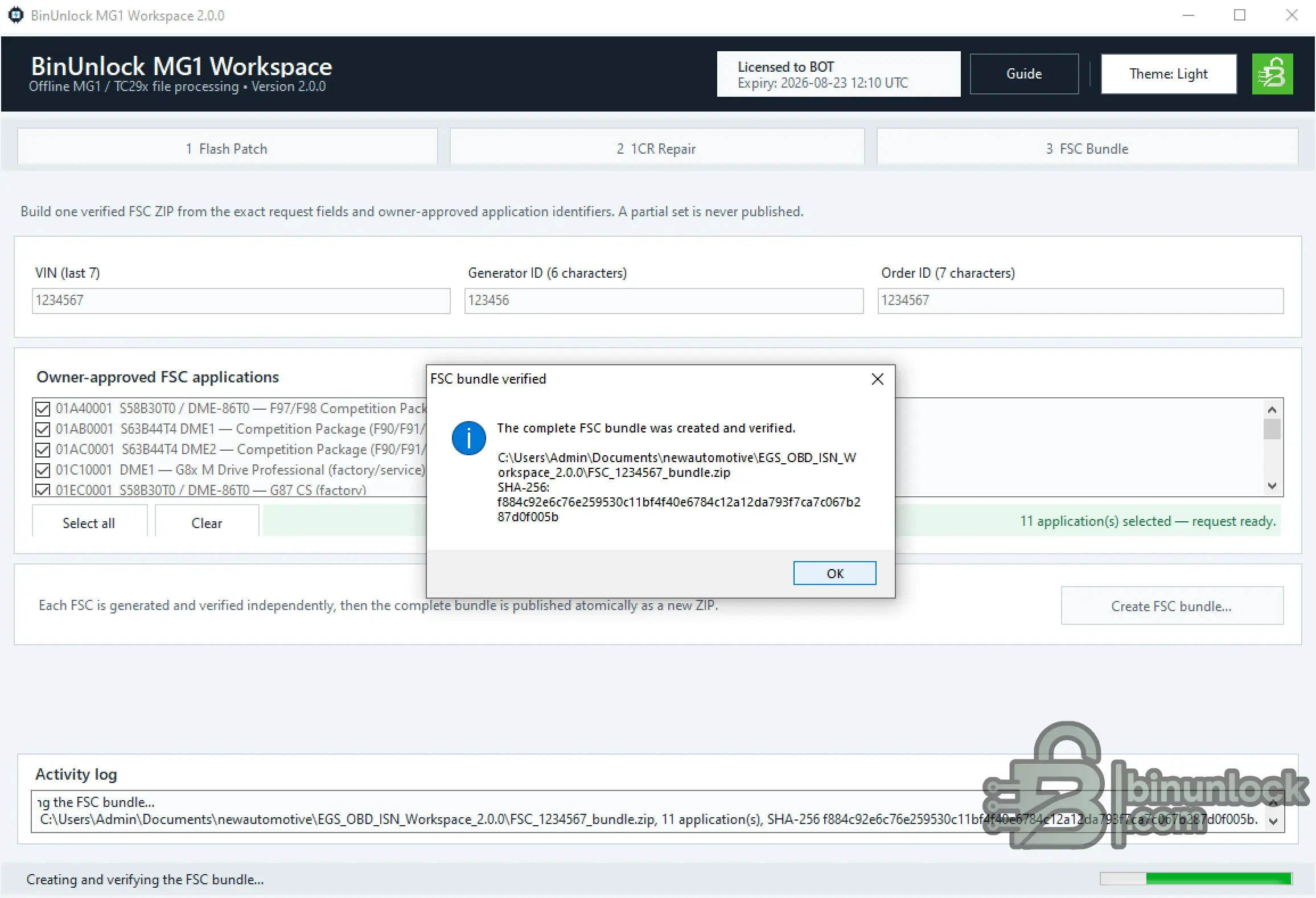

BMW FSC Bundle Generator

MG1 Workspace can also generate a verified FSC ZIP for supported BMW DME applications.

Required request fields:

• VIN - last 7 characters
• Generator ID - 6 characters
• Order ID - 7 characters
• One or more supported FSC Application IDs

Each selected FSC is generated and verified independently before the final ZIP is published.



Supported FSC Applications

The current FSC catalogue contains 11 Application IDs:


DME1 and DME2 Application IDs are separate and should be selected according to the actual vehicle / DME configuration.

The catalogue includes BMW FSC functions for:

• Competition Package
• M Drive Professional
• Remote Engine Start
• M Driver's Package
• Vmax
• G87 CS
• S58B30T0 / DME-86T0
• S63B44T4 DME1 / DME2

FSC ZIP Verification

The FSC Bundle workflow creates one new verified ZIP.

The archive contains:


One FSC file is created for every selected Application ID.

If any requested FSC fails generation or verification, the complete bundle is not published as a successful result.

After successful generation, MG1 Workspace displays and records the final ZIP SHA-256.

Offline File Processing

BinUnlock MG1 Workspace is a file-only application.

It does not:

• Connect directly to a BMW DME
• Read the DME through OBD or ENET
• Perform the physical bench read
• Write or program the DME
• Use J2534 or another programming interface

The required 8 MiB flash must first be read with the appropriate professional bench / programming tool.

After processing, the verified output must be programmed separately using the correct equipment and workshop procedure.

Documentation

The complete English operating guide is included with the resource:


The guide covers Flash раtсh, 1CR Repair, checksum verification, FSC generation, supported Application IDs, file inspection, workflow selection and post-write verification.

File Integrity

Release: BinUnlock MG1 Workspace 2.0.0

SHA-256:


VirusTotal:
View VirusTotal report

The VirusTotal report above corresponds to the executable identified by the exact SHA-256 hash shown above.

Always compare the downloaded application with this SHA-256 before use.

Important

BinUnlock MG1 Workspace is intended for authorized professional BMW DME service, retrofit and development work.

Always preserve the original bench read and verify the exact DME, source file, flash size and SHA-256 before processing.

A successful local file transformation does not prove vehicle compatibility or safe programming conditions.

Use only the verified output file with the correct bench equipment, stable programming power and an established recovery procedure.
