FreeSSM is an independent diagnostic client for selected Subaru control systems that communicate through the Subaru Select Monitor protocol. Its module menu separates engine, transmission, ABS/VDC, cruise control and air-conditioning sessions, making it useful for focused fault reading, identification and live-data checks on compatible vehicles.
The archive label from the source folder mentioned a generic KKL cable, but the extracted application is FreeSSM and is published under its real identity. Compatibility depends on Subaru protocol generation: an inexpensive K-line cable can suit older ISO 9141-era vehicles, while later CAN-only vehicles require other software and hardware.
The archive label from the source folder mentioned a generic KKL cable, but the extracted application is FreeSSM and is published under its real identity. Compatibility depends on Subaru protocol generation: an inexpensive K-line cable can suit older ISO 9141-era vehicles, while later CAN-only vehicles require other software and hardware.
What this resource is for#
Use FreeSSM as a lightweight workshop tool for initial diagnosis and data capture on a compatible Subaru. It is especially useful for reading manufacturer-specific values that are not exposed by a generic emissions scanner, provided the vehicle and interface are confirmed before connection.Confirmed functions#
- Connect to supported Subaru engine and automatic-transmission controllers
- Read and clear supported diagnostic trouble codes after recording them
- Display live parameters and switch states
- Access supported ABS/VDC, cruise-control and air-conditioning modules
- Adjust application preferences and communication settings
- Use the included English and German help documentation
- Record values before and after a repair for comparison
Supported vehicles, controllers and files#
- Subaru models using a compatible SSM/K-line diagnostic implementation
- Engine and transmission coverage is generally broader than secondary-module coverage

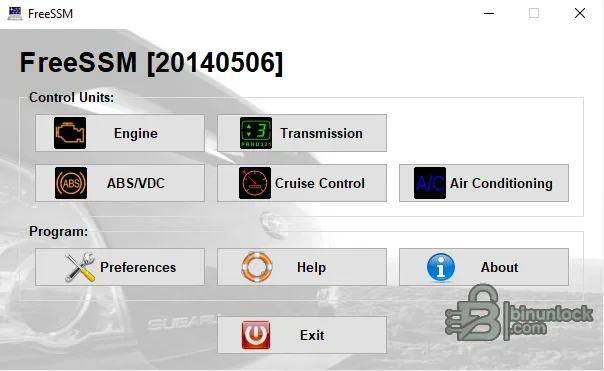

- The visible module buttons include Engine, Transmission, ABS/VDC, Cruise Control and Air Conditioning
- Exact year and module support must be confirmed from protocol response rather than assumed from vehicle badge
- Later CAN-based or secure-gateway vehicles are outside the practical scope of a simple K-line setup
Package contents#
- Portable FreeSSM application
- English and German translations and HTML help
- Font and interface assets required by the application
- Eleven functional files retained from the fully extracted source
- Executable is unsigned and was inspected statically without launch
System, hardware and interface requirements#
- Windows PC or compatible environment for the supplied executable
- Quality USB K-line/KKL interface with the correct FTDI or CH340 driver where applicable
- Vehicle diagnostic connector with the SSM K-line present
- Stable battery voltage for extended live-data sessions
- Subaru wiring information and a second scan tool for unsupported modules
Recommended workshop workflow#
- Confirm that the vehicle diagnostic connector provides the expected K-line
- Install the cable driver and select the correct serial port
- Connect to one controller at a time and record identification first
- Save all fault codes and live values before clearing anything
- Repair the underlying fault, reconnect and compare readings
- Use another diagnostic platform if a required module is not offered
Compatibility limits and responsible use#
- FreeSSM is not the Subaru dealer Select Monitor application
- A KKL cable does not provide CAN diagnostics
- Module availability differs by market, year, powertrain and controller
- Communication loss during a service action can create misleading results
- Do not replace parts based on a code without electrical and mechanical testing
Troubleshooting#
- No connection: verify K-line presence, cable driver, serial port and ignition state
- Engine connects but ABS does not: the secondary module may use a different protocol or be unsupported
- Live data freezes: lower polling load and check interface quality and voltage
- Fault returns immediately: diagnose the circuit instead of repeatedly clearing the code
- Unreadable help pages: keep the doc directory beside the executable
