Injection Duration and EOI Calculator is an offline calibration worksheet for relating rail pressure, injection duration and start-of-injection maps. The interface accepts a rail-pressure table, a duration table and an SOI table, then produces a revised duration map and calculated end-of-injection values. It is intended for calibrators who understand map axes, engineering units and combustion timing rather than for automated one-click tuning.
Correct mathematics does not prove a safe calibration. Injection system limits, injector characterization, combustion pressure, exhaust temperature, smoke, noise and emissions must still be validated for the exact engine and hardware.
Correct mathematics does not prove a safe calibration. Injection system limits, injector characterization, combustion pressure, exhaust temperature, smoke, noise and emissions must still be validated for the exact engine and hardware.
What this resource is for#
Use the calculator to model how a proposed fuel-quantity or rail-pressure change affects energizing duration and the crank-angle point at which injection ends. It can also expose axis mismatches or impossible map regions before a calibration reaches a dyno or vehicle.Confirmed functions#
- Paste or load a rail-pressure map
- Paste or load an injection-duration map
- Paste or load a start-of-injection map
- Calculate a revised duration table from aligned inputs
- Calculate end-of-injection values across the working area
- Copy calculated tables back to a calibration editor
- Use supplied demonstration text tables to understand input layout
Supported vehicles, controllers and files#
- The supplied interface documents a sixteen-by-sixteen rail-pressure input
- The duration and SOI work areas use twenty-by-sixteen table layouts
- Applicability depends on matching axes, units and interpolation assumptions
- No ECU family or vehicle coverage list is bundled
- The tool works on numeric map data rather than directly opening proprietary project formats
Package contents#
- Portable native calculator application
- Three demonstration text tables for duration, rail pressure and SOI

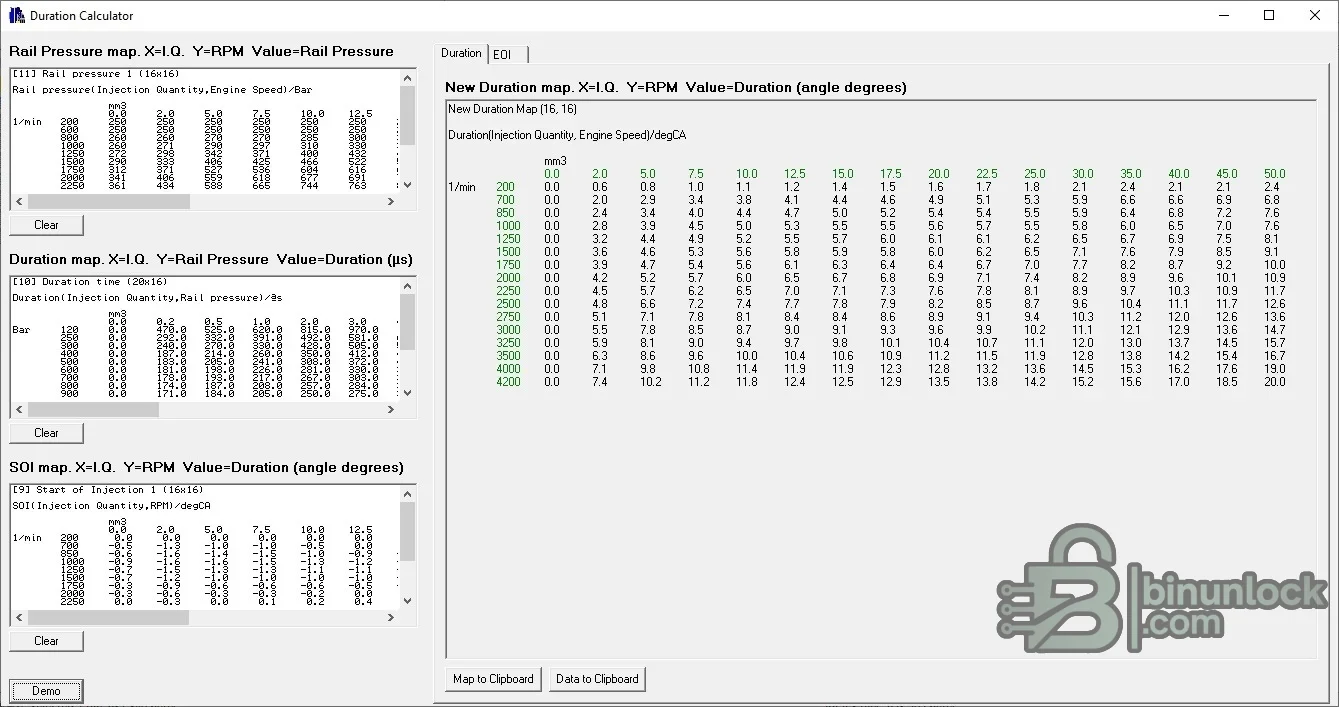

- Original high-resolution interface screenshot
- macOS metadata artifacts are excluded from the clean archive
- No DAMOS, map packs, stock files or modified calibrations are included
System, hardware and interface requirements#
- Windows workstation
- Calibration editor capable of exporting and importing numeric map tables
- Correct axis definitions and units from a trusted project or ECU definition
- Engine and injector technical data plus instrumentation for validation
- Dyno or controlled test environment for any calibration that will be used
Recommended workshop workflow#
- Identify every source table, axis and unit before copying data
- Export rail pressure, duration and SOI tables without changing row or column order
- Use a known stock operating point to confirm the calculator interpretation
- Calculate the proposed table and inspect discontinuities or negative timing margins
- Transfer only the intended values to a working calibration and correct checksums separately
- Validate injection quantity, pressure, EOI, smoke, temperature and torque under controlled conditions
Compatibility limits and responsible use#
- Tables with different axes cannot be combined simply because their dimensions match
- Injector delay and non-linear behavior may require data not represented by a basic calculation
- Unsafe EOI can raise smoke, exhaust temperature or cylinder pressure
- The utility does not enforce engine, turbocharger, fuel-system or emissions limits
- Never distribute or flash an output without independent engineering validation
Troubleshooting#
- Pasted values shift columns: verify decimal separator, delimiters and exact table dimensions
- EOI values are implausible: check crank-angle convention, SOI sign and duration units
- Output has steps: confirm all axes are monotonic and aligned
- Clipboard import fails: use the bundled sample text to reproduce expected formatting
- Calculated table cannot be imported: preserve row/column order and the target editor delimiter
