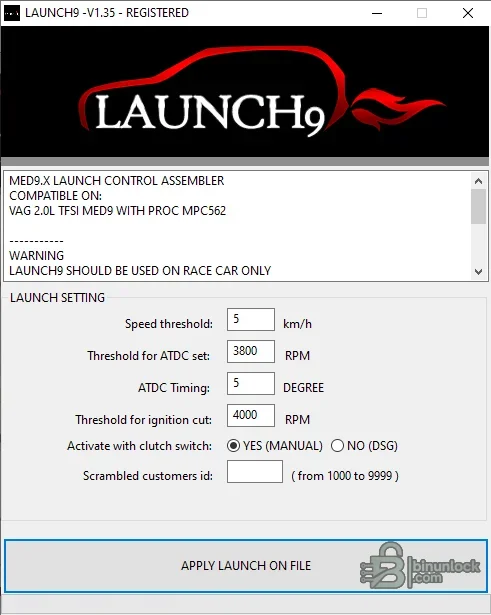

Launch9 MED9 is an offline binary patcher for adding a configurable launch-control routine to selected VAG petrol ECU software. The interface exposes vehicle-speed activation, ignition timing after top dead center, ignition-cut RPM, clutch-switch behavior and an optional customer identifier before applying the routine to a working file.
The program is intended for specialist calibration work on compatible MED9 software and is explicitly marked for racing use. It is not a map definition, flasher or checksum guarantee. Exact ECU hardware, processor, flash layout and software revision must be identified before a раtсh is considered.
The program is intended for specialist calibration work on compatible MED9 software and is explicitly marked for racing use. It is not a map definition, flasher or checksum guarantee. Exact ECU hardware, processor, flash layout and software revision must be identified before a раtсh is considered.
What this resource is for#
Use Launch9 only on a verified supported full binary when building an off-road or motorsport calibration with a documented recovery route. Its value is applying the code routine consistently; calibration safety, checksum handling, clutch input validation and final flashing remain separate engineering tasks.Confirmed functions#
- Open a local MED9 binary file
- Configure the vehicle-speed threshold for the routine
- Set requested ignition timing after top dead center
- Set the ignition-cut engine-speed threshold
- Choose clutch-switch behavior where supported
- Apply the assembled routine to a copy of the loaded file
- Embed the visible scrambled customer identifier option where required
Supported vehicles, controllers and files#
- Interface identifies VAG petrol MED9.x applications with Motorola MPC562
- Bosch MED9.1 on VAG two-litre TFSI applications is commonly associated with MPC562 and external flash memory
- Compatibility is software-layout specific and cannot be inferred from MED9 branding alone
- Manual and automatic-transmission strategies may handle launch conditions differently
- A correct full read, original backup and controller-specific checksum method are mandatory
Package contents#
- Launch9 application and companion loader
- Original configuration screenshot
- Two unsigned native executables inspected statically without launch
- No ECU file, map pack, DAMOS, firmware collection or vehicle-specific calibration is included
System, hardware and interface requirements#
- Windows tuning workstation or isolated VM
- Known-good full ECU read from compatible MED9 hardware
- Programmer that supports the exact MPC562/external-flash controller
- Checksum solution appropriate to the software revision
- Wideband, knock and temperature monitoring plus closed-course test facilities
Recommended workshop workflow#
- Record ECU part number, software ID, processor and original file hash
- Confirm the clutch input and requested launch strategy in wiring and code
- раtсh a working copy with conservative thresholds
- Compare code changes and correct checksums using the validated method
- Bench-verify communication and retain boot/BDM recovery capability
- Test only in a controlled motorsport environment while logging engine protection channels
Compatibility limits and responsible use#
- The utility does not prove support for the loaded file
- Launch control increases thermal and mechanical stress on engine, turbocharger, clutch and driveline
- Incorrect timing or cut thresholds can damage components
- Road use, emissions and noise legality vary by jurisdiction
- Do not flash when the changed regions or checksum behavior are not understood
Troubleshooting#
- File rejected: verify full-read size, byte order and exact MED9 software family
- раtсh applies at an unexpected offset: discard output and compare with another known original
- Routine does not arm: verify speed and clutch signals in live data
- ECU rejects file: restore the original with the recovery-capable programmer
- Unstable launch behavior: stop testing and review timing, fueling, torque intervention and hardware
