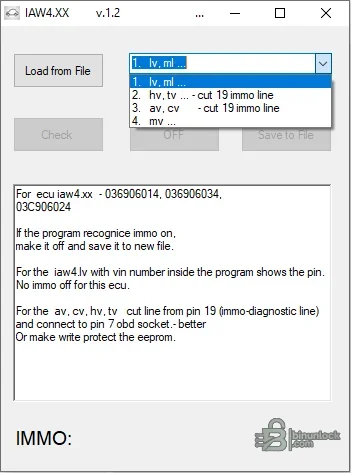

Magneti Marelli IAW4xx Immobilizer File Tool is an offline utility for selected VAG-oriented IAW4xx EEPROM layouts. The interface loads a file, checks whether the immobilizer structure is recognized and writes a separate output. Its visible profiles include IAW4LV, IAW4TV, IAW4AV, IAW4CV, IAW4HV and IAW4MV-related paths, with notes that some variants require a physical immobilizer-diagnostic line change rather than a file-only operation.
The application lists specific controller identifiers and distinguishes file processing from wiring requirements. Those boundaries matter: selecting a similar family or ignoring the stated line condition can leave the ECU locked or create a nonrecoverable mismatch.
The application lists specific controller identifiers and distinguishes file processing from wiring requirements. Those boundaries matter: selecting a similar family or ignoring the stated line condition can leave the ECU locked or create a nonrecoverable mismatch.
What this resource is for#
Use the tool only for authorized repair or replacement of a supported IAW4xx ECU after the correct EEPROM has been read and backed up. Select the profile from the exact controller identity, allow the program to check recognition and save to a new file.Confirmed functions#
- Load a supported IAW4xx EEPROM file
- Choose the exact controller-variant workflow
- Check whether the immobilizer data is recognized
- Display recognized immobilizer status
- Write a separate processed output
- Show the PIN for a recognized IAW4LV file where the application supports it
- Provide variant-specific notes for physical line handling
Supported vehicles, controllers and data#
- Visible ECU identifiers include 036906014, 036906034 and 032906024
- The interface lists IAW4LV/MI, TV/HV, AV/CV and MV-related options
- IAW4LV is documented in the screen as containing VIN/PIN information when recognized
- TV, HV, AV and CV notes refer to immobilizer-diagnostic line nineteen handling
- No claim is made for an IAW family or identifier not shown by the program
Package contents#
- Single native Windows executable
- Original screenshot documenting variants, ECU identifiers and wiring notes
- No ECU dump, wiring harness, programmer or checksum package
- Executable is unsigned and was statically inspected without launch
System, hardware and interface requirements#
- A dedicated Windows workshop computer or isolated virtual machine with administrator access for legacy software where required
- Enough free space for the extracted package, immutable originals, working copies and verification outputs
- A second trusted application or OEM document for checking identifiers and results before any vehicle-side action
- Current backups and a documented recovery route before changing configuration, EEPROM or flash data
- Stable vehicle or bench power whenever a connected diagnostic or programming step follows the offline work
- Verified EEPROM read from the exact IAW4xx controller
- Programmer and pinout documentation for the target memory
- Ability to restore the original and perform required adaptation or wiring checks
Recommended workshop workflow#
- Identify the vehicle and control unit from labels, part numbers, hardware and software identifiers rather than appearance alone
- Preserve the original file or configuration and record its byte size and SHA-256 before processing
- Use one clearly named working copy for one operation and never overwrite the only known-good backup
- Review the proposed result against the original and confirm that every changed region or parameter is understood
- Validate with the correct OEM diagnostic or programming system before writing or committing configuration
- Complete a post-operation scan or functional test and retain a concise repair record without public customer data
Compatibility limits and responsible use#
- A matching family name does not prove compatibility with every hardware revision, software branch, memory layout or market
- The package does not replace OEM service information, ownership checks, qualified diagnosis or a tested recovery method
- Security and immobilizer functions are for authorized repair of owned or customer-authorized property only
- Legacy unsigned executables should be isolated and independently scanned; no malware-free claim is made
- Never post VINs, keys, PINs, active seeds, calculated responses, customer files or proprietary controller dumps publicly
- File processing does not replace the variant-specific physical line requirement shown by the tool
- A displayed PIN or processed state must remain private and vehicle-authorized
Troubleshooting#
- Input is rejected: verify the exact file type, byte count, controller family and read method before trying another option
- Result is empty or implausible: stop and recheck identity, endian order, source quality and the selected workflow
- Application does not start: use an isolated compatible Windows environment and install only required trusted runtimes
- Changes are unexpectedly broad: discard the output and compare again from the untouched original
- Vehicle-side validation fails: restore the documented baseline and diagnose power, wiring, interface and controller state separately
