PedroSoft ECU Tool is an offline binary processor built around a library of ABC definition templates. After a firmware file is opened, the program identifies the controller family, scans its definitions and reports which EGR, DPF, AdBlue or intake-flap operations have a matching template.
This release is not a universal one-click solution. The supplied library targets specific software layouts, and the on-screen MATCH FOUND result must be checked against the exact part number and a verified original read before a modified file is written to an ECU.
This release is not a universal one-click solution. The supplied library targets specific software layouts, and the on-screen MATCH FOUND result must be checked against the exact part number and a verified original read before a modified file is written to an ECU.
What this resource is for#
The application is designed for bench-file analysis and controlled calibration work. It can automate known byte-pattern changes when a supplied template matches, while also offering a template-creation function for experienced users who understand the binary structure.Confirmed functions#
- Automatic directory scan for matching ABC definitions
- Selectable EGR, DPF, AdBlue and intake-flap operations where templates exist
- Create ABC option for building additional definitions

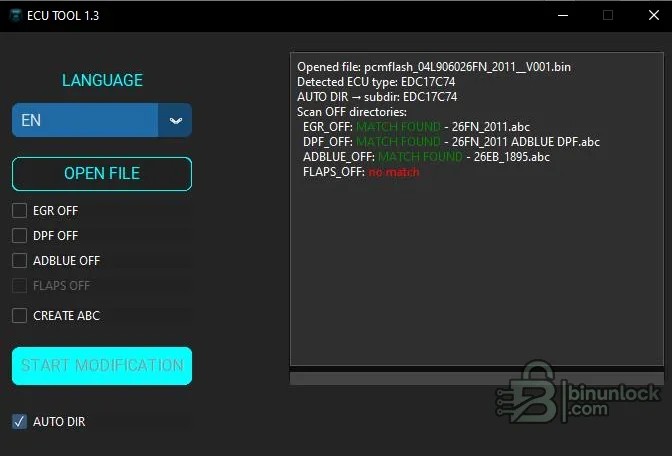

- Detected ECU type and matching-definition log shown before modification starts
- Output-file workflow that leaves the original read available as a backup
Supported controllers, files and vehicles#
- Bosch EDC17C46, EDC17C64 and EDC17C74
- Bosch EDC17CP14 and EDC17CP20
- Siemens PCR2.1 and PPD diesel families
- Selected VAG EDC15 and VAG Magneti Marelli layouts
- Template folders contain software-number-specific definitions; controller-family coverage does not mean every firmware revision is supported
Package contents#
- Main PedroSoft application
- More than one hundred ABC definitions grouped by ECU family and requested operation
- Templates whose filenames expose numerous VAG software identifiers for matching
- No program or template was executed during preparation
System and interface requirements#
- Windows PC with permission to read and write a local working folder
- Complete ECU binary read from a suitable bench, boot or OBD programming tool
- Enough storage for original, working and modified copies
- Separate checksum verification when the chosen programming workflow does not correct it automatically
Recommended workshop workflow#
- Read the ECU twice and confirm identical hashes
- Open a copy of the original and record the detected controller and software identity
- Enable only the operation required for the repair and confirm that the corresponding template reports a match
- Start modification and save the result under a new descriptive filename
- Compare changed regions, verify checksum handling and retain the original before programming
Compatibility limits and responsible use#
- No-match status means the current library does not support that exact file
- A similarly named part number is not sufficient evidence that a template is compatible
- Emissions-related changes may be restricted to off-road, motorsport or lawful repair use depending on jurisdiction
- The application does not diagnose wiring, sensors, dosing hardware or mechanical EGR/DPF faults
Troubleshooting#
- If the ECU type is detected but every operation shows no match, verify file size and software number
- If a template appears to match an implausible file, stop and compare the target bytes manually
- If the programmed ECU does not start, restore the original verified read before any further experiment
