For the Radar Calibration drive, the answer is NO.
In fact, it is better if you are NOT connected to the internet.
Here is why:
- The Connection: The communication happens between your Laptop and the Car (via the VCX SE). This does not require the internet.
- Stability: If you are using a "patched" or "offline" version of Xentry (which 99% of forum downloads are), connecting to the internet can sometimes cause the license check to fail or the software to try to update and lock you out.
- The Drive: You will be driving on a public road. Your laptop needs to stay awake and connected to the VCI. You do not need a hotspot.
Important Note on the VCX SE:
The VCX SE device itself has "WiFi" to connect to your laptop wirelessly (so you don't need a USB cable across your lap while driving).
- Safe to use: You can use the VCX WiFi to connect the dongle to the laptop for reading codes or calibration.
- Better option: For critical tasks (like flashing or unlocking the HV system), always use the USB cable. If the WiFi drops for 1 second during a critical command, the process will fail.
Summary: Turn off your laptop's internet WiFi. Connect the VCX SE via USB cable. Go drive.
Post #203
Post #204
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States

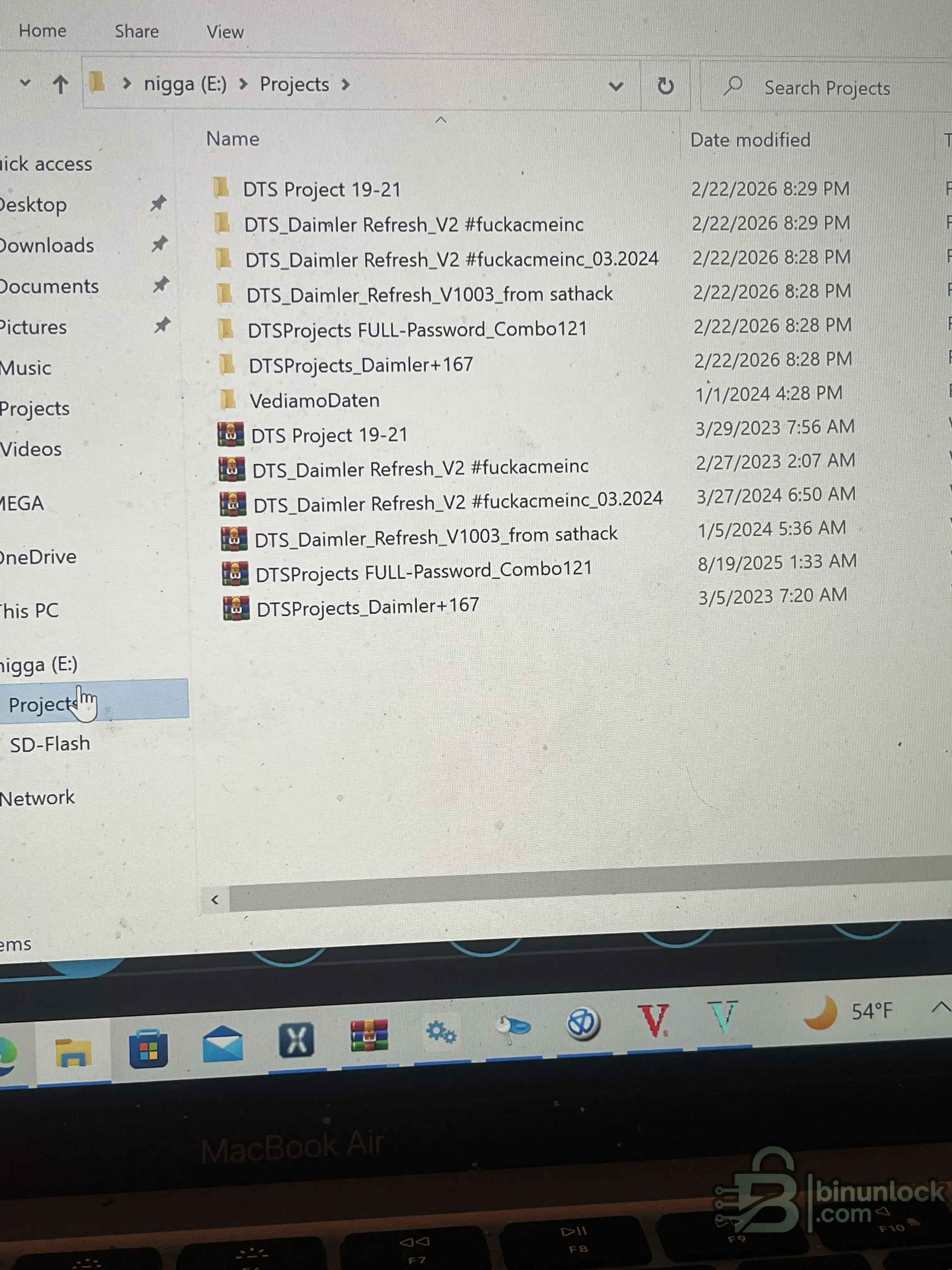

Yes, absolutely. DTS Monaco is just an empty shell without a "Project."
A Project contains the database files that tell the software how to talk to your specific car. Without it, DTS Monaco won't know which commands to send or how to read the responses.
For your EQE (which is a very new car), you specifically need SMR-D files.
(Older cars used CBF files, but the EQE uses the newer SMR-D standard).
Where do you get them?
If you have Xentry installed on the same laptop, you likely already have the files on your hard drive. You just need to "import" them into DTS Monaco.
1. Open the DTS Monaco System Configurator.
2. Go to the Project Administration tab.
3. Create a new project (or right-click -> Import).
4. When asked for the source files, look in this folder:
Code:
C:\ProgramData\Mercedes-Benz\Xentry\OdxProjectsYou are looking for the folder/file that corresponds to your chassis (W295 for EQE) or the specific domain (like "Powertrain" or "BMS").
If you don't load the correct project, DTS Monaco might connect, but it will show you "Unknown ECU" or just raw hex numbers instead of buttons like "Unlock HV."
Post #205
Post #206
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
It can be confusing because there are different versions of the "medicine," but the process is almost always the same.
1. The Chinese kеуg**
You don't need to read the text. You just need to follow the standard order:
- Top Box: This is usually for your "Name" (you can type anything, e.g., "Admin").
- Middle/Long Box: This is where you paste your Hardware ID.
- Button: Click the button (usually bottom right or next to the ID box) to generate the file.
2. Where to get the Hardware ID?
When you try to start DTS Monaco and it fails, it usually shows a small window with a long code (ID). Copy that code.
3. Where to put the License File?
The kеуg** will create a file (often named
license.txt, license.lic, or similar). You do not "upload" this inside the software. You must move the file to a specific folder on your Windows drive.For DTS Monaco 8.16 (most common), paste the license file here:
Code:
C:\ProgramData\Softing\Diagnostic Tool Set\8.16\license\ProgramData is a hidden folder. You might need to type it manually in the address bar at the top of the folder window).For DTS Monaco 8.14, it is usually here:
Code:
C:\ProgramData\Softing\Diagnostic Tool Set\8.14\license\Once the file is in that folder, restart DTS Monaco. It should open without asking for a key.
Post #207
Post #208
Post #209
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
To get Xentry to recognize your VCX SE, you must install the correct driver inside the VX Manager software. You cannot just plug it in and expect Xentry to see it.
The exact step depends on which version of Xentry you installed: Xentry Passthru or Xentry OpenShell (XD).
Step 1: Identify your Xentry Version
Look at the Xentry icon on your desktop or the name of the release you downloaded.
- Xentry Passthru: Usually has "Passthru" in the name. It is designed for 3rd party cables.
- Xentry OpenShell / XD: This is the standard dealer version designed for C4/C5/C6 multiplexers.
Step 2: Install the Driver in VX Manager
1. Close Xentry completely.
2. Connect your VCX SE to the laptop via USB.
3. Open VX Manager.
4. Click on the "Diagnostic" tab.
If you have Xentry OpenShell (Most Common):
- Find the icon labeled "BENZ C6".
- Click it and press Install.
- Note: This driver tricks Xentry into thinking your VCX is a genuine Mercedes VCI.
If you have Xentry Passthru:
- Find the icon labeled "PASSTHRU".
- Click it and press Install.
Step 3: Verify the Connection
1. Keep the VCX plugged in.
2. Open Xentry.
3. Look at the icons in the top right corner (or the voltage display).
* Battery Voltage: You should see the car's battery voltage (e.g., 12.5V) displayed. If it says "0.0V" or is greyed out, it is not connected.
* Lock Icon: If you see a padlock icon, it means the VCI is locked/connected.
Troubleshooting for EQE (DoIP)
Since you are working on an EQE, you need DoIP (Ethernet communication).
1. Go back to VX Manager.
2. Click on "Device Configuration" or settings.
3. Ensure "DoIP Switch" or "DoIP Update" is enabled/checked.
4. If the VCX SE firmware is old, click "Firmware" on the main screen and Update it. DoIP often fails on old firmware.
Post #210
Post #211
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
If the firmware update didn't fix it, the issue is likely one of three things: Ignition state, Xentry version, or the specific Driver setting.
Here is the checklist to get it talking to the EQE:
1. The "EV Ignition" State
This is the most common mistake on EVs.
- The car must be in "Ignition ON" mode, not just "Accessory" mode.
- Press the Start button twice without your foot on the brake.
- The instrument cluster should light up fully with all the warning lights. If the cluster is dark or only shows the door open, Xentry cannot talk to the Gateway.
2. Update the License in VX Manager
After you update the firmware (to 1.9.6.0), you must update the license on the device, or the diagnostic functions will stay locked.
- Open VX Manager.
- Click the "Update License" button (usually on the main screen or under the Device tab).
- Wait for it to say "License Updated."
3. Check Your Xentry Version
The EQE (W295) is a very new car.
- If your Xentry version is older than 09/2022, it does not have the database files for the EQE. It will never detect it.
- You need Xentry 2023 or 2024 for proper support of this chassis.
4. Try Manual Selection
If "Auto-Detect" fails, try to force the connection:
- In Xentry, choose the "Mercedes-Benz" brand.
- Select "Passenger Car".
- Look for the "EQE" or "295" chassis code in the list.
- Click it and try to connect.
5. The Driver Conflict (C6 vs Passthru)
Double-check which Xentry you have vs. which driver you installed in VX Manager.
- If you have Xentry OpenShell (the standard icon), you MUST install the BENZ C6 driver in VX Manager. Uninstall the Passthru driver if it is there.
- If you have Xentry Passthru (it says Passthru in the name), you MUST install the PASSTHRU driver in VX Manager.
Post #212
Post #213
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
That is actually good news. If the car screen says "Diagnostics Connected" (or shows the icon), it means the VCX SE is physically working and has successfully woken up the car's Gateway.
The problem is now purely between the VCX SE and your Laptop. The data is getting to the dongle, but it is not getting into Xentry.
Since this is an EQE (DoIP car), this is almost certainly a Network/IP Configuration issue.
Here is how to fix the link:
1. Check the DoIP Switch
The EQE communicates via Ethernet (DoIP), not the old CAN bus lines.
- Open VX Manager.
- Go to Device Configuration (or the Settings tab).
- Look for a checkbox that says "DoIP" or "DoIP Switch".
- Make sure it is CHECKED / ON.
- If you change it, click "Save" and restart the device (unplug/replug).
2. Check the Windows Network Adapter
When you plug in the VCX SE, it creates a "Virtual Network Adapter" on your laptop. Xentry uses this to talk to the car.
- On your laptop, go to Control Panel -> Network and Sharing Center -> Change Adapter Settings.
- Plug in the VCX SE via USB.
- You should see a new Local Area Connection appear (often labeled "Realtek USB GbE" or similar).
- Right-click it -> Properties -> Internet Protocol Version 4 (TCP/IPv4).
- Make sure it is set to "Obtain an IP address automatically" (DHCP).
- If it is already automatic and failing, try setting it manually to:
IP:Code:172.29.127.120Subnet:Code:255.255.0.0
3. Disable the Firewall
Windows Defender Firewall often blocks the DoIP connection because it looks like an "Unidentified Network."
- Temporarily turn off ALL firewalls (Domain, Private, and Public).
- Try to connect in Xentry again.
4. The "C6" Driver Check
If you are using Xentry OpenShell (XDOS), you must have the BENZ C6 driver installed in VX Manager.
- If you installed the "Passthru" driver in VX Manager but you are running Xentry OpenShell, it will wake the car up but fail to read data.
- Uninstall "Passthru" in VX Manager and install "BENZ C6".
Summary:
The car sees the tool, so the cable is fine. The issue is that Xentry is looking for data on a network port that is either blocked by a firewall or not configured correctly in Windows.
Post #214
Post #215
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
That message on your dashboard is actually good news.
It confirms that the car detects the VCX SE and has entered "Diagnostic Mode." The physical connection is working. The problem is that the data is stopping at the dongle and not reaching the Xentry software on your laptop.
This is almost always caused by a mismatch between your Xentry Version and the Driver you installed in VX Manager.
You need to match them exactly:
Step 1: Check your Xentry Icon
Look at the Xentry icon on your desktop.
- Does it say Xentry Diagnosis (OpenShell) or XDOS?
- Or does it say Xentry Passthru?
Step 2: Install the Correct Driver
Open VX Manager, go to the Diagnostic tab, and look at what is installed.
If you have Xentry OpenShell (XDOS):
- You MUST install the driver named BENZ C6.
- You MUST Uninstall the driver named "Passthru" (if it is installed).
- The "Benz C6" driver allows the VCX SE to use the DoIP (Ethernet) protocol required for your EQE.
If you have Xentry Passthru:
- You MUST install the driver named PASSTHRU.
- You MUST Uninstall the "Benz C6" driver.
Step 3: The DoIP Switch
Since the EQE communicates via Ethernet (DoIP), you must ensure the VCX SE is broadcasting correctly.
- Open VX Manager.
- Go to Device Configuration (or Settings).
- Make sure DoIP is checked/enabled.
- If you change it, click Save and unplug/replug the device.
Summary:
The car is waiting for commands (that's why it shows the message). Xentry isn't sending them because it's looking for a "C6" unit but you might have the "Passthru" driver installed (or vice versa). Fix the driver in VX Manager, and Xentry should immediately see the voltage and connect.
Post #216
Post #217
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
Since you have Xentry OpenShell, you must configure the VCX SE to "pretend" to be a genuine Mercedes C6 Multiplexer.
Here is the exact fix:
1. The Driver Switch (Critical)
Open VX Manager.
Go to the Diagnostic tab.
- UNINSTALL the driver named "PASSTHRU" (if it is installed).
- INSTALL the driver named "BENZ C6" (sometimes just labeled "BENZ" or "XENTRY").
*Why?* OpenShell does not listen to "Passthru" drivers by default. It looks for a specific C6 connection. The "BENZ C6" driver creates that emulation.
2. Enable DoIP
Since your EQE requires Ethernet communication:
- In VX Manager, go to Device Configuration.
- Make sure DoIP is checked/enabled.
- Click Save.
3. Do NOT use the Mercedes VCI Manager
Do not try to configure the device using the "ConfigAssist" or "VCI Manager" icons on your desktop. Those are for genuine tools. VX Manager handles everything in the background.
4. Restart and Connect
1. Unplug the VCX SE from the laptop.
2. Restart your laptop.
3. Plug the VCX SE back in.
4. Open Xentry OpenShell.
You should now see the voltage in the top right corner, and it should connect to the car.
Post #218
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
If the car sees the device but Xentry does not, the "Bridge" (Driver) between the VCX and Windows is broken.
Here are the 3 most common reasons this happens with Xentry OpenShell + VCX SE:
1. The "VCI Manager" Test
We need to see if the driver is actually loaded.
- Close Xentry and VX Manager.
- Open the VCI Manager (The Mercedes-Benz icon on your desktop, NOT the VX Manager).
- Look at the list on the left.
- Do you see a VCI icon there?
- If the list is EMPTY: The "Benz C6" driver from VX Manager did not install correctly. This is often blocked by Windows Security.
- If you see the VCI but it has a Red X or says "Disconnect": It is a firewall/IP issue.
2. Secure Boot (BIOS) Blocking the Driver
The VCX SE drivers are not signed by Microsoft. If your laptop has "Secure Boot" enabled in the BIOS, Windows will silently block the driver from loading, even if VX Manager says "Installed."
- Restart your laptop and enter BIOS (usually F2 or Del).
- Find the "Secure Boot" setting.
- Set it to DISABLED.
- Save and Exit.
3. The IP Address (Critical for EQE/DoIP)
Since the EQE uses Ethernet, the network settings must be exact.
- Plug in the VCX SE.
- Go to Control Panel -> Network and Sharing Center -> Change Adapter Settings.
- Find the new Network Adapter (it usually says "Realtek USB GbE" or just "Ethernet X").
- Right-click -> Properties -> Internet Protocol Version 4 (TCP/IPv4).
- Set it to Use the following IP address:
Code:IP Address: 172.29.127.119 Subnet Mask: 255.255.0.0 - Click OK and try Xentry again.
Summary:
If VCI Manager is empty, disable Secure Boot and reinstall the "Benz C6" driver in VX Manager.
If VCI Manager sees it, fix the IP address as shown above.
Post #219
Post #220
- Joined
- 09.05.2025
- Messages
- 2,168
- Reaction score
- 691
- Location
- United States
This is the most common confusion with the VCX SE.
You can IGNORE the "No VCI Paired" message in the Mercedes VCI Manager.
The VCX SE is an emulator. It does not "pair" like a genuine $2,000 Mercedes C6 Multiplexer. It will often show as disconnected or empty in the VCI Manager tool, but it will still work inside Xentry if the driver is loaded correctly.
Since Xentry is still not connecting, the issue is that the "Emulator Driver" is being blocked by Windows.
Here is the fix:
1. Disable Secure Boot (Crucial)
The VCX SE driver is not signed by Microsoft. If your laptop has "Secure Boot" enabled in the BIOS, Windows will silently block the driver, even if VX Manager says "Installed."
- Restart your laptop and enter BIOS (F2, F10, or Del).
- Find "Secure Boot" and set it to DISABLED.
- Save and Exit.
2. Clean Reinstall of the Driver
Once Secure Boot is off, you must reload the driver files:
- Open VX Manager -> Diagnostic Tab.
- Uninstall the "BENZ C6" driver.
- Restart the Laptop.
- Open VX Manager -> Diagnostic Tab -> Install "BENZ C6" driver again.
3. Verify the "Virtual" Connection
Do not look at VCI Manager. Look at your Windows Taskbar (bottom right, near the clock).
- Do you see a small icon that looks like a grey or white pyramid (VX Manager Agent)?
- If not, open VX Manager and keep it open in the background.
4. The Final Test
- Connect the VCX SE to the car (Ignition ON).
- Connect the USB to the laptop.
- Open Xentry OpenShell.
Manual IP Configuration (For DoIP/Ethernet):
- Go to Control Panel -> Network Connections.
- Find the "Realtek USB GbE" adapter (or the one created by the VCX).
- Right-click -> Properties -> IPv4.
- Set to Manual IP:
Code:IP Address: 172.29.127.119 Subnet Mask: 255.255.0.0 - Click OK and try Xentry again.
Activity
So far there's no one here
Similar threads
