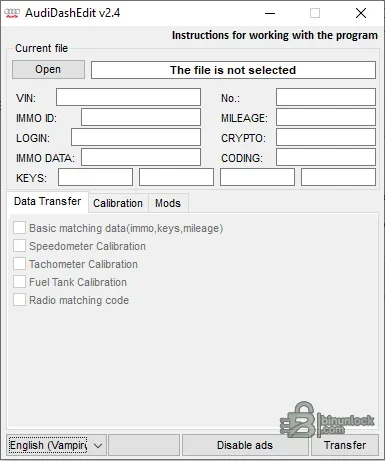

Audi DashEdit is an offline editor for recognized Audi instrument-cluster memory files. The workspace exposes identity and configuration fields such as VIN, immobilizer identifier, login, key data, mileage, coding and cryptographic information, together with separate data-transfer, calibration and modification pages. Visible calibration controls cover speedometer, tachometer and fuel-tank behavior, while other supported fields include radio matching and cluster-specific settings.
The application works on a dump already read from the cluster; it does not read a dashboard through OBD and it cannot make an unknown file compatible. Exact cluster family, memory device, file size and software layout must be established before editing.
The application works on a dump already read from the cluster; it does not read a dashboard through OBD and it cannot make an unknown file compatible. Exact cluster family, memory device, file size and software layout must be established before editing.
What this package is for#
Use DashEdit to inspect a verified cluster backup, confirm that the file is recognized and make a controlled working copy for an authorized repair or replacement. Compare every decoded identifier with the vehicle and cluster label before saving; one plausible field is not enough to validate the complete layout.Main functions#
- Open and save supported instrument-cluster memory files
- Display VIN, immobilizer identifier and login where the layout exposes them
- Review supported key and immobilizer data fields
- Inspect or adjust mileage only for lawful replacement and documented repair
- Review coding and basic matching information
- Access supported speedometer, tachometer and fuel-tank calibration fields
- Review radio matching and other cluster-specific modification pages
Supported vehicles, systems and control units#
- Selected Audi instrument-cluster EEPROM layouts recognized by the supplied application
- Coverage is file-layout based, not universal across all Audi models or model years
- VDO, Magneti Marelli or other cluster families must not be assumed interchangeable
- Memory type and exact byte count must match the supported layout
- The tool does not include an EEPROM programmer, OBD interface or wiring diagrams
- Immobilizer and key data must be handled only for an authorized vehicle
Package contents#
- Latest supplied Audi DashEdit executable
- Language resource files included with the selected release
- Single factual interface screenshot
- Older application revisions are intentionally excluded from the clean package
- No customer dumps, keys, VIN lists or calibration examples
PC, interface and workshop requirements#
- A dedicated Windows workshop computer with local administrator rights for installation and drivers
- Stable battery support appropriate to the vehicle whenever a live diagnostic session is used
- The correct communication interface, cable and driver for the target system
- Reliable controller identification from the label and a complete pre-work diagnostic scan
- Enough free storage for the extracted package, logs and immutable backups
- A suitable EEPROM or MCU programmer for the exact cluster memory
- At least two matching reads and a documented original-file checksum
- Legal authorization for immobilizer, key and odometer-related repair
Recommended workflow#
- Identify the cluster manufacturer, part number and memory device
- Read the memory twice and compare both files byte for byte
- Open a copy and require coherent VIN, immobilizer and coding fields
- Change only the documented field needed for the repair
- Save to a new file and compare the modified ranges with the original
- Write under stable power, verify the memory and complete vehicle diagnostics
Important limitations#
- A menu entry or brand name is not proof of support for every model year, market or controller revision
- This package does not replace current OEM service information, wiring diagrams or security authorization
- Do not attempt configuration, key, immobilizer or programming work on an unidentified module
- Never use the only original EEPROM, flash, configuration or diagnostic capture as the working file
- Decoded text does not prove that every checksum or redundant data area will be repaired automatically
- Odometer and immobilizer work is regulated in many jurisdictions and requires accurate records
Troubleshooting checklist#
- File not recognized: verify memory type, read mode, byte order and exact size
- Decoded values are nonsense: stop; the selected cluster layout is wrong or the read is corrupt
- Saved file differs widely: do not write it until every changed region is understood
- Cluster does not wake after write: restore the verified original and check power, wiring and memory orientation
- Keys or immobilizer state disagree: use approved vehicle diagnostics and the original backup
